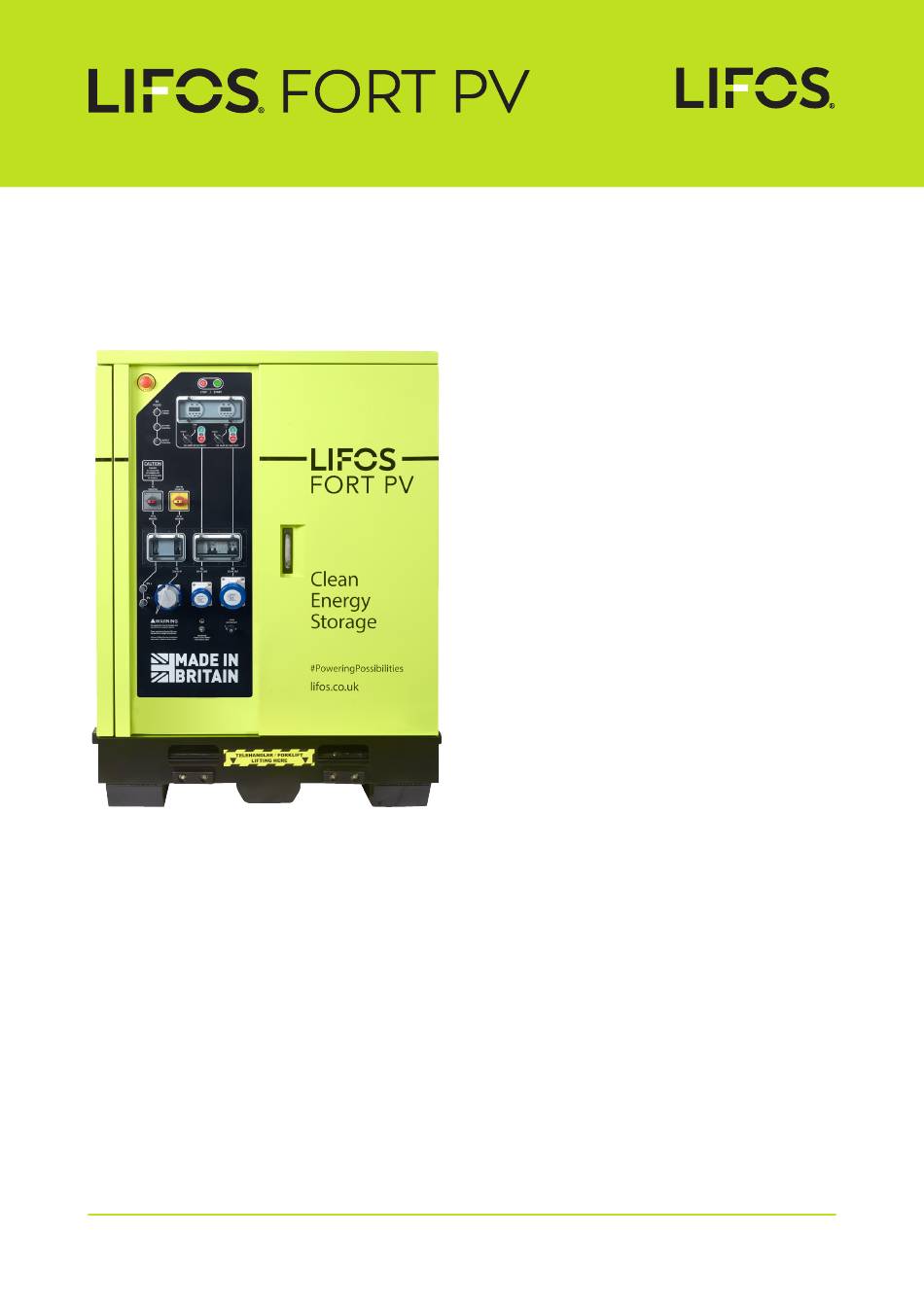

RENEWABLE HYBRID POWER
User Manual
LIFOS FORT PV
BATTERY STORAGE UNIT
Model Num:
LF1010SPVG
LF1020SPVG
LF1035SPVG
LF1010SG
LF1020SG
LF1035SG
Important: please read before first use.
ADVANCED BATTERY TECHNOLOGY
INDEX
2
INTRODUCTION
2
The FORT
3
SAFETY
3
General safety
4
Unpacking, unloading and handling
4
General instruction
4
Unpacking
5
Unloading and handling
6
Lifting by forklift or telehandler
6
Lifting by straps
7
Transportation
7
Siting the FORT
8
Earthing
8
Storage
8
Switch off the computer
9
OPERATION
9
Set up of FORT
10
Installation of solar panels
10
Solar panel array siting instruction
11
Solar frame assembly instructions
13
Connecting to a generator
14
Auto start/stop
15
Connecting to other power sources
16
Using the FORT
16
Start up procedure
16
Emergency stop
17
Connecting output cables
18
Setting the timer
18
Shut down procedure
19
Data collection and reporting Lifos IQ
19
Login page
20
Adding colleagues
21
Adding hirers
21
Assign a FORT to a hirer
22
Reporting and data
25 MAINTENANCE
25 General Maintenance
26
Changing fuses
27
Servicing
27
Accessing the FORT
27
Battery maintenance
28 TROUBLESHOOTING
28 Frequently asked questions
29 SPECIFICATION DATA
29 Data sheets
32 APPENDIX
32 Control panel
Page 1
Advertisement
Table of Contents
Summary of Contents for LIFOS FORT PV LF1010SPVG
- Page 1 Using the FORT Start up procedure Emergency stop Connecting output cables Setting the timer Shut down procedure Data collection and reporting Lifos IQ LIFOS FORT PV Login page Adding colleagues Adding hirers BATTERY STORAGE UNIT Assign a FORT to a hirer...
-
Page 2: Main Component Layout
This manual aims to provide the information and basic instructions to safely transport, install, operate and maintain the Lifos FORT. It is essential that all the safety rules and warnings are read carefully before, during and after the FORT has been put into operation. - Page 3 Do not lean items against the FORT or place The single phase 230V 50Hz L N E is protected anything on top. at 32A and 16A for their respective sockets . • Do not insert objects through the ventilation slots. lifos.co.uk Technical helpline 01952 200 198 Page 3...
-
Page 4: General Instructions
Labels related to safety must be kept clean and in the places predetermined by the manufacturer. The FORT must not be used for any medical or critical infrastructure power supply. lifos.co.uk Technical helpline 01952 200 198 Page 4... -
Page 5: Unloading And Handling
Do not load any other objects in addition to the FORT that could modify its weight and centre of gravity. Solar transit plate lifos.co.uk Technical helpline 01952 200 198 Page 5... - Page 6 Lifting devices (slings) may only support the lifting points designed for such use, avoiding contact with any of the other components forming FORT. Check lifting points on skid base for forklift or telehandler lifos.co.uk Technical helpline 01952 200 198 Page 6...
- Page 7 TRANSPORTATION Lifos FORT contains lithium batteries so a Dangerous When transporting the FORT please check its gross Goods Note should always be supplied to the driver weight and ensure your vehicle or trailer is capable whenever transporting it. Please ensure the warning of carrying this weight.
- Page 8 1. Press the ON/OFF button for 3 seconds. 2. After 60 seconds the green light will go off (see right). 3. The computer is now off. Computer switch off On/off button locations Switch in ‘on’ position lifos.co.uk Technical helpline 01952 200 198 Page 8...
-
Page 9: Operation
Setting up the FORT and its accessories must be performed by qualified personnel. In the event of any difficulty during installation, consult the distributor or contact Lifos at www.Lifos.co.uk Please note that when operating, the FORT is almost silent. Although there is limited noise there is still power outputting please read all safety advice before operation. - Page 10 INSTALLING AND CONNECTING SOLAR PANELS The FORT is designed to be used with the supplied Lifos solar panels. The solar panels can be set up on their own kick stands or built onto a frame (supplied as an extra). This frame can be put onto a 20ft container or split onto 2 x 10ft containers.
- Page 11 Silver Struts on top as shown right. It is advised to fix the outer struts first using three Cap Screws 11c per Silver Strut. The first Frame is now complete. Build the second frame in the same way. lifos.co.uk hello@lifos.co.uk Technical Helpline 01952 200198 2988mm lifos.co.uk...
- Page 12 Lay the three solar panels on the far left of the left in mating holes on the Silver Struts as shown below. hand frame onto the top of the frame with the Lifos We recommend all the Clamps and Cap Screws are logo closest to the container (see Fig.
- Page 13 3 pin socket blue AC isolator switch ‘on’ position ‘off’ position Connect 3 pin standard single phase (230V) cable to the 32A input socket and then to 32amp single phase output on generator lifos.co.uk Technical helpline 01952 200 198 Page 13...
- Page 14 As auotstart connections are not standardised an Amphenol four pin to 2 bare-wire autostart cable can be purchased directly from Lifos if needed. Please refer to the generator manual for instructions on this. Most generators need to have the auto start feature activated on the control panel.
- Page 15 You can now start the generator. You can now turn the isolator switch to the on position: and the green light (32AC in) will be on when power is coming in. AC isolator switch 3 pin socket blue AC isolator switch ‘off’ position ‘on’ position lifos.co.uk Technical helpline 01952 200 198 Page 15...
-
Page 16: Emergency Stop
3. Turn on the LiQ computer. TURN ON THE LiQ COMPUTER Press and hold the on/off button for 5 seconds. The ‘PWR’ light to the right will glow green when on. lifos.co.uk Technical helpline 01952 200 198 Page 16... - Page 17 Power from 16 amp socket 16 Amp and 32 Amp output sockets Power from 32 amp socket Output socket timer Toggle switch in timer position control toggle switch showing green light lifos.co.uk Technical helpline 01952 200 198 Page 17...
-
Page 18: Setting The Timer
Press the H+ button until the desired hour is set. It is a 24 hour clock. • Press the M+ button until the desired minute is set. • Press the clock symbol button and the program is now set. lifos.co.uk Technical helpline 01952 200 198 Page 18... -
Page 19: Login Page
DATA COLLECTION AND REPORTING – LIFOS IQ Lifos have designed and developed their own software platform to monitor, control and report on the FORT PV. This allows you to produce reports showing usage of the product over any given period and give you data on diesel fuel saved and CO2 saved. - Page 20 On the left hand side click on customer. Your details will appear. You can add colleagues by clicking add in the top right hand corner. Complete the details and click save. A set of icons will appear at the top of the screen, click on the fourth one along called user. lifos.co.uk Technical helpline 01952 200 198 Page 20...
- Page 21 Assign a FORT to a hirer To assign a FORT to a hirer go to the dashboard page and click on the assign button of the FORT you want to book out to a hirer. lifos.co.uk Technical helpline 01952 200 198 Page 21...
- Page 22 From the home page click on the FORT and you will go to the date page for that day. From here you can look at data for the past week, month or for a date range you select by pressing the tabs below. lifos.co.uk Technical helpline 01952 200 198...
- Page 23 To export data from the home page click on the reports tab on the left hand side. lifos.co.uk Technical helpline 01952 200 198...
- Page 24 You then have two options for the report format either full raw data or just the ESG data. Whichever you select the data will be downloaded into an excel CSV file that you can import into any other compatible program. For further support on the LiQ system please email us on hello@lifos.co.uk lifos.co.uk...
-
Page 25: Maintenance And Care
FORT has recently which are part of the Lifos network. To correctly stopped. Wait for at least a period of 5 minutes identify the spare parts required, always specify the... - Page 26 The filter is changed by sliding up the foam or worn the IP rating will be compromised. Please mesh. Replacement filters are available from contact the manufacturer for new seals. www.Lifos.co.uk • Check the unit regularly for damage to paintwork including scratches and chips. Any damage should be treated with appropriate anti corrosion paints to maintain warranty and integrity of the unit.
-
Page 27: Battery Maintenance
Battery maintenance The batteries should only be replaced by a qualified The batteries incorporated in the FORT are person with permission of Lifos and using Lifos maintenance free and should only be checked by batteries otherwise the warranty is invalid. -
Page 28: Troubleshooting
FREQUENTLY ASKED QUESTIONS What is a Lifos FORT PV? The Lifos FORT PV is a battery energy storage system with its own solar panel system. The Lifos FORT PV offers up to 35kwh of battery storage. Would a Lifos FORT PV replace my diesel generator? This depends on usage. -
Page 29: Specification Data
*Assumes the solar panels are positioned flat and the location is Gloucestershire, UK. Locations further South or North will deliver a higher or lower solar yield. Contact hello@lifos.co.uk who can confirm an accurate predicted solar yield in any given location. - Page 30 You can expand a Fort PV up to three battery packs Additional Solar Panels Add extra 190w Lifos Solar Panels to the existing 3.4kw array to expand the solar capability UN 38.3 Lifos reserve the right to modify any feature without prior notice.
- Page 31 48 VDC / user definable Compliance Safety Floating Charge Voltage 54 VDC / user definable Overcharge Protection 63 VDC / user definable * Product specifications are subject to change without further notice lifos.co.uk hello@lifos.co.uk +44 (0)1952 200198 V1.0 Page 31...
-
Page 32: Control Panel
Appendix CONTROL PANEL lifos.co.uk Technical helpline 01952 200 198 Page 32...
