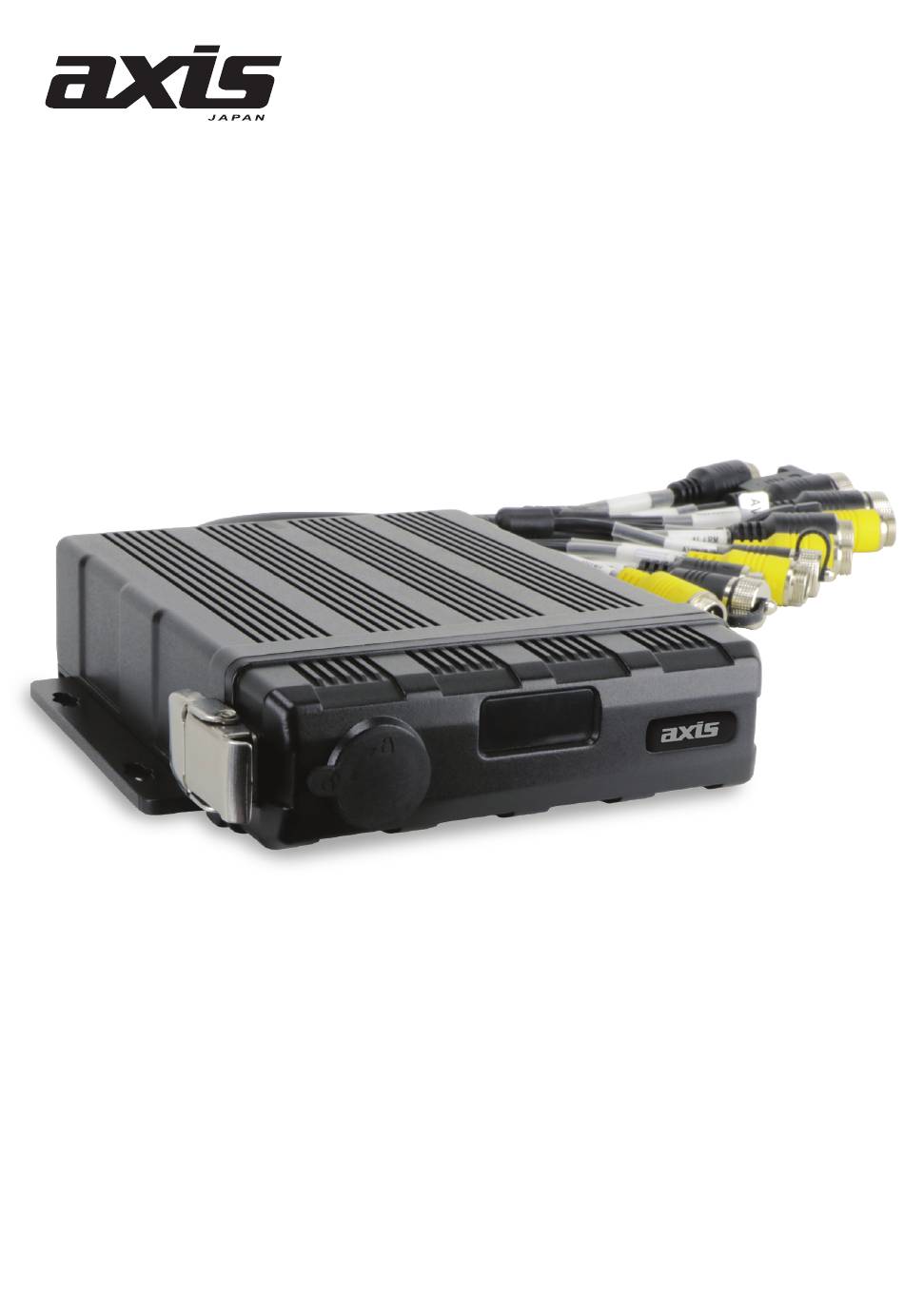

4 Channel DVR
Black Box Recorder with WiFi
DV456
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the axis DV456 and is the answer not in the manual?

Questions and answers

Summary of Contents for AUTOBACS axis DV456

  • Page 1 4 Channel DVR Black Box Recorder with WiFi DV456...

  • Page 2: Table Of Contents

    Contents 1 Specifications ........................1 2 Precautions ........................2 3 Main Features ........................4 4 Wiring Diagram ......................... 6 5 Connection - Front Panel ....................7 5.1 Mechanical Lock ......................7 5.2 LED..........................7 5.3 Remote Controller ...................... 7 5.4 SSD/HDD Slot ......................8 5.5 SD Card Slot .......................
  • Page 3 7.10 Volume ........................26 8 Record Setup ........................27 8.1 Power On Rec ......................27 8.2 Cyclic Rec ......................... 27 8.3 Event Rec ......................... 28 8.4 Video Quality ......................29 8.5 Record Channel ......................31 8.6 Event Duration ......................31 8.7 File Length ........................
  • Page 4 10.6 Server ........................56 10.7 File Upload ......................57 10.8 RTSP Streaming ..................... 61 11 System .......................... 62 11.1 Log in Setup ......................62 11.2 License Plate Number Setup ................63 11.3 System Time Setup....................63 11.4 Scheduled Recording.................... 66 11.5 Exception ......................

  • Page 5: Specifications

    1 Specifications 4CH HD DVR Operating system Linux System Operating interface Graphical menu operation interface (OSD) Video permission Administrator & user setting Video input 4 x 1080P analog high definition PAL cameras CVBS output 1CH 6pin aviation connector output PAL Video Video display mode Single/Split/Triple/Quad...

  • Page 6: Precautions

    Optional G-Sensor 3 axis sensor Available /Gyroscope Windows client Available Software IOS client Not available Web portal Available Input 10~32V Output 12V@4A Power Max power consumption Standby power 100mW consumption Operating temp. / -20 ℃～ +70 ℃ / <80% humidity Super capacitor Available Electrical...
  • Page 7 3）If the device could not boot up, try to remove all storage disks from the device, and then restart it to check whether device or storage disk is not functional, then check if device has power. 4）Yellow wire labelled as BAT+ should be connected to positive battery terminal. Red wire labelled as ACC+ should be connected to vehicle accessories wire.

  • Page 8: Main Features

    3 Main Features Controlled by touch screen. All settings and operations could be done through a touch-control monitor or using the remote  control. Video and Audio 4 x 1080P video inputs  4 x audio inputs  2 x audio outputs ...
  • Page 9 Network Support LAN, Wi-Fi, and 2G / 3G / 4G. (Cellular connectivity only on LTE models)  LAN, Wi-Fi and 2G / 3G / 4G have the sequence priority of connections. They are automatically  switched to save the data once LAN, Wi-Fi or 2G/3G/4G is connected. Files are able to be searched/downloaded by CMS Client.

  • Page 10: Wiring Diagram

    4 Wiring Diagram Note: SIM Card slots and 4G antenna inputs are not active with non LTE models Antenna diagram below for LTE models only...

  • Page 11: Connection - Front Panel

    5 Connection - Front Panel ① LED indicator ⑤ IR receiver ② Mechanical lock ⑥ SD Card Slot ③ SSD lock cover ⑦ SSD Slot ④ USB2.0 port ⑧ SIM Card Slot (LTE models) 5.1 Mechanical Lock Close the front cover and clip the buckle then lock the device with the key. ...

  • Page 12: Ssd/Hdd Slot

    Use the remote controller closer enough to the IR Receiver, otherwise it may not work. Description Buttons Power button disabled - unit is only POWER powered off when vehicle is turned off Switch to ch1~4 for single channel display 1~4 Switch to eight-segment display Enter menu MENU...

  • Page 13: Connection - Back Panel

    USB 2.0. 6 Connection - Back Panel ① 2G/3G/4G antenna 1 ③ Wi-Fi antenna ② 2G/3G/4G antenna 2 ④ GPS antenna 6.1 Power  Power input Connect the 9 PIN female to the 9 PIN male on the device.  Connection Method Connect ignition wire to yellow ACC, battery Positive to V+ (Red wire) and Negative to GND (black wire).

  • Page 14: Cameras (Avin 1~4)

    6.2 High Definition Cameras (AVIN 1~4) Below is the diagram of camera input (male).  How To Connect Cameras  Connect upto 4 cameras into the yellow 4 pin aviation plugs from the rear of the unit. 6.3 LCD Monitor High definition monitors are recommended to work with the device as below.

  • Page 15: Buzzer

    Output resolution of the LCD monitor can be selected. Settings are as follows.  AUTO supports as below. System Format CVBS AUTO NTSC/PAL 1080P/720P 6.4 Buzzer If the device is not connected to a monitor, please check the recording status by the buzzer. The buzzer would alarm if the device is not recording under Normal Mode which is set by default.

  • Page 16: Alarm, Speed Interface

    The buzzer will keep beeping for a while for all types of alarm event recording.  If the buzzer alarm is not needed, users can go to “System - Exception” page and set Buzzer from  ON to OFF. And please note that if the Buzzer is set to be OFF, there would be no alarm even if any event is triggered.
  • Page 17 Pin Definition  10 PIN Color Pink Blue Grey White Purple Green Yellow Black Black Alarm Alarm Alarm Alarm Alarm Alarm Alarm Alarm Definition out2 out1 _in6 _in5 _in4 _in3 _in2 _in1 Alarm Alarm Alarm Alarm Alarm Alarm Alarm Alarm Definition Ground Ground output2...

  • Page 19: The Menu

    7 The Menu 7.1 Menu Introduction Press [MENU] on the remote control or touch the bottom area on a connected LCD screen, the Menu will be shown as below. Please log in before entering the menu. ① System time display ②...

  • Page 20: Menu Lock

    7.2 Menu Lock The device/recorder supports two kinds of permissions: admin permission and guest permission.  Users’ account list.  Admin Permission Guest Permission Username Admin Guest Password Modification Initial Password Enter the menu of Playback, Enter all menus Display mode switching and Volume Permission Users’...
  • Page 21 Only the administrator could change the status of Menu lock. The following picture shows how to  change the Menu Lock status from ON to OFF. When the menu lock status is "ON", you need to enter the user name “admin” and password to ...

  • Page 22: Keyboard Operation Instruction

    7.3 Keyboard Operation Instruction Switch letter case. ：Exit without saving changes. ： ：Exit with saving changes. ：Clear input. ：Switch to the numeric interface. ：Switch to the English alphabet interface. ：Switch to the special character interface.
  • Page 23 Character Switching Introduction ...

  • Page 24: Manual Recording

    Letter Case Switching Introduction  7.4 Manual Recording Recording icon: This version is mandatory to record, so clicking this button can not close and open the record 7.5 Playback Video Playback button: Touch this icon to enter the calendar menu. Green marked date means it has recording files saved on that day.
  • Page 25 Calendar Interface  Search next or previous month : Search next or previous year Record List Interface (1)  ① Normal: Recording list, including normal recording, boot recording, timing recording, alarm recording 1~6, motion detection alarm recording, G-Sensor alarm recording, overspeed alarm recording, panic button manual recording alarm , FCW alarm, DMS detection Alarm, LANE departure detection alarm, PDS detection Alarm, BSD detection Alarm.
  • Page 26 Power on recording Manual control Normal list Schedule recording Pre-setup time Normal list Alarm recording 1~6 Event recording setup time Normal list Motion detection recording Event recording setup time Normal list G-Force recording Event recording setup time Normal list Overspeed recording Event recording setup time Normal list Panic button recording...
  • Page 27 The alarm recording file downloaded from the client is shown in the figure below. The abbreviations of recording types are as follows. Normal recording Scheduled recording Motion detection recording Speed recording Temperature recording Panic button recording Alarm 1 recording Alarm 2 recording Alarm 3 recording Alarm 4 recording Reverse recording...

  • Page 28: Log

    Phone using alarm recording Smoking alarm recording Play Interface  After selecting files, press ”Play” button to play the files. : Volume control. : Select the playback view modes. : Play the previous/next video file. : Pause/Resume playing. : Hide the menu. Press [Area 1] to display. : Exit playing.

  • Page 29: System

    ① Display mode selection. ② Touch the icon to set up the default. ③ Exit. 7.8 System System settings: Touch the icon to enter the setup menu. A window warning of "Unable to record in set-up mode! Continue?"will be popped up, and touch OK to enter. 7.9 Disk Disk management: Touch the icon, then you can view the status of SSD/HDD, SD card and USB storage as below.

  • Page 30: Volume

    ① Disk types. ② ALL: The total capacity of individual disk, free: The remaining capacity of disk. ③ Disk capacity bar If ALL shows 0.00MB, it means that DVR does not have access to this type of disk. Green shows the size of all video files in the "Normal" list. Yellow shows the size of all other files except the above files.

  • Page 31: Record Setup

    Function Min. Max. Default Volume 8 Record Setup 8.1 Power On Rec When “Power On Rec” is set to ON, the device will start recording once it’s powered on. Default setting is ON. 8.2 Cyclic Rec When “Cyclic Rec” is set to ON, new recording files will overwrite the previous ones when the disk is full.

  • Page 32: Event Rec

    8.3 Event Rec Event Rec.: Event recording refers to the alarm recording triggered by events including motion detection, G-Sensor, alarm 1 ~ 6, panic button and over speed, FCWalarm,DMSdeteciton alarm,LANEdeparture alarm. If the Event Rec is set to ON and corresponding alarm parameters are set, event recording will be activated when the events above are triggered.

  • Page 33: Video Quality

    8.4 Video Quality The main stream is used for video storage. The sub stream is used for network transmission. The default configuration of main stream, sub stream and JPG are as follows. Main stream Sub stream Resolution AUTO None Bitrate AUTO 64Kbps None...
  • Page 34 ② Bitrate There are 8 levels of bitrate to choose from in the mainstream menu, 4Mbps, 2Mbps, 1Mbps, 512Kbps, 256Kbps, 128Kbps, 64Kbps, AUTO; in the sub stream menu, there are 6 levels of bit rate to choose from, 1Mbps, 512Kbps, 256Kbps, 128Kbps, 64Kbps and AUTO. The higher the bit rate, the clearer the image and the larger the video file.

  • Page 35: Record Channel

    1 x D1 / 1Mbps ≈1193h ④ JPG JPG Frame rate optional Excellent，High，Mid，Low. The meaning of these four values is as follows. The rate of uploading pictures to the client is unlimited (the fastest), and the Excellent rendering effect is the smoothest High The rate of uploading pictures to the client is 1 second The rate of uploading pictures to the client is 3 second...

  • Page 36: File Length

    When the “Event Rec” is set to ON, the video file length of event recordings can be set as 5s, 10s or 15s. The video file length will be maximally 5 minutes if an alarm is continuously triggered. 8.7 File Length The default video file length in AVI and MSV format is 5 min.

  • Page 37: G-Sensor Sensitivity

    8.9 G-Sensor Sensitivity The default configuration is shown above. There are two optional setting modes for G-force, simple mode and advanced mode. It only requires setting the trigger level of G-force if the simple mode is selected. Detailed instruction is as follow. When the acceleration or gyroscope of the device reaches the preset sensitivity level, G-force recording will be triggered.
  • Page 38 Introduction to G-force Alarm Triggering Setting Interface  Enter the setting interface of the advanced mode of G-force under “Menu” -> “Record” -> “G-force Sensitivity” -> “Setup” -> “Advance” -> “ON”. The meanings of “Acce”, “Dece”, “Turn_Acce”, “Turn_Gyr”, “Impact” and “Filter” are as follow.
  • Page 39 The meanings of “Acce”, “Dece”, “Turn_Acce”, “Turn_Gyr”, “Impact” and Filter”are as follow. Items Meanings The value of acceleration when the vehicle moves on (for detecting sudden acceleration) When the vehicle is accelerating, the value will be positive number. And when it is Acce.
  • Page 40 The meanings of “threshold”, “duration”, “status”, “correction” and “sampling frequency” are as follow. Items Meanings Threshold setting for “Acce”, “Dece”, “Turn_Acce”, “Turn_Gyr”, “Impact” and “Filter”. threshold When the detected value continuously exceeds threshold setting for “duration”, then the alarm recording will be triggered. Detection time setting for “Acce”, “Dece”, “Turn_Acce”, “Turn_Gyr”, “Impact”...
  • Page 41 The acceleration of impact events is calculated as follows. abs(X)＋abs(Y)＋abs(Z)*Filter. “abs(X)”, “abs(Y)” and “abs(Z)” are the data from the X, Y and Z axes of acceleration sensors in the vehicle. Filter is the coefficient from the Z axis of acceleration sensor. Filter rate of Z axis: Sensitivity Level Filter Rate...
  • Page 42 (1) If the vehicle accelerates continuously in the positive direction of X axis and if the real-time value of Acce exceeds the threshold continuously for 100ms during driving, then the device will trigger an alarm of Acceleration. (2) If the vehicle decelerates continuously (brakes suddenly) in the positive direction of X axis and if the real-time value of Dece exceeds the threshold continuously for 100ms during driving, then the device will trigger an alarm of Deceleration.
  • Page 43 Forward Left As shown below, there may be multiple installation positions for the device. In addition, there might be a slight tilt in the device installation process. So it requires calibration via the data from G-force. Device Installation Method Selection and Installation Correction ...

  • Page 44: File Type

    When the setting is finished, click the button OK to exit the interface. Please ensure that the vehicle stays still for more than 1s after the setting is finished, so that the system can apply the calibration procedure. When the data of Status (real-time sensor data) is observed changed to close to 0, it means the calibration procedure is completed.

  • Page 45: Display

    9 Display 9.1 Camera Display Setting Camera parameter setting for each corresponding channel includes brightness, contrast, saturation and hue. The default values of brightness, contrast, saturation and hue of all channels are shown in the figure below. To change the value, drag the bar to left or right to decrease or increase.

  • Page 46: Camera Name Setting

    Camera Display Min, Max, Default Brightness Contrast Saturation 9.2 Camera Name Setting Camera Names are displayed at the bottom of each channel. Touch the “Display->Camera Name->Cam*” on the menu, a keyboard will pop up to input a new camera name. Maximum 8 characters can be entered and the camera name must NOT be blank.

  • Page 47: Audio Out

    9.4 Audio Out Select the audio output channel in multi-display mode.The default configuration is shown below. 9.5 OSD Display Setting Time, Camera name,License number and Speed can be selected whether to display or not. If it is on, the information will be shown in the live and the playback video.The default configuration is shown below.

  • Page 48: Menu On

    9.6 Menu on Set the menu display duration.The default configuration is shown below. Menu on:Duration can be set to 30s, 60s, 120s and Always. When it is set to 30s, 60s, 120s, it means that the menu will disappear if there is no operation in 30s, 60s or 120s. When it is set to Always, the menu will always be there.

  • Page 49: Speed

    9.7 Speed Speed setting: The data source of overspeed comes from GPS. Speed unit is optional: Km/h or Mile/h. Overspeed threshold can be set by user. Speed refers to the current speed of the vehicle. If the Speed exceeds the vaule of the Overspeed, the overspeed alarm recording will be triggered.

  • Page 50: Mirror

    Mode: indicates the GPS connection status. Used: indicates the number of available satellites. Visible: indicates the number of searchable satellites. 9.9 Mirror Horizontal and vertical flips of all channels are turned off by default. Horizontal: when it is set to ON, the corresponding recording channel will flip horizontally; when it is set to OFF, no flip will be done.

  • Page 51: System Format Setting

    Vertical: when it is set to ON, the corresponding recording channel will flip vertically; when it is set to OFF, no vertical flip will be done. The setting steps are show as follows. 9.10 System Format Setting...
  • Page 52 The default configuration is shown above. CVBS: Standard definition display. VGA: HD display. AHD：HD display Note: CVBS/VGA can be displayed together, AHD cannot be displayed together with CVBS/VGA, and only one of them can be displayed. Correct: When the interface of the standard definition display on the screen is not fully displayed, the display interface can be reduced.

  • Page 53: Network

    10 Network 10.1 LAN and Server Setting The default configuration is shown above. DHCP: Dynamic Host Configuration Protocol. Set On for dynamic IP and Off for static IP. Static IP  must be manually input with IP address, mask and gateway. MAC address can be automatically assigned or revised.

  • Page 54: Wi-Fi Network Setup And Server Setup

    LAN connection  Step 1: Connect the LAN cable to the DVR. Step 2: Go to “Network - >LAN” page. Step 3: If DHCP is set to ON, a dynamic IP will be automatically matched. If DHCP is set to Off, input the IP, mask, gateway and MAC manually.
  • Page 55 The default configuration is shown above. Wi-Fi: ON/OFF DHCP: Dynamic Host Configuration Protocol. Set On for dynamic IP and Off for static IP. Static IP must be manually input with IP address, mask and gateway. SSID: Wi-Fi hotspot list. AP Internet: The hotspot of the device can be found on mobile phones when it is On. Wi-Fi connection ...

  • Page 56: 3G/4G Control And Setup

    Step 5: Touch OK to exit. Step 6: Go to “Network -> Server” page to input Wi-Fi Server IP and Port. Touch OK to save the settings. Step 7: Wi-Fi network status and server status can be checked on “Network - >Status”. 10.3 2G/3G/4G Control and Setup...
  • Page 57 The default configuration is shown above. Cellular: Cellular is on, meaning that 2G/3G/4G is on. APN & Access No.:Normally, the user doesn’t need to input user name and password for APN and Access number,The default setting is available. If connection is not successful under the default settings, please consult your local network carrier.

  • Page 58: Ap Internet Setup

    Step 5: Enter the correct APN. Step 6: Touch OK to exit. Step 7: Input the 2G/3G/4G Server IP and Port on “Network->Server”. Step 8: Cellular network status and server status can be checked on “Network - >Status”. 10.4 AP Internet Setup Steps To Connect AP Internet ...

  • Page 59: Network Status

    Step 3: Search and connect to the Wi-Fi hotspot of the DVR with other mobile devices. The SSID name of the hotspot is prefixed with “WFD-” and followed by the serial number of the device.“WFD-” default password is ap12345678. Step 4: Enter the following IP address 192.168.100.140:8081 - In the login screen enter admin for username and 123 for the password.

  • Page 60: Server

    Module: The Cellular module brand. Cellular RSSI: 2G/3G/4G signal strength indication. Cellular Type: 2G, 3G or 4G, indicating the actual signal received. Cellular Status: please refer to the descriptions and indications below. Description Indication Module initialization Cellular module is initializing. Module exception Cellular module is in exception.

  • Page 61: File Upload

    10.7 File Upload “Upload Files” default configuration as shown above. Upload Files： ON/OFF， when set to ON,as long as DVR triggers the alarm video file,the alarm video file will be uploaded to the server.When the value is set to OFF,DVR triggers the alarm video file and does not upload the alarm video file to the server.
  • Page 62 ON: When using Cellular to connect to the server, uploading files is allowed. When the switch is  turned on, a pop-up box will prompt "Network flow consuming, continue?" Click “OK” to confirm the opening, but after this feature is turned on, once Cellular connects to the server, it will upload the video file, which will consume a lot of cellular flow.
  • Page 63 Filter：Alarm video type and upload channel selection, the default configuration is as follows. Click the Alarm1 to select different alarm type settings, as shown below.
  • Page 64 Alarm filter type： Overspeed alarm （ velocity Motion Motion detection alarm Speed source: GPS ） Gsensor G-Sensor alarm Temp Temperature alarm Alarm1 Alarm 1 alarm Alarm2 Alarm 2 alarm Alarm3 Alarm 3 alarm Alarm4 Alarm 4 alarm Alarm5 Reverse alarm Alarm6 Brake alarm Alarm7...

  • Page 65: Rtsp Streaming

    Channel 3 pedestrian Channel 4 pedestrian BsdPasserby3 BsdPasserby4 detection alarm detection alarm 10.8 RTSP Streaming The default configuration is shown above. RTSP On: Set RTSP on /off.  Mode: Set MainStream & SubStream on/off.  mode on/off Instructions: Set RTSP On, make sure the streaming device and DVR are under the ...

  • Page 66: System

    11 System 11.1 Log in Setup Set user name and password for booting up. The initial password is 123.

  • Page 67: License Plate Number Setup

    11.2 License Plate Number Setup Input license plate number. The default configuration is shown below. 11.3 System Time Setup Format Setup: System time format setting...
  • Page 68 "Format" default configuration as shown above. ① Time Zone: Time zone setting. Go to “System – >Date &Time - >Format->Setup” page. ② Date Format: Set the date format (year/month/date or month/day/year. ③ 24 Hour: If it is ON, time format will be displayed in 24-hour system. If OFF, time format will be ④...
  • Page 69 "Time Sync" default configuration as shown above. Time Snyc Setup: ① GPS: Set GPS to ON/OFF. Go to “System -> Date &Time ->Time Sync->Setup” page. ② NTP: Set NTP to ON/OFF. ③ NTP Server: Show the URL of the NTP Server. Application scene usage GPS:Off and NTP:Off...

  • Page 70: Scheduled Recording

    11.4 Scheduled Recording The default configuration is shown above. Enable: Set scheduled recording ON/OFF. Start: Set start time of scheduled recording. End: Set end time of scheduled recording. Weekday: Set scheduled recording by weekdays. Select the weekdays to set preset. Scheduled Recording: Support up to four appointed tasks.

  • Page 71: Exception

    11.5 Exception The default configuration is shown above. Exception Buzzer: Set the exception buzzer to ON/OFF. Power On Buzzer: Turn on the buzzer can be set to ON/OFF Duration: Set the duration time of the buzzer. 11.6 ACC Settings...

  • Page 72: Alarm Information Setting

    The default configuration of "Shutdown Voltage" and "ACC Duration" is shown above. Current voltage: Voltage of the working DVR. Shutdown voltage: When the current or voltage is lower than the shutdown voltage, the device will shut down automatically. When the current or voltage is higher than the shutdown voltage, the device would work properly.
  • Page 73 When different types of alarm are triggered at the same time, alarms with the highest priority will be triggered. “Alarm 1” default configuration as shown above. Trigger Level: There are 3 options of Trigger Level. The options “Low” and “High” are used for turning on alarm function.
  • Page 74 Cursor (Reverse Guidelines) ：It is “OFF” by default. The picture below shows the open state. ① Camera name of the alarm-triggered channel. Touch this button to turn on/off cursor. (Reverse Guidelines) ② Line selecting: There are five lines to be selected. Line U (up), Line D (down), Line L (left), Line R (right) and ALL.

  • Page 75: Update

    If Line L or Line R is selected, the top point of the selected line can be moved to left or right with Direction Up and Direction Down, and the bottom point of the selected line can be moved to left or right with Direction Left and Direction Right.
  • Page 76 Step 3: When “Update success!” is shown on the display, the device will reboot automatically.
  • Page 77 Step 4: After rebooting, please check if the version is the same as the one you copy into “upgrade” folder. Please go to Menu -> System -> Info to check it. Note: After the upgrade is completed, the "dvxxx_upgrade_201xxxxxxxxx_Rename" upgrade package in the USB disk or SD card /upgrade/packet/local will be deleted.
  • Page 78 Logo Upgrade  Make 3 logo pictures, the picture format is 720x576 named LOG_SD_PAL.jpg, the format is 720x480 named LOG_SD_NTSC.jpg, the format of 1280x720 is named LOG_HD_720.jpg, see the following picture for details: Put 3 logo pictures in the root directory of SD1 card or USB; Insert the SD card or USB into DVR, click System->Update->Logo, then click "OK",will have a prompt message "Start to update the Logo, please wait..."...

  • Page 79: Configuration

    11.9 Configuration Configuration Import:Import the configuration information from the flash memory device, and place the configuration file in the sd/export_file/config directory. Configuration Export: Export Log to SSD/HDD,SD card or USB memory flash devices. Factory Default: Press Reset to restore factory settings. 11.10 Application Setting Application: Algorithm and IPC function are integrated.
  • Page 80 ADAS algorithm function: including FCW: forward collision warning algorithm, is displayed in the first channel; PDS: pedestrian detection, is displayed in the first channel. The following picture shows the default configuration interface: Algo Switch: If it is set On, when the expected collision time TTC Threshold(s) is less than the configured time, the forward collision alarm and blind spot pedestrian detection alarm will be triggered.
  • Page 81 Referring to the following models, select the glass near the red dot as the installation location, and clean it with a duster. Then install the camera horizontally. Any obstruction within the wiper are subject to legal regulations. Ensure camera does not obstruct driver’s view. Calibration: parameter calibration.
  • Page 82 Alarm: Set to On, when the current speed is greater than the set working speed and track deviation will trigger lane departure alarm recording; set to Off, when the current speed is greater than the set working speed and track deviation, the lane departure alarm recording will not be triggered. Speed: Set the operating speed value of the Lane departure algorithm.
  • Page 83 : DMS detection alarm type selection and default configuration. Alarm Type To set ON To set OFF When the driver’s fatigue behavior is detected,an alarm recording will be Will not trigger fatigue DMS_Fatigue triggered,and there will be voice alarm. announcements. When the driver's distracted behavior is Will not trigger DMS_Distraction...
  • Page 84 DMS The default values of the function parameters are as follows: Alarm type Default DMS_Fatigue DMS_Distraction DMS_No Driver DMS_Smoking DMS_Calling DMS_NOSeatBelt DMS_SunGlass Sensitivity DMS Work Speed(km/h) Audio Switch On，DMS_NOSeatBelt 为 Off DMS Installation： The DMS needs to be installed on the dashboard at a distance of 0.8~1.2M from the driver and the front angle of the driver is about +/-30 degrees, as shown in the figure below.
  • Page 85 Calibration: parameter calibration. Align the face with the calibration frame to conduct calibration. The detection frame is square and blue by default. After the face is aligned with the calibration frame, a green frame will appear on the face. Click the Start button and out a message will pop out after 2-3s indicating successful calibration and accompanied by a voice message, click OK to exit the calibration interface.
  • Page 86 As shown in the following pictures: Hold the face to the calibration frame, click the Start button to begin calibration. If the face is moved out from the calibration frame during the process, the calibration frame will turn yellow, and after 2-3s a message will pop out indicating that the calibration is failed. Click OK to conduct the calibration again.
  • Page 87 Alarm Duration/ Alarm Type Min. Max. Default Threshold Time（s） Fatigue Threshold Time（s） Distraction Threshold Time（s） NoSeatBelt Threshold Time（s） Smoking Threshold Time（s） Calling Threshold Time（s） NoDriver Threshold Time（s） SunGlass Threshold ：Face recognition +: Add a human face, as shown in the picture below. Click OK after entering the name and aim your face at the camera.
  • Page 88 ...: Import, export and delete functions. As shown in the figure below, check the imported face photo and click Import/Export/Del to import, export or delete the selected photo. The exported file is stored under the disk faceID path. Login: Click to log in through face recognition. Login Check: If it is set On, face recognition will be triggered upon each startup with a voice message of "again to login".
  • Page 89 BSD settings are as shown in the figure below when it is chose. Speed: Set the speed threshold for BSD function. When set to 5, the BSD algorithm can be enabled only when pedestrians are walking at 5km/h or above. The default value is 0. Volume: Adjust the volume of the audible and visual alarm.
  • Page 90 ② Touch this button to turn on/off cursor. ③ Line selecting: There are 5 lines to be selected. Line U (up), Line D (down), Line L (left), Line R (right) and ALL. The button turns green if selected. You can use remote control to operate. ④...
  • Page 91 The default Host IP of the DVR is 192.168.88.1. The IPC can be applied when it is connected to the same network as the DVR. One DVR can connect up to 4 IPC channels. AUTO: AUTO is closed by default. When it turns on, the detected IPC is automatically connected. When AUTO is set to ON, Clear, Add, Clear All, and Fast Setup settings all cannot be operated.
  • Page 92 IP: Indicates the IP of the relevant IPC searched by the DVR. User Name: IPC user name. Password: IPC password. Status: The searched IPC connection status; the relevant status is explained as follows: : Indicates that the IP network segment of the IPC is inconsistent with that of the DVR, the network segment is incorrect.

  • Page 93: System Info

    When IPC AUTO is the default setting, the restarted DVR automatically switches to the main and sub-screen eight-split display after 1min once it connected to the IPC channel. If the IPC channel is not connected, the DVR automatically switches to CH1~CH4 four-division display after 1min; if you choose other split mode other than AUTO as the Default setting, other split mode will be displayed after restarting the DVR.

  • Page 94: Faq

    12 FAQ 1) The System Can’t Start up? ① Check the input power: if the power wire is connected correctly, if the ground wire is connected to the Check the power connection. Please follow the steps below to check the power connection: ②...

  • Page 95: Appendix

    13 APPENDIX APPENDIX Ⅰ: Abbreviation & Description Rec. Record Light Emitting Diode G-sensor Accelerometer sensor Secure Digital Memory Card Global Positioning System Universal Serial Bus Wi-Fi Wireless-Fidelity Alarm Camera VLOSS Video Loss Audio Video Interleaved COMM Communication On-Screen Display Error Access Point Name Memory Dynamic Host Configuration...

  • Page 96: Appendix Ⅱ: Accessories

    APPENDIX Ⅱ: Accessories Standard Table: Parts Quantity Description Parts Quantity Description 1.default 9 PIN power cable 1.default Remote control 1.default DVR lock keys 1.default 6 PIN to 4 PIN Antenna’s 1.default 10 PIN alarm wire 1.default GPS& Wi-Fi Optional Accessories Table: Parts Quantity Description...

  • Page 97: Appendix Ⅲ: Compatibility Storage List

    APPENDIX Ⅲ: Compatibility Storage List SATA 3.0 SSD Name Description MLC,TS32GSSD420I,-45℃~+85℃ SSD 32GB MLC,TS64GSSD420I,-45℃~+85℃ SSD 64GB SSD 128GB MLC,TS128GSSD420I,-45℃~+85℃ MLC,TS256GSSD420I,-45℃~+85℃ SSD 256GB MLC,TS512GSSD420I,-45℃~+85℃ SSD 512GB MLC,TS1TSSD420I,-45℃~+85℃ SSD 1TB 3D TLC,TS128GSSD450K,0℃~+70℃ SSD 128GB 3D TLC,TS256GSSD450K,0℃~+70℃ SSD 256GB 3D TLC,TS512GSSD450K,0℃~+70℃ SSD 512GB SSD 1TB 3D TLC,TS1TSSD450K,0℃~+70℃...
  • Page 98 NOTES...
  • Page 99 NOTES...
  • Page 100 Autobacs Australia PTY LTD shall not be liable or responsible for any loss of use of this product or any form of consequential loss.
