Summary of Contents for Orisec INT-LS-LED-C

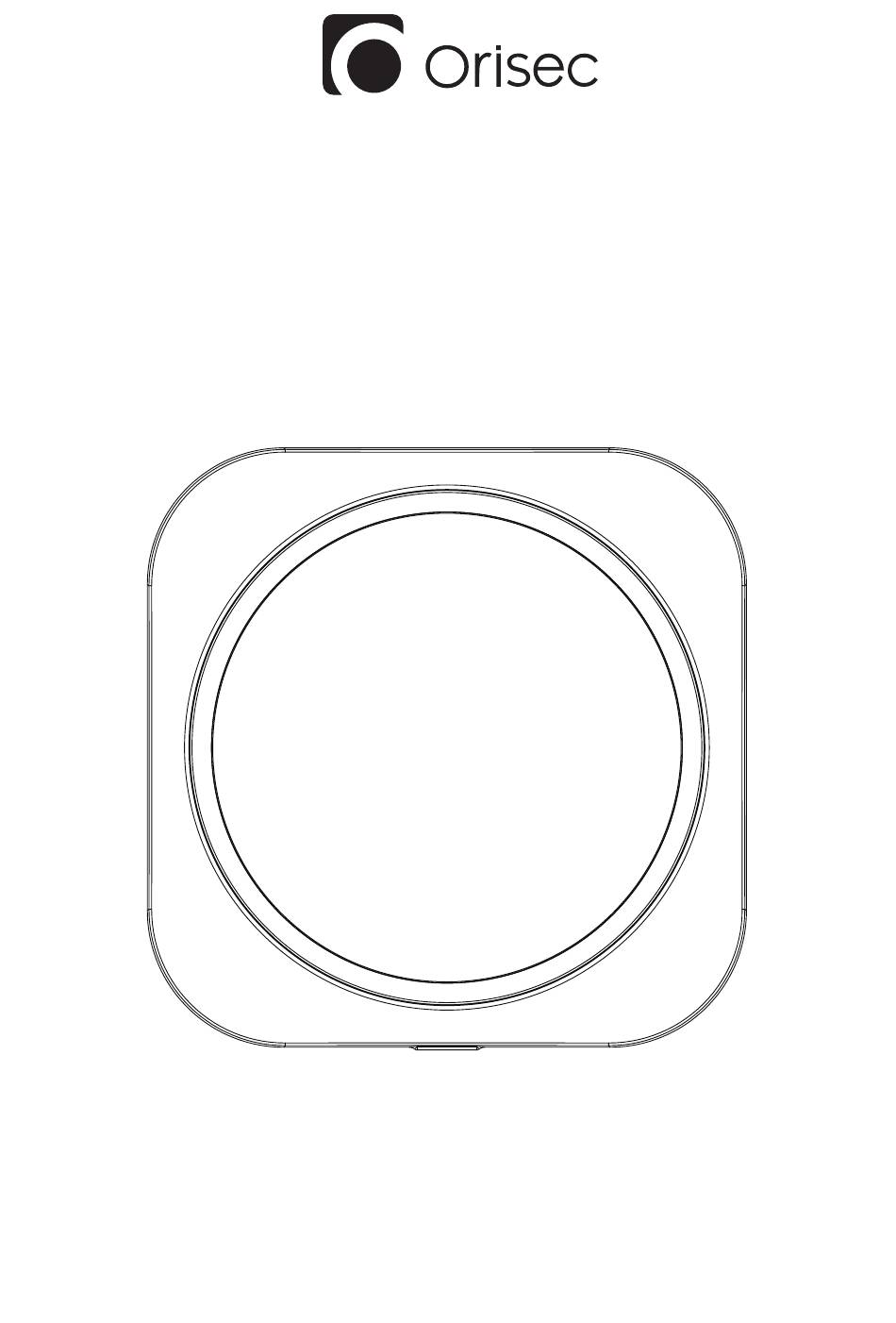

- Page 1 INT-LS-LED-C Internal Extension Speaker with LEDs Installation Instructions Designed and Manufactured in the United Kingdom www.orisec.co.uk...
- Page 3 Introduction The INT-LS-LED-C is an Internal Extension Speaker with multi-coloured LED Indication. This can be programmed at the Control Panel to indicate a variety of different functions, such as red for Alarm, bright white for Entry/Exit illumination and green for System Ready...
- Page 4 Mounting the INT-LS-LED-C To open the INT-LS-LED-C insert a flat head screwdriver into the opening recess, then hinge the front cover up and away from the backplate. Opening Recess Opening Recess...
- Page 5 Four screw fixing holes and six cable entry locations are provided to aid mounting. Do not route Cable Hook cables past tamper Wall Tamper Do not route cables past tamper...
- Page 6 PCB and Connections Cable Tidy Hooks Speaker Connector Tamper Switch Terminal Description 12V supply for LEDs White LED control, 0V = ON Green LED control, 0V = ON Red LED control, 0V = ON SPK - + Speaker inputs, connect to speaker outputs on panel TAMPER Tamper terminals, connect to auxiliary tamper/ tamper input on panel Opening Recess...
- Page 7 1. Switch white LEDs on when light level is low. Connect the LED inputs on the INT-LS-LED-C to the following outputs on the Orisec control panel: Program the Output Type to “Light Level”. Then select which device you want to measure the light level at (e.g., Keypad 1) and set the light threshold level (e.g., 10%).
- Page 8 2. Fire Alarm indication with red & white LEDs Connect the LED inputs on the INT-LS-LED-C to the following outputs on the Orisec control panel: When the fire alarm is activated the red and white LEDs will illuminate. The red LED is used as indication of fire and the white LED can be used as additional lighting to aid users in low light conditions.
- Page 9 4. Armed status indication. Connect the LED inputs on the INT-LS-LED-C to the following outputs on the Orisec control panel: When the system is armed the red LED will illuminate for 15 seconds. When the system is disarmed the green LED will illuminate for 15 seconds.
-
Page 10: Specifications
Specifications Electrical Supply Voltage: 9 - 15 VDC (13.7 V nominal) Current Consumption: Green LEDs: 32mA Red LEDs: 32mA White LEDs: 42mA Loudspeaker: 16Ω, 1W, Mylar Cone Environmental Operating Temperature: -10°C to +55°C Storage Temperature: -20°C to +60°C Max. Humidity: 95% non-condensing Physical Product Weight:... -
Page 11: Warranty
2 years from the date of purchase. Disclaimer: Orisec will not accept any liability based on a claim that the INT-LS-LED-C failed to perform correctly as it is a component part of an installation and not a complete intruder alarm... - Page 12 UK Based Technical Support: t: +44 (0) 1706 398740 © Copyright Orisec Ltd 2020 e: support@orisec.co.uk INS155 26/6/2023...
