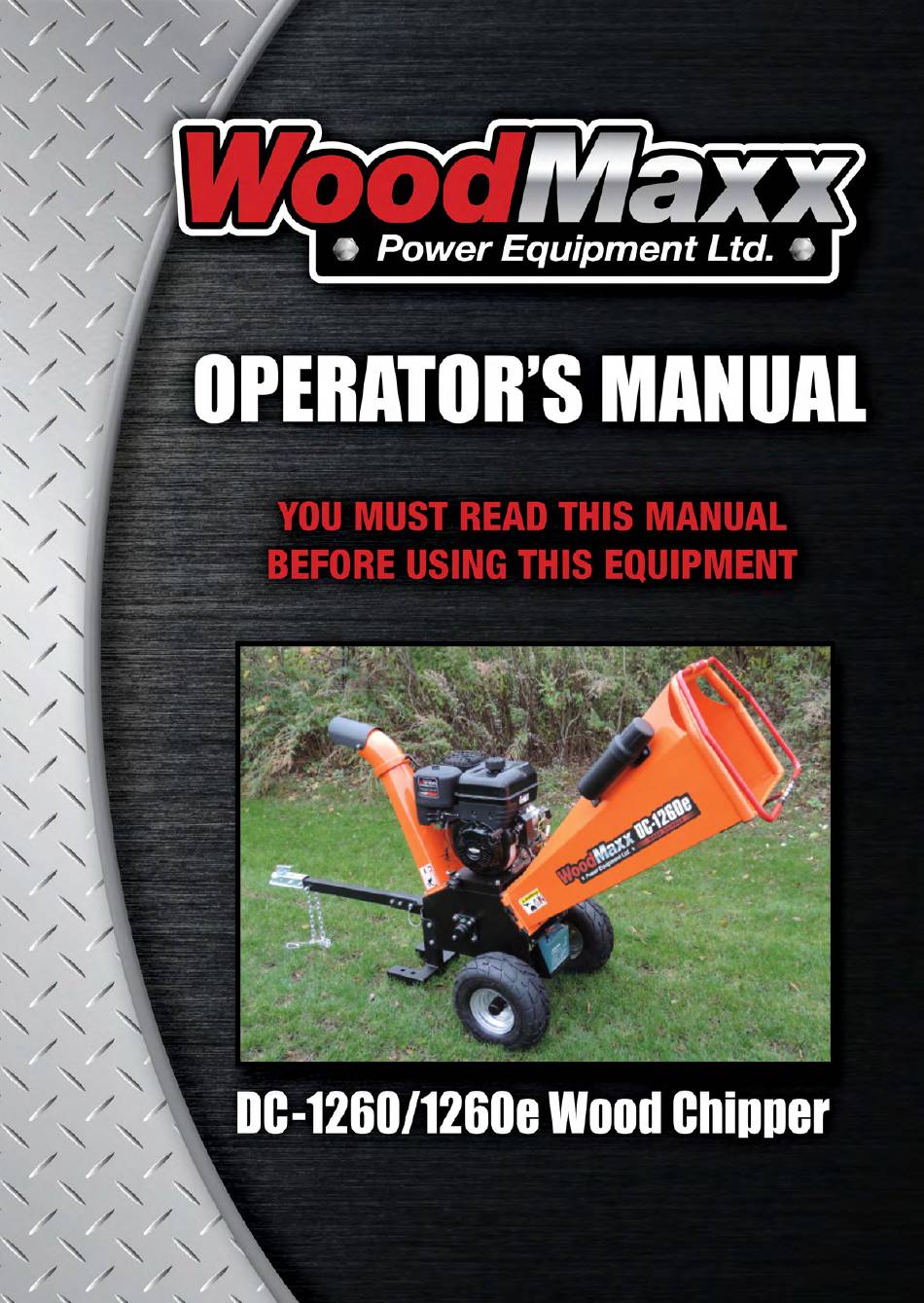

Summary of Contents for WoodMaxx DC-1260
-
Page 2: Table Of Contents
The information contained within this manual was current at the time of printing. Some parts may change slightly to assure you of the best performance. To check for updates refer to our website at www.WoodMaxx.com or call 1-855-966-3629 to speak to one of our representatives. -
Page 3: Safety Alert Symbols
Safety Information Safety Alert Symbols The SAFETY ALERT SYMBOL indicates there is a potential hazard to personal safety involved and extra safety precaution must be taken. When you see this symbol, be alert and carefully read the message that follows it. In addition to design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment. - Page 4 It is potentially hazardous to fit or use any parts other than your dealer parts. WoodMaxx disclaims all liability for the consequences of such use, which in addition voids the machine warranty.
-
Page 5: General Safety
Safety Information General Safety Operating this Wood Chipper safely is necessary to prevent or minimize the risk of death or serious injury. Unsafe operation can create a number of hazards for you. Always take the following precautions when operating: • Your Wood Chipper is a powerful tool, not a plaything. Exercise extreme caution at all times. -
Page 6: Protecting Yourself And Those Around You
Safety Information When Using the Wood Chipper • Always feed from the side. • It is better to have a second trained operator within easy reach of the machine. • Maintain strict discipline at all times and service machine at specified periods. -
Page 7: Safety For Children And Pets
Safety Information Safety for Children and Pets Tragic accidents can occur if the operator is not alert to the presence of children and pets. Children are often attracted to the machine and the chipping activity. Never assume that children will remain where you last saw them. Always follow these precautions: •... -
Page 8: A Note To All Users
List of warnings and cautions cannot be all-inclusive. If situations occur that are not covered by this manual, the operator must apply common sense and operate this Wood Chipper in a safe manner. If you have any questions, please contact WoodMaxx at (855) 966-3629. -
Page 9: Setting Up The Wood Chipper
Setting Up the Wood Chipper Setting Up the Wood Chipper Tools you will need: • 17mm Wrench • Grease Gun • 16mm Wrench or 5/8" Wrench • Floor Jack • 13mm Wrench or 1/2" Wrench • Block of 4x4 • Phillips Screw Driver •... - Page 10 Setting Up the Wood Chipper Setting Up the Wood Chipper (continued) Step 5: Read assembly instructions Step 6: (Left) Raise and block the and prepare tools. front of the chipper base with a 4x4 as shown. Attach the trailer tongue support frame (16mm wrench, 17mm wrench) Note: be sure that the frame is orientated as shown in the picture.
- Page 11 Setting Up the Wood Chipper Setting Up the Wood Chipper (continued) Step 9: Insert the retaining pin. Step 10: Tighten the hardware securing the run-away chains and trailer hitch. NOTE: The next step requires at least two people to complete. Step 11: Apply downward pressure to the trailer tongue so that the base frame lifts off the crate base.
- Page 12 Setting Up the Wood Chipper Setting Up the Wood Chipper (continued) Step 14: Raise the chipper base 10” off Step 15: Attach the wheels using four the floor (this allows for clearance to M10x25mm bolts per side. install the wheels) Step 16: (Left) Notice that the wheels are directional, attach them so that the tread points forward as shown.
- Page 13 Setting Up the Wood Chipper Setting Up the Wood Chipper (continued) .035" Step 19: Rotate the chipper drum Step 20: .035" gap so that the chipper knives align with the anvil. Check the gap between the two. The distance between the anvil and the chipper knife should be about .035”...
- Page 14 Setting Up the Wood Chipper Setting Up the Wood Chipper (continued) Step 22: Attach the discharge chute. Step 23: Attach the battery cables. (red is positive, green is negative) Step 24: (Left) Attach the infeed bin by connecting the hinged side first, then bolting the other side as shown.
- Page 15 Bearing Lubrication Guide chart for proper tension and maintenance intervals. recommended lubrication intervals. NOTICE! WoodMaxx recommends the use of gasoline that does not contain ethanol. This will prolong the life of the rubber seals in the engine.
- Page 16 Setting Up the Wood Chipper Setting Up the Wood Chipper Setting Up the Wood Chipper (continued) (continued) Setup is now complete. You must read and understand all operation instructions before using the chipper. NOTICE! Engine must be filled with oil prior to using machine . Use oil viscosity and quantity described below .
-
Page 17: Operating The Wood Chipper
Chipper before beginning the steps outlined in this chapter. If you have any doubts or questions about the correct or safe method of performing anything found in this manual, please contact WoodMaxx at (855) 966-3629. • You must read and understand all instructions, safety precautions, and/or warnings listed in “General Safety Rules”... - Page 18 Operating the Wood Chipper Starting the Engine FUEL VALVE LEVER Position your Wood Chipper on flat, dry ground, and then stop the front wheel with brake, make sure the machine cannot be moved. 1. Move the fuel valve lever to the ON position.
- Page 19 Operating the Wood Chipper Stopping the Engine To stop the engine in an emergency, simply turn the engine switch to the OFF position. Under normal conditions, use the following procedure. FIG 6 1. Move the throttle lever to the MIN position. [See Fig. 6] 2.
-
Page 20: Clearing A Jam
Clearing a Jam Clearing a Jam If the wood chipper gets jammed while chipping wood or branches, the engine should be stopped. Clear the wood that is stuck in the roller and then restart the engine. Stop the engine and remove the spark plug wire from the spark plug for safety. -
Page 21: Maintaining The Wood Chipper
Refer to the engine manufacturer’s user manual for engine maintenance. Bearing Lubrication Guide There are many questions when it comes to greasing bearings. All WoodMaxx implements are now equipped with bearings that are factory greased so that 33% of the race is full of grease, this allows for operation at all speed ranges. -
Page 22: Regular Maintenance Checklist
Change engine oil First time 5 hours Replace air filter Replace spark plug Technical Specifications Recoil Start – DC-1260 Electric Start – DC-1260e Engine XR2100 Briggs & Stratton XR2100 Briggs & Stratton 13.5 HP/21.00 ft/lbs. torque 13.5 HP/21.00 ft/lbs. torque... -
Page 23: Chipper Knife Care
How Long Will My Chipper Knives Last? We get asked this question very often. WoodMaxx chippers are equipped with knives made from very high quality tool steel. That being said, all chipper knives will dull over time and will require sharpening or replacing at some point. -
Page 24: Storage
Storage Storage At the end of the working season or when the wood chipper will not be used for a long period, it is a good practice to clean off any dirt or dust that may have accumulated on the wood chipper and any of the moving parts. •... -
Page 25: Safety Labels
NOTE: Be sure the writing on the label faces the user DC-DNG-BLADE DC-WRN-CUT All decals and safety instructions should be kept clean and legible. It is the operator’s responsibility to replace the decals as needed. Call WoodMaxx (855-966-3629) or visit www .WoodMaxx .com to order replacement decals. - Page 26 Safety Labels Safety Labels Found on Your Unit DC-DNG-SAFE DC-DNG-1260 DC-WRN-THROW DC-DNG-BLADE DC-BATTERY (Electric Start Model ONLY) DC-WRN-STOP DC-WRN-CUT...
-
Page 27: Troubleshooting
Most problems are easy to fix. Consult the Troubleshooting Table below for common problems and their solutions. If you continue to experience problems, contact WoodMaxx at (855) 966-3629. Before performing any maintenance procedure or inspection, stop the engine, wait five minutes to allow all parts to cool. Disconnect the spark plug wire, keeping it away from the spark plug. - Page 28 Troubleshooting Troubleshooting Table (continued) SYMPTOM POSSIBLE CAUSE Engine smokes. • Check the oil level and adjust as needed. • Check the air filter and clean or replace if (Please refer to the needed. engine user manual for engine-specific • You may be using the wrong oil—too light procedures.) for the temperature.
-
Page 29: Parts & Diagrams
Parts & Diagrams DC-1260 Parts - Diagram 1... - Page 30 M24x1.5 Open Nut CP-.125x1.25 Cotter pin 1/8" x 1-1/4" M10x1.5 NYLOCK M10-1.5 Nylon lock nut M10x1.5x80 HHCS M10x1.5x80 Hex head cap screw GR 8.8 DC-1260-1-44 Switch DC-1260-1-45 Switch Cover M6x1.0x60 HHCS M6x1.0x60 Hex head cap screw GR8.8 ZINC DC-1260-1-47 Safety bar...
- Page 31 Parts & Diagrams DC-1260 Parts - Diagram 2...
- Page 32 Parts & Diagrams Parts List - Diagram 2 POS # PART # PART DESCRIPTION DC1260-1-5 Belt cover mounting plate DC-RBT-01 Belt tension arm DC-RBT-02 Belt tension stand off bushing DC-1260BT-01-22 Belt tension pulley SP-1.0 Tension spring 250 EYE BOLT 1/4" Eye bolt 2" long 250 NUT 1/4"-20 Hex nut M10x1.5x65 HHCS FT...
-
Page 33: Limited Warranty
WOODMAXX warranty. Repairs made ™ under this warranty will not extend the warranty period. If you are unwilling or unable to perform the labor required on your WOODMAXX ™ product, WOODMAXX will return the machine to the WOODMAXX ™... - Page 34 3/19...
