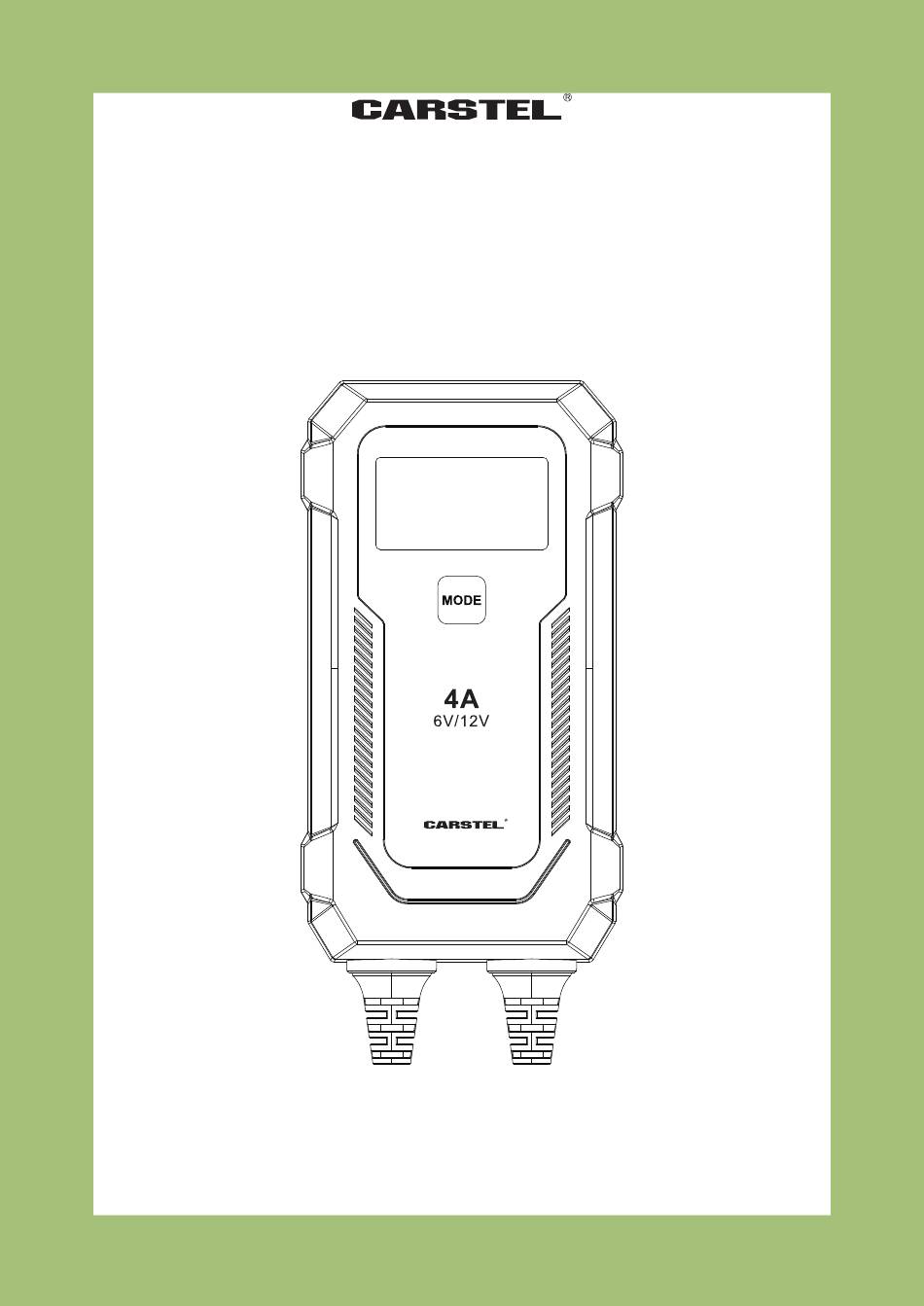

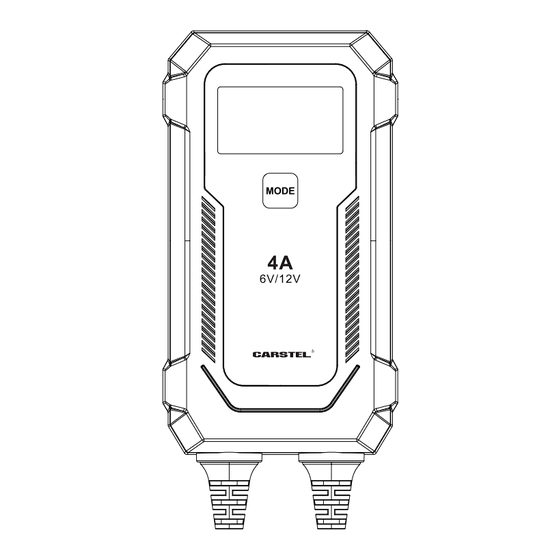

- Page 1 SMART CHARGER 4A Model: 01.81.040...
-
Page 2: Lcd Screen
FEATURES LCD SCREEN UK Plug MODE BUTTON Output Clamps Output Eyelets IMPORTANT SAFETY INSTRUCTIONS 1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 3: Battery Charging
BATTERY CHARGING 1. Connecting the charger to the battery. The charger's output leads have color-coded battery clips(RED-POSITIVE and BLACK-NEGATIVE). Determine which post of battery is grounded (connected) to the chassis. For batteries mounted inside a vehicle. l . Connect the red clamp to the battery's positive pole. ll . - Page 4 BATTERY TYPES AND SETTINGS To start, select charging mode, or re-set during charging. MODE 12V Slow 2A Mode 12V Slow Winter 2A Mode 12V Fast 4A Mode 12V Fast Winter 4A Mode 12V LFP 4A Mode 6V 2A Mode The battery is being charged. •...
-
Page 5: Memory Function
MEMORY FUNCTION This charger has Memory Function. It will return to last mode you chose next time when the charger is connected. SPECIFICATIONS Model No.： 01.81.040 Input 220-240V, 50Hz Charging Mode 12V slow 2A/ 12V slow winter 2A/ 12V fast 4A/ 12V fast winter 4A/ 12V LFP 4A/ 6V 2A... - Page 6 NINGBO CARSTEL MANUFACTURING CO.,LTD ADD: Room 1106, Tower E, International Financial Centre，268 East Min'an Rd., Yinzhou District, Ningbo, China Zip code: 315040 TEL: 0086-574-87937213 FAX: 0086-574-87937218 23V0...
