Summary of Contents for DK-TEC BP-120
-
Page 1: Safety Operation Warning

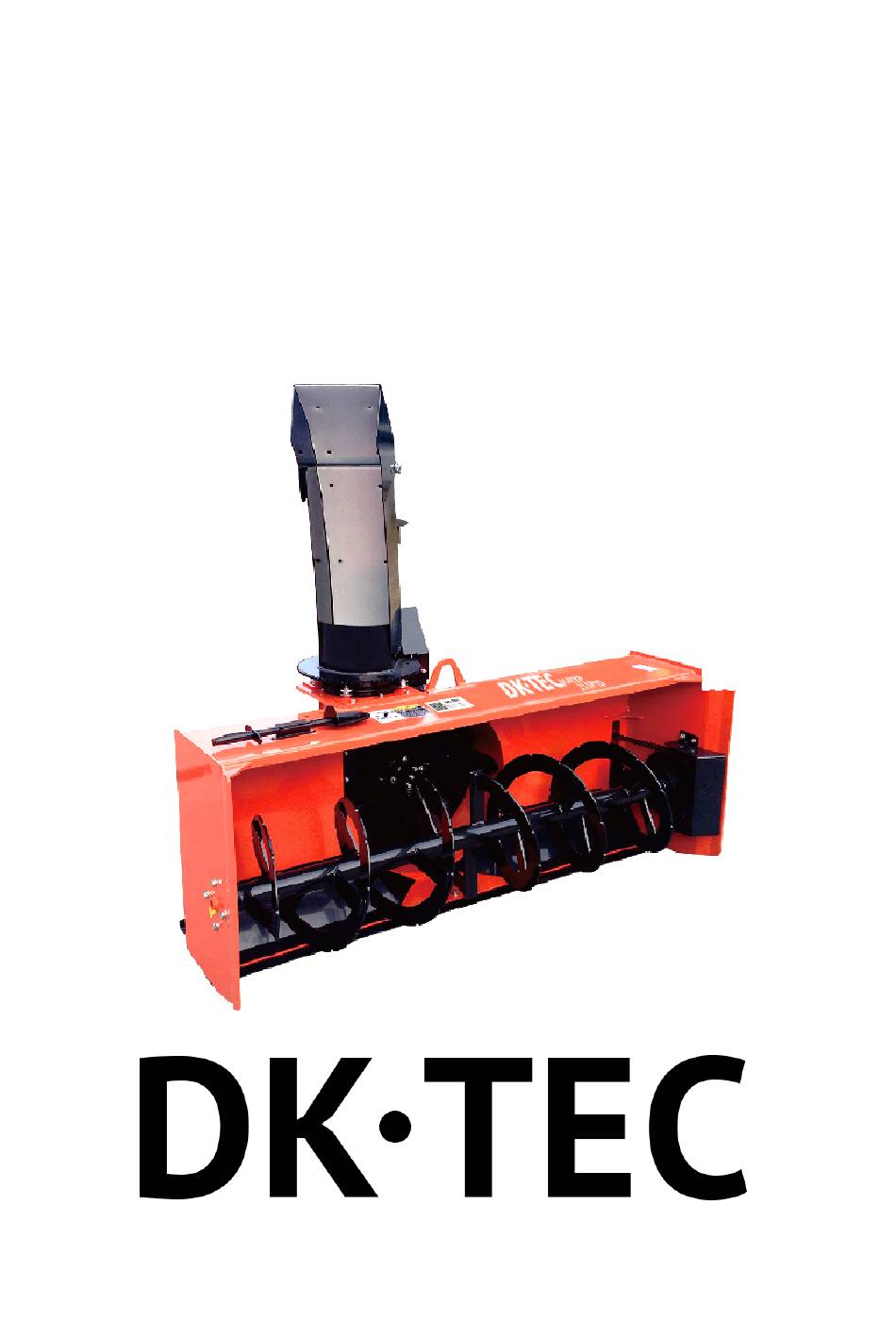

Operator’s Manual Original Manual Snow Blowers MODEL: BP-120 BP-150 BP-180 BP-210 DK-TEC A/S - Ærøvej 8 - 5800 Nyborg - Tlf: 66 12 82 22 - info@dk-tec.dk... -
Page 2: Table Of Contents
Read these instructions before installing and using this implement CONTENTS Safety operation warning ....................... 1 Preparation for operation ....................4 Working ........................... 6 After working ........................7 Connect with tractor Name and function of each part ................... 8 Connect with tractor ......................8 Pre-work inspection Inspection before operation ................... - Page 3 Safe operation warning instructions Meaning of warning labels Note! Read the instruction manual carefully before using the machine. Otherwise, it may cause injury. Warning! Keep away from the cutting area of the running machine. Otherwise, injury accident may occur Warning! Keep a safe distance while the tractor is driving.
-
Page 4: Preparation For Operation
If the following precautions are not observed, death or injury may occur! Please read the machine and tractor manual carefully before use, and start using it after you fully understand it. Danger! Failure to follow this warning may cause serious accidents such as death or serious injury. - Page 5 Warning! Notice! ★ When lending the machine to ★ If you modify the machine yourself or others to use,it is necessary to install other devices or components clearly inform the relevant which those specified by our company safety warnings and detailed for operation, it will cause damage to operating instructions recorded the machine and cause injury.
-
Page 6: Working
Dangerous! ★ When the stowage machine is moving and walking, make sure to connect the left and right brake pedals before using it. ★ If someone other than the driver on the tractor falls from the tractor, which hinders the driving operation and cannot respond to emergency situations, not only the passengers but also the surrounding people and the driver themselves will cause injury. -
Page 7: After Working
After working Body cleaning Notice! Notice! ★ When the machine is abnormal, if you ignore ★ When performing collective it, it will cause damage or injury. Please follow cleaning, be sure to cut off the the instruction manual for maintenance. PTO engine, stop the tractor ★... -
Page 8: Name And Function Of Each Part
Connect with tractor 1. Name and function of each part discharge chute assembly Hydraulic assembly Snow shovel assembly Auger assembly Cover assembly Rear gearbox assembly Fan assembly Torque Limiting drive assembly Tensioner assembly Drive shaft bearing seat assembly... -
Page 9: Inspection Before Operation
The snow blower is connected to the tractor by a three-point suspension, and the PTO drive shaft of the tractor drives the gear box to work. Through the gear drive, on the one side, the chain drive is driven to Auger weldment and start to work. On the other side, the fan assembly works to suck the surrounding snow into the discharge port. -
Page 10: Inspection After Start The Engine
2. Inspection before engine start 1.Drive system inspection New machines or machines that have not been used for a long time need to be run idling first. (1) Start the tractor engine and keep running at low speed, and transmitted power to the PTO. -
Page 11: Precautions When Using
Operational important point Danger ★ If it touches and churns during operation or rotation, an injury accident may occur. Because of the high-speed rotation of the Auger, the bottom fines will fly out during the operation. Be careful not to approach people around during the operation Warning! ★... -
Page 12: Inspection After Working
4.After operation 1. Inspection of operation （1） After the operation , the snow blower needs to be sorted and cleaned, remove the grass clippings, soil and residual snow remaining during the operation. （2）After use, pay attention to check if some parts of the snow blower may be damaged.
