ANTIFERENCE REMOTELINK A200 pro Series Quick Start Manual

A200 pro LTE series Signal Distribution Amplifiers
Fully-screened for professional results

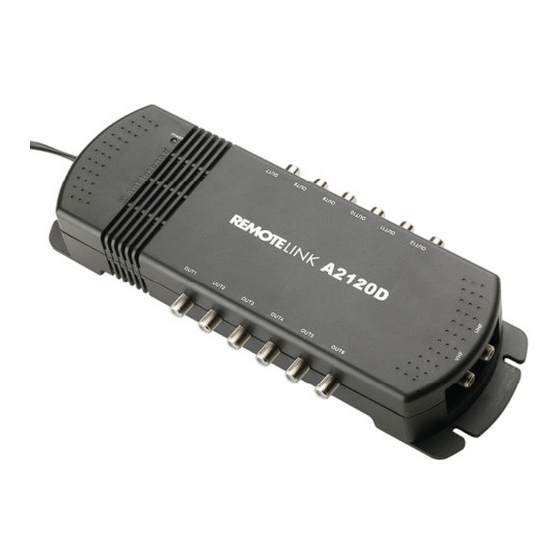

Antiference A200 pro LTE series range of RemoteLink distribution amplifiers are designed for distribut-
ing VHF/UHF, digital and analogue, radio and TV signals in domestic applications. These models are
designed to overcome the losses due to splitting of the signal and extra cable lengths needed to distrib-
ute signal to each room as well have the ability to control a SKYHD box (An ME200 Infra Red eye is
required at all outlets to enable the control facility).
All models are fully screened for high immunity to interference and impulse noise and are fitted with F-
connectors for reliable and professional installation.
There are five models in the range which have all been designed to make installation easy.
A120DLTE. Single input for VHF and UHF. 8dB gain with 2 outputs.
A240DLTE. Separate VHF and UHF inputs. 8dB gain with 4 outputs.
A260DLTE. Separate VHF and UHF inputs. 8dB gain with 6 outputs.
A280DLTE. Separate VHF and UHF inputs. 8dB gain with 8 outputs.
A2120DLTE. Separate VHF and UHF inputs. 8dB gain with 12 outputs
A2160DLTE Separate VHF and UHF inputs. 8dB gain with 16 outputs
This New and Improved range of IR enabled distribution amplifiers have the facility to Remote power the IR
sensors as well as distribute FM DAB and UHF signals around the house.
Mains powered comes complete with fitted mains plug BS1363
•
Amplifiers are available in 2, 4,6, 8 ,12 & 16 way versions
•
EASYMOUNT fixings saves installation time and patience
•
Powers up remote-eyes which allows remote control of the SKY™ Digi-boxes in any location
•
F-type connectors ensuring a secure dc connection
•
Dual Inputs to distribute FM, DAB and UHF
•

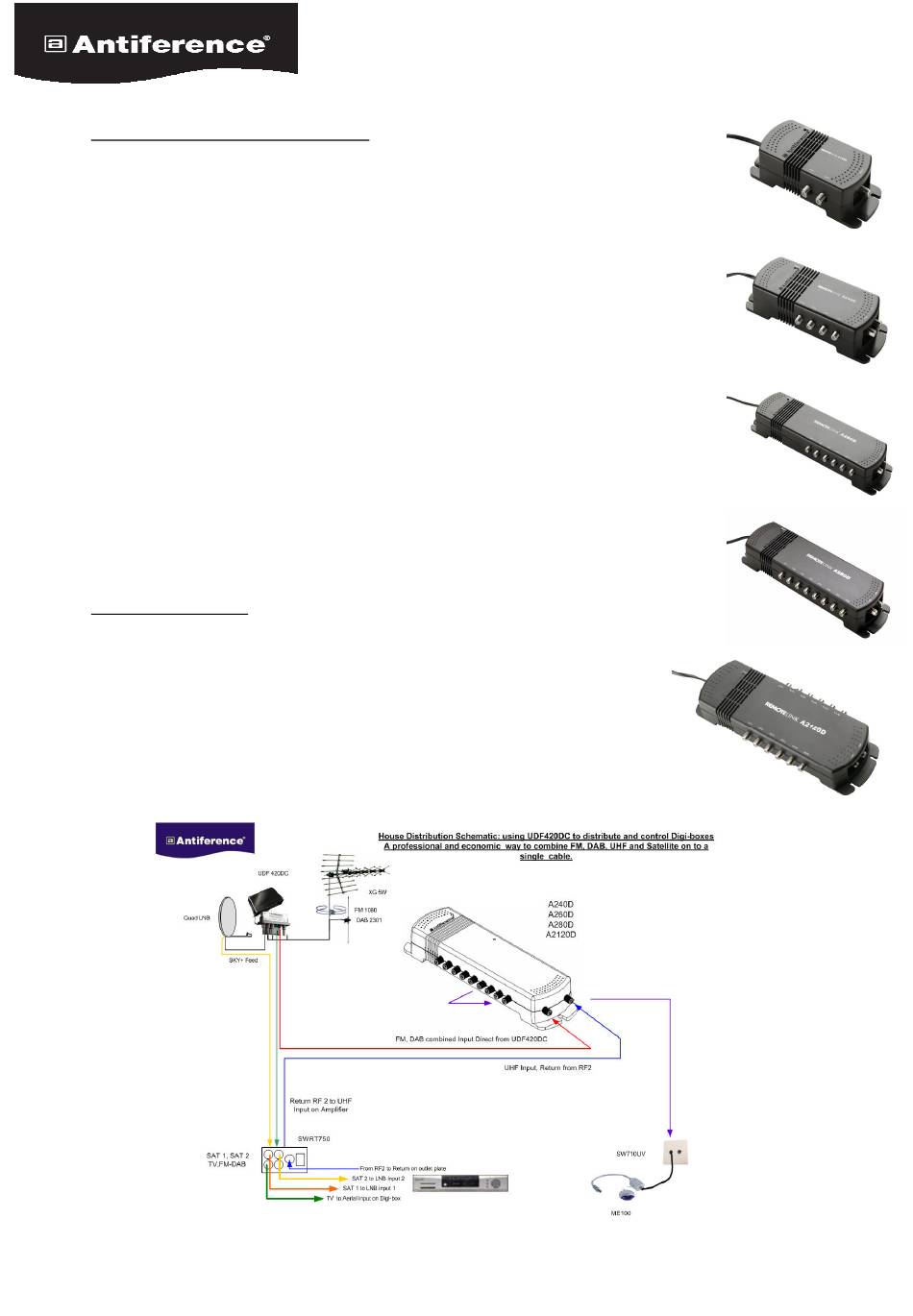

Installation schematic
The installation schematic shows the use of a UDF420DC which enables all signals to be combined
and distributed on to a single cable. Satellite, UHF, FM and DAB signals can be triplexed out using
a SWRT750 outlet plate. The return feed from RF2 on the SKYHD Digi-box becomes the UHF input
on the A200 series amplifier. The unique UDF420DC has a separate designated FM-DAB output
which connects directly to the VHF input on the amplifier.
In total 3 cables will be required to be installed in the main viewing area.
1) SKYHD feed
2) Combined FM, DAB, UHF and SAT 1
3) Return back up to the UHF input on the amplifier.
Don't forget to activate the RF2 9V line powering on the SKYHD service menu to activate the con-
trol facility( Refer to ME200 installation instruction leaflet).
REMOTELINK™ LTE Distribution Amplifiers
