enLighten enLink-EL-SM Installation Instructions

SuperNova
enLink-EL-SM
LED Floodlight with Specialised Optics
Installation Instructions
NOTE: All electrical work must be carried out by a licensed electrician as per the latest AS 3000 wiring regulations.
WARNING: All maintenance is to be performed by the supplier, a service agent or qualified person.
The luminaire must be operated within its specified operating parameters and in accordance with our warranty requirements.
Note: Regularly discharging the batteries (e.g during construction stage) will significantly shorten the battery's lifespan.
Product failure as a result of this is strictly NOT COVERED UNDER WARRANTY.
These documents are available on our website

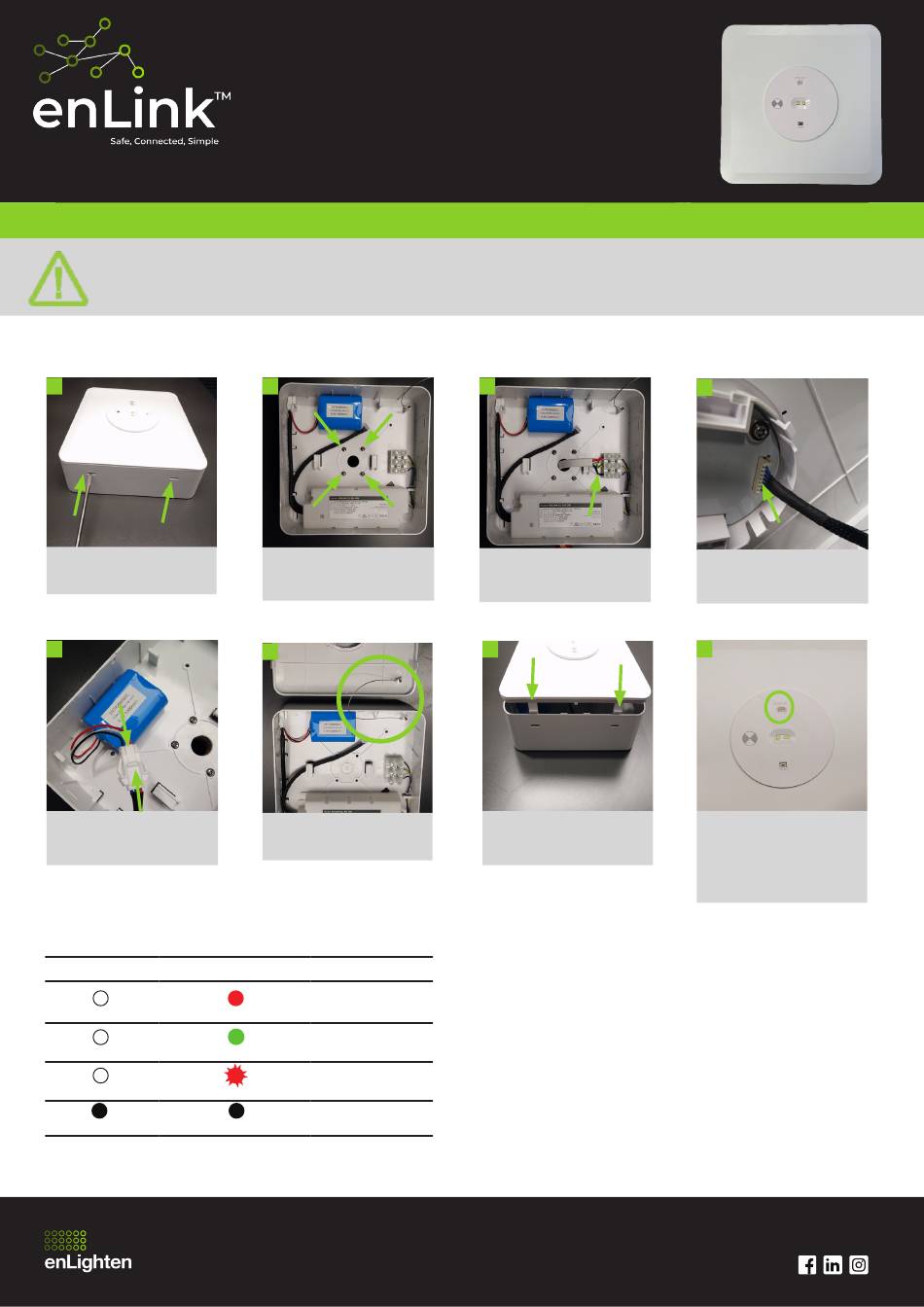

INSTALLATION
1.
Using a screwdriver, pop
open the cover.
5.
Ensure battery cable is
connected
INITIAL LED INDICATORS
Applicable first 24hrs only
Status Charge Indicator
White LED on Red LED on
White LED on Green LED on
White LED on Red LED flashing
LED off LED off
Surface Mount Emergency Light
2.
Secure mounting base
into position using the
holes
6.
Ensure the cover
connector cable is
connected
Battery charging
Battery fully charged
Battery not detected
Power not detected
3.
Run cables into the fitting
and connect to terminal
block
7.
Push clips down to close
cover
www.enlighten.com.au |
4.
Connect the LED cable to
the faceplate
8.
After installation, this
fitting is now a fully
operational emergency
light, please check
indicators on the face of
the fitting.
1800 365 444
