Summary of Contents for PENTA FAMECA TAG5000

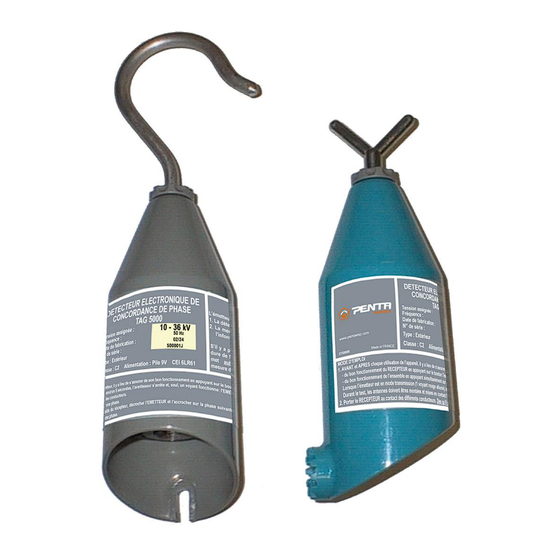

- Page 1 Work in total confidence with your power network TAG5000 Wireless PHASE COMPARATOR USER'S MANUAL METAG5000_TD451_EN_V.13 – 21/02/2024 This document is PENTA FAMECA property, reproduction is allowed only if it’s full content integrity is guaranteed - 1 -...
- Page 2 CAUTION: Before using this device, read this notice very carefully 1. AIM The TA5000 has been designed for: Checking electrical network configurations before connection; Network phase mapping. Actually, the connection of high voltage three-phase lines requires the perfect knowledge of the relative phases of each pairs of conductors to be connected.
- Page 3 The transmitter and the receiver include an integrated tests system by which all the modules are tested: electrical components, battery, wiring and antenna. Carrying out the test corresponds to a real line touch. The transmitter and the receiver do not have an “On/off” button. The device comes on automatically as soon as the live line is touched, and stops as soon as the electrode is no longer in contact with it.
-
Page 4: Operation
4. OPERATION Before and after any use of the device, carry out a full auto-test of the whole device equipped with its electrodes (see § 3.3 – a) 4.1. Checking of line voltage presence (Transmitter only). (Screw the hook intended to suspend the device onto the end of the module) ... -
Page 5: Replacing The Batteries
5. REPLACING THE BATTERIES The wireless TAG5000 phasing device is powered by two CEI 6LR61 alkaline batteries: one in each of the cases, emitter and receiver. Whenever the checks described in paragraphs 3.1 and 3.2 indicate that the level of the batteries is too low, replace them as follows: Unscrew the electrode Unscrew the nut at the top of the device Push the electronic module by firmly pushing the metal nut at the top of the device... -
Page 6: Warranty
8. WARRANTY PENTA FAMECA would know in no manner of engaging its responsibility on operation for the TAG5000 for use conditions different from those described in this document, and this in an exclusive way. PENTA FAMECA will apply the legal warranty in line with the general sales condition.
