ORIGINAL INSTRUCTIONS

INSTRUCTION MANUAL

FOGGY HOME

FHBE60W

BUILDER SAS

32 Rue Aristide Bergès, 31270 CUGNAUX - FRANCE

MADE IN PRC 2020

Table of Contents

Need help?

Do you have a question about the FOGGY HOME FHBE60W and is the answer not in the manual?

Questions and answers

Summary of Contents for Feider Machines FOGGY HOME FHBE60W

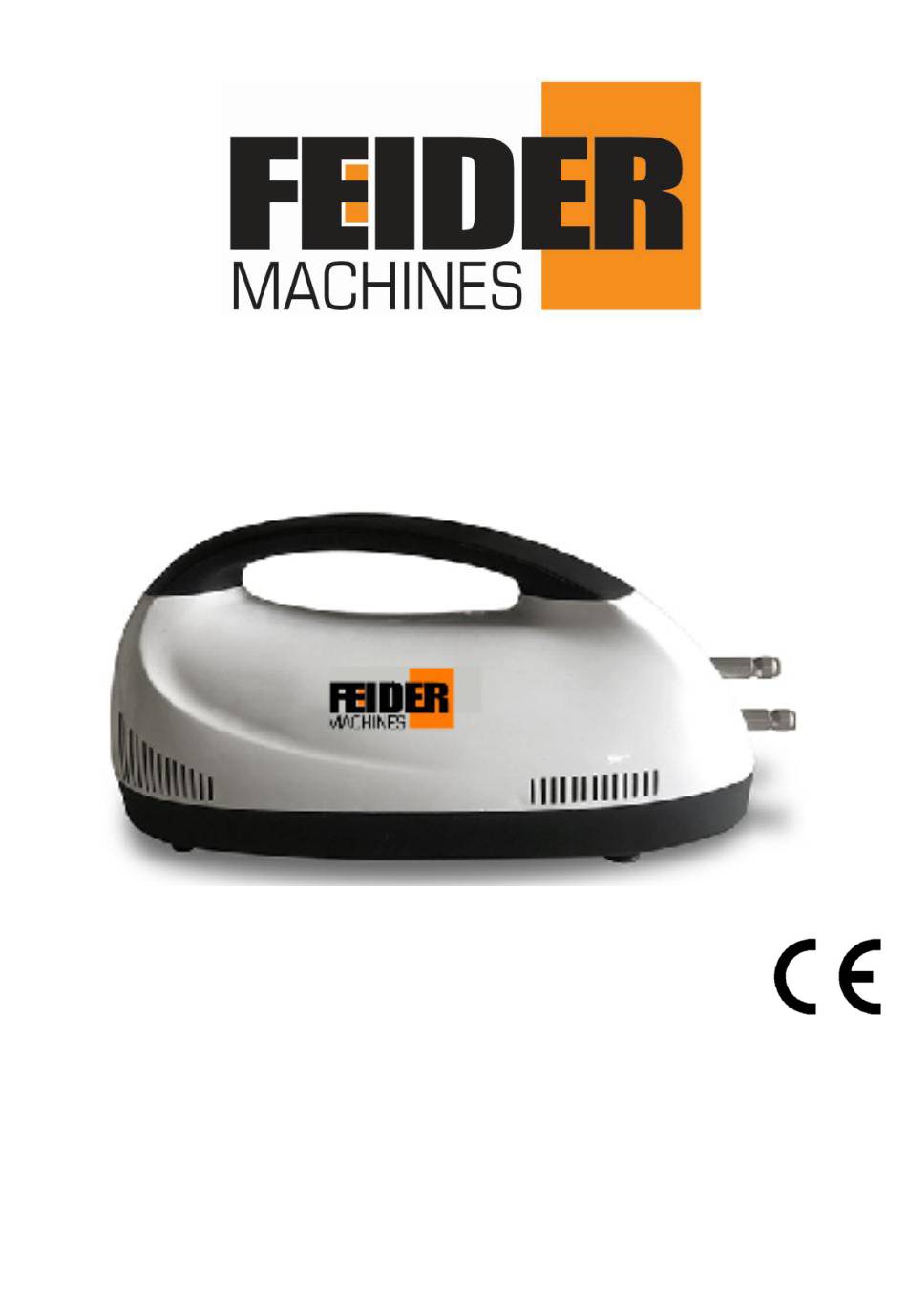

Page 1 ORIGINAL INSTRUCTIONS INSTRUCTION MANUAL FOGGY HOME FHBE60W BUILDER SAS 32 Rue Aristide Bergès, 31270 CUGNAUX - FRANCE MADE IN PRC 2020...
Page 2 ORIGINAL INSTRUCTIONS INDEX 1. Introduction 2. Security precautions and normative 3. Warning symbols 4. Machine description 5. Star up instructions 6. Machine usage 7. Maintenance and service 8. Troubleshooting 9. Transport 10. Storage 11. INFORMATION ON DESTRUCTION/RECYCLING OF PRODUCT 12. WARRANTY 13.
Page 3 ORIGINAL INSTRUCTIONS 1. INTRODUCTION ATTENTION! Read all the security warnings and all the manual. Non compliance with the warning signs and not reading the manual can result in an electric shock, fire and/or severe personal damage. Use this machine only to refresh open areas with driking water from potable network at a temperature less than 20 degrees celsius.
Page 4 ORIGINAL INSTRUCTIONS manufacturer will not be responsible for damages caused due to an incorrect use of the machine. 2. SECURITY PRECAUTIONS AND NORMATIVE To avoid the incorrect use of this machine, read all the instruction manual before using the machine for the first time.
Page 5: End Users
ORIGINAL INSTRUCTIONS Caution: Do not use an excessive amount of salt. Follow the instructions for use to know the composition and the quantity of solution to be used. Follow the instructions in this manual for filling, cleaning and descaling operations. The device must only be used with the power supplied with the device.
Page 6: Personal Security
ORIGINAL INSTRUCTIONS machine with the instruction manual so that this new end user reads it carefully and fully understands it. This machine is dangerous in non experienced hands. 2.2. PERSONAL SECURITY Be alert and vigilant when using this machine and use common sense when working with the machine.
Page 7 ORIGINAL INSTRUCTIONS coincide with the electric mains would reduce the risk of electric shock.  Avoid body contact with earthed surfaces such as tubes, radiators, electric kitchens and refrigerators.  There is an increased risk of electric shock if in contact with earthed products.
Page 8 ORIGINAL INSTRUCTIONS metres in length and homologated for outdoor use. Both the plug and the base of the electric extension must be waterproof and should never be submerged in water. The use of an adequate electric extension will reduce the risk of electric shock. Always disconnect the plug from the dock before carrying out any work on this machine.Only operate this machine when it is disconnected.
Page 9: Warning Symbols
ORIGINAL INSTRUCTIONS  Do not use the machine if the switch does not change from closed to open. Any electric machine that cannot be controlled by the switch is dangerous and must be repaired. If the machine starts to vibrate in a strange manner, disconnect the machine and examine the machine to find the cause.
Page 10: Detailed Description Of The Product
ORIGINAL INSTRUCTIONS 4. MACHINE DESCRIPTION 4.1. USAGE CONDITIONS Use this machine only to refresh open areas with driking water from potable network at a temperature less than 20 degrees celsius. Do not use this machine for other uses not contemplated. Do not use other water than driking water, do not use stagnat water, water form a deposit, etc just use driking water from the potable water network.
Page 11: Mounting The Machine
ORIGINAL INSTRUCTIONS Input current(A)....2.0   Input Frecuency (Hz) ..50/60  Output Voltage (V d.c.) ..24  Output Current(A)....2.5 5. START UP INSTRUCTIONS 5.1. LIST OF MATERIALS This machine includes the following elements that you will find inside the box: •...
Page 12 ORIGINAL INSTRUCTIONS 3). Push the section of cut pipe into the connector At the end of the pipe there should always be a nozzle with the end connector. 4). Screw the nozzles into the connectors...
Page 13 ORIGINAL INSTRUCTIONS 5). At the beginning of the pipe place the connector to the machine. 5.2.2. SUCTION PIPE CONNECTIONS 1). Separate the piece (11) from the tap so as to insert the quick water plug. 2). Connect the water fi lter to the water supply Make sure before fastening the quick coupling that the fi lter (8) is set.
Page 14: Electrical Connection
ORIGINAL INSTRUCTIONS 3). Connect the suction line to the fi lter 4). Connect the suction pipe to the machine in the lower connection. 5.2.3 ELECTRICAL CONNECTION 1). Check that the switch is open (the symbol “I” must be raised) 2). Connect the transformer to the machine...
Page 15 ORIGINAL INSTRUCTIONS 5.3. VERIFICATION POINTS PRIOR TO USE The current supply and its related tension must be those stipulated on the characteristics label.  Check the machine and look for lose pieces (screws, nuts, covers etc) and for any damages. Tighten, repair or replace the pieces that you have noticed not to be in a perfect working order.
Page 16 ORIGINAL INSTRUCTIONS 6. USAGE OF THE MACHINE  Use this machine only for its proposed work. The use of this machine for other jobs not stipulated in this manual is dangerous and could cause injuries/damages to the user and to the machine.
Page 17: Maintenance And Service
ORIGINAL INSTRUCTIONS 7. MAINTENANCE AND SERVICE The removal of security devices, inappropriate maintenance or the substitution of parts by non original parts could cause severe injuries. Always do maintenance work with the machine unplugged from the mains. Carry out the following maintenance and care at the end of the season or each 3 months of use of the machine and before using it the following season to ensure the proper functioning of this machine in future occasions: - Clean all connectors by removing all dirtiness.
Page 18 ORIGINAL INSTRUCTIONS 10. STORAGE  Store electric products such as this machine well away from children and in a secure manner so that it does not represent a danger to any person.  The machine should be stored clean and on a flat surface. Store in a place where the temperature is not below 0º...
Page 19: Warranty
12. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.
Page 20: Product Failure
13. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.
Page 21: Warranty Exclusions
14. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
