GS-2CDHTD Series
Duct Temperature, Relative Humidity & CO2 Sensors, Nema 4X

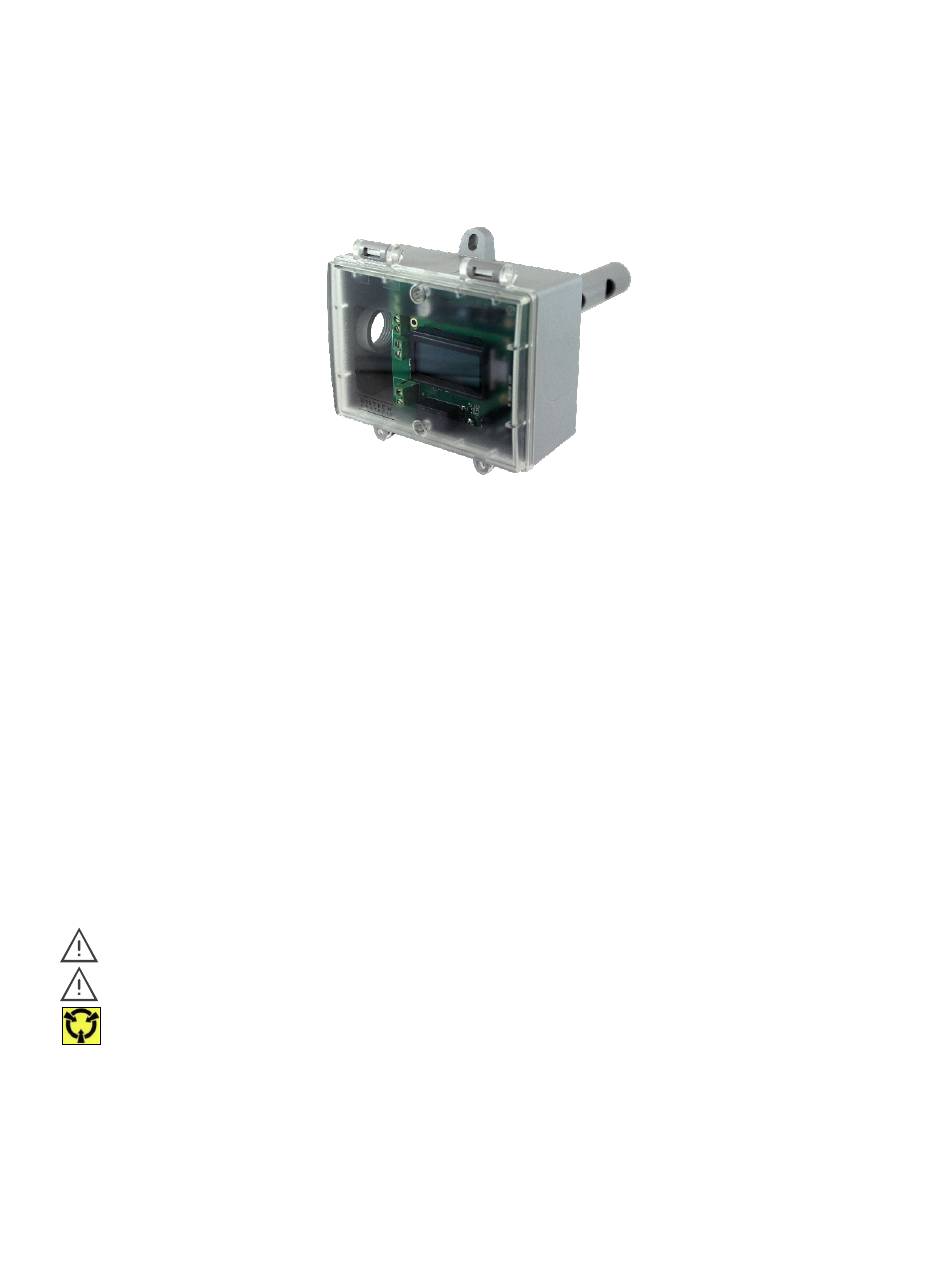

Figure 1: GS-2CDHTD Series Duct Temperature, Relative Humidity CO
Product Description
The GS-2CDHTD Series CO2/RH/T transmitter incorporates three sensors in one duct mount enclosure for the most efficient
environmental monitoring and control system. It uses Infrared Technology to monitor CO2 levels within a range of 0 – 1000 ppm, a
field-proven RH sensor to monitor relative humidity from 0-100 %RH and a curve-matched thermistor to measure temperature over
common field-selectable ranges. All three measurements are continuously available on separate outputs as linear analog signals. The
device includes an LCD for configuration and operating parameters are programmed using a keypad for specific applications. Options
include a control relay, override switch and slide pot setpoint control. This product is also available with voltage output signals instead
of 4-20 mA.
General Installation Requirements
For proper installation and subsequent operation of each device, pay special attention to the following recommendations:
-
Upon unpacking the product, inspect the contents of the carton for shipping damages. Do not install damaged device.
-
Avoid areas where corroding, deteriorating or explosive vapors, fumes or gases may be present.
-
Ensure that all equipment is installed according to local, regional, and national regulations.
Personal injury or loss of life may occur if you do not follow a procedure as specified.
Equipment damage or loss of data may occur if you do not follow a procedure as specified.
Take reasonable precautions to prevent electrostatic discharges to the controller when installing, servicing or operating
the controller. Discharge accumulated static electricity by touching one's hand to a well-grounded object before working
with the controller.
Mounting Instructions
The duct sensor installs on the outside of a return air duct with the sampling tube inserted into the duct.
Mount the sensor in an easily accessible location in a straight section of duct at least five feet from corners or other items that may
cause disturbances in the air flow. Avoid areas where the detector is exposed to vibrations or rapid temperature changes.
1/6
H a r d w a r e I n s t a l l a t i o n G u i d e
Sensors
2

Advertisement

loading
Need help?

Need help?

Do you have a question about the GS-2CDHTD Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Distech GS-2CDHTD Series

  • Page 1 Product Description The GS-2CDHTD Series CO2/RH/T transmitter incorporates three sensors in one duct mount enclosure for the most efficient environmental monitoring and control system. It uses Infrared Technology to monitor CO2 levels within a range of 0 – 1000 ppm, a field-proven RH sensor to monitor relative humidity from 0-100 %RH and a curve-matched thermistor to measure temperature over common field-selectable ranges.
  • Page 2 The principle of operation is based on the Venturi effect of the probe that extends into the HVAC duct. Air flowing through the duct is forced into the vent holes on one side of the probe, into the enclosure, over the CO2 sensor and then the air is drawn back out of the enclosure via the vent holes on the opposite side of the probe.
  • Page 3 Figure 5: Tighten security screws. Wiring Deactivate the 24 Vac/dc power supply until all connections are made to the device to prevent electrical shock or equipment • damage. Use 14-22 AWG shielded wiring for all connections and do not locate the device wires in the same conduit with wiring used •...
  • Page 4: Operation

    Outputs The CO2 output is scaled such that 4-20 mA (or 0-5/0-10 Vdc) equals 0 to Out_High. Depending on the model ordered, the factory default is either 0-2000 ppm or 0-20,000 ppm. The Out_High value can be changed in the Setup Menu and the output signal is scaled accordingly.
  • Page 5 For models with the relay option installed Relay SP The relay trip setpoint default is 1000 ppm. Use <ROLL> to change from 500 to 5000 in 100 ppm increments. 1000 ppm <MENU> Press to advance to next menu item. Relay Hy The relay hysteresis default is 50 ppm.
  • Page 6 ©, Distech Controls Inc. 2022 All rights reserved. While all efforts have been made to verify the accuracy of information in this manual, Distech Controls is not responsible for damages or claims arising from the use of this manual. Persons using this manual are assumed to be trained HVAC specialist / installers and are responsible for using the correct wiring procedures and maintaining safe working conditions with fail-safe environments.
