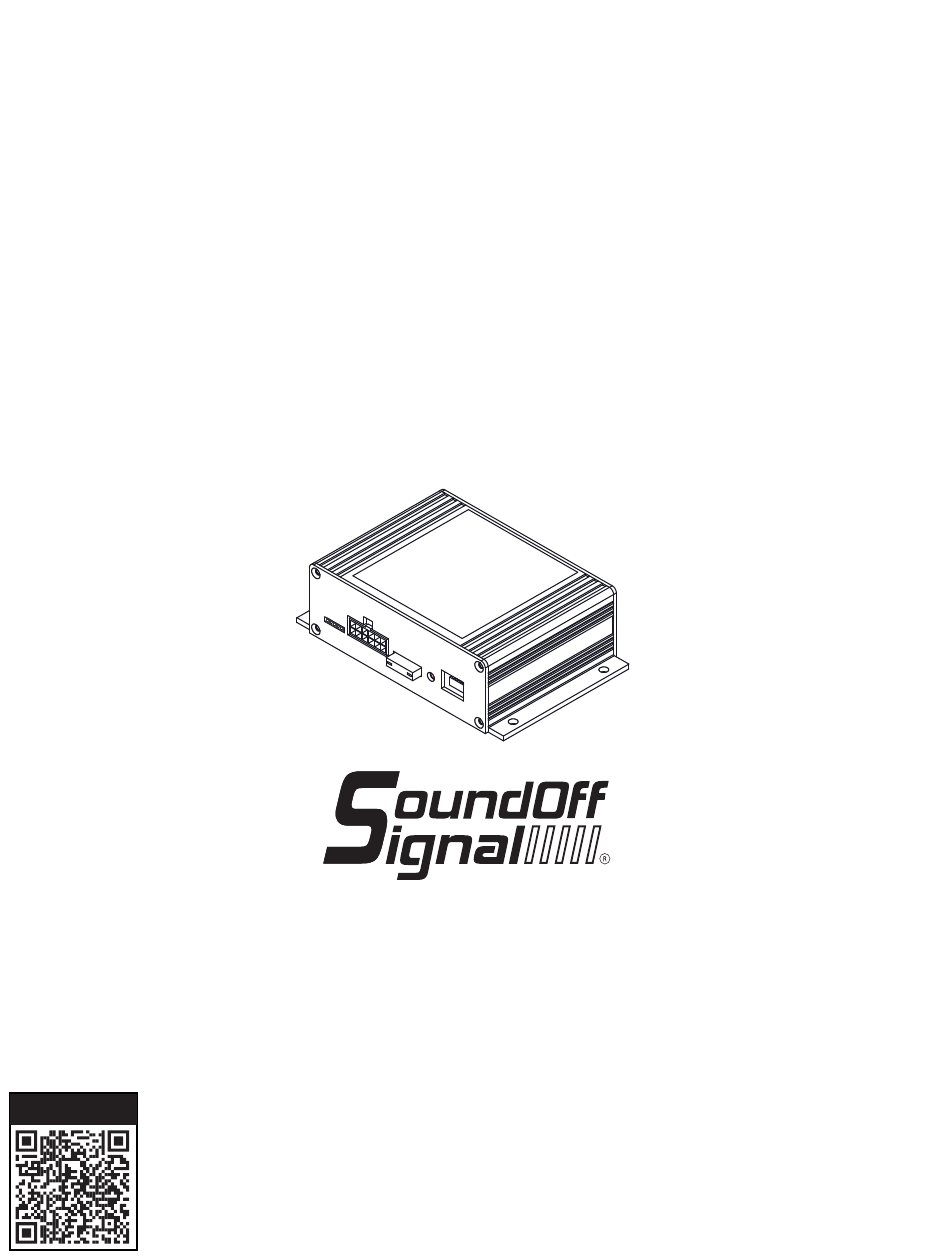

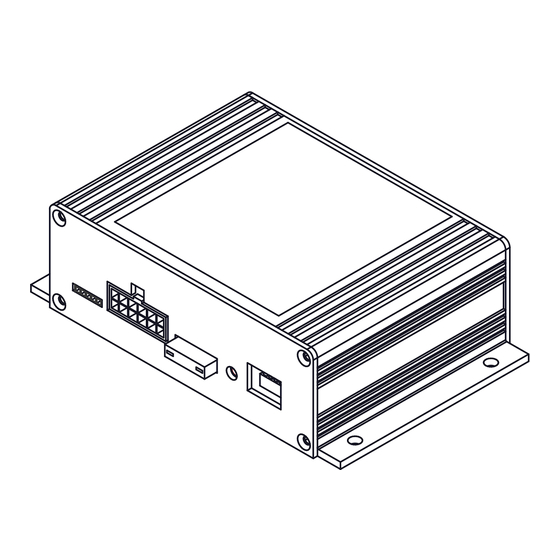

- Page 1 INSTALLATION INSTRUCTIONS LF AFTERSHOCK 200W AMPLIFIER 200 WATT SCAN FOR NEWEST VERSION PSRNLFANR3 LF AFTERSHOCK 200W AMPLIFIER 0000JL 0123 REV A.
- Page 2 • Improper use or installation may void warranty coverage. • To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/. • If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).
-
Page 3: Amplifier Installation
(i.e. – Momentary Press of an Activation button.) Cut the input and output speaker connectors off of the LF200 harness. Wire these directly to the primary siren amplifier outputs. PSRNLFANR3 LF AFTERSHOCK 200W AMPLIFIER 1.800.338.7337 / www.soundoffsignal.com 0000JL 0123 REV A. - Page 4 Connect primary siren amplifier plug directly into the 400/500 series siren speaker connector. Then LF200 HARNESS connect primary speaker plug to speaker harness provided by 400/500 series siren as shown in the diagram to the left. PSRNLFANR3 LF AFTERSHOCK 200W AMPLIFIER 1.800.338.7337 / www.soundoffsignal.com 0000JL 0123 REV A.
-
Page 5: Diagnostic Led Codes
Add risers to the continue operation, but at 60% output level until mounting surface to allow for airflow under the <+80C condition is met. LF200 Siren. PSRNLFANR3 LF AFTERSHOCK 200W AMPLIFIER 1.800.338.7337 / www.soundoffsignal.com 0000JL 0123 REV A. - Page 6 Shipping & Handling, labor and service fees are non-refundable. ROUTING WIRES IN THE DEPLOYMENT AREA OF YOUR AIR BAG. SoundOff Signal is not liable for any damage due to installation or REFER TO YOUR VEHICLE OWNER’S MANUAL FOR AIR BAG personal injury as a result of using SoundOff Signal product.
