INTRODUCTION
The Shopsmith Dial Indicator Set Up Gauge is the
ideal tool for aligning your machines for optimum
performance and for making certain operational set-
ups with exceptional accuracy.
The Dial Indicator Set Up Gauge consists of a preci-
sion dial indicator that is graduated in 1/1000 (.001)
increments with a full 1" of travel. This Dial at-
taches to an adjustable holding device that slides in
the Miter Bar slot of your MARK V worktable sur-
face or the top of your MARK V Model 505, 510 or
520 Rip Fence. It can also be used with your Band-
saw Rip Fence or your Shopsmith Pro Fence Sys-
tem Router Table Fence. And, by removing the Mi-
ter Bar from the bottom of the Gauge, you can also
use it to adjust your Jointer Knives.
The complete package also includes a box contain-
ing a total of 22 interchangeable Tips for the end of
the Plunger. Some of these Tips have flat ends, some
have "domed" ends and others have pointed ends.
In addition, some Tips are longer than others, giving
you some additional "reach" when required for cer-
tain measurements. For most applications, the flat-
ended Tips will work best. The two large diameter
(short length) Tips are ideal for measuring to saw
blade tips or jointer knife edges. Just screw one Tip
off and another on.
NOTE
Before taking any measurements, be sure the
Tip you're planning to use is screwed on
TIGHTLY. Loose Tips produce inaccurate mea-
surements.
DIAL INDICA T T T T T OR
DIAL INDICA
DIAL INDICA
DIAL INDICA
DIAL INDICA
SET UP GA
SET UP GA
SET UP GA
SET UP GA UGE
SET UP GA
5
4
2

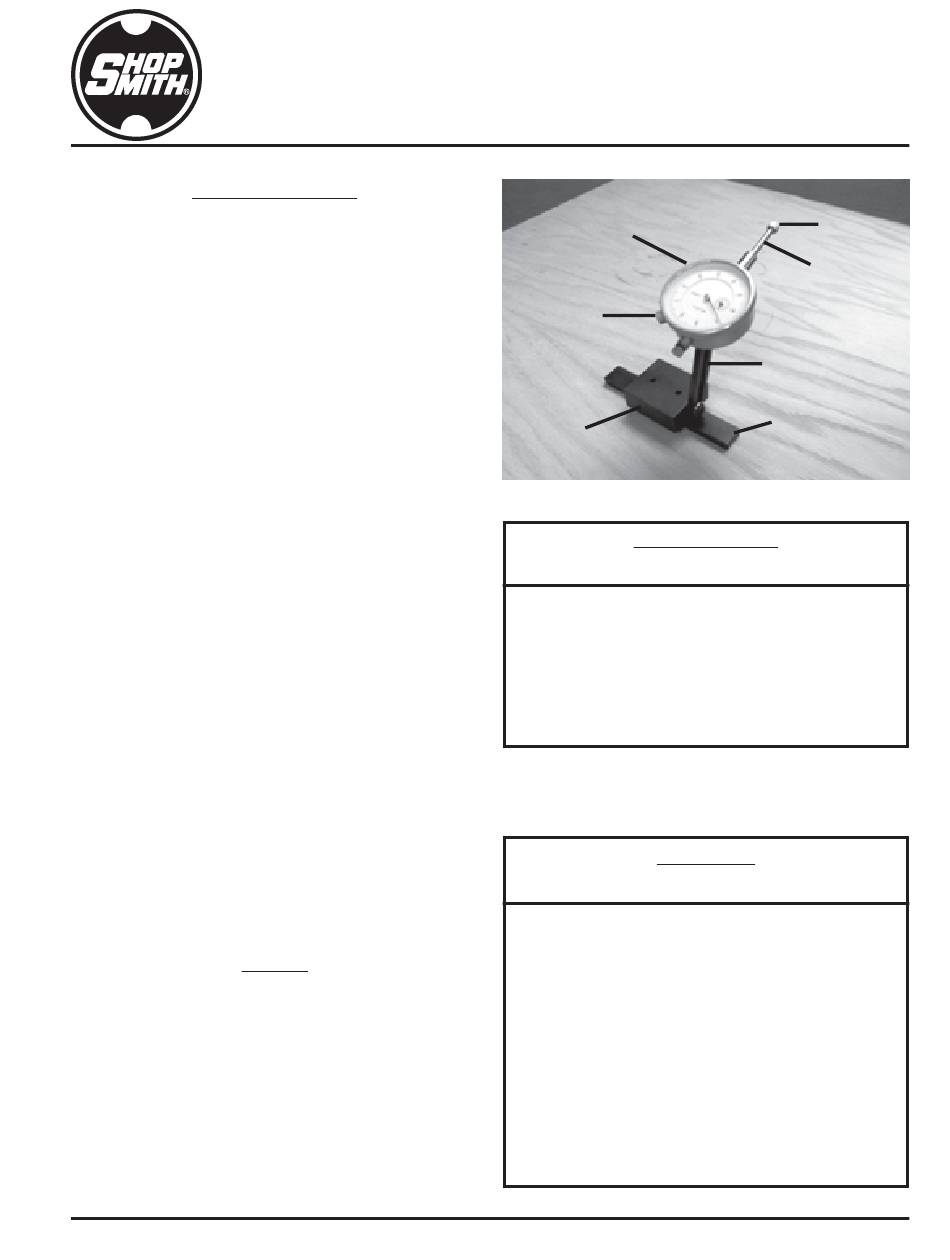

Figure 1
REFERENCE LIST
Ref. No.
Description
1
Miter Bar
2
Block
3
Slot Bracket
4
Dial Lock Knob
5
Zeroing Dial
6
Plunger
7
Indicator Tip
PARTS LIST
Part No.
Description
522007
Indicator Gauge Assembly
..120380
Lock Washer
..502333
Flat Washer
..516027
1/4-20x5/8 Button Head Screw
..517829
1/4-20x1/2 Button Head Screw
..518461
#10-24 Flat Head Screw
..522003
Slot Bracket
..522004
Block
..522005
Miter Bar
..522006
Dial Indicator
522153
22-Piece Indicator Tips
OR
OR
OR
OR
UGE
UGE
UGE
UGE
555884
7
6
3
1
Qty
1
1
3
1
1
2
1
1
1
1
1
Advertisement
Summary of Contents for Shopsmith 555884
- Page 1 SET UP GA UGE SET UP GA 555884 INTRODUCTION The Shopsmith Dial Indicator Set Up Gauge is the ideal tool for aligning your machines for optimum performance and for making certain operational set- ups with exceptional accuracy. The Dial Indicator Set Up Gauge consists of a preci- sion dial indicator that is graduated in 1/1000 (.001)
-
Page 2: A Few Words About Safety
ASSEMBLING THE GAUGE A FEW WORDS ABOUT SAFETY When your Set Up Gauge arrives, the Block is al- Throughout this instructional literature, we list WARNINGS, CAUTIONS, and NOTES. We ad- ready attached to the Miter Bar and the Bracket is vise that, when you come to one of these listings, attached to the Block. -
Page 3: Getting Started
GETTING STARTED The Dial Indicator Set Up Gauge is, basically, a highly accurate reference tool. Using the Gauge is simple. Follow the general directions outlined below, and then the more detailed directions for each application listed later. 1) Position the Gauge next to the object to be mea- sured (fence, saw blade, etc.). - Page 4 TABLE SAW SET UPS con’t. to the work table, the rip fence is now parallel with the saw blade. See Figure 6. Aligning the Miter Gauge to 90° NOTE 1. Remove any auxiliary fences/extentions from your Miter Gauge. Setting the fence exactly parallel front to back 2.
- Page 5 SHAPER/ROUTER TABLE FENCE SET UP This is particularly handy for cutting precision rab- bets or similar joints. 1. Start by installing the Set Up Gauge in the Miter Gauge slot (This procedure also works for Router Table Fences, as shown in Figure 7). 2.
- Page 6 845527 Rev B 06/03 2003 Shopsmith, Inc. © 6530 Poe Avenue All Rights Reserved Dayton, Ohio 45414 Printed In U.S.A.
