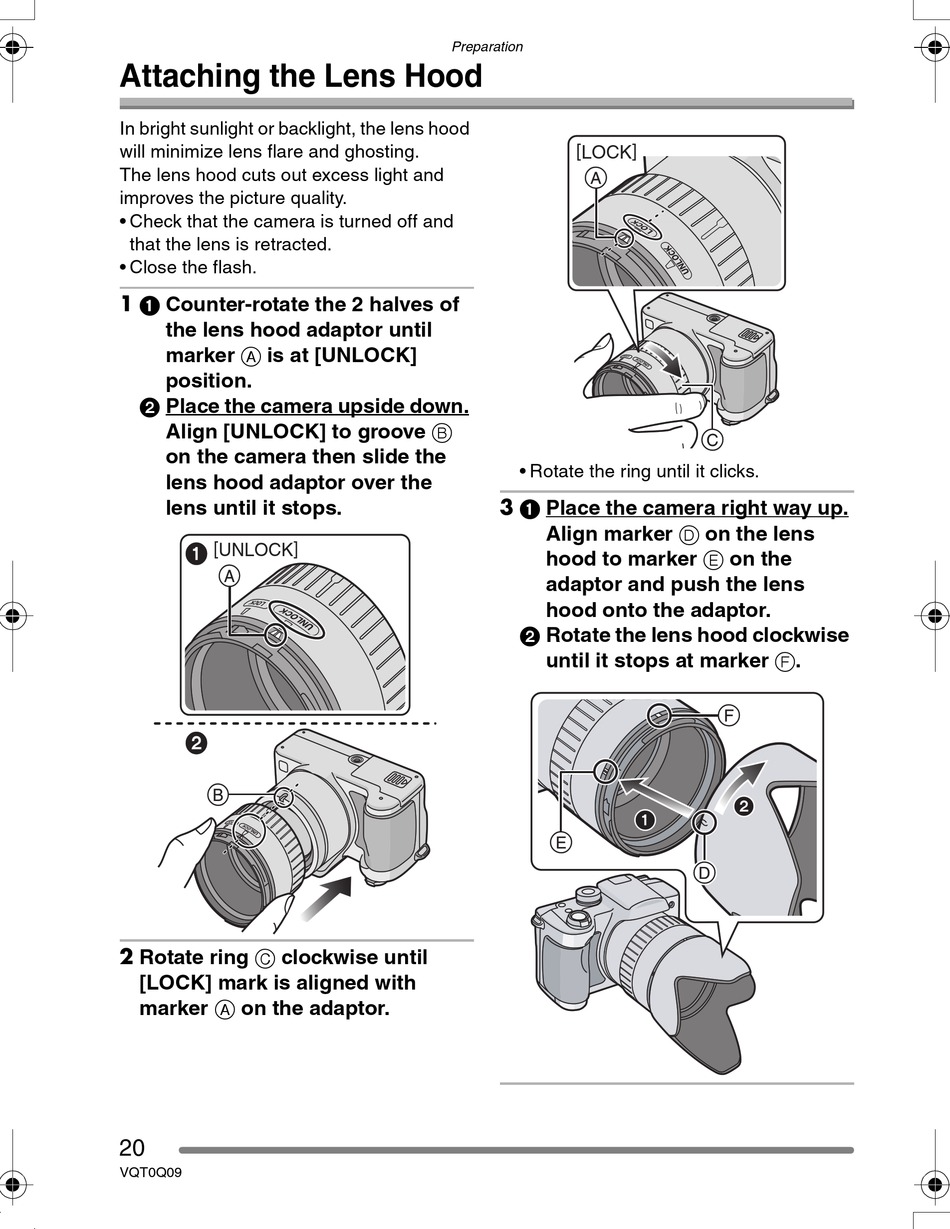

Attaching the Lens Hood

In bright sunlight or backlight, the lens hood
will minimize lens flare and ghosting.
The lens hood cuts out excess light and
improves the picture quality.
• Check that the camera is turned off and
that the lens is retracted.
• Close the flash.
1 1 Counter-rotate the 2 halves of
the lens hood adaptor until
marker A is at [UNLOCK]
position.
2 Place the camera upside down.
Align [UNLOCK] to groove B
on the camera then slide the
lens hood adaptor over the
lens until it stops.
[ UNLOCK ]
2 Rotate ring C clockwise until
[LOCK] mark is aligned with
marker A on the adaptor.
20
VQT0Q09
Preparation
[ LOCK ]
• Rotate the ring until it clicks.
3 1 Place the camera right way up.
Align marker D on the lens
hood to marker E on the
adaptor and push the lens
hood onto the adaptor.
2 Rotate the lens hood clockwise
until it stops at marker F.
