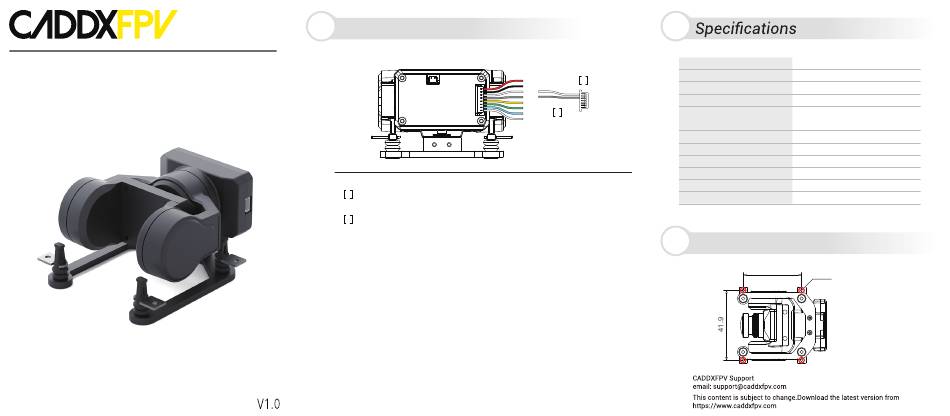

CADDX FPV GM2 User Manual

GM2
USER MANUAL
Connection and Use
Connect to the USB port of Avatar V2 VTX, and need to use Avatar Goggles
1
that support head tracking to realize wireless head tracking function.
PM1
2
The channel is for gimbal working mode selection, there are three working
modes in total.
1: Pitch and roll keep level, yaw axis follows.
2: Pitch axis keeps level, roll axis and yaw axis follow.
3: Three-axis follow.
PM2
The channel is for gimbal follow sensitivity settings. Adjust the response
speed of the gimbal follow. Please use the knob channel on the remote
control to control.
PM3
The channel is the gimbal pitch axis control channel. Please use the rotary
switch on the remote controller to control it. The gimbal rotation angle range
can be changed by modifying the channel range of the remote control.
PM4
The channel is the gimbal yaw control channel. Please use the wave wheel
switch on the remote control to control it. The gimbal rotation angle range
can be changed by modifying the channel range of the remote control.
Model
Camera Compatibility
*
VCC(7V-26V) 1
GND
Image Stabilization
RX
TX
Max Controllable Speed
PWM 1
*
PWM 2
Max Controlled Rotational
2
PWM 3
PWM 4
Range
Size
Weight
Control Mode
Head Tracking Control
Voltage
Static Power Dissipation
Installation Dimensions
GM2
19mm FPV Camera
±0.005°
±1500°/s
Pitch: ±120°; Roll: ±60°
46.7x46.5x26.2mm
30g
PWM /UART
Support
7~26V
1.2W
35
Φ 2.1
Unit: mm
