Summary of Contents for RHOX RANE 1010X

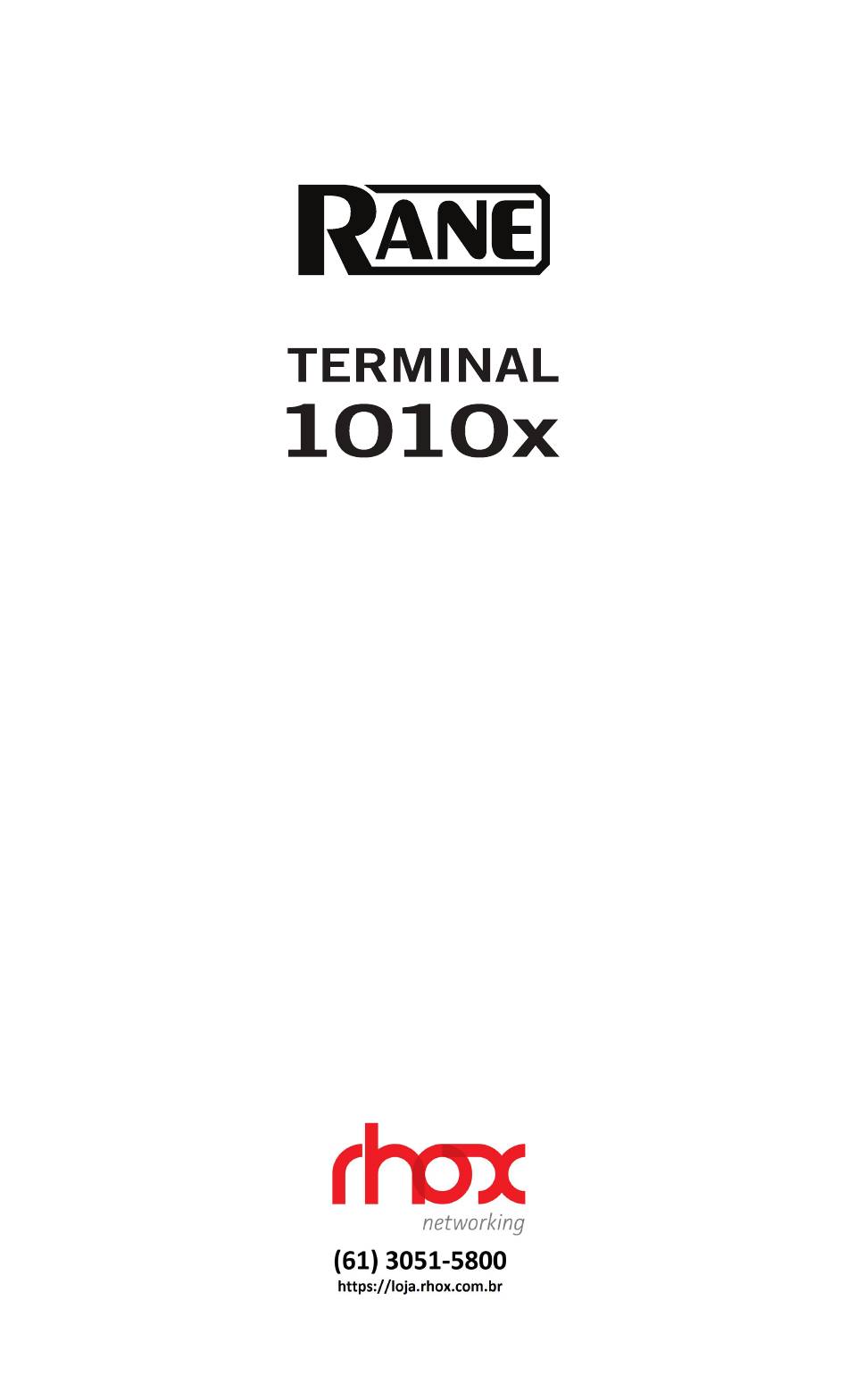

  • Page 1 Quickstart Guide English (3–10) Appendix English (44–46)

  • Page 2: Box Contents

    Quickstart Guide (English) Introduction The Terminal 1010x is an audio digital signal multi-processor designed to manage all sizes of audio installations, including retail stores, performance venues, hospitality and corporate facilities. The 1010x is easily programmable with Halogen software and an online wizard provides project templates for a plug and play performance.
  • Page 3 Setup Terminal 1010x comes with a default configuration applied and ready to go. For more templates, visit the Halogen Wizard, download a configuration and apply it to the Terminal 1010x for plug-and-play performance. If you’re a Rane Certified Designer or collaborate with a Rane Certified Company, please feel free to build your own design with Halogen software.
  • Page 4 OUTPUTS Connect Outputs 1–8 to mono zones, and Outputs 9–10 to a single stereo zone, as follows: Output 1: Mono Zone 1 Output 6: Mono Zone 6 Output 2: Mono Zone 2 Output 7: Mono Zone 7 Output 3: Mono Zone 3 Output 8: Mono Zone 8 Output 4: Mono Zone 4 Output 9: Stereo Zone 9 Left...

  • Page 5: Connection Diagram

    Connection Diagram Items not listed under Introduction > Box Contents are sold separately. Audio Inputs Mono Audio Inputs (Receiver, DVD Player, etc.) (Microphones) Master Remote MASTER VOLUME SOURCE SELECT (e.g., Rane DR6) QUICK SELECT ZONE 2 ZONE 2 ZONE 3 ZONE 3 INFO OPTION...

  • Page 6: Rear Panel

    Rear Panel Inputs (10 Universal Analog): Connect balanced or unbalanced audio sources to these mono inputs. The inputs can function in 4 modes of operation: Condenser Mic with 48V phantom power, Dynamic Mic, Balanced +20 dBU Line, and Unbalanced Line+. Tip: Unbalanced Line+ sums two unbalanced signals (such as left and right RCA lines) when one is connected to the positive (+) input and one is connected to the negative (-) input.

  • Page 7: Operation

    Operation Important: Visit ranecommercial.com to download the full Halogen User Guide. Display Home To access the Home page, press the Home button at any time. The contents of the Home page will change depending on the current state of Terminal 1010x. Information that may be shown here includes booting status, fault status, network status, and more.
  • Page 8 Controlling Terminal 1010x Remotely You can use a web-based interface on your computer to control Terminal 1010x remotely. To set up Terminal 1010x for use with its web interface: Use standard Ethernet cables to connect Terminal 1010x’s Computer Ethernet port to a DHCP (Dynamic Host Configuration Protocol)-enabled router or similar access point, and then connect your computer to another port on the same router or access point.

  • Page 9: Troubleshooting

    Troubleshooting If you encounter a problem, try doing these things first: • Make sure all cables and other connected devices are properly and securely connected. • Make sure you are using Terminal 1010x as described in this user guide. • Make sure your other devices or media are working properly.

  • Page 10: Technical Specifications

    Appendix (English) Technical Specifications Analog I/O Type 10 in x 10 out High definition audio 24-bit, 48 kHz, DR 116 dB A- weighted High definition audio 24-bit, 48 kHz, DR 116 dB A- weighted Frequency Response 20 Hz – 20 kHz, + 0.1 dB (5) Euroblock connectors, 6 pins each, 3.81 mm pitch, Inputs Connection...
  • Page 11 (6) RJ-45 Shielded Cat 5e cable or better RAD+ Ports Connection 2 in, 2 out Each port, control channel, 24-bit, 48 Audio Channels 27 VDC Each port Voltage 12 W (peak) / 6 Each port Power W (average) Length DR devices: 984 RAD devices: 325 ft.

  • Page 12: Trademarks And Licenses

    Unit Wiring Class 2 Rear-panel terminals 32–104°F, 0–40°C Operating Temperature 10 CFM, low noise (<20 dBa), long life (60k hours at 45°C) 18.98” x 8.38” x 1.74” Width x depth x height Dimensions 48.2 x 21.3 x 4.4 cm Weight 6.9 lbs., 3.14 kg Specifications are subject to change without notice.
  • Page 13 ranecommercial.com Manual Version 1.4...
