INSTALLATION GUIDE

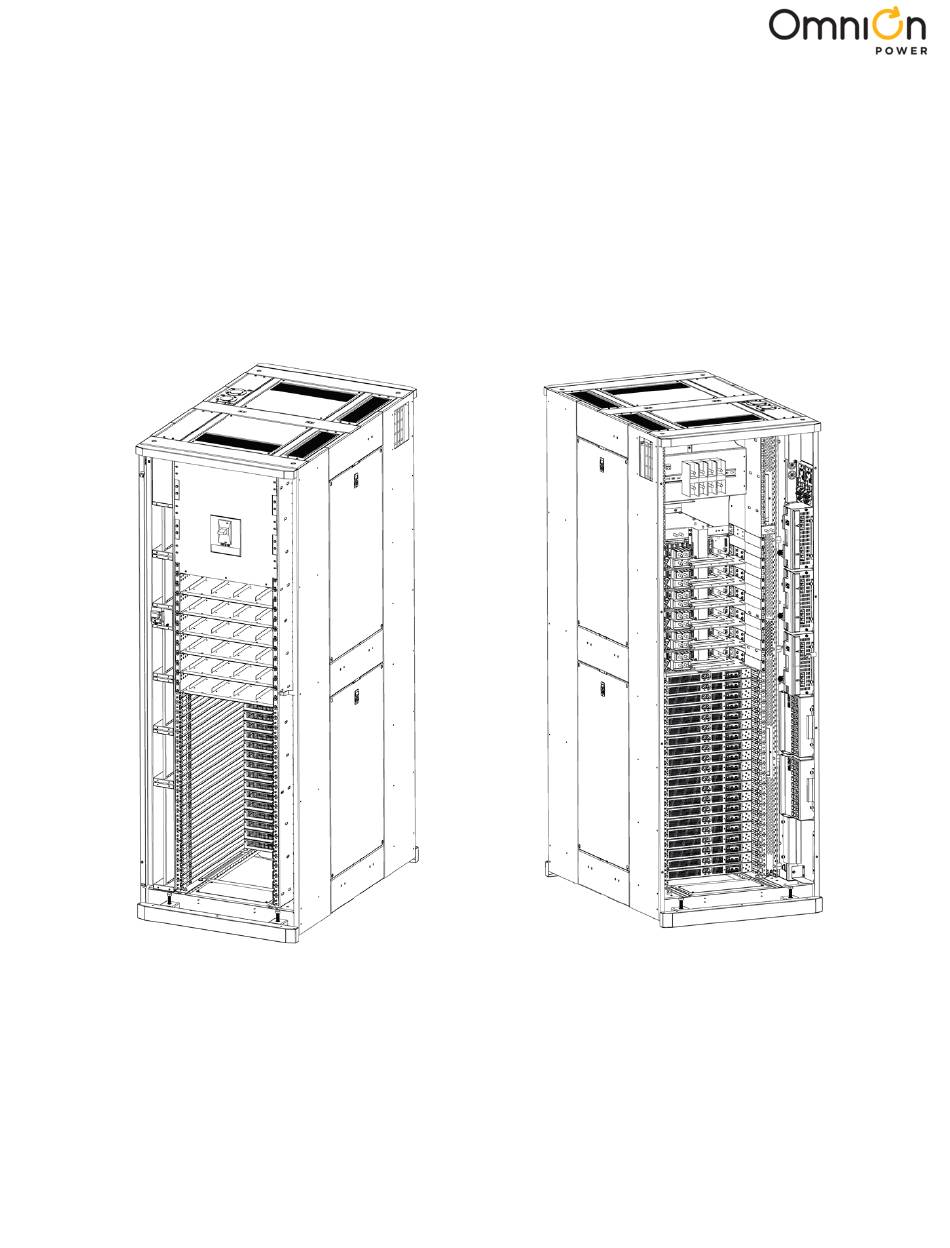

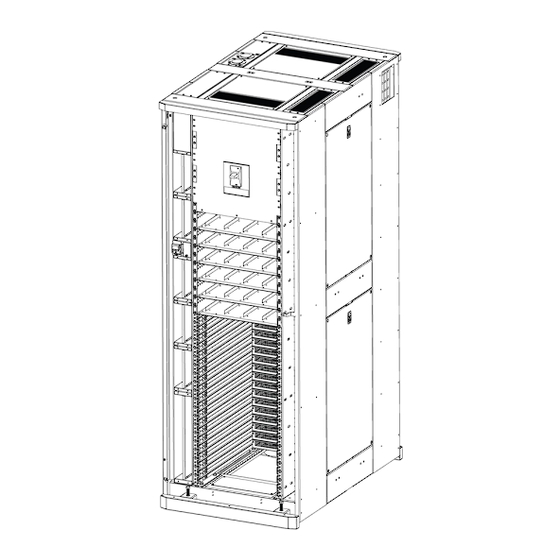

8600427678P Edge Distributed Power Architecture 48kW
Inverter System
"IMPORTANT SAFETY INSTRUCTIONS" and "SAVE THESE INSTRUCTIONS"
TO BE USED IN A CONTROLLED ENVIRONMENT AND RESTRICTED ACCESS LOCATION ONLY.
Intended for use in a temperature-regulated, indoor area that is relatively free of conductive contaminants.
Page 1
2024 OmniOn power Inc. All rights reserved.
Edge Inverter_IG
Rev. 1.0
Advertisement
Table of Contents
Summary of Contents for OmniOn Power 8600427678P
- Page 1 INSTALLATION GUIDE 8600427678P Edge Distributed Power Architecture 48kW Inverter System "IMPORTANT SAFETY INSTRUCTIONS" and "SAVE THESE INSTRUCTIONS" TO BE USED IN A CONTROLLED ENVIRONMENT AND RESTRICTED ACCESS LOCATION ONLY. Intended for use in a temperature-regulated, indoor area that is relatively free of conductive contaminants.
-
Page 2: Table Of Contents
Precautions ..................................................19 Hazards ....................................................20 Shock Hazard................................................. 20 Énoncés de sécurité ..............................................21 Précautions ..................................................22 Définitions des étiquettes d'avertiss ......................................23 Change History................................................24 Disclaimer ..................................................25 Page 2 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0... - Page 3 Figure 22 VRLA Battery Module Test Points ..................................... 16 Figure 23 Inverter Installation ........................................... 17 Figure 24 Vertical Battery Module Installation ..................................17 Figure 25 Horizontal Battery Module Installation ................................. 17 Page 3 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0...
- Page 4 Table 2 Controller Jumper Settings ......................................13 Table 3 Input / Output Alarms / Digital Ports ..................................15 Table 4 Rectifier/Invertor Basic Information ..................................18 Table 5 Spare Parts List ............................................18 Page 4 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0...
-
Page 5: Unpacking Instructions - Unpacking The Edge And Its Components
1. Slide the ramp, 8600279070P to the side of the cushioned pallet. 2. Attach Ramp 8600279070P with (4) #10X2.5” Deck Screws. Ensure deck screws are flush with the mounting surface. Deck Screws Figure 1 Ramp Deck Screws Page 5 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0... -
Page 6: Removing Enclosure To Pallet Anchor Bolts
When on the floor, continue care in moving the enclosure to its’ mounting area. Page 6 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0... -
Page 7: Step 1 - Frame Mounting
29 CFR 1926.1101 de l'OSHA sur l'amiante. Si vous soupçonnez que votre zone de travail contient des carreaux d'amiante, reportez-vous à un groupe d'installaation qualifié pour plus d'informations. LEVELING FEET Figure 5 Mounting Dimensions Page 7 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0... -
Page 8: Figure 6A Edge Without Isolation And Shim Kit
Place Isolation Pad below the cabinet for Electrical Isolation (one required per cabinet). Figure 7A EDGE Isolation Plate Kit - 1600305789A Figure 7B EDGE Cabinet with Isolation Pad and Shim Kit Page 8 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0... -
Page 9: Step 2A - Frame Grounding
Recommended minimum wire size is 2 AWG. Recommended lug is two-hole, 1/4-20 bolt with a 0.625” hole spacing. Torque hardware to 65 lb-in. Ground Electrode Terminal Figure 9 Ground Electrode Terminal Connections Page 9 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0... -
Page 10: Step 2B - Dc Bus Grounding
(*) – Refer to your individual site's grounding requirements for the required ground connections to be deployed. Internal Ground Bar Figure 10 Internal Ground Bar Page 10 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0... -
Page 11: Step 3 - Connect Ac Output Breaker To End Users' Equipment
240 V AC (L1 – L2) Ground Ground Figure 14 AC Breaker output – phase to phase connection Figure 13 AC Breaker output – split phase connections Page 11 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0... -
Page 12: Step 4 - Connect Ac Input
WIRE CONNECTOR WIRE CONNECTOR WIRE POSITION COLOR POSITION COLOR POSITION COLOR POSITION COLOR POSITION COLOR 8600301807P BLACK ORANGE GREEN No Connect WHITE Table 1 AC Wiring Chart Page 12 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0... -
Page 13: Step 5 - Set Jumper - Lan Port Per Galaxy Pulsar Edge Controller
860024270P. Secure controller using thumbscrew. Hand tight. The controller is hot swappable and can be removed/installed with the system running. Figure 19 Controller Installation Page 13 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0... -
Page 14: Step 7 - Controller I/O Access
EPO open equals rectifiers in standby, batteries removed from DC output bus. Rectifier Data Local Area Network Emergency Power off Output Alarm Contacts Input Alarm Monitors Remote Rectifier Interlock Figure 20 I / O Interface Board Page 14 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0... -
Page 15: Step 8 - Initial Start Up
Tighten thumb screws using #2 Phillips screwdrive Hand tight. Thumb screw Install all 10 rectifiers into the rectifier positions. Install rectifier slot filler - 8600234137P for all unused positions. Rectifier Figure 21 Rectifier Module Installation Page 15 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0... -
Page 16: Reference 2 - Unpacking Battery Modules
Technical Support occurs. The battery may or may not need to be returned to OmniOn. DC - Figure 22 VRLA Battery Module Test Points Page 16 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0... -
Page 17: Reference 3 - Install Inverter
Secure with thumb screw using #2 Phillips screwdriver. Hand tight. Use battery slot filler part number, 8600297168P, to cover any unused positions. Figure 25 Horizontal Battery Module Installation Page 17 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0... -
Page 18: Reference 5 - Configure Controller Per Galaxy Pulsar Edge Controller Quick Start Guide
10 Position pluggable Distribution Panel 1600250697A EDGECABG410 A PDU Module RED 2 Position Distribution Panel 1600361457A EDGECABG412 B PDU Module BLUE 2 Position Distribution Panel Table 5 Spare Parts List Page 18 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0... -
Page 19: Safety Statements
When equipped with ringer modules, hazardous voltages will be present on the ringer output connectors. Page 19 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0... -
Page 20: Warning Label Definitions
Dispose of used battery modules according to manufacturer's instructions. Shock Hazard Multiple sources are present: Disconnect all AC and DC external connections and remove battery modules prior to servicing. Page 20 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0... -
Page 21: Énoncés De Sécurité
Conducteurs câblés sur le terrain de taille AC avec une amacité de 75°C (NEC) égale ou supérieure à leur cote de disjoncteur de panneau. • Conducteurs câblés sur le terrain de taille DC avec une amacité de 90°C (NEC) égale ou supérieure à la cote de disjoncteur. Page 21 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0... -
Page 22: Précautions
DeC, y compris les piles et les câbles, généralement présents dans les salles de services publics de télécommunications, peut affecter les appareils électroniques médicaux, comme les stimulateurs cardiaques. Les effets diminuent avec la distance. Page 22 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0... -
Page 23: Définitions Des Étiquettes D'avertiss
Disposer des modules de batterie usagés selon les instructions du fabricant. Choc Plusieurs sources sont présentes : Déconnecter toutes les connexions externes AC et DC et supprimer les modules de batterie avant l'entretien. Commissioning Guide - 8600332097P Page 23 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0... - Page 24 For material availability, order status, shipping info, missing or damaged materials, please contact Customer Service. For equipment failures, troubleshooting or other technical issues, contact Technical Support24/7 Phone: 1.877.546.3243 option 1, 2 for Customer Service. Page 24 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0...
-
Page 25: Change History
Change History (excludes grammar & clarifications) Revision Date Description of the change 01/27/2021 Initial Release 05/10/2024 Updated as per OmniOn template Page 25 2024 OmniOn power Inc. All rights reserved. Edge Inverter_IG Rev. 1.0... - Page 26 – in whole or in parts – is forbidden without prior document and makes no warranty with respect to written consent of OmniOn Power. This document does and assumes no liability as a result of any use of not convey license to any patent or any intellectual information in this document.
