Summary of Contents for RW RS180i

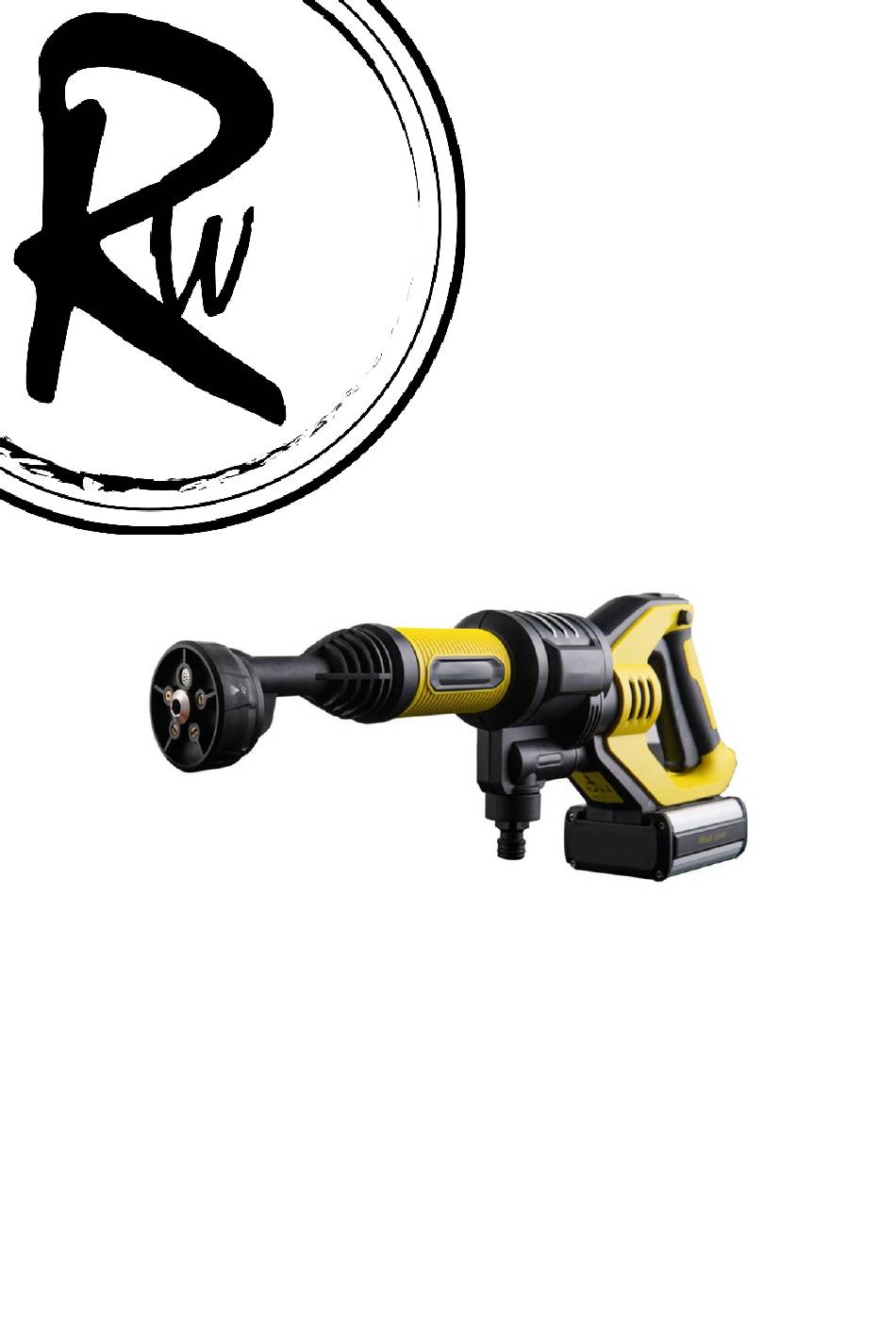

- Page 1 INSTRUCTION MANUAL PLEASE RETAIN DO NOT USE THIS APPLIANCE WITHOUT READING THIS FIRST RS180i CORDLESS PRESSURE WASHER...
-
Page 2: Part List
Part List I D : J Multi-spray nozzle Pressure setting switch Hose adapter Lock off switch Hose filter On/off switch lever Hose connector Battery Pack release button Hose clip Battery Pack Hose Extension lance Hose connector Charger Carry bag Soap bottle... - Page 3 Product Safety General Safety Warnings Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Do not expose this appliance to heat or fire. Do not expose the battery pack to heat or fire. Avoid storage in direct sunlight. Do not subject battery pack to mechanical shock.
-
Page 4: Appliance Assembly
Wipe the appliance with a clean dry cloth if it becomes dirty. Do not use water, petrol or alcohol to clean it. Keep the appliance out o f reach o f children when it is energized. Clean hose connector filter and hose filter regularly. If power cord is damaged, to avoid danger, send it to professional agent to replace. - Page 5 2-2.Install extension lance. Insert extension lance into power nozzle connector and press it tightly as below, and rotate extension lance in the direction shown until it is locked. 3-1.lnstall hose. Hold hose connector and insert into hose adapter until a "click" sound is heard. \__ / 3-2.Disconnect hose: Hold hose connector, pull it away from hose adaptor.
-
Page 6: Product Operation
Product Operation 1.Charging Before using the appliance, press battery pack power indicator to check power condition. If there is not enough power, charge battery pack only with the charger that is specified for this equipment. 1)Align the charger adaptor with the battery pack slot and slide i n until is locked. Start charging the battery pack. - Page 7 Note: 1) Battery pack is not shipped fully charged. Please charge the battery pack fully before using. 2) Charge pack is not waterproof, charge the battery pack in dry place. The charging time takes around 2.5 Hours. 3) During use of the equipment, when machine indicator blinks, it means there is not enough power.
- Page 8 Note: 1)Do not shift the nozzle pattern when the tool is powered on. Turn off the equipment and choose the pattern and then turn on again. 2)Do not target the nozzle at self or another person during use. ' • °...
- Page 9 2-5.Functions The equipment can be used for multiple functions: Washing cars, bikes, road, barbecue oven and watering flowers etc ... 3.Product cleaning and maintenance Note: Remove battery before cleaning the equipment. 3-1.Clean hose adapter filters regularly to avoid blocking water inlet. Use a wrench to disconnect the hose adapter and remove filter to clean it.
-
Page 10: Troubleshooting
3-2. Clean hose filter regularly to avoid blocking hose inlet. Rotate hose filter cover to detach from hose, take out the hose filter and clean it. 4.Storage Before storage, completely drain all the water from the machine and hose. Remove battery pack and multi-spray nozzle/extension lance and hose. -
Page 11: Technical Data
Multi-spray nozzle is not Rotate the multi-spray nozzle until nozzle leaking rotated to right position the water shape mark is aligned with water arrow Technical Data Model RS180i Charger voltage 100V-240V-50/60Hz Charging current 1000 mA Charging time Around 2.5h Voltage 20VMax Max mode 2.2MPa... -
Page 12: Warranty Information
Disposal The machine, accessories and packaging should be sorted for environmental-friendly recycling. Do not dispose of the machine into household waste! Only for EC countries According to the European Guideline 2012/19/EU, machines that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of i n an environmentally correct manner.
