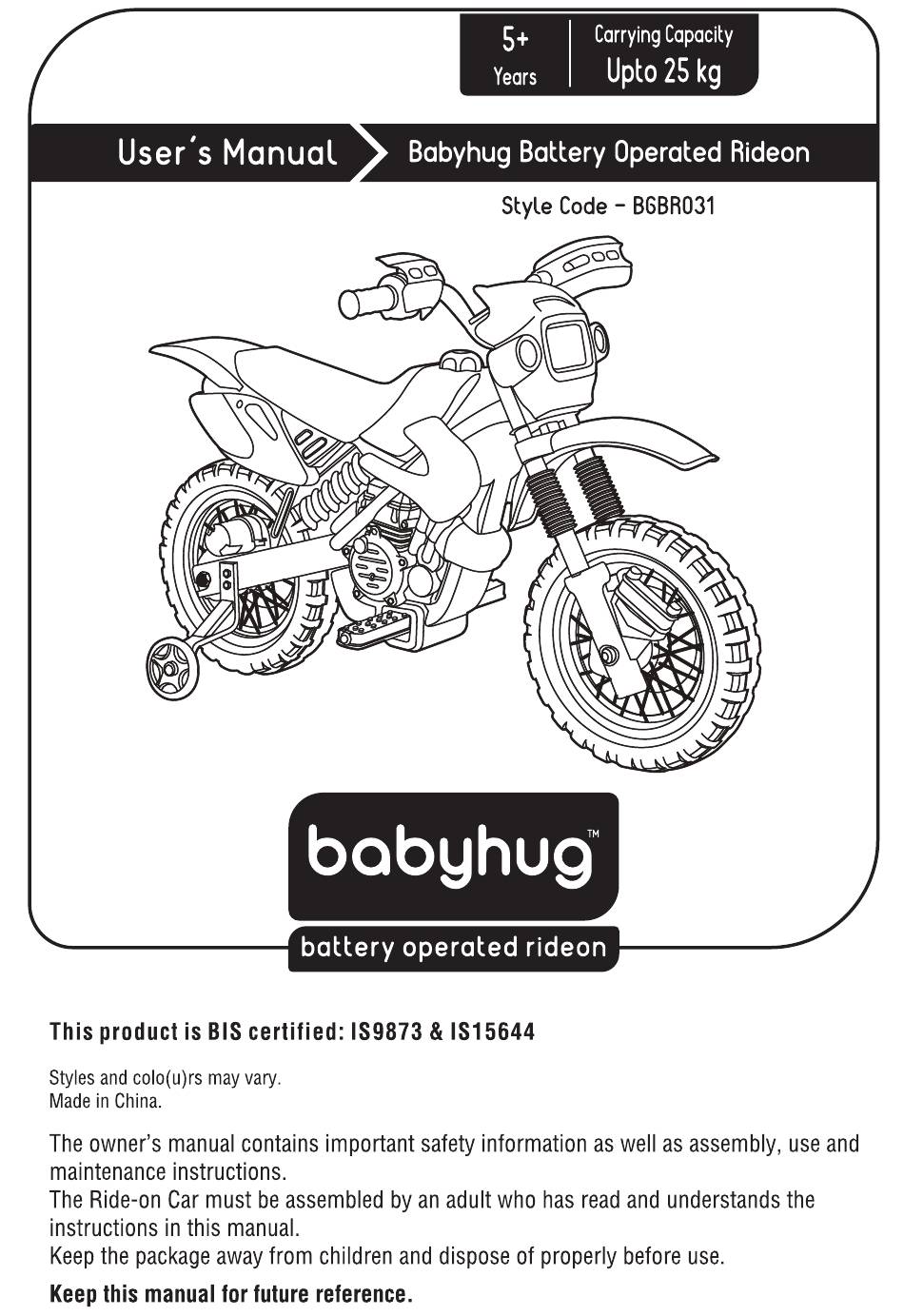

ASSEMBLY/USE INSTRUCTIONS. KEEP THIS GUIDE FOR FUTURE REFERENCE. • ADULT ASSEMBLY REQUIRED. The product contains small parts, which are for adult assembly only. Keep small children away when assembling. • Always remove protective material and poly bags and dispose before assembly. VER: SMS-JT014(babyhug)-EN-180411... -
Page 3: Parts List
Parts List REMARKS REMARKS Q’ty Q’ty PART PART PART PART Par t Par t PICTURE PICTURE (pcs) (pcs) NAME NAME Face Vehicle guard body Handle Dashboard Front Shock fork absorber Placed Wheel Wheel in the cover(L) assembly cover(R) package Front Front axle wheel... - Page 4 Parts List REMARKS REMARKS Q’ty Q’ty PART PART PART PART Par t PICTURE PICTURE (pcs) (pcs) NAME NAME Ø6 Ø10 Lock nut bushing Ø10 M10x90 washer bolt M6x60 M6x20 machine bolt screw Front M4x12 fender screw Charger Assembly package REMARKS REMARKS Q’ty Q’ty...
-
Page 5: Assembly Steps
Assembly Steps WARNING! • CHOKING HAZARD - Small parts. Not suitable for children under 36 months. The product contains small parts, keep children away when assembling. • ADULT ASSEMBLY REQUIRED. • Always remove protective material and poly bags and dispose before assembly. •... - Page 6 Assembly Steps ● Slide two shock absorbers onto the front fork assembly. ● Slide the wheel cover(R) and wheel cover(L) onto the front fork Front fork assembly. assembly Ø10 bushing ● Insert two into the front wheel. ● Fit the front wheel into Shock the front fork assembly.
-
Page 7: Battery Information
Assembly Steps BATTERY INFORMATION ● Non-rechargeable batteries are not to be recharged. ● Rechargeable batteries are to be removed from the toy before being charged. ● Rechargeable batteries are only to be charged under adult supervision. ● Different types of batteries or new and used batteries are not to be mixed. ●... - Page 8 Assembly Steps ● Fit and hold the side wheel against the vehicle body. ● Insert two M6x20 bolt through the side wheel and into the vehicle body. M6x20 ● Tighten the bolts with a spanner. DO bolt NOT over tighten. ●...
- Page 9 Assembly Steps ● Fit the fender to the front wheel assembly. Front wheel ● Push until you hear it click into place. assembly Fender ● Plug the motor connector into the vehicle connector. Vehicle connector Motor connector Handle bar connector Wire connector ●...
-
Page 10: How To Operation Your Vehicle
How To Operate Your Vehicle WARNING! PREVENT INJURIES AND DEATHS: • NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS REQUIRED. Always keep child in view when child is in vehicle. • This toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties. -
Page 11: Charging Your Vehicle
How To Operate Your Vehicle Use Operation Sounds buttons Light switch Forward button FORWARD Forward button” on the handle bar Press the “ , the vehicle goes forward. STOP Release the “Forward button” to stop the vehicle. SOUNDS BUTTONS Press the buttons on the handle bar for sound playing. Charging Your Vehicle ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY! WARNING! - Page 12 Charging Your Vehicle • Do not open the battery. Battery contains lead acid and other materials that are toxic and corrosive. • Do not open the charger. Exposed wiring and circuitry inside case may cause electric shock.• Only adults may handle or charge the battery. NEVER allow child to handle or charge the battery.
-
Page 13: Troubleshooting Guide
Troubleshooting Guide ■ PROBLEM: The vehicle does not run PROBLEM CAUSE: The battery may low on power. After each use, or once a month minimum, charge the battery for a full 10 hours. Do not leave the battery on the charger for more than 20 hours. POSSIBLE CAUSE: Thermal fuse has tripped. -
Page 14: Maintaining Your Vehicle
Troubleshooting Guide ■ PROBLEM: The vehicle does not run very long. POSSIBLE CAUSE: Battery may be undercharged. You may not be charging the battery long enough. After each use, or once a month minimum, charge the battery for 8 to 10 hours. Do not leave the battery on the charger for more than 20 hours. POSSIBLE CAUSE: Battery is old. - Page 16 • This toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties. • Not to be used in traffic. • This toy has no brake. • CHOKING HAZARD - Small parts. Not suitable for children under 36 months.
