Victor Compact Mini Instructions

Instructions Victor Compact Mini Scrubber
In general

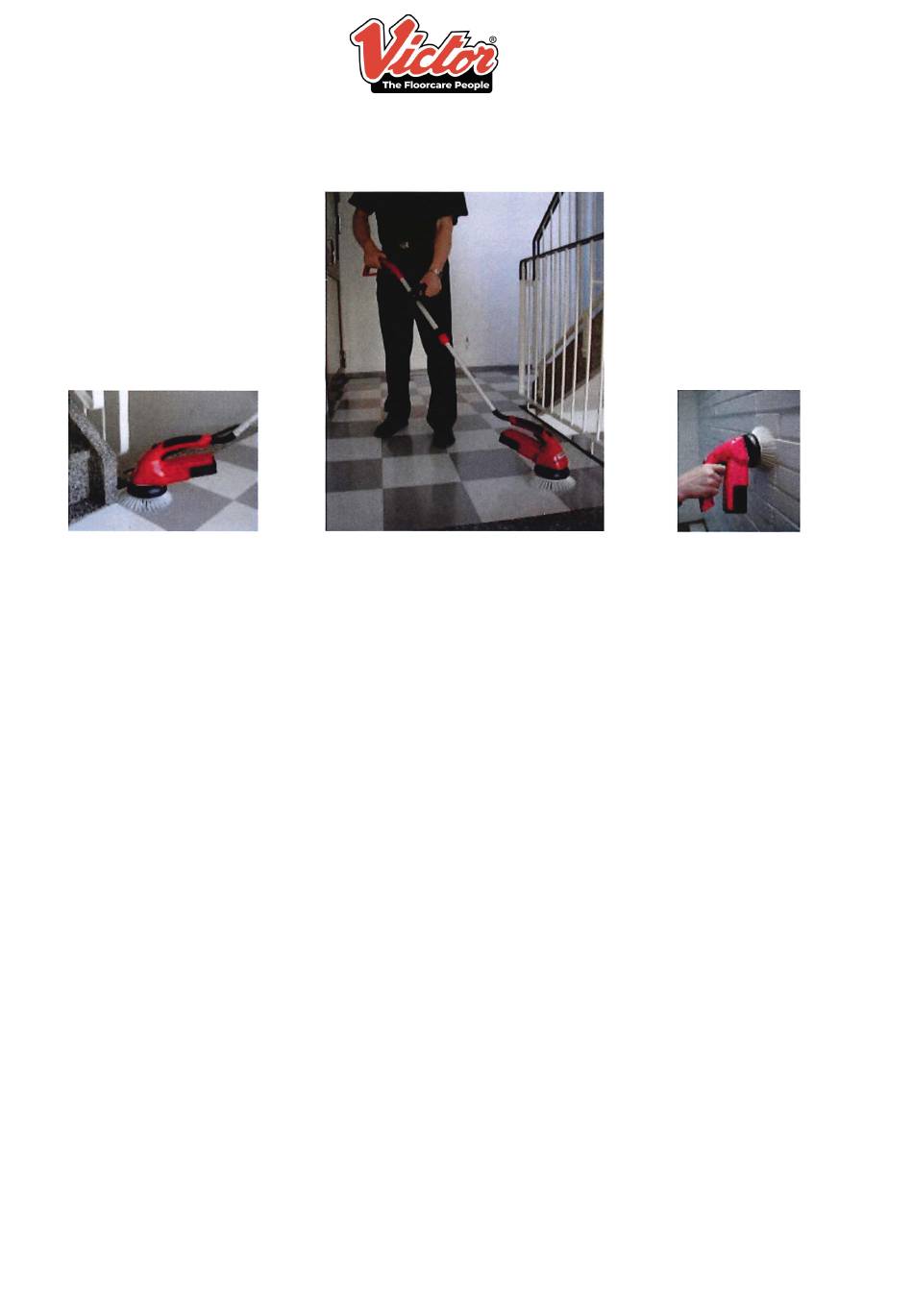

The Victor Compact Mini Scrubber is a light and easy to handle battery machine for different kinds of daily cleaning activities.
The machine is extremely useful for the cleaning of staircases, walls, small rooms and places usually difficult or impossible to
reach with conventional machines.
Standard parts and accessories
•
The power unit including the drive disc. Std
•
Reversible telescope handle, including the adjustable grip. Std
•
Battery, NiCd 9,6V 3000 mAh. Std
•
Quick battery charger 230 V (or 120 V). Std
•
Nylon brushes (several grades of coarseness, suitable for several purposes) are available. Std is normal grade.
•
Nylon pads (different grades of coarseness available)
•
Micro fibre pad
Before use
• Check if the voltage of the local electricity network (230 or 120 V) is the same as mentioned on the label of the battery
charger. Charging of the battery is only permitted in dry areas.
• Put the plug of the charger in the wall socket and yellow led will light up.
• Use only battery chargers, which are recommended by Victor.
• Place battery into the charger. Red light indicates that the battery is being charged.
• When battery is charged and is ready to be used, the green light will light up.
• If the battery is defective or abnormal, red and green lights will be flashing alternatively.
• Fit the battery into the special opening in the motor unit.
• Press the battery firmly down until the catches on the battery lock into place.
• Place the brush with nipples up into the holes of the drive disk on the bottom of the motor. If the nylon brush becomes
misshapen during transport or storing, it can be straightened by keeping the brush in hot water for
30 seconds. The brush will regain its original shape.
Working with pads, they should be placed as central as possible on the driving disk and directly attached to the Velcro. The
•
right working position, depending on the job, will be obtained by fixing the telescope handle to the correct length using the
plastic turn lock.
• Use the screw buttons, to fix the adjustable handle to the preferred position.
Reversible telescope handle
•
Place the telescope handle in the opening of the handle on the motor and press firmly until the fixing button on the
connector engages. Tighten the fixing bolt to retain.
•
Before removing the handle, first loosen the fixing bolt. Push the button on the connector of the handle and pull whilst
holding down the button.
