- Page 1 TTA-1000 HIGH-END VACUUM TUBE INTEGRATED AMPLIFIER Instruction Manual Edition 10-2018...
- Page 2 Introduction Thank you for purchasing this TAGA Harmony amplifier. TTA-1000 is a 60W / 8ohm Pure Class A high-end vacuum tube integrated amplifier utilizing KT88 tubes in the output stage (with the fixed grid load) and a 12AX7 tube preamp section, composed of 6SN7 long-tail phase inversion drive circuit.
-
Page 3: Table Of Contents
Contents Safety Instructions Important Safety Instructions Remote controller Front and Rear Panel Hooking up speaker cables Hooking up the amplifier Operation Additional Information Specifications... -
Page 4: Safety Instructions
Safety Instructions IMPORTANT READ THIS SECTION CAREFULLY BEFORE PROCEEDING! WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT REMOVE CHASSIS (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The triangle containing a lightning symbol is intended to alert the user to the presence of uninsulated dangerous voltages within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. -
Page 5: Important Safety Instructions
Important Safety Instructions... -
Page 6: Remote Controller
Remote Controller Note! Batteries are not supplied with this product. 1. Prepare two AAA batteries. 2. Unscrew the screws on the rear of the remote controller. 3. Remove the rear cover. 4. Insert the batteries into the battery compartment. Carefully follow the polarity diagram inside the battery compartment ( positive + and negative - symbols). -
Page 7: Front And Rear Panel

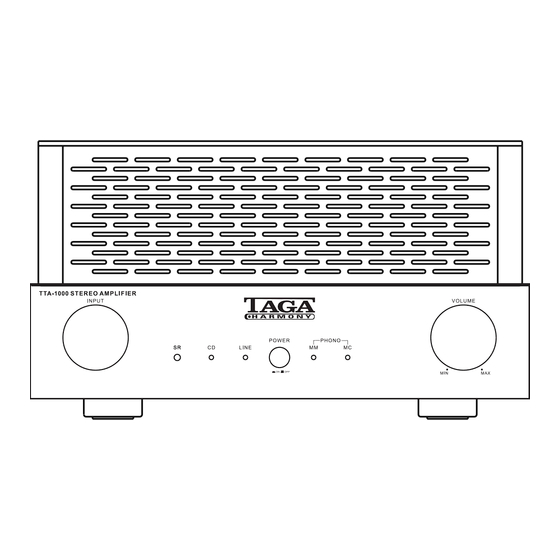

Remote Controller Mute Button Line Input Selector Button CD Input Selector Button Phono MM Input Selector Button Phono MC Input Selector Button Volume Buttons (▼/▲) Front and Rear Panel Front Panel: Input Selector Remote Controller Sensor CD / LINE / Phono MM / Phono MC Inputs Led Indicators Power Switch (ON and OFF) Volume Regulator with Power-Volume Change Led Indicator... -
Page 8: Hooking Up Speaker Cables
Front and Rear Panel Rear Panel: Phono Ground Screw Analog Stereo RCA Inputs PHONO / LINE / CD Preamplifer Stereo RCA Output Speaker Right Channel Output (Speaker Connectors) 10. Speaker Left Channel Output (Speaker Connectors) 11. Power Cable Input and Fuse Box Note! A blown fuse should be only exchanged for exactly the same type as indicated on the rear amplifier panel. -
Page 9: Hooking Up The Amplifier
Hooking up the Amplifier WA RN IN G Important Note! This amplifier requires the speakers to be connected before powering on. Never turn the amplifier on without the speakers being connected! This can damage the tubes and may void your warranty. Make sure the amplifier is turned off (the Power Switch and the Power Cable is removed). -
Page 10: Operation
Hooking up the Amplifier Note! Only speakers within range of impedance 4 - 8ohm can be connected. Connecting speakers outside this range can damage this amplifier and/or speakers. This may void your warranty. Operation Plug the Power Cable to the amplifier and into the electrical outlet. Turn on the amplifier –... -
Page 11: Additional Information
Additional Information Break-In Your TAGA Harmony amplifier sounds great immediately after it is taken out of the carton but as all vacuum tube amplifiers, this amplifier requires a “break-in” period to reach its full sonic capabilities. During the “break-in” period it is recommended to operate the amplifier at moderate volume levels. - Page 12 Additional Information To protect the vacuum tubes during this operation, please put on the cotton gloves which are supplied with this product. The vacuum tubes are installed in sockets. Remove the vacuum tube you want to replace by gently pulling it in the tube sockets. Make sure to replace the vacuum tube with the same type or with another type which is a direct equivalent of the factory installed one.
-
Page 13: Specifications
Specifications Power Output: 2 x 60W Class A Output impedance: 4ohm, 8ohm Vacuum Tubes: 4 x KT88, 2 x 6SN7, 1 x 12AX7 Triode operation mode THD: ≤0.35%(1KHz/2V) Signal/Noise ratio: ≥89db Frequency Response: 10Hz – 30kHz (+/- 1dB) Inputs: Analog: RCA Stereo: CD, Line, Phono (MM/MC) Outputs: RCA Pre-Out Line inputs:... - Page 14 Notes...
- Page 15 Notes...
- Page 16 We strongly advise to contact a professional installer or dealer in order to install TAGA Harmony products. We recommend using high quality TAGA Harmony cables and other installation accessories. Kit Content: Amplifier Remote Controller Power Cable Cotton Gloves 1PAIR Instruction Manual Your product is marked with the symbol as showed on the left.
