The following procedures are for the setup of the ESP Floyd Rose
guitar with factory specifications. If the string gauge has been changed, some changes will be
needed for compensate for the difference in string sizes. Modifications may further be made for
individual playing styles (pick strength, fretting strength, strumming, etc.)
Tools needed:
Set of automotive feeler gauges (0.002in – 0.025in)
•
6" steel ruler with 1/32" and 1/64" increments
•
Light machine oil
•
Phillips screwdriver
•
Allen wrench
•
Electronic chromatic tuner
•
Wire cutters
•
Peg winder
•
Capo
•
•
Polish and cloth
Revision: 030909
ESP MH-250 SETUP

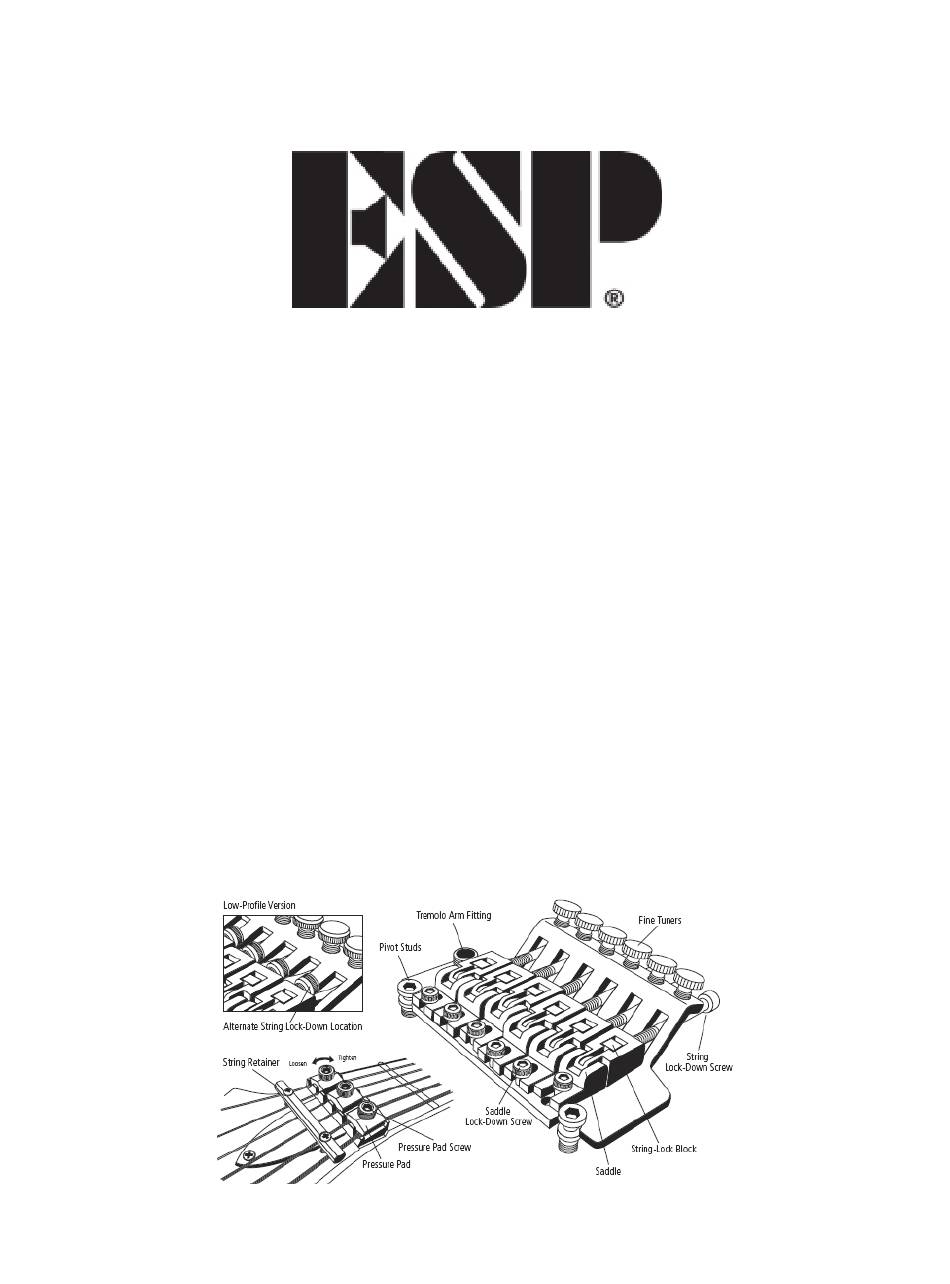

Figure 1
®
floating bridge equipped
