RocwooD

RW13500STR

RW13500SNR

WINCH

13500lb

This manual provides important safety information and instructions on how to install your

winch. Every winching situation has the potential for personal injury. In order to minimize that

risk, it's important to read this manual carefully.

This manual features a quick start guide. This can be used to aid the setup of your winch but

it's important to read and understand this manual fully prior to setting up the winch.

Keep this manual in a safe place, review it frequently and ensure that all users have read it to

ensure safe operation.

English

Table of Contents

Need help?

Do you have a question about the RW13500SNR and is the answer not in the manual?

Questions and answers

Summary of Contents for RocwooD RW13500SNR

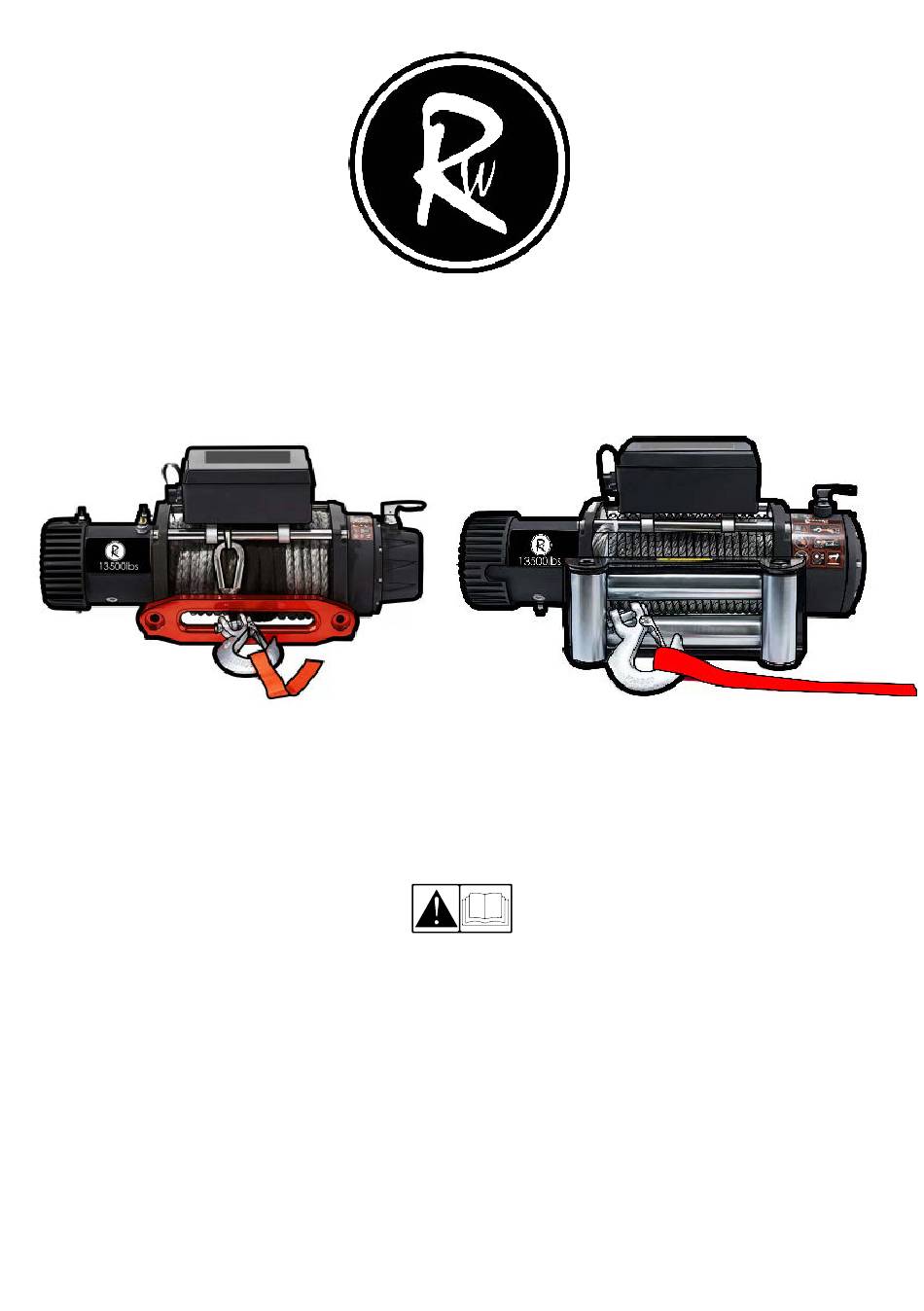

Page 1 RocwooD RW13500STR RW13500SNR WINCH 13500lb This manual provides important safety information and instructions on how to install your winch. Every winching situation has the potential for personal injury. In order to minimize that risk, it’s important to read this manual carefully.
Page 2: Table Of Contents
05 - Wiring diagram 06 - 13500lb control box setup 07 - Health and safety symbol index 08 - Health and safety precautions 12 - Detailed specifications - RW13500SNR 16 - Detailed specifications - RW13500STR 20 - Wireless remote wiring diagram 21- Maintenance...
Page 3: Quick Start Guide
Quick start guide Mounting CAUTION: To prevent serious injury due to accidental activation, complete the winch installation before wiring. WARNING: Always choose a mounting location that is suf ciently strong to withstand the winch pulling capacity. WARNING: Always spool the winch rope onto the drum in the direction speci ed in the documentation. This winch should always be mounted in a horizontal orientation with the rope winding on / off the bottom of the drum.
Page 4: 04 -Wireless Remotes
Wireless remotes Before you begin, you should familiarize yourself with ON/OFF the wireless remotes. Indicator light The remotes should be turned off when not in use. Winch In The battery is located in the back of the remotes. Winch Out Be careful to keep your remotes away from water.
Page 5: Wiring Diagram
0l b 1350 Wiring diagram ① Control to Winch(Black) Control box Battery ② Power to Battery (Long Red +) ③ Power to Winch(Red) ④ Control to Winch(Yellow) ⑤ Power from Battery(Black-) ⑥ Control to Winch (thin Black wire) Control Box Connections 1.
Page 6: 13500Lb Control Box Setup
13500lb control box setup The control box Can be put over tie bar. First insert the bracket under the control box into the front tie bar, then install the control box bracket on the black tie bar with two screws.
Page 7: Health And Safety Symbol Index
Health and safety symbol index Symbol Explanation Symbol Explanation Not suitable for moving Always wear leather gloves people Always wear hearing and Always use supplied hook eye protection strap Never hook back on the Never use winch as a hoist rope Never apply load to hook tip Properly seat load in hook...
Page 8: Health And Safety Precautions
Health and safety precautions FCC Regulations This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • • This device must accept any interference received, including interference that may cause undesired operation This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
Page 9 WARNING WARNING FALLING OR CRUSHING HAZARD CHEMICAL AND FIRE HAZARD • Always stand clear, keep hands clear and • Always remove jewellery and wear keep others away when using the winch. eye protection. • Never operate the winch with less than ve •...
Page 10 WARNING WARNING MOVING PARTS ENTANGLEMENT HAZARD MOVING PARTS ENTANGLEMENT HAZARD Winching Safety: General Safety: • Never exceed the winch or winch rope rated • Always inspect winch rope, hook, and slings before operating the winch. Damaged capacity. If required, double line using a components must be replaced before snatch block to reduce the load on the rope.
Page 11 WARNING WARNING MOVING PARTS ENTANGLEMENT HAZARD CUT AND BURN HAZARD • Always ensure the hook latch is closed To avoid injury to hands and ngers: correctly. • Never apply a load to the hook tip or latch. • Always wear leather gloves when handling Apply the load only to the center of the hook.
Page 12 RW13500SNR (Synthetic Rope 13,500lbs Winch) Rated Line Pull: 13500LB(6124kg) single-line Motor: 6.5hp/4.8kw 12v, Series Wound motor Gear Train: 3-stage planetary Gear Reduction Ratio: 216:1 Clutch: Up and down 90° Rope :(φ10mm x 26m) Drum Size: φ2.51" x 8.82"(φ64mm x 224mm) Overall Dimensions: (L x W x H)21.1"...
Page 14 SYNTHETIC ROPE WINCH DIAGRAM...
Page 15 RW13500SNR (13,500lbs synthetic rope) No. Name Qty No. Name Qty. M8x25 inside 21 M4 spring washer hexagonal bolt 2 8MM spring washer 22 M4 inner hex srew 3 Motor assembly 23 Rear tie bar 4 Brake assembly 24 Front Tie bar...
Page 16 RW13500STR (STEEL ROPE 13,500lbs Winch) 13500LB(6124kg) single-line Motor: 6.5hp/4.8kw 12v, Series Wound motor Gear Train: 3-stage planetary Gear Reduction Ratio: 265:1 Clutch: Up and down 90° Cable :(φ10mm x 26m) Drum Size: φ2.51" x 8.82"(φ64mm x 224mm) Overall Dimensions: (L x W x H)21.1" x 7.9" x 7.9"(562 x 200 x 200mm) Gross Weight: 37.9kgs Duty Cycle: Intermittently Fairlead: 4-way roller Fairlead...
Page 19 RW13500STR (13,500lbs steel rope) No. Name Qty No. Name Qty. M8x25 inside 21 Hexagonal center gear hexagonal bolt 2 8MM spring washer 22 Heel block 3 Motor assembly 23 Gear box end cover 4 Brake assembly 24 4MM spring washer 5 Transmission shaft 25 Inside hexagonal bolt 4x25 6 Free bearing...
Page 20: Wireless Remote Wiring Diagram
Wireless remote wiring diagram...
Page 21: Maintenance
Maintenance Check Before rst use After each use Every 90 days Check connections to make sure they are tight. √ √ Replace damaged connectors. Ensure there is no exposed or damaged wiring, √ √ terminals or cable insulation. Inspect rope for damage. Replace rope immediately √...
Page 22: Disposal
Disposal Batteries should not be disposed of in general household waste. Observe the local waste disposal regulations, details of which can be obtained from your local authority. All electrical and electronic equipment must be disposed of separately from general household waste using the sites designated by local authorities.
Page 23: Ce Certificate Of Conformity
Notified body: ENTE CERTIFICAZIONE MACCHINE SRL The technical documentation is kept by: Rocwood Date: 01/10/2023 Signed: Dale Griffiths Managing Director. Name and address of the manufacturer: Rocwood Ltd, Registered address:Rocwood Ltd, Rocwood House, Lightwood Green Ind Est, Overton, Wrexham, LL13 0HU United Kingdom.

This manual is also suitable for:

Rw13500str
