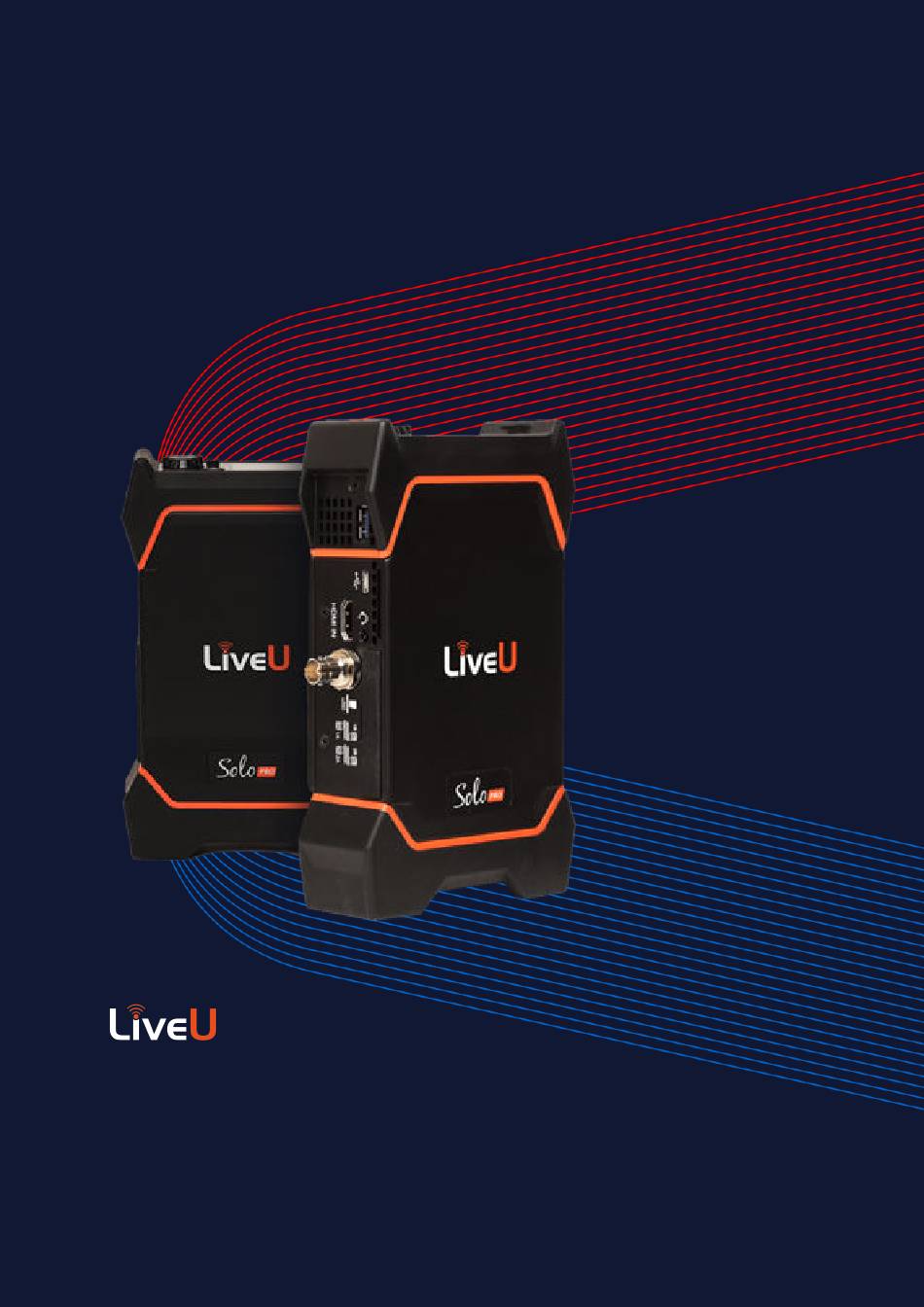

Page 1 Solo PRO User guide DOC00526 Rev A01 May 2023...
Page 2 NO WARRANTY The technical documentation is being delivered to you AS-IS, and LiveU makes no warranty as to its accuracy or use. Any use of the technical documentation or the information contained therein is at the risk of the user. Documentation may include technical or other inaccuracies or typographical errors.
Page 3: Table Of Contents
Introducing the LiveU Solo PRO ....................2 Overview of the Solo PRO ......................4 Solo PRO workflow ........................6 Logging in to the Solo PRO portal ....................7 Powering on the Solo PRO ......................14 Shutting down the Solo PRO ..................... 15 Around the Solo PRO Home screen ....................
Page 4: About
Intended audience This user guide is intended to be used by operators of the LiveU Solo PRO unit. We assume that operators have basic computer knowledge and are familiar with any video equipment being used (cameras, microphones and so on) and the infrastructure to which the LiveU Solo PRO units are connected.
Page 5: Introducing The Liveu Solo Pro
Introducing the LiveU Solo PRO Introducing the LiveU Solo PRO The LiveU Solo PRO is a compact, lightweight unit that allows you to transmit high‑quality HD/SD video from diverse locations while adapting to dynamic network conditions. There are two LiveU Solo PRO models: Solo PRO SDI and Solo PRO HDMI.
Page 6 Introducing the LiveU Solo PRO Solo PRO box contents Solo PRO units are delivered with the following cables and accessories. Liveu Solo PRO portable video uplink unit: SDI or HDMI ▪ Protective sleeve ▪ Cables: ▪ AC/DC power adapter (16V/4A) 2.1mm RA (1.5m) and power cord •...
Page 7: Overview Of The Solo Pro
Overview of the Solo PRO Solo PRO data flow The LiveU Solo PRO - HDMI and SDI/HDMI models - supports two USB ports that power two external modems. It also provides one Wi-Fi and one Ethernet interface, bringing the total number of bonded network interfaces to four.
Page 8 The following figure shows the right panel of the unit and the respective connections of the Solo PRO HDMI and the Solo PRO SDI. The following figure shows the connections on the left panel of the Solo PRO. Solo PRO User guide...
Page 9: Solo Pro Workflow
Solo PRO workflow Solo PRO workflow The following flow chart gives an overview of the Solo PRO workflow. Solo PRO User guide...
Page 10: Logging In To The Solo Pro Portal
These services can be managed in the LiveU Solo portal only when the video stream is started in the Solo PRO portal. To use the portal, you need to create an account and then register your Solo PRO unit. Creating an account To create an account: In your browser, go to https://solo.liveu.tv.
Page 11 Logging in to the Solo PRO portal The Welcome to LiveU Solo! screen is displayed. Fill in your personal details, and select I'm not a robot and I agree to Terms and Conditions, then click Submit. An email is sent to the email address you provided, confirming that an account was opened in your name and asking you to click a link to verify that you created the account.
Page 12 Logging in to the Solo PRO portal Registering the Solo PRO You need to repeat the registration process for each additional Solo PRO unit. To register the Solo PRO: In the Add Solo Unit area, type the unit's serial number in the Serial Number text box.
Page 13 Logging in to the Solo PRO portal Referring a friend Sharing a code with a friend gives you credit on your next invoice of Solo PRO Connect (USA only) or LRT. To refer a friend: On the top right of the Solo PRO portal, click New! Refer a Friend and Save! The following screen is displayed.
Page 14 Logging in to the Solo PRO portal If you have a promo code or license key, type the characters into the text box and click Apply. Otherwise, click Next. Select Monthly or Yearly and click the + sign. Enter your details into the Payment Info screen and click Next.
Page 15 Logging in to the Solo PRO portal Select a destination and sign in or register as required. You can select multiple destinations. To remove a destination, click the menu in the upper right corner to display the Manage Destinations page.
Page 16 In the text box where the serial number is displayed, type the unit's new name. Click the checkmark to confirm. Removing a unit When you remove a unit, you are cancelling your registration for that specific Solo PRO. The unit can then be registered by other users. To remove a unit: Click the Settings button on the left side of the screen.
Page 17: Powering On The Solo Pro
• Press the Power button with a short, sharp press. The Home screen of the Solo PRO is displayed after about 20 seconds. Ready is displayed at the bottom of the Home screen when the unit is connected to a network interface.
Page 18: Shutting Down The Solo Pro
Shutting down the Solo PRO Shutting down the Solo PRO To shut down the Solo PRO: Press and hold the Power button. A Hold to shut down counter is displayed. Continue pressing the Power button until the Unit is shutting down screen appears.
Page 19: Around The Solo Pro Home Screen
Around the Solo PRO Home screen After powering on the Solo PRO, the Home screen is displayed. The camera can be connected to the Solo PRO before or after powering on the unit. When connected, the video feed is automatically detected by the unit and is displayed in the preview screen.
Page 20 To use the Solo PRO interface: In the Home screen, press the JOG. The Solo PRO main menu is displayed. Battery status is displayed at the bottom of the screen. Turn the JOG clockwise to select About and then press the JOG.
Page 21 Around the Solo PRO Home screen Turn the JOG anti-clockwise to select Interfaces. Press the JOG to display the Interfaces screen. Configuring internet interfaces Solo PRO User guide...
Page 22: Configuring Internet Interfaces
Configuring internet interfaces Configuring internet interfaces You can optionally connect to one or more of the Solo PRO's internet interfaces, which include up to two external cellular modems, and one Wi-Fi and Ethernet connection each. Each interface can be enabled or disabled separately.
Page 23 Solo PRO. You can connect up to two external modems to the USB ports on the right and left panels. The modems are connected with cables marked L/A to indicate that it is connected to the Solo PRO User guide...
Page 24 JOG to disconnect from the mobile network. Configuring an Ethernet network The LAN adapter included in Solo PRO is configured to use DHCP, a network protocol that automatically configures the Solo PRO to communicate on an IP network. If required, you...
Page 25: Managing Network Connections
Managing network connections Managing network connections In the main screen of the Solo PRO portal, you can view and modify the status of your network connections. At the top of the screen, the unit's battery status and the network interfaces to which you are connected are displayed.
Page 26 From the list on the left of the screen, select the network interface you want to view or modify. Information about the selected network interface is displayed in the pane on the right. Click Apply to confirm any changes. Solo PRO User guide...
Page 27: Connecting Modems To The Solo Pro
Connecting modems to the Solo PRO Connecting modems to the Solo PRO The Solo PRO unit is delivered with two USB cables used to connect up to two external modems to the unit. The cables connect to the USB ports on the left and right panels of the unit. The cables are marked with L/A (left) and R/A (right) to indicate on which side of the unit to connect them.
Page 28 Connecting modems to the Solo PRO It is recommended to bind the modems into the elastic fasteners on the protective sleeve to keep them from moving around and potentially disconnecting from the unit during your live session. Solo PRO User guide...
Page 29: Connecting The Video Camera
Only one camera can be connected directly to the Solo PRO at one time. You cannot connect two cameras to both the SDI interface and to the HDMI interface at the same time. You can remove the Solo PRO from the protective sleeve and mount the unit on the camera, using a camera mount.
Page 30: Charging The Battery
Charging the battery Charging the battery The LiveU Solo contains an internal battery that enables up to three hours of standalone operation when fully charged. We recommend charging the battery for at least four hours before using the Solo PRO for the first time.
Page 31: Safety Information
Never use a unit that contains a battery that appears to have • suffered abuse. Store the Solo PRO in an environment with low humidity that is free from corrosive gas, ▪ and in temperatures from -20°C to 60°C, < 80% RH.
Page 32: Potential Hazards
Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Be aware and comply with all signs and instructions. It is not advisable to operate the Solo PRO at a refueling point or service station ▪...
Page 33: Regulatory Compliance
Additional testing and certification may be required for the end product with an embedded MC7455 module and are the responsibility of the OEM. LiveU offers professional services- based assistance to OEMs with the testing and certification process, if required.
Page 34 LiveU module, or for failure of the LiveU module to transmit or receive such data. This device conforms to the EU harmonization legislation Radio...
Page 35 IEC/EN 60950-1 A2:2013 CB Scheme Radio EN 300 328 V2.1.1 EN 301893 V2.1.1 EN 301 908-2 V11.1.1 EN 301 908-13 V11.1.1 FCC/Canada FCC p15 subpart B ICES-003 Issue6 ClassB Radio FCC part15.247 FCC part15.407 FCC rules part 22H//24E/27/90 Solo PRO User guide...
Page 36: Support And Contact Information
Support and Contact Information Support and Contact Information USA and International LiveU Inc. Suite 505 Hackensack 2 University Plaza Drive New Jersey, 07601 Email: solo.help@liveu.tv Web: https://solohelp.liveu.tv/hc/en-us Solo PRO User guide...
