Summary of Contents for Aegis DSP-USBC-1000

  • Page 1 User Manual DSP-USBC-1000 14-in-1 USBC 8K Docking Station CHD MST...
  • Page 2 Model: DSP-USBC-1000 Introduction 14-in-1 USBC 8K Docking Station CHD MST, the Pluggable Universal Laptop Docking Station for Windows and Mac allows you to add up to three monitors, and connect your peripherals, all through a single cable back to your laptop.
  • Page 3 Model: DSP-USBC-1000 Features • Expand the connectivity of your MacBook Pro, Chromebook, Dell XPS, or other USB-C enabled laptop, Thunderbolt 3/4 port compatible. • Power Delivery 3.0 100W function can supply power for your laptop. • Display port Resolution outputs max up to 8K@60Hz, support SST、MST.

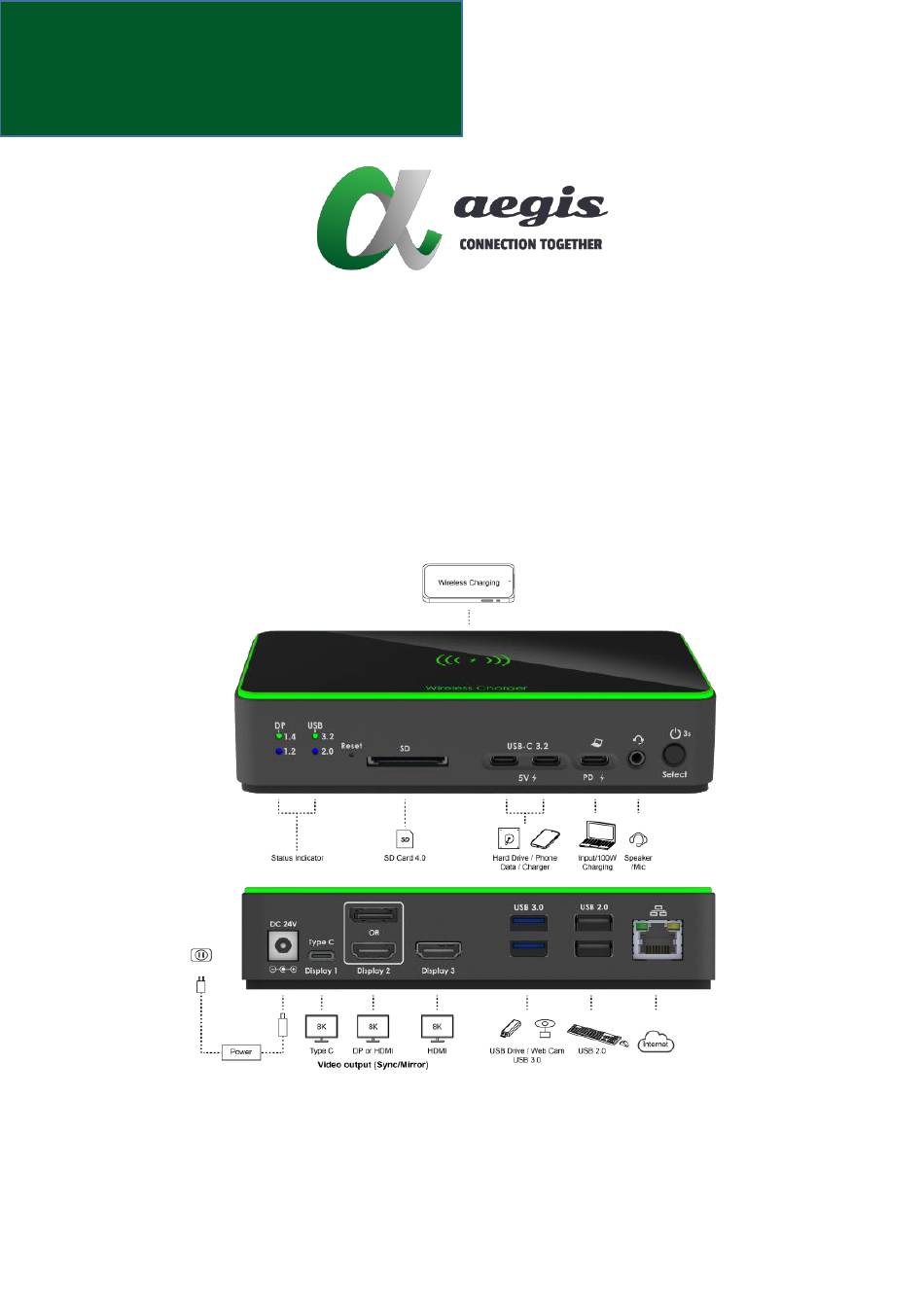

  • Page 4: Product Diagram

    Model: DSP-USBC-1000 Mode Product Diagram Select button: ❶ • Long press for 3 seconds to turn on or turn off the power. • Click the button to switch USB 3.2 max or USB 2.0 max Function. • Double click button to power on/off for Wireless charging LED.
  • Page 5 Model: DSP-USBC-1000 Reset: Reset to factory settings ❻ Wireless charging: ❼ • Quick Charge 2.0 • Blue light when standby. • Green light flashes when charging. • Green light stays on when fully charged. • The red light flashes when it cannot be charged or there is a metal object in contact.
  • Page 6 Model: DSP-USBC-1000 ※ Auto-detect of DisplayPort version will only be accessed when the output screen is connected ※ The output resolution will be subjected to the specification provided by the device manufacturer RJ-45 Port: ❿ • Used to connect a Network Device to the Docking Station.
  • Page 7 Model: DSP-USBC-1000 and HDMI Enabled Display Device. • HDMI 2.1 version • Resolution up to 7680x4320 60Hz “Display 2” DP or HDMI output Port: ⓮ • Using DP or HDMI Cable Connect between the Docking Station and DP or HDMI Enabled Display Device.

  • Page 8: Package Contents

    Model: DSP-USBC-1000 ⓱ Lock Slot • Used to secure the Docking Station to secure stationary object. Package Contents • USB-C Docking Station x 1 • 3 ft. (1m) USB-C Host Cable x 1 • Power Adapter x 1 • User Manual x 1 Storage Conditions °C to 70°C (32°F to 158°F)

  • Page 9: Fcc Statement

    Model: DSP-USBC-1000 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation.
  • Page 10 Model: DSP-USBC-1000 •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement.
