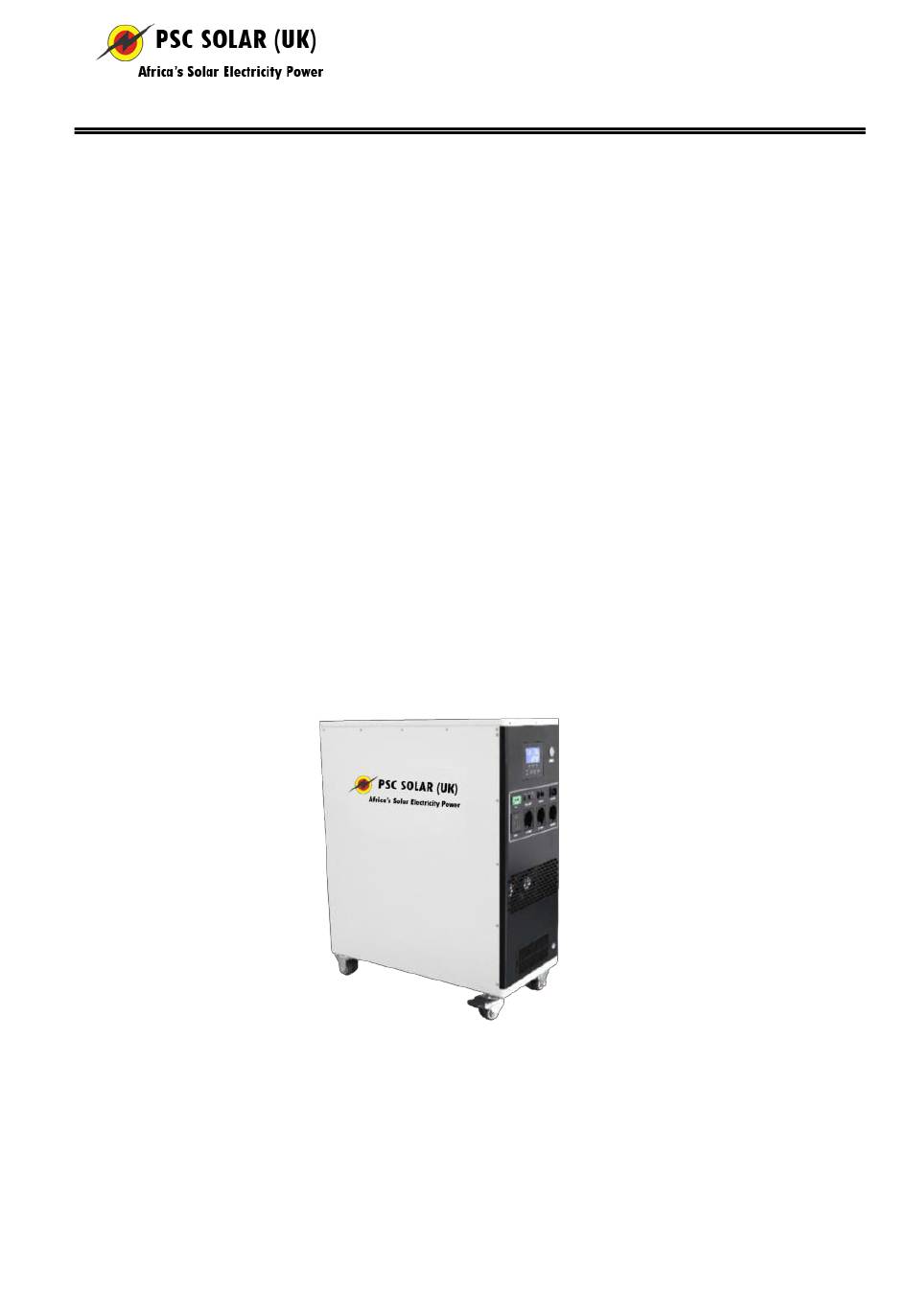

- Page 1 PSC SOLAR UK BESS-SPF-6000WH-3000W Optical Storage Portable Energy Storage Power Supply Product User Manual AIO PORTABLE SOLAR GENERATOR BESS-SPF- 6000WH-3000W V1.1...
-
Page 2: Product Model
Please keep this manual for future reference This manual contains all the safety, installation and operation instructions of the BESS-SPF-6000WH-3000W Optical storage mobile energy storage power supply. Please read all instructions and precautions in the manual carefully before installation and use. - Page 3 PSC SOLAR UK After installation, check all the wire connections to ensure they are tight, to avoid the danger of heat accumulation due to loose connections. After unplugging the connectors of the power output, power input, and photovoltaic input, please promptly cover them with terminal protection caps to prevent accidental contact with the metallic conductors, thus avoiding the risk of electric shock.
-
Page 4: Table Of Contents
PSC SOLAR UK Content 1.Introduction 1. Basic information 2. System diagram 3. Electrical wiring diagram 4. Operating mode 4 2.Packing list 6 3.Product description 5. Product appearance 6. Operation display panel 7. LCD display screen introduction 8 4.Parameter settings for LCD operational display panel 8. - Page 5 PSC SOLAR UK 5.Product specifications 20 6.Wiring diagram 1. Wiring harnesses 2. Wiring diagram 22 7.Storage and maintenance 3. Storage 4. Maintain 233 8.Product liability and consulting ..Error! Bookmark not defined.3 AIO PORTABLE SOLAR GENERATOR BESS-SPF- 6000WH-3000W V1.1...
-
Page 6: Basic Information
1.Introduction 1.1Basic information The BESS-SPF-6000WH-3000W Optical storage mobile energy storage power supply adopts high- energy density lithium iron phosphate battery modules from BYD,which is known as its high safety and long cycle life. Through an advanced battery management system(BMS), there is real-time monitoring of battery voltage, current, temperature and system malfunction, it offers a complete and reliable control and protection system. - Page 7 PSC SOLAR UK 9、Adopting high-current quick-release terminals for easy operation and high current-carrying capacity. 10、Equipped with universal steering wheels, it is convenient and flexible to move. 11、It has complete short-circuit protection, over voltage and under voltage protection, overload protection, reverse connection protection, etc.
-
Page 8: System Diagram
PSC SOLAR UK 1.2 System diagram The BESS-SPF-6000WH-3000W Optical storage mobile energy storage power supply are off-grid energy storage power system suitable for two application scenarios: home off-grid photovoltaic energy storage and outdoor use. In the home off-grid photovoltaic energy storage scenario, please strictly follow the instructions in Figure 1 for installation and use. -
Page 9: Electrical Wiring Diagram
PSC SOLAR UK 1.3 Electrical wiring diagram 1.4 Operating mode BESS-SPF-6000WH-3000W Optical storage mobile energy storage power supply is an off-grid energy storage power supply, which can provide multiple working modes according to different needs. Working mode: off-grid (SUb) 1.Solar energy, batteries, and utility exist at the same time. A.Solar power is prioritized to supply the load, if the solar power is not enough to meet the power demand of all connected loads, the utility will be simultaneously supplied to the load. - Page 10 PSC SOLAR UK B.Solar power is prioritized to supply the load. If the solar power exceeds the power demand of all connected loads, the excess solar power will be used to charge the battery. 3.When utility and battery power coexist, solar power is disconnected.
-
Page 11: Packing List
PSC SOLAR UK 2.Packing list When open the package, the internal components should match the following packing list. BESS-SPF-6000WH-3000W Solar energy Optical storage AC Anderson plug mobile energy storage AC power cord *1 PCS adapter cable harness *2 PCS power supply... -
Page 12: Operation Display Panel
PSC SOLAR UK Item Number Item Description Stainless steel spring handle Power switch (M19) LCD operation display panel AC utility input (16A\230VAC) AC output (50A Anderson) Photovoltaic input (50A Anderson) BMS communication Standard AC output socket (10A\230VAC) Dual USB sockets (5V 3.6A) - Page 13 PSC SOLAR UK LED indicator LED indicator Notice AC/INV Green Power supplied by utility when connected to the utility. Power supplied by battery or photostatic when there is no Flash utility. CHARGE Green Battery is fully charged. Flash Battery is being charged.
- Page 14 PSC SOLAR UK Indicates warning and ERROR codes Warning： flashes with a warning code Fault： On with ERROR code Output information Indicates output voltage, output frequency, load percentage, load power and discharge current Battery information Indicate battery level： Remaining battery power is 0-24%...
- Page 15 PSC SOLAR UK Indicates that the mains is charging the battery Indicates that the inverter discharge circuit is working Silent operation Indicates that the alarm unit is disabled 4.LCD operation display panel parameter setting 4.1 LCD program parameter setting To enter the settings menu and exit the settings menu, press and hold the "ENT" key for three seconds, after entering the settings menu, the parameter number [00] will flash, at this time, you can use the "UP"...
- Page 16 PSC SOLAR UK mains charging current is the maximum current charging current. Voltage [03] APL Input mains voltage range: 90 ~ 280V AC input range default [03] UPS Input mains voltage range: 170 ~ 280V AC Energy [04] SdS default Disable energy saving mode...
- Page 17 PSC SOLAR UK inverter, and the setting range is 24V～ Charging Photovoltaic priority charging, only when [16] CSO the photovoltaic is invalid, the mains mode charging will be started Photovoltaic and mains hybrid charging, [16]S priority photovoltaic charging, when default photovoltaic energy is insufficient, mains charging is supplemented.
- Page 18 PSC SOLAR UK limit voltage battery Enable battery balancing when parameter [33] EE [05]=USE, FLd balancing [33]EdS Disable battery balancing when parameter [05]=USE, FLd default Battery [34]29.2v Setting range 25V～29.2V, step 0.1V balancing default voltage Battery The setting range is 5 minutes-900...
- Page 19 PSC SOLAR UK Photovoltaic input voltage 260VDC Photovoltaic input voltage Photovoltaic input power 500W Photovoltaic input power Charging current Mains + photovoltaic charging current 50A Photovoltaic charging current 50A Mains charging current 50A BESS-SPF-6000WH-3000W V1.1...
- Page 20 PSC SOLAR UK Battery voltage 25.5V, output voltage 230VAC Battery voltage and output voltage Output frequency Output frequency 50Hz Load percentage 70% Percentage of current load When the connected load is lower than 1KVA, the Volt-ampere load load in VA will display xxxVA, 350VA as shown in the figure below.
-
Page 21: Working Mode Display Instructions
PSC SOLAR UK When the connected load is lower than 1KW, the load Watt load in W will display xxxW, as shown in the figure below 270W. When the connected load is greater than 1KW, the load in W will display x.xKW, as shown in the figure below 1.2KW. - Page 22 PSC SOLAR UK Mains to charge the battery on yet, at this time the can still inverter can charge the charge the battery without AC output battery Energy-saving mode: if the load is small or no Solar power to charge the...
-
Page 23: Lcd Fault Codes And Fault Solutions
PSC SOLAR UK Mains to charge the battery mains, and can also use the mains to charge the battery Solar energy is not enough to provide the load, solar and utility power will provide the load and charge the battery at the... -
Page 24: Lcd Warning Codes And Solutions
PSC SOLAR UK temperature of the inverter exceeds 120°C The output voltage is too Reduce load Abnormal output high contact after-sales maintenance personnel Inverter overload Overload time out Reduce load of 110% Busbar voltage is too high Inverter internal Contact after-sales... -
Page 25: Other Problems And Solutions
PSC SOLAR UK 4.6 Other problems and solutions Problems LCD/LED/Buzzer Possible reason Solutions Automatic shutdown LCD/LED/buzzer Battery power is Connect to mains or during device automatically turns solar power to startup off after three charge the battery seconds of activation... -
Page 26: Wiring Diagram
PSC SOLAR UK Maximum 150A charging current Cycle life >3000 Cycle @80%DOD, at 25°C Battery Type Lithium iron phosphate Operating Charge：0～55℃ temperature Discharge：-20～65℃ Inverter Rated power 3200VA/3000W parameters Input voltage 170-280VAC Input 50Hz/60Hz frequency The output 230VAC voltage Output 50Hz/60Hz... - Page 27 PSC SOLAR UK AC input and AC output cable harness diagram： Solar energy cable harness diagram： 6.2Wiring diagram Pls disconnect all power switches before connecting, do not operate with any power before wiring. As shown in the diagram below, connect the Anderson plug labeled "SOLAR INPUT" on the solar energy cable harness to the corresponding Anderson plug on the panel;...
-
Page 28: Storage And Maintenance
PSC SOLAR UK panel; on the other end, connect it to the bus of the household power grid with an AC circuit breaker (connect to the phase line L and neutral line N). After connecting the cable harness, check the circuit and start the power supply only when everything is accurate and correct. - Page 29 PSC SOLAR UK 8. Product Liability and Consulting A. We are not responsible for accidents caused by violation of this specification and operation manual B. Due to product quality improvement or technology upgrade, specifications subject to change without notice. If you want to know the latest information about this product, please contact us.
