Summary of Contents for Supakwik Supatap

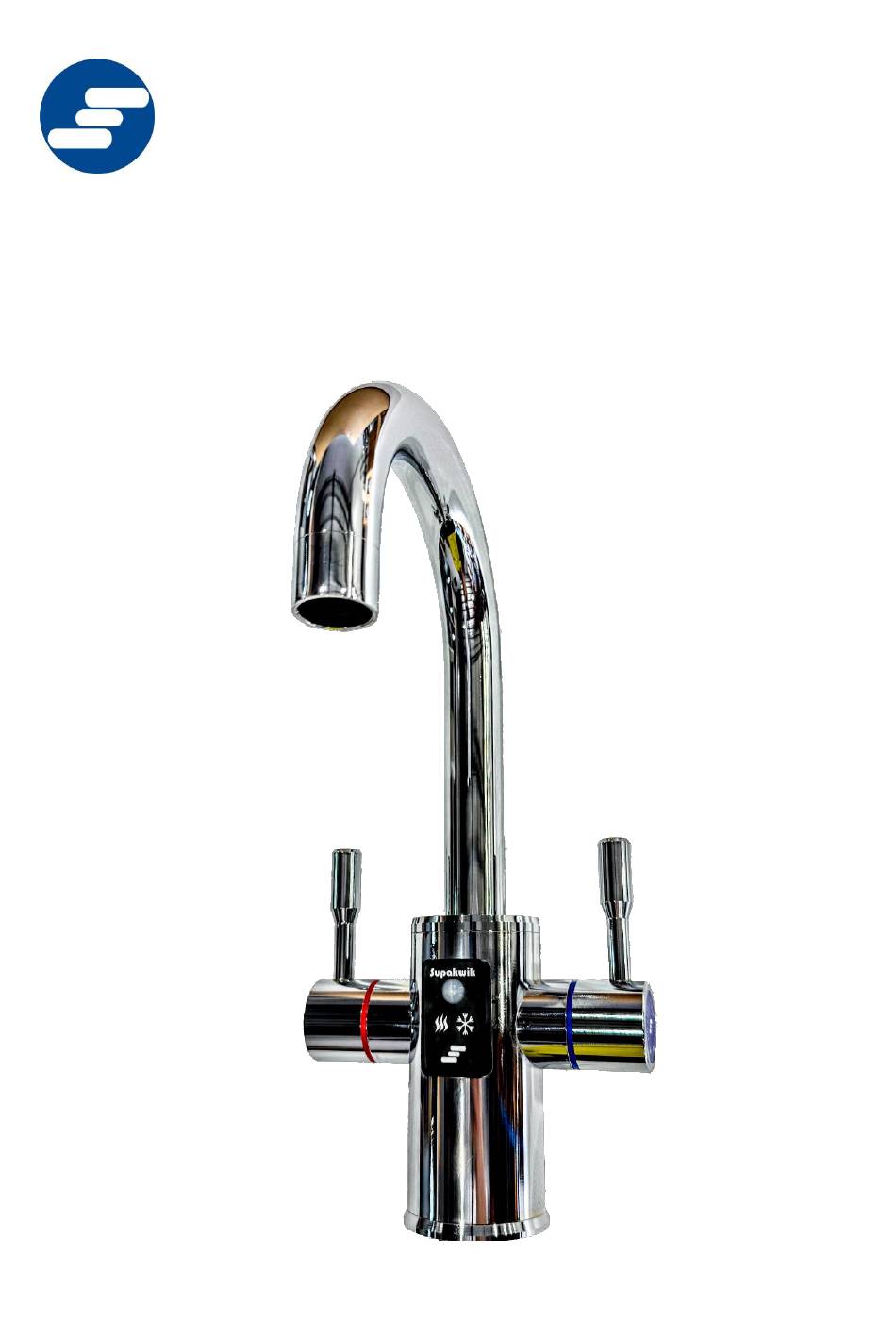

  • Page 1 Supakwik Supatap User Guide / Installation Instructions...
  • Page 2: Table Of Contents

    Table of Contents Introduction Warnings Intended Use & Appliance Positioning Safety General Normal Operation Supatap Changing Default Operation Modes – Tap Safety & Power Saving Modes User Power Saving Features Care & Maintenance Filters Replacement Warranty, Terms & Conditions Product Support Installation Instructions Positioning, Electrical Services &...
  • Page 3: Introduction

    The vent located at the spout of the tap must not be blocked or obstructed. If the supply cord is damaged it must be replaced by Supakwik Water Heaters Pty. Ltd, a service agent or a suitably qualified tradesperson.
  • Page 4: Safety

    This protects the element and the appliance from any damage. Your Supatap appliance is fitted with a leak detection device. If a water leak is present, the system will shut down until the leak is resolved.
  • Page 5: Normal Operation

    To begin using the Supatap make sure the water and electrical supply are turned on. If you are using the Supatap for the first time please allow time for it to fill and heat, this process can take up to 20 minutes. The unit will not dispense boiling water until it has done so.
  • Page 6: Changing Default Operation Modes - Tap Safety & Power Saving Modes

    88°C. Due to excellent insulation qualities, this will occur over a 1½ hour period without the heater element ever coming on. The moment the Supatap detects your presence it will immediately wake and return to operating temperature. Until such time as it reaches operating temperature the status LED will illuminate blue.
  • Page 7: User Power Saving Features

    When you now approach the appliance, it will not reheat. Chilled / Ambient delivery is still available. To return the Supatap to its prior operating mode, simply return the boiling lever to the Neutral position.
  • Page 8: Care & Maintenance

    This appliance is fitted with a canister filter cartridge located inside the front door. Filter life is based on the demand placed on the Supatap, together with the quality of the water supply. The standard filter cartridge, under general demand should deliver a life expectancy of 6 months or approximately 5000 liters.
  • Page 9: Warranty, Terms & Conditions

    1.9 The warranty period commences from the date of purchase. 1.10 If Supakwik is engaged to replace or repair a product under warranty, and there is no fault or the fault is found to be ineligible for a warranty claim, the claimant will be liable for all the costs involved, it will then be their choice whether or not to go ahead with repairs.
  • Page 10: Product Support

    That’s the type of support you can expect! A Supakwik member or one of its approved service agents will always be on hand to assist with any service requirements you may have. Call (07) 3800 0575 Alternatively, visit our web site at www.supakwik.com.au...
  • Page 11: Installation Instructions

    Models that incorporate a 2kW element in the Supatap appliance along with a chiller require a single 10 Amp GPO. Models that incorporate a 2.4kW element in the Supatap appliance along with a chiller will require a dual 10 Amp GPO.
  • Page 12: Water Supply & Tap Installation

    A bayonet style canister filter is supplied with this appliance. This filter must be fitted to the Supatap. The filter is fitted in the front of the appliance by opening the front door. Fit the cartridge by inserting it into the filter head and rotating clockwise until it stops.
  • Page 13: Installing Bf Series - 2 In 1 Models

    The blue tap tube is to be connected to the outlet of the Chiller. Chillers must comply with AS3498. The ambient function of the Supatap appliance then becomes chilled. Supakwik...
  • Page 14: Installing Bc Series - 2 In 1 Models

    U n d e r s i n k C h i l l e r WARNING: The silicone piping from the Boiler/Chiller/Ambient tap to the Supatap must have a continuous fall to prevent the pipes from trapping water, twisting or folding.
  • Page 15: Installing Bcf Series - 3 In 1 Models

    U n d e r s i n k C h i l l e r WARNING: The silicone piping from the Boiler/Chiller/Ambient tap to the Supatap must have a continuous fall to prevent the pipes from trapping water, twisting or folding.
  • Page 16: Commissioning And Testing

    Commissioning and Testing Every Supatap appliance is wet tested before it leaves the factory to ensure you receive a fault free product. Once the installation is complete, position both tap handles in the upright/neutral position. Using the isolating valve turn the water on slowly. Check over the entire product for water leaks, if there are no leaks turn on the electrical power supply to the Supatap.
  • Page 17: Maintenance Mode

    It will then proceed to flash the counts of filter change trigger months. Green represents months remaining and violet represents months that have passed. For further information on this operation mode contact Supakwik Service Department on +61 (07) 3800 0575. Supakwik...
  • Page 18: General Specifications

    * If a chiller is fitted to the BF models, the ambient filtered water becomes chilled. It can be added later if required. Standard Chiller Dimensions (L x W x H) 410 x 205 x 280mm We have various sizes and combinations available please contact us for further information. Supakwik - 18 - DD11391D001...
  • Page 19: Troubleshooting

    6 pin connector to the Main Controller Board (PCB) for any damage. 1-4 Red Flashes – Pump Failure. Test the operation of the pump and if it does not operate, the pump needs to be replaced. Supakwik - 19 - DD11391D001...
  • Page 20 The tap will need to be replaced or repaired. Not Pumping Boiling Water Firstly make sure the silicone hoses have continuous fall and have been trimmed of any excess slack. Supakwik - 20 - DD11391D001...
  • Page 21 If not one can be added to the installation if required. If a chiller has been installed and it is not delivering chilled water ensure the cupboard space has ample ventilation to allow the chiller to operate at maximum capacity. Supakwik - 21 - DD11391D001...
  • Page 22 Supakwik - 22 - DD11391D001...
  • Page 23 Supakwik - 23 - DD11391D001...
  • Page 24 Supakwik Water Heaters Pty Ltd (07) 3800 0575 sales@supakwik.com.au www.supakwik.com.au Supakwik - 24 - DD11391D001...
