Gutermann ZONESCAN 850 Product Manual

Correlating leak noise logger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Language:
Version:
ZONESCAN 850
Product Manual
English
0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZONESCAN 850 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gutermann ZONESCAN 850

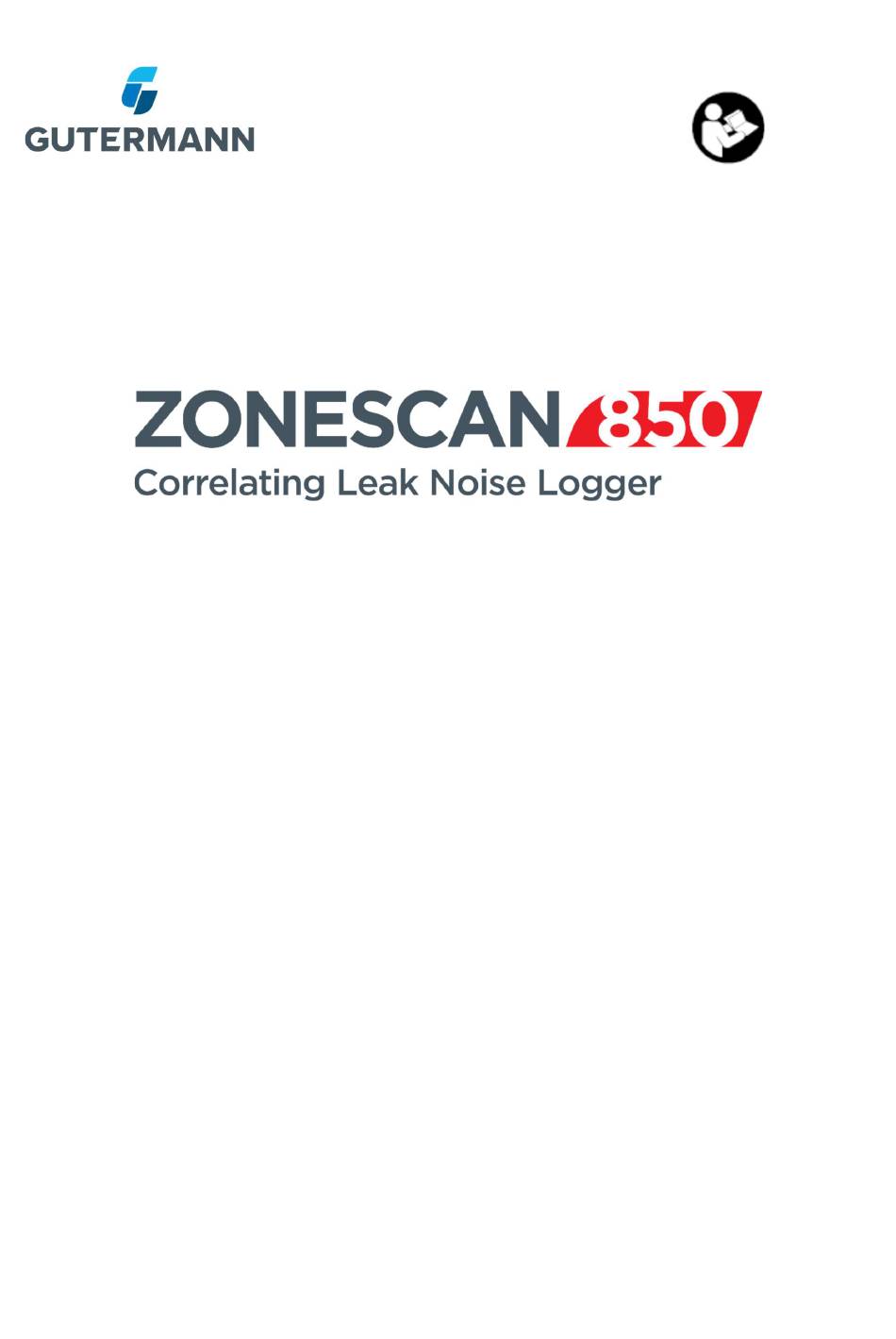

  • Page 1 ZONESCAN 850 Product Manual Language: English Version:...

  • Page 2: Table Of Contents

    Intended Use ......................4 Delivery Contents ....................... 5 Mechanical installation ....................6 Safety Precautions ....................6 Installing the ZONESCAN 850 Logger ..............7 Directions for the External Antenna ................ 7 3.3.1 Recommendations for Placing the Antenna............7 Technical Data ......................8 ZONESCAN 850 Logger ..................

  • Page 3: Usage Instructions

    Do not make any changes or alterations to our products. The ZONESCAN 850 Logger uses a Lithium primary cell. Do not charge or short-circuit the battery or cell and do not physically damage or expose it to heat, fire, or water. Follow the transport stipulations of the carrier (IATA-DGR, IMDG-Code, ADR, RID) when returning the logger to Gutermann.

  • Page 4: Intended Use

    1.3 Intended Use The ZONESCAN 850 logger is intended for use by water suppliers to detect possible leaks in their water pipe networks. The logger is installed underground and attached to water pipes externally via the magnet in the bottom part of the logger. An internal microphone records sound from the water pipe.

  • Page 5: Delivery Contents

    2 Delivery Contents The ZONESCAN 850 Logger set contains  The ZONESCAN 850 logger itself  An external antenna  A tool to open the logger casing Version 0.0 5 I 12...

  • Page 6: Mechanical Installation

    3 Mechanical installation Please refer to the ZONESCAN SMART manual for information on how to prepare and use the logger for measurements. The following is only about placing the device itself onto pipes and into chambers to ensure proper measurements and good reception. 3.1 Safety Precautions You must ensure that there is adequate safety present when working at great heights, in deep chambers, or traffic situations.

  • Page 7: Installing The Zonescan 850 Logger

    3.2 Installing the ZONESCAN 850 Logger The ZONESCAN 850 Logger connects to the water pipes externally through the magnet in the bottom part of the logger. Typically, it is placed on a metal connector between pipe segments, such as a shutter or other connecting element. Make sure you place the logger on a piece that is actually part of the pipe system, so it can pick up the sound within the pipes.

  • Page 8: Technical Data

    4 Technical Data The ZONESCAN 850 Logger can be identified by the ZONESCAN 850 label and the model name: ZS850-L21 for the EU, and ZS850-L22 for USA and Canada. The outer appearance of the two models is otherwise identical. 4.1 ZONESCAN 850 Logger...

  • Page 9: External Antenna

    4.2 External Antenna The ZONESCAN 850 Logger requires an external antenna to connect to the Gutermann Commlink. All antenna types use the same base but with an antenna rod designed for the specific radio band used in the country of use, as detailed below. The antenna base is available with with different-length cables.

  • Page 10: Ant-Zs-Stub

    TBM (to be measured) 4.3 Firmware Updates The firmware of the ZONESCAN 850 Logger can be updated to fix issues and implement additional features. Firmware updates will usually be done over the radio connection via the Gutermann Commlink and initiated from the ZONESCAN SMART app.

  • Page 11: And North America Contact

    8 US and North America Contact Eric Galosi Technical Director Americas Gutermann, Inc. 36 South 27th Street Camp Hill, PA 17011 phone 603.204.3232 eric.galosi@gutermann-water.com www.gutermann-water.com 9 Conformity This device complies with part 15 of the FCC Rules and contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).

  • Page 12: Important Information

     Consult the dealer or an experienced radio/TV technician for help. Please use this device only with the appropriate Gutermann antenna as described in section 0 above. 10 Important Information Please draw your attention to all warnings and information in the manual and on the products.
