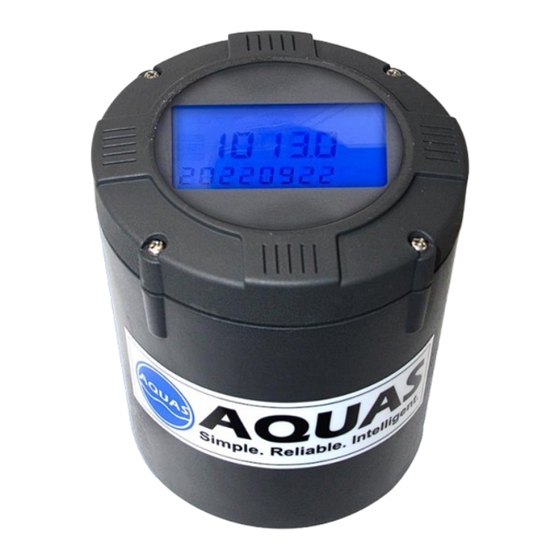

User Manual
ECO
Multiparameter Logger
And Controller
Aquas. Inc | www.aquas.com.tw
Revised Version: Nov.08. 2022
TEL : 886-2-8797-5358 | FAX : 886-2-2657-8926 | 4F.-2, No.56, Ln. 321, Yangguang St., Neihu Dist., Taipei City 114, Taiwan (R.O.C.)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECO and is the answer not in the manual?

Questions and answers

Summary of Contents for AQUAS ECO

  • Page 1 User Manual Multiparameter Logger And Controller Aquas. Inc | www.aquas.com.tw Revised Version: Nov.08. 2022 TEL : 886-2-8797-5358 | FAX : 886-2-2657-8926 | 4F.-2, No.56, Ln. 321, Yangguang St., Neihu Dist., Taipei City 114, Taiwan (R.O.C.)

  • Page 2: Table Of Contents

    ECO Multiparameter Logger Table of Contents CHAPTER 1. OVERVIEW ................................3 CHAPTER 2. INSTALLATION ..............................10 CHAPTER 3. QUICK START GUIDE ............................16 CHAPTER 4. AQCFG CONFIGURATION SOFTWARE INSTALLATION ................27 CHAPTER 5. AQCFG SOFTWARE CONNECTION ....................... 29 CHAPTER 6. SYSTEM SETUP ..............................31 CHAPTER 7.

  • Page 3: Chapter 1. Overview

    ECO Multiparameter Logger Chapter 1. Overview...
  • Page 4 ECO Multiparameter Logger...
  • Page 5 ECO Multiparameter Logger...
  • Page 6 ECO Multiparameter Logger...
  • Page 7 ECO Multiparameter Logger...
  • Page 8 ECO Multiparameter Logger...
  • Page 9 ECO Multiparameter Logger...

  • Page 10: Chapter 2. Installation

    ECO Multiparameter Logger Chapter 2. Installation 2.1 All accessories and Cable ANT04-2 Ground Antenna RS485 ANT05 Antenna CAB12 CAB04-C SIM Card Slot SIM Card Slot CAB01-A Digital Sensors CAB06 Notebook CAB13 Port 3 Pressure Module (optional) CAB01-A AQCFG Software BAT11-2...
  • Page 11 ECO Multiparameter Logger 2.2 Cable Connection (1) Mistaken Power Port 1 BAT11-2 Port 0 Battery Box Notebook BAT20 Mobile Battery (2) Correct Type 1. Power Port 1 BAT11-2 Battery Box Notebook Type 2. Notebook BAT20 Mobile Battery...
  • Page 12 ECO Multiparameter Logger 2.3 Functions of Ports GPRS/4G Antenna Port Port 2：I/O Module Port 1：RS485 Sensors Cable: CAB04-C Cable: RS485 5 PIN SIM Card Slot Port 0：System Power Port (8PIN) Configuration Port Cable: CAB01-A Cable: CAB06 Port 3：Pressure Module1 (optional) 2.4 LCD Display and Bluetooth wakeup...
  • Page 13 ECO Multiparameter Logger 2.5 Installing micro SIM card If user choose GPRS module, a micro SIM card is necessary, unplug the connector from the motherboard, SIM card connector facing up, and push it into SIM card slot. 2.6 Replacing Battery 2.6.1 Remove four screws on the lid.
  • Page 14 ECO Multiparameter Logger 2.7 Wall Mounted type (a) Vertical Type BRA02 mounting bracket (b) Horizontal Type Plate BRA02 mounting bracket...
  • Page 15 ECO Multiparameter Logger 2.8 Pipe Mounted Quick Connector Reducing bush Ball Valve Nipple Reducing bush...

  • Page 16: Chapter 3. Quick Start Guide

    ECO Multiparameter Logger Chapter 3. Quick Start Guide 1. Physical Connection (Port 0、Port 1 、SIM slot and Power Port) WHEN YOU CONNECT THE BATTERY： RS485 ANT 04-1 Ground Antenna ANT 05 Antenna CAB12 CAB04-C/8C SIM Card Slot SIM Card Slot...

  • Page 17: Software Settings

    ECO Multiparameter Logger WHEN YOU CONNECT EXTERNAL POWER： 2. Software Settings (a) Build up the connection between N/B and ECO by AQCFG (115200bps、N、8、1)
  • Page 18 ECO Multiparameter Logger (b) Open and check the main page on AQCFG > System for device name/Time synchronizing/Battery settings (c) Open and check the main page on AQCFG > GPS for the location of this logger...
  • Page 19 ECO Multiparameter Logger (d) Open and check the main page on AQCFG > RS485(Port 1) for sensor scanning (e) Open and check the main page on AQCFG > RS485(Port 1) > Device for sensor setting...
  • Page 20 ECO Multiparameter Logger (f) Open and check the main page on AQCFG > Operation for Sampling/Log record/communication system. (e) Open and check the main page on AQCFG > Import/Export for Log record...
  • Page 21 ECO Multiparameter Logger (f) Open and check the main page on AQCFG > 4G(GPRS) for the communication testing The default testing Server is 118.163.120.143 / port 502 (g) Connect using Bluetooth Turn on the computer's bluetooth for matching Bluetooth name: device name + serial number Password：1234...
  • Page 22 ECO Multiparameter Logger (h)MQTT SETTING server mode select MQTT YOU CAN SET STATIC IP OR CHOOSE DNS...
  • Page 23 ECO Multiparameter Logger SETTING MQTT CHOOSE THE MQTT ，Click on the verify(MQTT) Page，Then ENTER YOUR ACCOUNT AND PASSWORD MQTT TEST When you are done setting, you can click the test button to test...
  • Page 24 ECO Multiparameter Logger you can use mqtt software receive data. (The following picture shows the receiving status of the free receiving software. 2. AQWEB Server Testing (a) Open WEB Browser and input the IP address http://118.163.120.143/aqweb/ Log in Server ( Please contact with Sales to get the testing account and password)
  • Page 25 ECO Multiparameter Logger (b) Find out the testing Device > Main (c) Check the upload the system parameters > Setup (d) Check the upload the operation parameters > Setup...
  • Page 26 ECO Multiparameter Logger (e) Check the upload the history log > Data Table (f) Check the trend > Analysis Note: For the detail about AQWEB Server, please refer to the related user manual to get more information.

  • Page 27: Chapter 4. Aqcfg Configuration Software Installation

    ECO Multiparameter Logger Chapter 4. AQCFG Configuration Software Installation Step 1: Place the Installation Disc into CD-ROM driver, Click the Setup file, and then click Next. Step 2： Step 3：...
  • Page 28 ECO Multiparameter Logger Step 4： Step 5：...

  • Page 29: Chapter 5. Aqcfg Software Connection

    Install the USB driver Open the USB Driver folder of CD, click CDM20824_Setup to finish installation.Then we plug the USB( CAB06 ) into Notebook, we can see USB Serial Port in Device Manager. Connect ECO to Notebook 2.1 Connect Notebook with CAB06 Notebook...
  • Page 30 ECO Multiparameter Logger 2.2 Connect Notebook with Bluetooth (optional) Use PC manage Bluetooth devices，enter passcode”0000”to connect ECO Run AQCFG Program, and click "Setup"...

  • Page 31: Chapter 6. System Setup

    Select the Com Port, baud rate (115200), Parity (None) Modbus ID (Start 1). Close the setting page after complete the setup Click “Scan” to Search and display the ECO device Select the ECO RTU and press LINK. The program will open the Settings page 7. Enter the password (initial password ”0000”) Chapter 6. System Setup...
  • Page 32 System Click button to System ON before setting 1.1 Model：The ECO’s model, we can check the hardware configuration 1.2 Serial Number：The device ID 1.3 Location：We can defined the name for easy to use in AQWEB 1.4 Region：We can defined the name for easy to use in AQWEB 1.5 Zone：We can defined the name for easy to use in AQWEB...
  • Page 33 “Restore” to restore the ECO to default setting(ECO will system off and disconnected), use AQCFG to connect the ECO and System on, and then in to the Log page of Import/Export page, and then click “Del All” to clear all log date...
  • Page 34 3.2.1 Server IP/DNS: Set in Public IP/DNS or AQWEB Server IP 118.163.120.141 3.2.2 Server Port: Set Server Port (Default: 502) 3.2.3 Second Server IP: if you need ECO upload data to 2 different servers, check “Enable” and set Server IP/DNS and Server Port...
  • Page 35 3.3.4 User Name：FTP User Name 3.3.5 Password：FTP Password 3.3.6 Click “Apply” and then click ”Link Test” to check communication *If you choose FTP Mode, ECO will upload data by csv file to FTP Server, and there are no data upload to CCS server...
  • Page 36 ECO Multiparameter Logger 3.4 CCS/FTP Mode : 3.4.1 Enable “CCS/FTP” Mode 3.4.2 Set Server IP/DNS 3.4.3 Set FTP Port(default: 21) 3.4.4 User Name：FTP User Name 3.4.5 Password：FTP Password 3.4.6 Click “Apply” and then click ”Link Test” to check communication *If you choose CCS/FTP Mode, ELO will upload data by csv file to CCS & FTP Server.
  • Page 37 3.5 Contacts (SMS Setup): 3.5.1 We can set up to 10 phone number for SMS 3.5.2 ECO will send Alarm ON and Alarm Off SMS for each phone number you check * We can check Alarm Off after check Alarm On 3.5.3 Click “SMS Test, ECO will send a SMS to first phone number...
  • Page 38 Position: GPS position has been completed  4.1.2 Signal：Show the signal strength of GPS,0%~100% 4.1.3 Log Condition：If you check “periodical”, ECO will log position periodically 4.2 GPS Synchronization： 4.2.1 Always：GPS module always on (external power is necessary) 4.2.2 Survey：turn on the GPS to locate now, and then turn off GPS module 4.2.3 Periodical：Locate periodically, we can set the time interval...
  • Page 39 ECO Multiparameter Logger LCD Display Page Number 5.1 Check ”Enable” and click ”Apply” and then we can wake up LCD by MSW01(Magnet) 5.2 Display Interval: The time of LCD from wake up to sleep 5.3 We can click pattern to edit, setup display for every page, and click ” Add” after you setup everyone page display 5.4 If you want to change one list of display List, choose the list and edit it and then click “Update”...
  • Page 40 ECO Multiparameter Logger Operation 6.1 System Operation (a)Continuous (b)Schedule: You can Enable the Start and End Date and check the operation Time 6.2 Sampling Interval：The periodical to determine whether an alarm occurred 6.3 Log：Setup data log periodical and the data log periodical during event occurs 6.4 Communication (Data Upload)
  • Page 41 ECO Multiparameter Logger RS485 (Port 1) 7.1 Scan SMR Transmitter 7.1.1 Connect SMR to Port1 of ECO 7.1.2 Set the Setup and Baud Rate ,then click “Apply” 7.1.3 Click ”Scan” to find out connected SMR 7.1.4 Double click the Device you scanned to setup Note: The ID for each SMR has to different and in the range (1-8) 7.2 For example: SMR02 (water level indicator)
  • Page 42 ECO Multiparameter Logger 7.2.1 Check ”Enable” and click ”Apply” 7.2.2 Level：The measured water level 7.2.3 Setup the Unit, Density, Log Condition and Elevation then click ”Apply” 7.3 Device 09 7.3.1 Check “Enable” and click “Apply” 7.3.2 Channel: Channel 1, Channel 2 input 7.3.3 Address: Address field between 0x0000-0XFFFF, 1-65536...
  • Page 43 ECO Multiparameter Logger I/O Module 8.1. Digital Input (ECO2, 3) (a)Status mode Check “Enable” and click “Apply” Select Status Mode Check Log Condition and click ”Apply” (b)Counter / Rain mode...
  • Page 44 ECO Multiparameter Logger Pulse and Unit: Set the value for each count; based on the Input signal Reading1: Accumulated value and unit Last update: Last update time Initial Value: Set the initial value of reading1 Clear: Clear Reading1 value Auto Reset: Clear Reading1 value at the time...
  • Page 45 8.2.2 Setup Input Signal ,Unit ,Min, Max and check Log Condition then click ”Apply” 8.2.3 Output Power: ECO can supply 12V 100mA power, we can set the time of power supply （ECO supply the power only in the time when the AI scan and log）...
  • Page 46 ECO Multiparameter Logger (b) Alarm Control Mode: A. Setup Alarm condition and click ”Apply” *The ”Step3” will automatic changes with ”Step2”...
  • Page 47 ECO Multiparameter Logger (c) Control Rule Control Mode: A. Each “IF” command set includes up to 3 conditions, grouped by AND or OR, and completed by END B. Follow step 1~3 to program the control rules: Step1: for safety reason, click “Stop” to stop system before programming...
  • Page 48 ECO Multiparameter Logger (d) Time Table Control Mode: A. Month: check the date to output signal for every Month B. Day: Time: user can set up sequentially up to 12 sets the signal output open time (ON) and  close time (OFF) Control: user can setup the condition for ON/OFF output signal ...
  • Page 49 ECO Multiparameter Logger 8.4. Pulse Output(ECO5) (a) Manual mode (b) Schedule mode...
  • Page 50 ECO Multiparameter Logger (c) Set Point Mode...
  • Page 51 ECO Multiparameter Logger Alarm 9.1 System Alarm: Setup the Alarm condition and SMS Message then click”Apply” 9.2 Port 1 Alarm： We can set 4 alarm level, 4 conditions(HH,H,L,LL)and SMS Message then click ”Apply”...
  • Page 52 ECO Multiparameter Logger 9.3 Port 2 Alarm： 9.4 Port 3 Alarm : 9.5 Barometer Alarm： If the ECO have barometer module, we can set barometer alarm...
  • Page 53 10.1 Choose I/O device on Send table, then check” Enable” 10.2 Key in the Serial Number of Receiving side server (ex: 20150115160001) and choose Receive Register number 10.3 Click“Apply”, ECO will upload the I/O device data to the server every time when system communication...
  • Page 54 ECO Multiparameter Logger 11. Data Monitor 11.1 Show all I/O value and plot the trend of checked devices 11.2 Check device to plot the trend 11.3 Color: Choose the trend color 11.4 Value: Real-time Value 11.5 Unit: Value Unit 11.6 Display interval: The X-axis range 11.7 Zoom In/Zoom Out...
  • Page 55 ECO Multiparameter Logger 12. Import/Export 12.1 Log 12.1.1 Select Log, Alarm or Transient pressure item 12.1.2 Select All or Interval (choose date and time from Start and End) 12.1.3 Click Search to list the log, alarm message or transient pressure 12.1.4 Click “◄...
  • Page 56 12.2.3 Restore: Click to restore to default setting Note 1. The ECO will restore the factory default when Click restore. The ECO system will be "system off", please "system on" again and then set up other parameters 2. When you update the new firmware, please restore to factory default...

  • Page 57: Chapter 7. Connection Setup For Smr02

    ECO Multiparameter Logger Chapter 7. Connection Setup for SMR02 1. AQCFG Software Installation: 1.1. Put AQCFG Disc into CD-ROMbrowse the DiscOpen the file named AQCFG 1.2. Click “Setup” to start the executionfollow the installation step by step to finish AQCFG installation.
  • Page 58 ECO Multiparameter Logger Step 2: Step 3:...
  • Page 59 ECO Multiparameter Logger Step 4: Step 5:...

  • Page 60: Connection Setup

    ECO Multiparameter Logger 2. Connection Setup: Users can use AQCFG program to set up parameters for SMR02 and can also whether to execute a basic (zero-point) and Slope calibration. 2.1. Connect SMR02 water level gauge with the PC through a USB-485 connection cable (CAB06).
  • Page 61 ECO Multiparameter Logger 2.3. Set Connect COM PORT Click “Setup” on Device Search display, and set up COM PORT, Modbus ID, Baud rate, Parity (SMR factory default settings: Modbus ID=1, Baud rate=19200, None Parity, 8 Data Bits, 1 Stop Bit). After the setting is completed, close Com Port Setup window.
  • Page 62 ECO Multiparameter Logger AQCFG function list 1. Access: 1.1 Connect: Scan SMR transmitter via com port 1.2 Disconnect: disconnect communication link of SMR transmitter 1.3 Log in: N/A 1.4 Exit 2. Setup 2.1 Com Port: Setup COM port, Modbus ID, Based Rate, Parity 2.2 Password: N/A...
  • Page 63 4.1. Baud Rate: Setting the Baud Rate(19200 and 9600 ) 4.2. Date Format: Setting data format 4.3. ID: Set ID of the Sensor. (a)It is necessary to avoid same ID with other Sensors (b)The ID has to in the scan range of the RTU (ECO:1~4; PRO:1~8)
  • Page 64 ECO Multiparameter Logger 5. Advanced Setup: Click “Advanced” to call out the Calibration and Firmware Update functions. 5.1. Calibration: (1) Last Calibration Date: showing the latest date of the calibration (2) Calibration: click ”Start” to go to the calibration screen 5.2.
  • Page 65 ECO Multiparameter Logger Firmware Update a. Click “Open”select *.aqs, the correct update version b. when ***AQUAS INC DISCLAIMS *** screen is displayed, please select “YES” to start the firmware update or select “No” to exit the screen. Notice: 1. When excuting the firmware update, please make sure you only connect to “one” device. In order prevent update failure and unable to recover, please disconnect the other devices before start 2.
  • Page 66 ECO Multiparameter Logger 6. Calibration Setup: Click calibration “Start” in Advanced page to go to the calibration procedures. 6.1. Zero Calibration: (1) Place the Transmitter in the air (2) Click “Zero Start” to start the zero calibration, then click “OK” to confirm the procedure...
  • Page 67 ECO Multiparameter Logger 6.2. Slope Calibration: (1) Place the level transmitter into the tank, click “Slope Start” to start Slope Calibration, then click “OK” confirm the procedure (2) Enter the height of the liquid level (3) After calibration is complete, slope will be displayed and the program will update the “Last calibration time”...

  • Page 68: Chapter 8. Q & A

    ECO Multiparameter Logger Chapter 8. Q & A 13. How to enter device operation mode? 14. Cannot operate after entering the host? 15. No screen or value display after successful login? 16. How to modify MODBUS ID? 17. Longitude, latitude and altitude? 18.
  • Page 69 ECO Multiparameter Logger 22. [Operation Settings] How to configure? 23. [Air pressure] compensation? 24. Restore factory default...

  • Page 70: Chapter 9. Maintenance And Troubleshooting

    Internal battery: Unscrew the 4 screws on the LCD cover and replace the battery External battery: replace ECO Port 3 external battery directly If there is still no power, go to the <Basic> page to check the capacity status after replacing the battery If there is still no capacity value, please replace the battery cable CAB01-A or CAB01-B ...
  • Page 71 ECO Multiparameter Logger 28. Replace the sensor under the host Confirm that there is no conflict between the MODBUS ID of the new sensor and the fixed ID of the water level gauge = 8. After connecting the AQCFG to the host, find the sensor under [RS485] and enable the sensor, which can be backfilled to the new product according to the parameters of the old sensor in.

  • Page 72: Appendix A. Pin Assignment

    ECO Multiparameter Logger Appendix A. Pin Assignment 1. System Configuration Port (Port 0): 1.1 RS485 Terminal Block: (CN5) RS485 D- RS485 D+ 4.2 V 1.2 Connector Pin-outs: M12/5PIN Connector (male) Cable Wiring(CAB06) Signal Color Brown RS485 D- White RS485 D+ Blue VDC 3.6 V...
  • Page 73 ECO Multiparameter Logger I/O Module (Port 2): ECO2 & ECO3 (2DI, 2AI) I/O Module: M12/8PIN Connector (Male) Pin Assignment: Connector Pin-outs： Cable Wiring (CAB04-C) Signal Color DI1/Pulse 1+ Brown DI2/Pulse 2+ Loop Power 12V Orange Yellow AI 1+ Green AI 1-...
  • Page 74 ECO Multiparameter Logger 4. Power Input Port: M12/8 PIN Connector (Female) Cable Wiring (CAB01-A) Signal Color DC 12V Brown DC 0V Solar + Orange Yellow 12V_CN Green BAT 3.6V Blue Purple Grey...

  • Page 75: Appendix B. I/O Wiring Diagram

    ECO Multiparameter Logger Appendix B. I/O Wiring Diagram Counter Input: Flow Signal Dry Contact Analog Input: DC 0~10V/0~1V 4~20mA Input External Voltage or Current Signal...

  • Page 76: Appendix C. Ftp Data Format

    ECO Multiparameter Logger Appendix C. FTP Data Format DataLog Column Tag Name Type Description Log Type DateStamp date log data receive date TimeStamp time log data receive time double double double double pressure1 double sensor/pressure device1Total double device ID9 CH1...
  • Page 77 ECO Multiparameter Logger MB_TYPE4 int(1) Type of mod bus ID 4 MB_TYPE5 int(1) Type of mod bus ID 5 MB_TYPE6 int(1) Type of mod bus ID 6 MB_TYPE7 int(1) Type of mod bus ID 7 MB_TYPE8 int(1) Type of mod bus ID 8...
  • Page 78 ECO Multiparameter Logger MB_TYPE3DEVICE4Data double Device 4 of mod bus ID 3 MB_TYPE3DEVICE5Data double Device 5 of mod bus ID 3 MB_TYPE3DEVICE6Data double Device 6 of mod bus ID 3 MB_TYPE3DEVICE7Data double Device 7 of mod bus ID 3 MB_TYPE3DEVICE8Data...
  • Page 79 ECO Multiparameter Logger MB_TYPE7DEVICE4Data double Device 4 of mod bus ID 7 CM MB_TYPE7DEVICE5Data double Device 5 of mod bus ID 7 MB_TYPE7DEVICE6Data double Device 6 of mod bus ID 7 CO MB_TYPE7DEVICE7Data double Device 7 of mod bus ID 7...

  • Page 80: Appendix D. Modbus Table

    ECO Multiparameter Logger Appendix D. Modbus Table 1. ECO2,ECO3 Input Register address tag name length (word) 0x0500 0x0502 0x0504 pressure1 0x0506 counter1 0x050A rate1 0x050C counter2 0x050E rate2 0x0510 counter3 0x0512 rate3 0x0514 counter4 0x0516 rate4 0x0518 di1~di4 0x0519 barometer...
  • Page 81 ECO Multiparameter Logger 2. ECO4 4xxxx read/write registers (support function 3,6,16) Reference Address Data Type Description <R/W> DO mode 41031 0x0406 1 word 1:Open 0:Close <R/W> DO mode 41032 0x0407 1 word 1:Open 0:Close...
  • Page 82 ECO Multiparameter Logger 3. ECO5 DO Modbus 4xxxx read/write registers (support function 3,6,16) Reference Address Date Type Description Set DO1 Work Mode 41025 0x0400 1 word 0:manual 1:alarm 2:control rule 3:time table 4:set point Set DO2 Work Mode 41026 0x0401...

  • Page 83: Appendix E. Dimensions & Bracket

    ECO Multiparameter Logger Appendix E. Dimensions & Bracket 1. ECO Logger Dimension 2. BRA02 Mounting bracket...

  • Page 84: Appendix F. I/O Connection

    ECO Multiparameter Logger Appendix F. I/O Connection 1. ECO2: Flow, Level, Water Quality Logger: I/O Module 1 (2DI, 2AI)+ RS485 Port 1.1 Power Port: Power Power Port (1) External power (2) Solar (3) 60 AH, IP68 rechargeable lithium battery box CAB01-A (8-Core Cable) 1.2 Port 0: System Configuration Port...
  • Page 85 ECO Multiparameter Logger 1.4 Port 2: I/O Module (2DI, 2AI) CAB04-C (8-Core Cable)
  • Page 86 ECO Multiparameter Logger 2. ECO3: Pressure, Flow, Water Quality Logger: I/O Module 1 (2DI, 2AI) + Pressure Module 1 + RS485 Port 2.1. Power Port: Power (1) External power (2) Solar Power Port (3) 60 AH, IP68 rechargeable lithium battery box CAB01-A (8-Core Cable) 2.2.
  • Page 87 ECO Multiparameter Logger 2.4. Port 2: I/O Module (2DI, 2AI) CAB04-C (8-Core Cable) 2.5. Port 3: Pressure Module 1 Port3 Pressure Module1...
  • Page 88 ECO Multiparameter Logger 3. ECO5: Pressure, Flow, Water Quality Controller: I/O Module 3 (2DI, 1PO, 1AI) + Pressure Module 1 + RS485 Port 3.1. Power Port: Power (1) External power (2) Solar Power Port (3) 60 AH, IP68 rechargeable lithium battery box CAB01-A (8-Core Cable) 3.2.
  • Page 89 ECO Multiparameter Logger 3.4. Port 2: I/O Module (2DI, 1PO, 1AI) CAB04-C (8-Core Cable) 3.5. Port 3: Pressure Module 1 Port3 Pressure Module1...
  • Page 90 ECO Multiparameter Logger Disclaimer Clause AQUAS Inc., a company incorporated under the laws of Taiwan, R.O.C, (hereinafter referred to as “AQUAS”), has developed this user manual with the utmost attention and concern; however, AQUAS assumes no responsibility for the accuracy, completeness and generality of the information contained in this manual.
