MEDINAH POWER WPLL-20T40W Installation Instructions

LED Wall Pack
Installation Instructions
THIS INSTALL MANUAL IS APPLICABLE FOR
MODEL NO : WPLL-20T40W/WPLL-40T60W/WPLL-40T80W/WPLL-60T100W/WPLL-80T120W
SAFETY INFORMATION
IMPORTANT
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE
WITH THE APPLICABLE NATIONAL ELECTRICAL CODE AND
LOCAL BUILDING CODES BY A PERSON FAMILIAR WITH
THE CONSTRUCTION AND OPERATION OF THE PRODUCT
AND THE HAZARDS INVOLVED.
PRECAUTIONS
Please read and understand this entire manual before
attempting to assemble, install, or operate this light fixture.
This light fixture requires a 120-277VAC or 277- 480VAC
power source.
Some codes require installation by a qualified electrician.
This light fixture must be properly grounded.
Make sure connections are secure
using wire nuts, crimp-on lugs or other
approved connecting devicesr.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures
- Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
- Consult the dealer or an experienced radio/TV technician for help
NOTICE: Green ground screw provided in proper location.
Do not relocate.
NOTICE:
Minimum 90° supply conductors.
NOTICE:
Specifications and dimensions subject to change
without notice.
NOTICE: Suitable for Dry or Damp location,
E-Mail: info@medinahpower.com | Web: www.medinahpower.com | Ph: +1 (844) 870-5337
Contact us : For support & assistance, please feel free to contact us below.
WARNING:
Turn the power off at the circuit breaker or
fuse. Place tape over the circuit breaker switch and verify
power is off at the light fixture.
CAUTION:
Burn hazard. Allow the light fixture to
cool before touching.
NOTICE:
If using dimming function, only connect to
0-10V approved dimming switches or control system
NOTICE:
FCC Regulations state that any unauthorized
changes or modifications to this equipment not expressly
approved by the manufacturer could void the user's
authorization to operate this equipment.
INFORMATION:
The device is tested and found to
comply with Part 15 of the FCC Rules. Operation is subject
to two conditions: (1) This device may not cause harmful
interference and, (2) this device must accept any
interference received, including any interference that
may cause undesired operation. These limits are designed
to provide reasonable protections against harmful
interference when the equipment is operated in a
commercial environment.

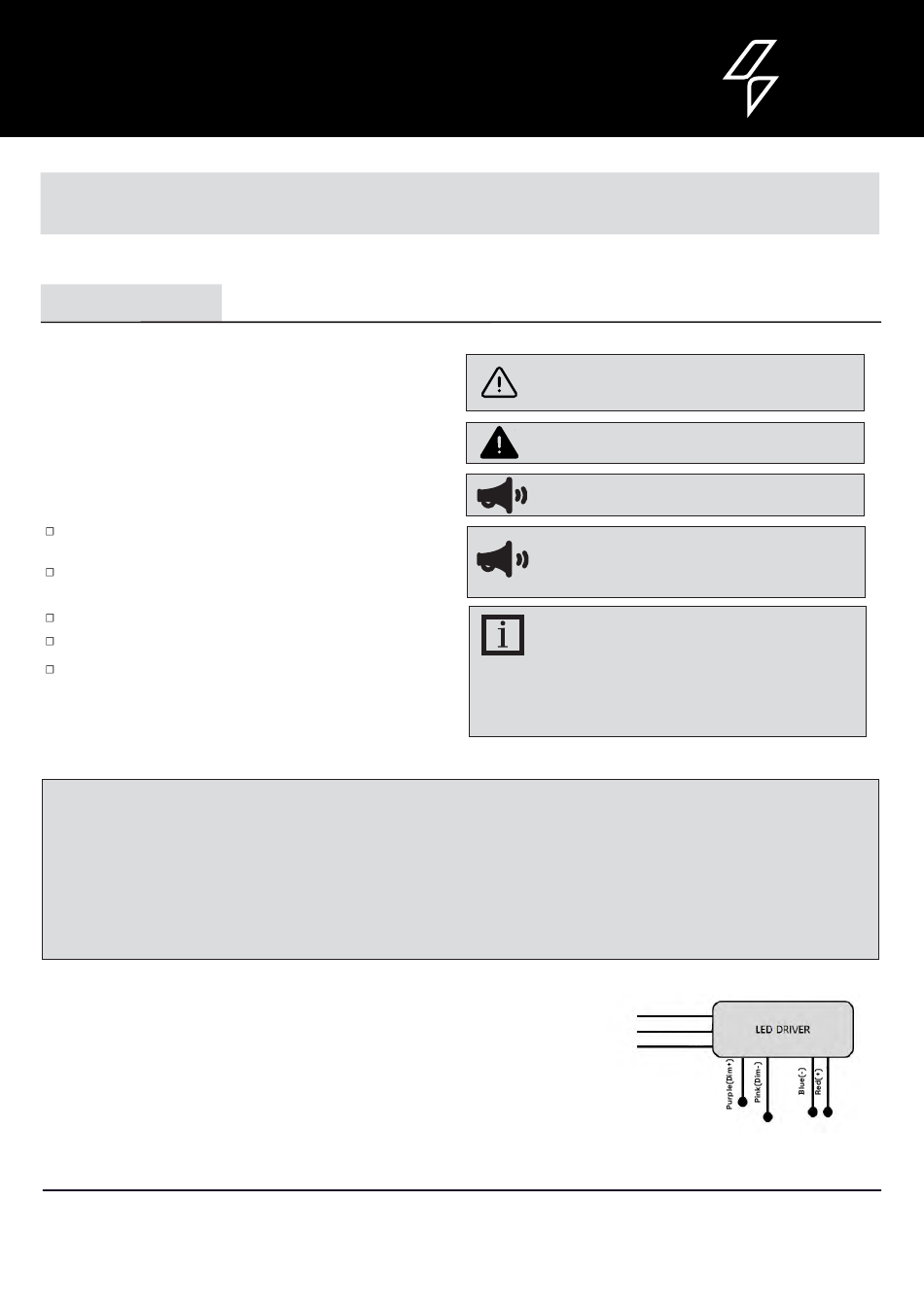

General Wiring Diagram
Black(Line)
White(Neutral)
120-277V or 277- 480VAC
Green(Grd)
MEDINAH
POWER
Dimming wire
Lead wire to
to 0-10v IEC
LED load
compliant control
