Summary of Contents for Kogan KA052LDRAGA

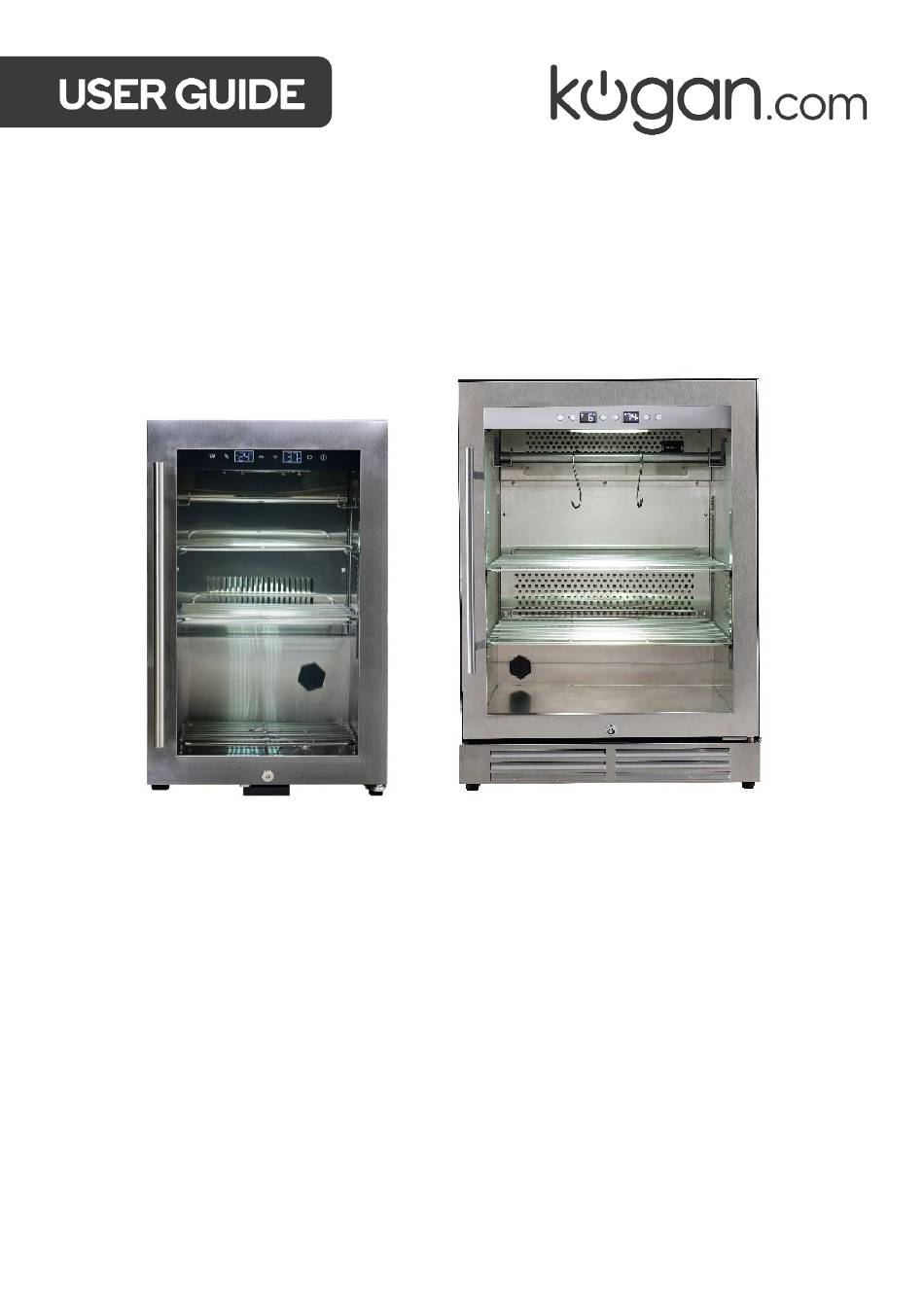

- Page 1 52L & 125L DRY AGER MEAT FRIDGE CABINET KA052LDRAGA & KA125LDRAGA...
-
Page 2: Table Of Contents
Safety & Warnings Overview Installation Operation Cleaning & Care Troubleshooting Notes... -
Page 3: Safety & Warnings
• Kogan.com does not accept liability for injury to individuals resulting from improperly stored food products which are subsequently consumed. Safety Guidelines •... - Page 4 • Repairs to this appliance must only be undertaken by customer service departments authorised by Kogan.com. Any repairs carried out by unauthorised personnel may invalidate your warranty, potentially leading to further damage. Additionally, repairs that are not executed correctly can pose significant risks to the user.
- Page 5 If the power cable or plug are damaged, then they must be replaced by the Kogan.com or its service agent to avoid a hazard. Cease using the unit immediately and contact help.Kogan.com for support.
- Page 6 If in doubt, have the electrical installation checked by a qualified electrician. • Liability for Protective Conductor: Kogan.com cannot be held liable for damages caused by a missing or damaged protective conductor. DANGER: Important Safety Warnings for Dry Aging Process •...
-
Page 7: Overview
OVERVIEW 125L Model (KA125LDRAGA) Hinge Control panel Hanging rack Door fame Stainless steel shelves (lockable) Carbon filter UV light (hidden behind) - Page 8 52L Model (KA052LDRAGA) Control panel Hanging rack Butcher hooks Stainless steel shelves Carbon filter Door frame (lockable) UV light (hidden on top)
-
Page 9: Installation
INSTALLATION Installing the Handle Your appliance comes with a metal stainless steel handle. For installation, attach it to the door using the screws provided in the package. Gently slide the rubber seal located at the back of the door to the side. This will reveal the predrilled holes. - Page 10 To conserve energy, always keep the door of the appliance closed while it is operating. Adjustable Feet • 52L model (KA052LDRAGA) features 3 large feet and 1 small foot. The small foot can be adjusted by a few millimetres to help ensure the appliance is flat and level. •...
-
Page 11: Operation
OPERATION Control Panel UV light button: Press to switch the UV light on Temperature/Humidity button: Toggle between the temperature and humidity settings Temperature display: Shows the temperature in the fridge. Increase button: Increase the temperature/humidity Decrease button: Decrease the temperature/humidity Humidity display: Shows the relative humidity in the fridge. - Page 12 Operation Before first use, ensure the appliance is properly cleaned. Refer to “Cleaning and Care” section. Press the “Power” button to turn the appliance on. Press the “UV” button to sterilise the appliance for at least 2 hours before placing any meat inside.
- Page 13 LED Light Press the “Light” button to switch the LED light on. The light will automatically turn off after 4 hours. UV Light The UV light is used to sterilise the interior before, during and after the aging process. • Press the “UV”...
- Page 14 Dry Aging • Dry aging beef, pork, and poultry is a meticulous process that demands both time and optimal conditions. It's important to be patient and maintain the right environment for successful aging. • High-quality meat can be stored on the metal storage shelves or suspended from meat hooks within the appliance.
-
Page 15: Cleaning & Care
(shelves, meat hooks etc.) for thorough cleaning. • Procedure for Spoiled Meat: In cases of continued failed ageing processes, leading to spoiled meat or mold growth, cease immediately and help.Kogan.com for support and advice on appropriate measures. Interior and Exterior Walls •... - Page 16 Drip Tray Check the drip tray (K) for condensed water regularly. It is located on the rear right of the appliance. If necessary, remove the condensed water with a sponge. Manual Defrosting • Defrost the device after each ageing process. •...
- Page 17 Metal Components For hygiene purposes and to ensure optimal performance, follow these steps to clean the appliance's metal components: Take out the stainless-steel shelves, hanging rack, collecting tray, and butcher hooks from the appliance. Wash these components with warm water and a mild detergent to ensure thorough cleaning.
- Page 18 Hold the UV lamp firmly and turn it at a 45° angle, then pull out the old UV lamp. Follow steps 1-2 in reverse order to replace the UV lamp and return the cover. 45° Method 2: Carefully loosen the screws and remove the cover. The UV lamp is attached to the cover.
- Page 19 Pull the UV lamp downwards to separate it from the cover. Follow steps 1-2 in reverse order to replace the UV lamp and return the cover. Transporting the Appliance Turn off the appliance first and disconnect the power cord. Remove all content and dry the internal and external surfaces of the appliance. Surely tape down all lose items inside your appliance.
-
Page 20: Troubleshooting
• Press the light button. • Ensure the power cord is properly connected to The light does not work. an electrical outlet. Contact help.Kogan.com for support. • • Check to ensure that the device is level. • Inspect the fan. - Page 21 Contact help.Kogan.com Problem with humidity Contact help.Kogan.com Problem with humidity sensor Problem with defrosting Defrost the device Contact help.Kogan.com Problem with signal cable Note: If you are unable to solve the problem with the steps shown above, contact help.Kogan.com for support.
-
Page 22: Notes
NOTES... - Page 24 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
