SAMUDRA DOSER X Instructions For Use Manual

Multifunctional aquarium dispenser
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instructions for use of multifunctional
aquarium dispenser
This symbol on the product or its packaging means that the product must not be treated as municipal
waste, but should be taken to an appropriate collection point for electrical and electronic equipment,
for recycling. Proper disposal of the used product prevents potential negative impacts on the
environment and human health that could occur if the waste is not properly managed. Recycling
materials helps protect the environment. For more detailed information on how to recycle this
product, please contact your local government, waste management services or the store where you
purchased this product.
Note

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DOSER X and is the answer not in the manual?

Questions and answers

Related Manuals for SAMUDRA DOSER X

Summary of Contents for SAMUDRA DOSER X

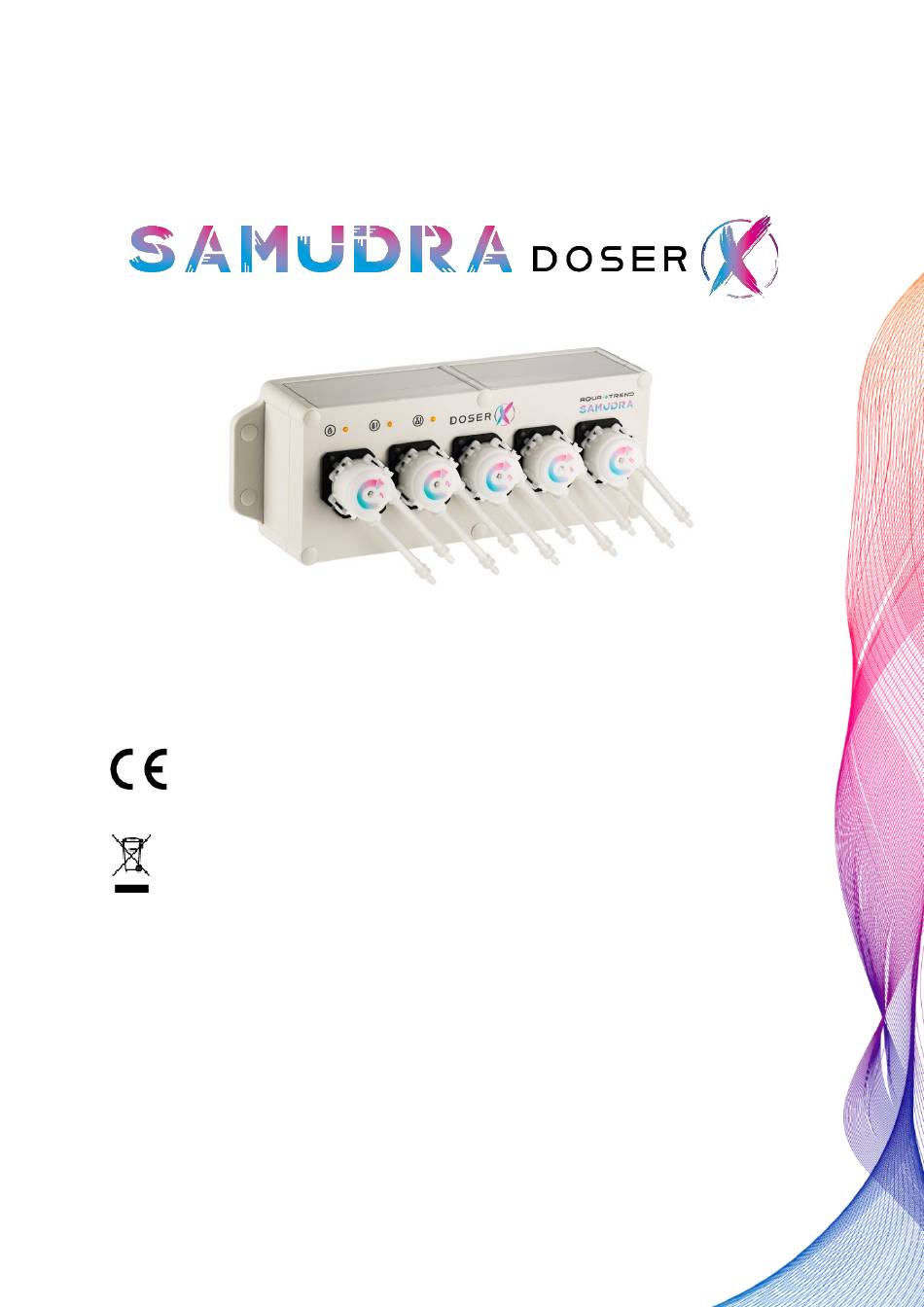

  • Page 1 Instructions for use of multifunctional aquarium dispenser This symbol on the product or its packaging means that the product must not be treated as municipal waste, but should be taken to an appropriate collection point for electrical and electronic equipment, for recycling.

  • Page 2: Table Of Contents

    The condition for starting to use SAMUDRA DoserX is to read with understanding the following instructions, and the instructions for accessory components (if connected). The manufacturer is not responsible for any damage caused by the use of the device contrary to its intended use or contrary to this manual.
  • Page 3 The DoserX SAMUDRA device is entirely managed by a free mobile app, available on Android and IOS platforms. The DoserX APP is a powerful, intuitive tool with which you can use all the capabilities of your DoserX dispenser.
  • Page 4 Figure 2: Accessory, expansion components for the SAMUDRA DoserX device.
  • Page 5 Fig. 3. List of SAMUDRA series accessories and consumables for the SAMUDRA DoserX dispenser.

  • Page 6: Functionality Description

    - Temperature measurement: the device continuously measures the temperature, which can be read in real time on the mobile app. The function requires the attachment of the SAMUDRA Temp Sensor, which is an optional accessory for the SAMUDRA system.

  • Page 7: Installation

    - Set of screws for installation - Information leaflet 4. Installation. SAMUDRA DoserX should be installed in a place where it will not be exposed to direct exposure to water and water vapors. The device can be installed in two positions, horizontally or vertically.

  • Page 8: Connecting

    Screws should be screwed only with hand tools - screwdriver. The device should be installed above the level of the containers/bottles from which liquids are drawn, and above the water table of the tank into which liquids are dispensed. Figure 5: Mounting hole spacing. 5.

  • Page 9: Electrical Connection

    SAMUDRA system. • Connector marked ATO PUMP/SOLENOID - connect a pump or solenoid valve from the SAMUDRA Level Control automatic refill kit that is an accessory equipment of the SAMUDRA system. • Connector marked TEMP SENSOR - connect the SAMUDRA Temp Sensor, which is an accessory of the SAMUDRA system.
  • Page 10 Use only original accessories designed to work with SAMUDRA DoserX, the use of accessory devices from other manufacturers may cause improper operation of the device, damage, or cause losses. b. Connection of silicone hoses, transporting The dispensed liquid is transported through silicone hoses connected to the spigots of the dispensing heads (SAMUDRA RAINBOW silicone hoses included).
  • Page 11 6. APP DoserX - mobile app and the SAMUDRA DoserX dispenser functions managed by it The SAMUDRA DoserX device is entirely managed by a free mobile application, available on Android and IOS platforms. You can find and install the app by typing the phrase "DoserX" or "Aqua-Trend"...
  • Page 12 - The application will spontaneously detect and connect to the DoserX device (the phone and DoserX will be paired), - The establishment of a connection is indicated by the permanent lighting of the "Bluetooth LED" on the lower panel of the device. For devices with software version v1160 and above, there is a time limit for pairing, which is 5 minutes from the moment of power on.
  • Page 13 b. The main screen of the APP DoserX application. The application's main tab displays the status of basic processes, and allows you to make changes to some of the dispenser's functions.
  • Page 14 Figure 8: View of the main tab of the APP DoserX application. c. Pump functions and calibration...
  • Page 15 Figure 9: View of the pump management tab in the APP DoserX application. The screen for operating metering pumps includes descriptions of the operation of each button. Some functions are discussed in more detail below. Personalize the name of the container/bottle - pressing the "pencil" icon next to the pump number, allows you to give any name.
  • Page 16 (depending on the level of fluid consumption). Calibration - The process of pump calibration is an extremely important activity, which, if carried out correctly and accurately, will result in accurate dosage measurement by the SAMUDRA DoserX device. Note Carrying out the calibration process is important because the performance of pumps depends on many factors and may be slightly different for each pump.
  • Page 17 "MEASURE 1 ml". Measure 1,10,50ml - The function allows you to manually measure a portion of liquid of a certain volume. d. Schedule The APP DoserX application manages the SAMUDRA DoserX device's extensive dose release schedule.
  • Page 18 The user can define from 1 to 168 unique doses per week (from 1 to 24 doses per day) for each of the five dosing pumps. The volume of each dose programmed in the scheduler can range from 0.1 ml to 500 ml with a resolution of 0.1 ml.
  • Page 20 Figure 10: View of the APP DoserX schedule tabs. The application allows three ways to enter/change the dose volume within a daily card: - Manually define the volume for each hour. - Automatic division of the daily dose into 2, 4, 6, 12, 24 equal parts. - Percentage volume adjustment of all doses within a single card.
  • Page 21 Figure 11: View of the daily schedule card - copying doses.
  • Page 22 Figure 12: View of the tab for mass copying of schedule entries.
  • Page 23 Figure 13: View of the tab for copying schedule contents between days of the week within a single pump. The scheduling function of the SAMUDRA DoserX device uses an intelligent dose release system (IDRS) which works by eliminating the possibility of releasing several doses at the same time. When defining a dose, the user assigns it to an hourly range (e.g.
  • Page 24 Note The time it takes to send data from the phone to the device when filling the schedule depends on the number of changes made. When saving a completely filled schedule, the sending time can be up to 3 minutes, under no circumstances should the process be interrupted. Important Due to the unlikely error of transmission given Bluetooth, we recommend restarting the application and verifying the correctness of entries in the schedule after each filling in the schedule or making a...
  • Page 25 e. Deleting the contents of the schedule As with filling the schedule, the application allows convenient and quick cleaning of its contents. The user can delete the content within a daily card or use the bulk schedule cleaning function. Figure 14: View of schedule content deletion tabs within the daily tab and mass deletion.
  • Page 26 SAMUDRA DoserX housing. The user can manually engage the mixer at any time by using the appropriate function in the DoserX APP. Important The principle of operation of the SAMUDRA Magnetic Stirrer is described in a separate manual for this device.
  • Page 27 Figure 15: View of the SAMUDRA Magnetic Stirrer manual control card. Do not use magnetic stirrers other than SAMUDRA Magnetic Stirrer, it may damage the device and void the warranty. g. Statistics of running an aquarium...
  • Page 28 Important The statistics function does not require the phone to be connected to the SAMUDRA DoserX device, and can be used at any time. The following illustrations show application boards on how the statistics function works.
  • Page 29 Figure 17: View of the tabs for defining parameters for conducting statistics.
  • Page 30 Figure 18: View of value entry tabs for statistical parameters.

  • Page 31: Temperature Measurement

    Temperature measurement The SAMUDRA DoserX device continuously measures the temperature in the aquarium thanks to the SAMUDRA Temp Sensor (how to connect and install the SAMUDRA Temp Sensor is described in a separate manual for this device). With the APP DoserX app, you can check the current water temperature in the tank, and analyze temperature records from the last 24 hours.

  • Page 32: Temperature Alarm

    Figure 19: View of the daily chart of temperature amplitude, and temperature alarm function. i. Temperature alarm The SAMUDRA DoserX device allows signaling when the temperature range set by the user is exceeded. With the APP DoserX, the user can program the minimum and maximum temperatures, when exceeded, the alarm LED on the dispenser panel will light up, and an acoustic alarm will sound (if the sound on the device has been enabled).
  • Page 33 For the operation of the automatic refill function, it is necessary to connect an accessory SAMUDRA Level Control kit. Four variants of Level Control kits are available, the common feature of all kits is the use of two water level sensors - the "activation sensor" and the "emergency sensor".
  • Page 34 Fig. 20. View of the "CONTROL" tab in which you activate the refill function, and set the refill time limit (for device versions from v1160). - Manual agitator switch-on - This function allows you to manually switch on the agitator at any time. - Enable sound - This function enables/disables sound on the device (if you disable sound then acoustic alarms will not be generated).
  • Page 35 Important SAMUDRA Level Control kit components can only be connected after disconnecting power from the DoserX device. Activating the automatic refill function without physically connecting the water level sensor(s) will result in the generation of a water level alarm. Do not connect accessories other than the original SAMUDRA Level Control kits.
  • Page 36 l. Settings The following describes the functions available in the "SETTINGS" tab of APP DoserX. Fig. 21 View of the "SETTINGS" tab of the APP DoserX application.
  • Page 37 - YOUR aquarium - takes you to the aquarium statistics function - CHANGE LANGUAGE - changes the application language Polish/English - OPERATING INSTRUCTIONS - takes you to the "download center" on the manufacturer's website. - GO TO PAIRING MODE - starts the pairing process if no device has been paired before. - DISCONNECT PAIRED DEVICES - disconnects the paired device.

  • Page 38: Troubleshooting

    8. Troubleshooting. In some cases, the user can try to solve the problem with the operation of the device on his own, below are described some possible situations and how to solve them: No pairing available. - disconnect the device from the power supply - reconnect the power supply - retry evaporation The application does not connect to the device.

  • Page 39: Maintenance

    - check the connection of the temperature sensor plug, - reboot the device. The user mistakenly connected the SAMUDRA Temp Sensor while the DoserX device was running. - disconnect the power supply, - reconnect the power supply - the device will detect the connected sensor.
  • Page 40 Maintenance of the SAMUDRA DoserX device consists of replacing consumable components such as discharge hoses and dispensing heads, as well as taking care of the cleanliness of the liquid level sensors, temperature sensor and the cleanliness of the device itself.

  • Page 41: Working Conditions

    10. Working conditions SAMUDRA DoserX should not operate in high humidity conditions, and should not be exposed to direct exposure to splashes of water, or water vapor. Installing the device directly over the water surface is not allowed.

  • Page 42: Technical Data

    When using an evaporated water refill device, ALWAYS use alternative safeguards to protect the aquarium from overflowing/flooding in case of failure. When using SAMUDRA DoserX with accessory devices ALWAYS follow the instructions and warnings in the manuals of these devices.

  • Page 43: Glossary

    Aqua-Trend - manufacturer of aquarium equipment. SAMUDRA - the designation of a product line designed for aquarists. SAMUDRA DoserX - the name of the aquarium dispenser, a physical device, the central unit of the SAMUDRA system. SAMUDRA system - technical products with specific performance characteristics, the central...
  • Page 44 SUMP - technical/filtration tank, usually located under the decorative tank, connected to it into a single water circuit. Additional accessories - additional components of the SAMUDRA system, enabling full use of the DoserX device not included in the basic equipment.
  • Page 45 WARRANTY CARD (1) The standard warranty period for SAMUDRA DoserX is 24 months from the date of purchase. Registration of the purchased product in the Aqua-Trend service system entitles the user to extend the warranty period up to 30 months (please note that registration in the service system can be made within 90 days from the date of purchase).
