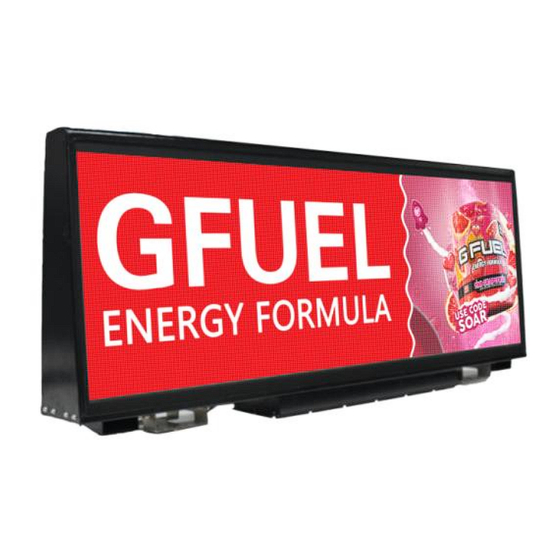

- Page 1 VST-C Taxi Double-Sided LED Screen Installation Instruction Contact Us： ShenZhen 3u view CO., LTD Address: Building B, Zhuoke Science and Technology Park, No. 190, Chongqing Road, Fuhai Street, Baoan District, Shenzhen, Guangdong, China Website: www.3uview.com...
-
Page 2: Table Of Contents
Catalog VST-C Taxi Double-Sided LED Screen ..................1 Preparation After Receiving the Product ..................2 1. Installation Accessories ......................5 2. Installation tools ........................... 5 3. Installation steps .......................... 6 4. Precautions ...........................9... -
Page 3: Preparation After Receiving The Product
Preparation After Receiving the Product 1. Prepare a 220V/110V to 12V transformer 2. Prepare an activated SIM card and insert it into the SIM card slot of the system card 3. Light up the LED screen through the transformer... - Page 4 4. Download the LEDOK software to match the APN 5. Log in to the computer advertising publishing platform to check whether the LED screen is online normally 6. Upload and publish advertising content...
- Page 5 7. Install the LED screen on the vehicle...
-
Page 6: Installation Accessories
Installation Accessories Order Name quantity Graphic Explain Mounting Aluminum alloy, bearing 100kg bracket Install Secure the LED vehicle screen fixtures and the mounting bracket Lock the power cord "+, -" Main power line: 6mm²*2+0.75mm² * 1 pure copper External cable (ensure adequate power cord allowance and safety), total length of 5 meters... -
Page 7: Installation Steps
3. Installation steps Install luggage rack All accessories 1. 2 luggage rack brackets. 2. 4 sets of hooks suitable for different car bodies. 3. 4 hook pads. 4. 4 nuts 1. Put a protective layer on the bottom. 2. Place the double-sided screen with the bottom facing up. - Page 8 1. Turn the double-sided screen over, lift it up and place it on the roof of the car. 2. Align the edges of the body. 1. Paste the gasket underneath the hook of the luggage rack to prevent scratching the car body. 2.
- Page 9 1. Secure the power cord with a tie. The 2.4G antenna/GPS antenna needs to be fixed upward. The farther away from the screen, the better the signal reception. 1. According to the wiring of the car body, black glue can be used to fix it at the back. 1.
-
Page 10: Precautions
1. After all the wires are connected, you can light up the test. 4. Precautions 1. When installing the product, first check the integrity of the accessories to see if any are missing or damaged during transportation. 2. Find the vehicle's fuse box and confirm the wiring path and wiring location. 3.
