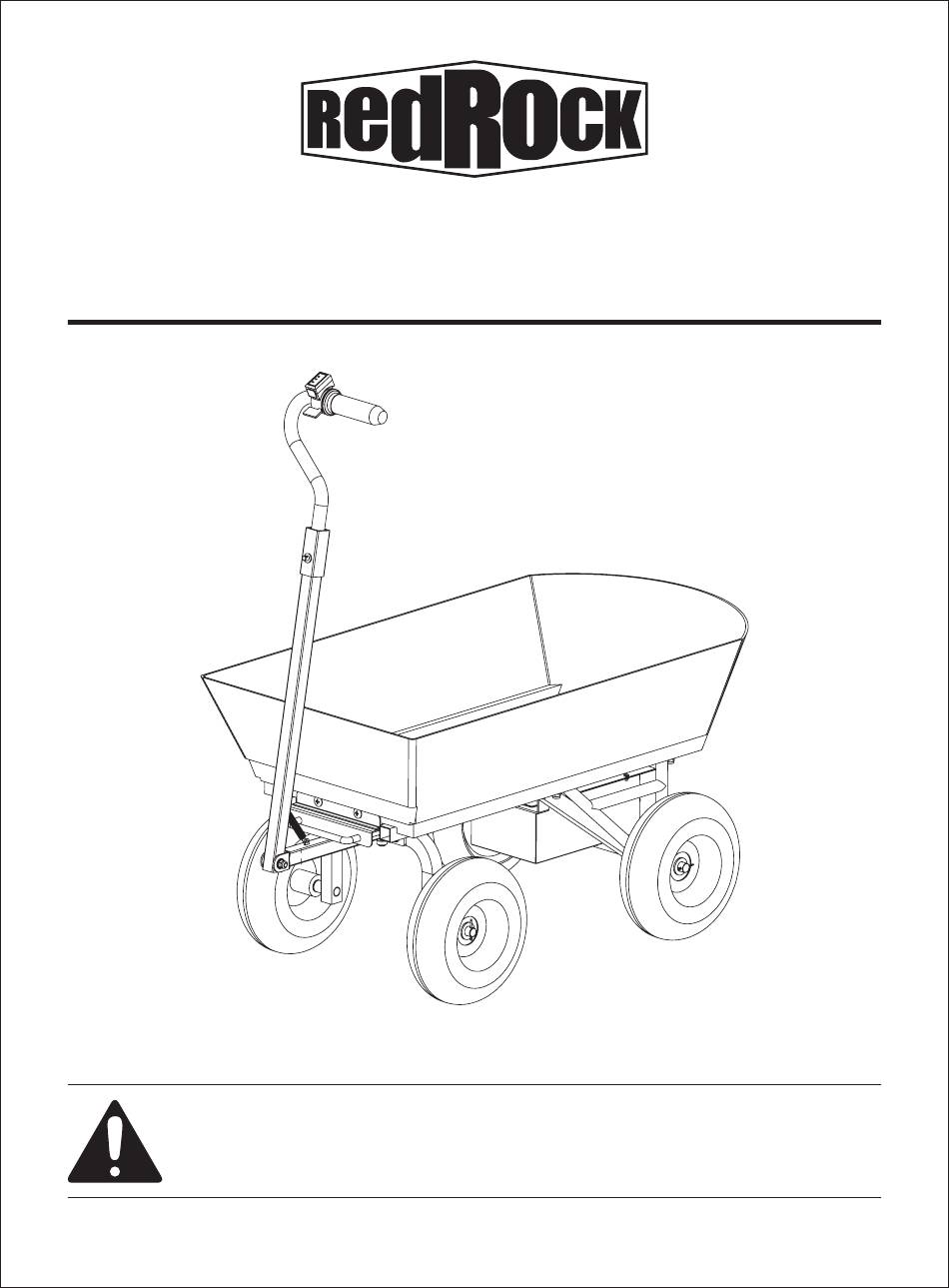

Electric Powered Dump Cart
Operator's Manual
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow
the safety rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when
required.Keep these instructions to assist in future servicing.
REV 07/12/24
Advertisement
Table of Contents
Summary of Contents for Redrock LBB05
- Page 1 Electric Powered Dump Cart Operator’s Manual WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required.Keep these instructions to assist in future servicing.
-
Page 2: Technical Specifications
7. Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. The floor must not be slippery from wax or dust. 8. DO NOT turn violently during use to avoid casualties or property losses caused by falling goods. TECHNICAL SPECIFICATIONS Item No: LBB05 Rating: DC 24V/0.25HP/180W Load Capacity: 120kg/264lbs... - Page 3 ASSEMBLY STEP3 Assembly--Wheel STEP 4 1. Assemble the driving wheel (6) to the left wheel Assembly--Steering Bracket Connecting Rod bracket (2), and tighten it with 2pcs 5x26 elastic 1. Align the hole of steering bracket connecting rod (8) cylindrical pin (A). with hole of steering bracket (5), use 2pcs M8x45 2.
- Page 4 ASSEMBLY STEP 7 Assembly—Pull Rod 1. Align the connecting rod (12) with steering bracket pull rod (8), use a M8x45 bolt (G) and a M8 nut (H) to connect and fix them; and hang the spring (J) onto the connecting rod (12) and the steering bracket pull rod (8). 2.
-
Page 5: Operation
OPERATION 1. Press the power switch① on battery box, then the battery indicator② will light up with 3 LED lights, the machine is ready for working. Fig.8 Press and hold trigger ③ to start the machine, control the moving speed by pressing more or less. Fig.9 2. -
Page 6: Warranty
PARTS BREAKDOWN Part No. Description Q’ty Part No. Description Q’ty Right Wheel Bracket Nut M 12 Buckle Connecting Bar Left Wheel Bracket Pull Rod Driving Wheel Handlebar Grips Wheel Axle Speed Adjusting Switch Wheel Washer 16 Base Frame Cotter2.8 x30 Battery Box Pin Roll B8x40 Battery Box Lid... - Page 7 The presence of this logo on the product means that the disposal of the device is governed by directive 2012/19/EU dated July 4, 2012 on waste electrical and electronic equipment(WEEE). Any hazardous substance contained in electrical or electronic equipment can have a potential impact on the environment and health during its recycling.
- Page 8 Thank you for choosing RedRock products, if you have any questions, please contact online customer service. Size: 210x285mm 157克双铜 REV 07/12/24 3020550...
