Albrecht AE 6891 Instruction Manual

Cb radio
Hide thumbs Also See for AE 6891:
Table of Contents

Advertisement

Quick Links

Download this manual
CB Radio
AE 6891
Instrukcja obsługi

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AE 6891 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Albrecht AE 6891

Summary of Contents for Albrecht AE 6891

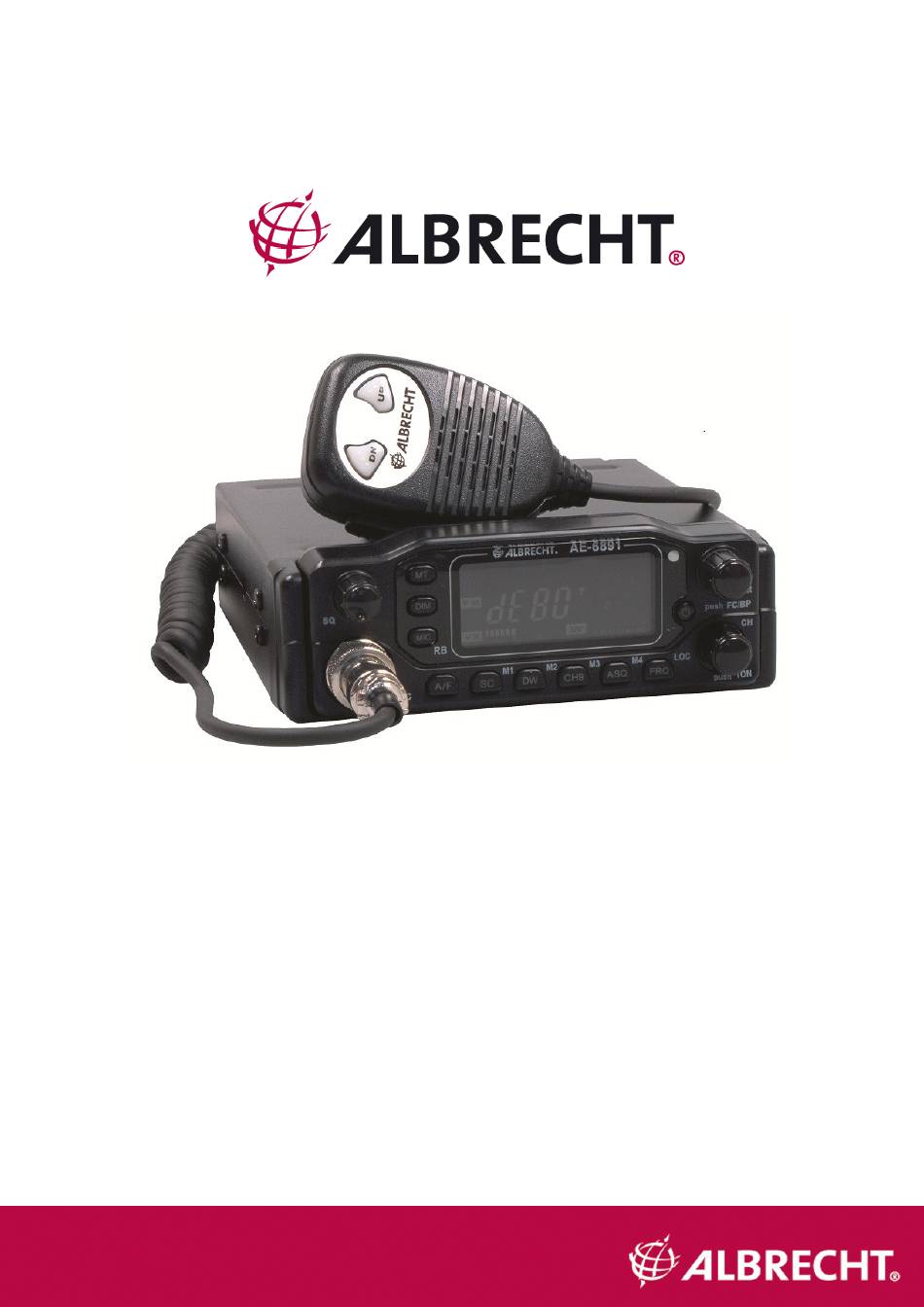

  • Page 1 CB Radio AE 6891 Instrukcja obsługi...
  • Page 2 Wybór modulacji: AM czy FM? ..................13 Przyłącza zewnętrzne ......................14 Gniazdo mikrofonowe MIC ....................14 Głośnik zewnętrzny ......................14 Gwarancja ........................15 Zu yty sprzęt i recykling ....................15 Szybki przewodnik obsługi AE 6891 ..................17 Deklaracja zgodności / Konformitätserklärung ..............18...
  • Page 3 Direct change of country setting during operation • Versions for certain countries with other features (e.g. for Austria without country selection AE 6891 FM) available on request and/or can be modified by authorized dealers for the respective country. Scope of Delivery...

  • Page 4: Radio Installation

    • Radio Installation You can operate your AE 6891 in the car or as a base station at home. For installation as a mobile station in the car a mobile holder and a variety of installation materials are included. Do not install the device in direct sunlight, since the increased temperature can shorten the lifecycle of the device.
  • Page 5 To automatically turn off the radio when turning off the ignition, connect to the switched voltage at the ignition switch. Our AE 6891 features continuous Flash EEPROM memory of the last setting and starts with the setting used last upon turning on the ignition again.
  • Page 6 Connect your CB antenna via PL connector to the 50 Ohms antenna jack at the rear of your AE 6891. For best range the antenna must be adjusted for CB radio. Use a standing wave meter to check and to adjust the antenna. Adjust the antenna for best standing wave ratio on a medium channel.

  • Page 7: Legal Notices

    By the way: Even with your AE 6891 featuring an especially robust final stage, which can even cope with maladjustments of SWR = 3, you should never transmit without antenna! Vehicle Manufacturer Installation Instructions When installing a radio in a vehicle always observe the instructions of truck and car manufacturers.

  • Page 8: Operation

    Even if radio operation such as your CB radio in Germany is exempt from the so-called “mobile phone ban”, and you may use your AE 6891 while driving, only reach for the microphone when the traffic permits! Please note that in many other countries no exceptions are made for CB radios.
  • Page 9 In Austria operation of switchable radios is generally not permitted. You may leave your radio installed while crossing these countries, but you are not allowed to operate them. For Austrian customers we supply a version AE 6891 FM without country selection. Authorized dealers are also permitted to change devices for Austria.

  • Page 10: Most Important Functions

    Most Important Functions AE 6891 Reception On / Off is the On/Off switch. Press and hold for approx. 2 seconds, display and buttons are illuminated. Now set the desired volume. Set Volume Turn the VR rotary knob slowly clockwise. The volume is displayed as a bar.
  • Page 11 CB radio also needs some time to switch over and to be ready to receive. All Functions Available via the Control Panel Contrary to other devices with many functions, for the AE 6891 we attached importance to the fact that every button only operates exactly one function. The number of dual functions with FC (function button) + respective other button is reduced to a minimum.
  • Page 12 Press FC an then RB: Roger beep on/off: Roger beep is a handover tone, which is transmitted at the end of the transmission. It is helpful when reception is poor. It is easier for the counterpart to hear the “roger beep” and acknowledge that transmission has ended.
  • Page 13 button again to return to the previously used channel. In AM this channel is also used by all truckers. Auto squelch on/off (see section Automatic Squelch). This function toggles between the common channel number display and frequency display. Receiver sensitivity selector Press the FC button, then press LOC (“local”...

  • Page 14: External Connections

    Press the A/F button to toggle between AM and FM (the mode is displayed). For Austrian FM devices this button is invalid. You can only transmit in AM with your radio if you have programmed the 80/40 or 40/40 mode and if you select a channel, where AM is permitted for transmission. As soon as you try to switch to one of the channels 41 to 80 on AM, the device switches to 40-channel AM mode with channels 1-40 (and vice versa for German setting).

  • Page 15: Warranty

    have 4 to 8 Ohms impedance. Our range of accessories offers a variety of suitable speakers. Please note that NF Out is very strong and adapted for 4 and 8 Ohms as transformer- coupled amplifier, thus can produce high volume. A connected speaker should be designed for at least 4 Watts or more continuous output! External S Meter The external S meter jack (2.5mm) allows connection of an external S meter for more...
  • Page 16 Home page: www.alan-uk.com...
  • Page 17 Quick Guide AE 6891 The most important functions on a glance Program country setting before first use: 80/40 dE D, CZ, SK 40/40 EU B, BG, CH, D, E, EST, F, FIN, FL, GR, IRL, I, LV, NL, P, PL, RO Please note the still different licensing and charge regulations in some countries (see device ID!).

  • Page 18: Declaration Of Conformity / Konformitätserklärung

    Declaration of Conformity / Konformitätserklärung We hereby declare that our product: / Wir erklären hiermit, dass unser Produkt CB-Radio Albrecht AE 6891 satisfies all technical regulations applicable to the product within the scope of EU Council Directives, European Standards and national frequency applications:/ alle technischen Anforderungen im Geltungsbereich der EU Richtlinien, europäischer Normen...
  • Page 19 Albrecht Radio Passport For your AE 6891 the following programming and Operation regulations apply (subject to change, as per August 2011) in countries applying R&TTE directive: Country Programming Registration and Licensing Obligation Operation of Radio Equipment with Registration Obligation and/or Limitations...
