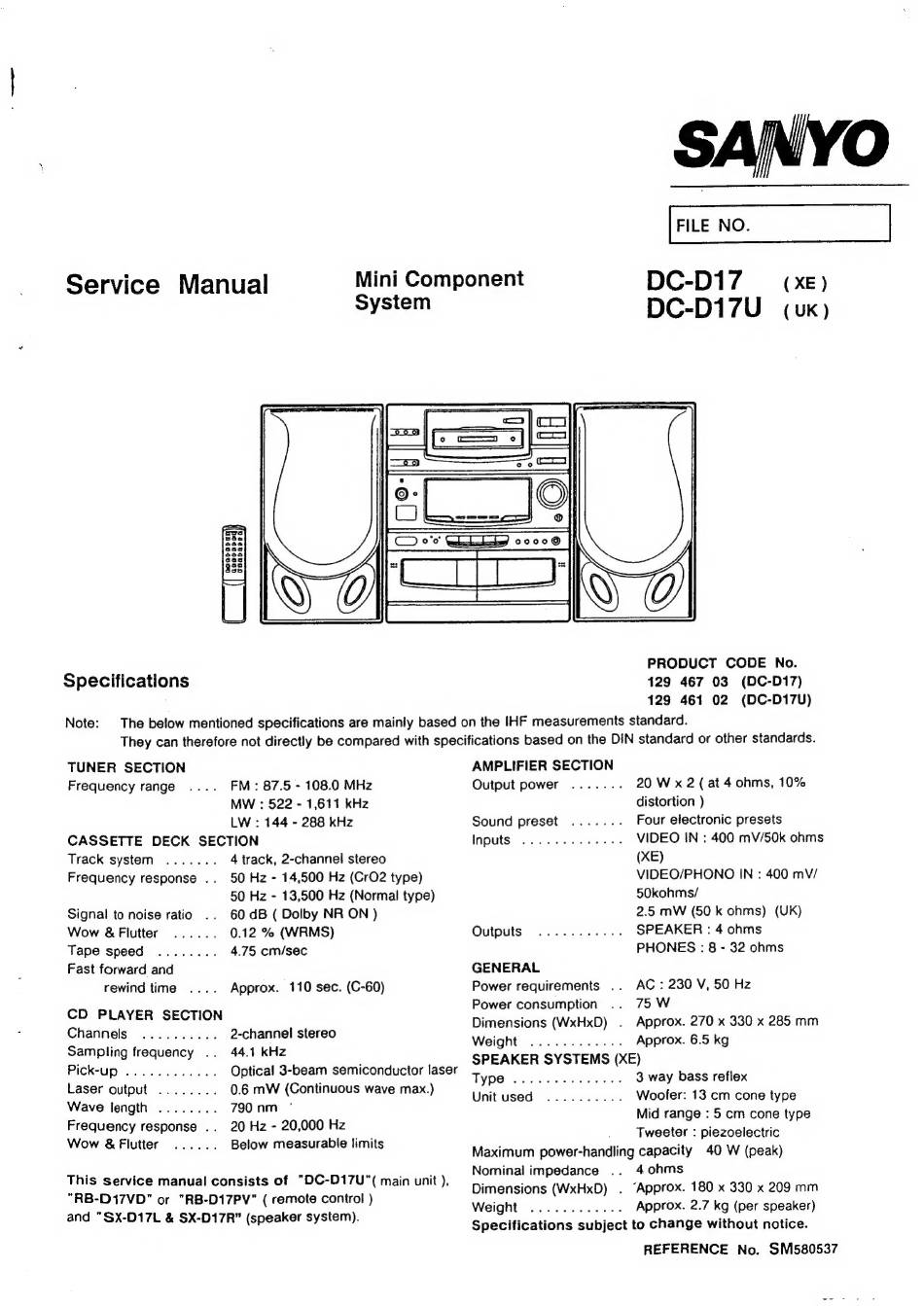

Sanyo DC-D17 Service Manual

Service Manual
aaasasod|
Qocoada
aoocaog
(| i
Specifications
Note:
Mini Component
System
SANYO
FILE NO.
DC-D17
DC-D17U
( XE )
( UK )
PRODUCT CODE No.
129 467 03 (DC-D17)
129 461 02 (DC-D17U)
The below mentioned specifications are mainly based on the IHF measurements standard.
TUNER SECTION
Frequency range FM : 87.5 - 108.0 MHz
MW : 522 - 1,611 kHz
LW : 144 - 288 kHz
CASSETTE DECK SECTION
Track system 4 track, 2-channel stereo
Frequency response .. 50 Hz - 14,500 Hz (CrO2 type)
50 Hz - 13,500 Hz (Normal type)
60 dB ( Dolby NR ON )
Signal to noise ratio
Wow & Flutter ...... 0.12 % (WRMS)
Tape speed ........ 4.75 cm/sec
Fast forward and
rewind time Approx. 110 sec. (C-60)
CD PLAYER SECTION
Channels .......... 2-channel stereo
Sampling frequency .. 44.1 kHz
Pick-up ............ Optical 3-beam semiconductor laser
Laser output ........ 0.6 mW (Continuous wave max.)
Wave length ........ 790 nm
20 Hz - 20,000 Hz
Below measurable limits
Frequency response ..
Wow & Flutter ......
This service manual consists of "DC-D17U"( main unit ),
"RB-D17VD" or "RB-D17PV" ( remote control )
and "SX-D17L & SX-D17R" (speaker system).
AMPLIFIER SECTION
Output power 20 W x 2 (at 4 ohms, 10%
distortion )
Four electronic presets
VIDEO IN : 400 mV/SOk ohms
(XE)
VIDEO/PHONO IN : 400 mV/
50kohms/
2.5 mW (50 k ohms) (UK)
SPEAKER : 4 ohms
PHONES : 8 - 32 ohms
Sound preset
Inputs
Outputs ...........
GENERAL
Power requirements ..
Power consumption
Dimensions (WxHxD) .
AC : 230 V, 50 Hz
75 W
Approx. 270 x 330 x 285 mm
Weight ............ Approx. 6.5 kg
SPEAKER SYSTEMS (XE)
TYPO sh ierastend ond betes 3 way bass reflex
Unit used .......... Woofer: 13 cm cone type
Mid range : 5 cm cone type
Tweeter : piezoelectric
Maximum power-handling capacity 40 W (peak)
Nominal impedance 4 ohms
Dimensions (WxHxD) . "Approx. 180 x 330 x 209 mm
Weight Approx. 2.7 kg (per speaker)
Specifications subject to change without notice.
REFERENCE No. SM580537
