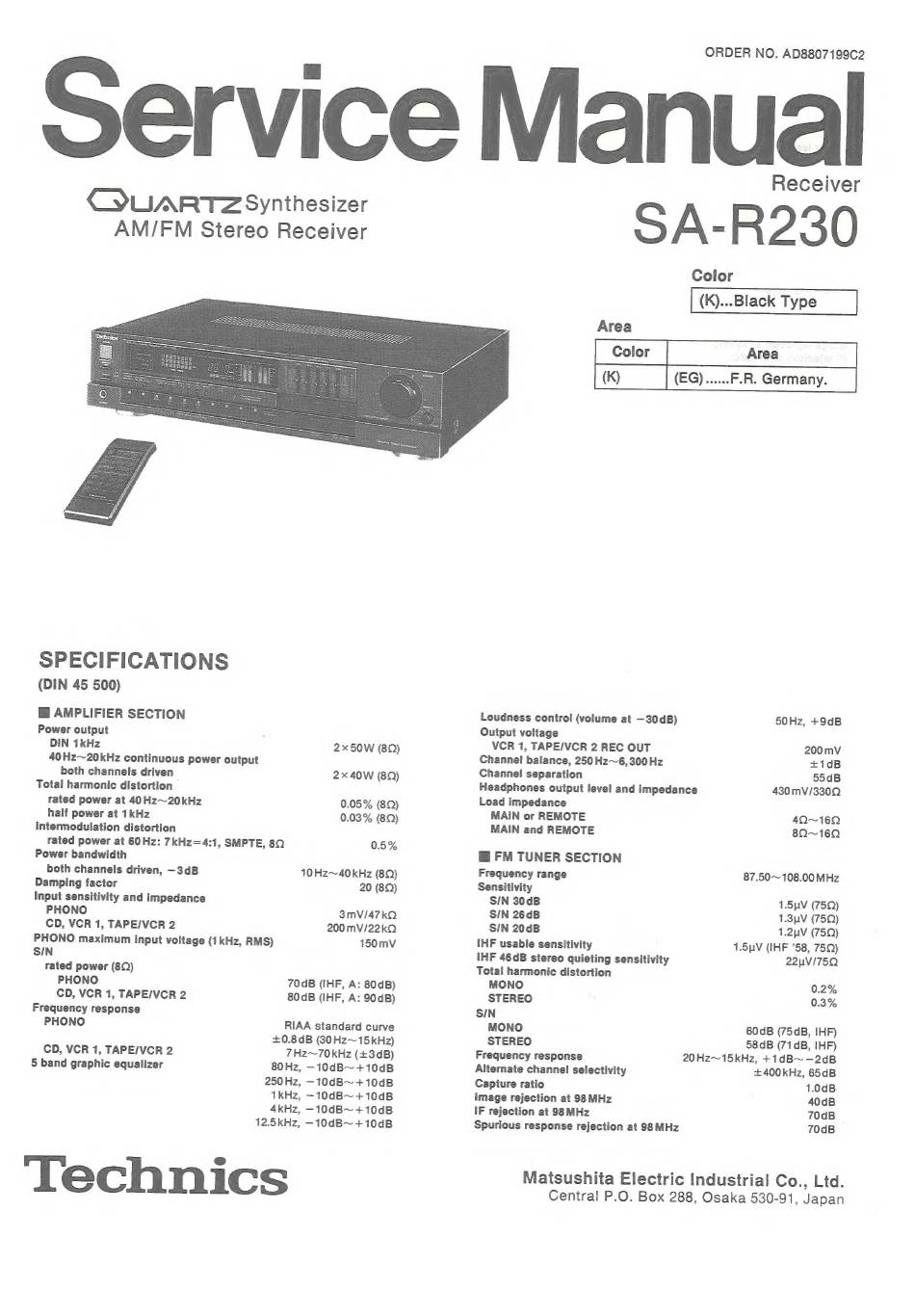

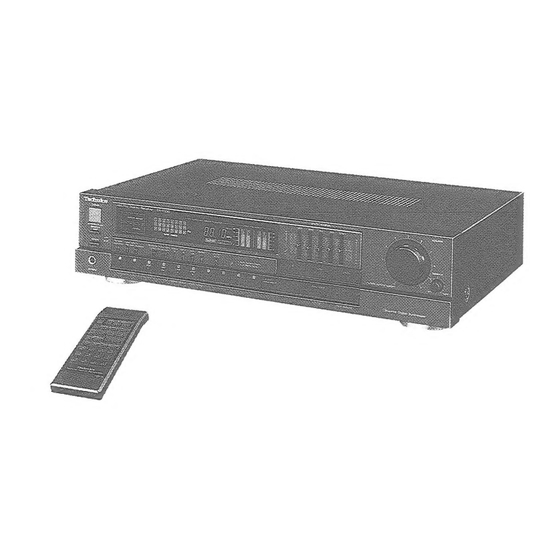

Technics Quartz SA-R230 Service Manual

C QUARTZ Synthesizer
AM/FM
Stereo Receiver
SPECIFICATIONS
(DIN 45 500)
@ AMPLIFIER SECTION
Power output
CD, VCR 1, TAPE/VCR 2
Frequency response
PHONO
RIAA standard curve
+0.8dB (30Hz~15kHz)
7Hz~70kHz (+3dB)
80Hz, —10dB~+10dB
250Hz, -10dB~+10dB
1kHz, -10dB~+10dB
4kHz, —10dB~+10dB
12.5kHz, —10dB~+10dB
80dB (IHF, A: 90dB)
CD, VCR 1, TAPE/VCR 2
5 band graphic equalizer
nual
Receiver
Color
(K)...Black Type
Area
i FM TUNER SECTION
20Hz2~15kHz, +1dB~—2dB
+400kHz, 65dB
Frequency response
Alternate channel selectivity
