Summary of Contents for Redline NANOLEAK FIND

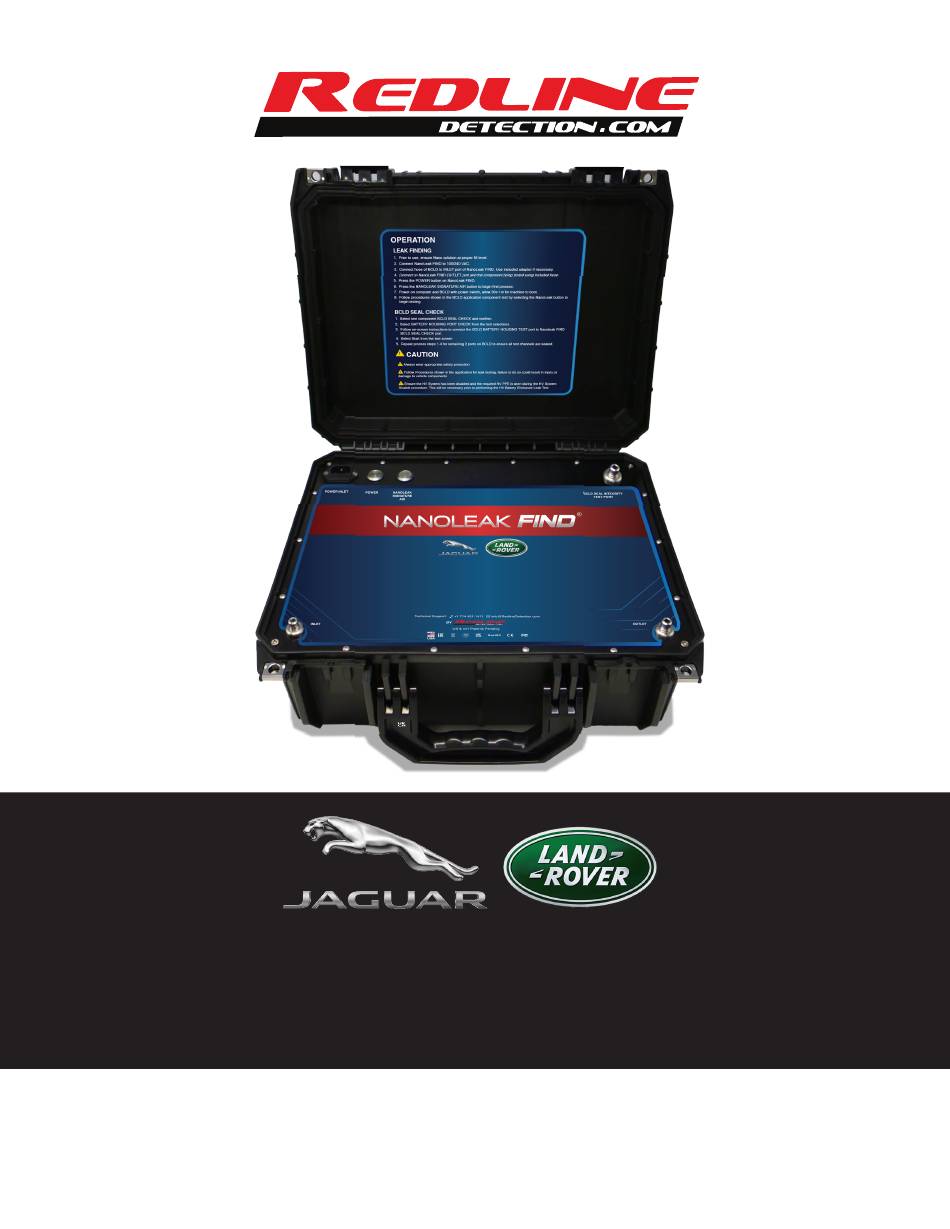

- Page 1 NANOLEAK FIND ® PASS THROUGH KIT 95-0620 95-0620-UK 95-0620-EU 95-0620-AU 95-0620-UK 95-0620-CN 95-0620-BR...
-
Page 3: Table Of Contents
CONTENTS Specifications ..............................1 Reference Guide ..............................2 Accessories Included ............................3 Safety ..................................4 BCLD / Computer Set Up ..........................5 BCLD Integrity Test Set Up ..........................6 Operation for BCLD Integrity Test ........................7 Find Leaks Set up ............................... 8 NANOLEAK FIND Equipment Set up ...................... -
Page 4: Specifications
SPECIFICATIONS Dimensions 17.5in x 14.5 in x 7.6 in (57cm x 41cm x 19 cm) Weight - NANOLEAK FIND 15 lbs (6.8g) ® Weight - Accessory Kit Only 3 lbs (1.4 kg) Shipping - Weight 22 lbs (9.9kg) Shipping - Dimensions 19in x 14.5 in x 19.5in (48.3 cm x 36.8 cm x 49.5 cm) Power Input 100/240 VAC... -
Page 5: Reference Guide
REFERENCE GUIDE 1. Electrical Inlet 120/240VAC 5. NANOLEAK Solution Fill Port ® Remove fluid fill plug to fill machine with Redline 2 0z NanoLeak Solution ™ 2. NANOLEAK FIND Power Button ® 6. Outlet Port 3. NANOLEAK Signature Air button ®... -
Page 6: Accessories Included
ACCESSORIES INCLUDED [ 95-0660 ] 1. Battery Enclosure Test Hose [ 96-0460 ] 2. Cooling System Test / Purge Hose [ 96- 0461 ] 3. Nano Interface Adaptor [ 96-0466 ] 4. OEM-Approved NANOLEAK Solution [ 96-0769 ] 2 fl. oz. ®... -
Page 7: Safety Precautions
Finder OEM-Approved NanoLeak Solution ® ® Redline Detection uses an environmentally friendly (non-polluting), contaminant free NanoLeak ™ Solution. For this reason, the Signature Air can be safely released into the environment after the leak detection procedure is completed. The NanoLeak Handheld Leak Locator will detect even the most minute leak. -
Page 8: Bcld / Computer Set Up
BCLD / COMPUTER SET UP BCLD Locator SET UP ™ 1. Connect BCLD to 120/240 VAC ™ 2. Attach communication cord to BCLD and Laptop. USB-C to USB-A 2.0 or greater must be used for proper communication. 3. Power On BCLD with power switch Machine will begin to self test (light blue LED). -
Page 9: Bcld Integrity Test Set Up
BCLD INTEGRITY TEST SET UP This function allows users of JLR BCLD to ensure internal pressure channels of the device are sealed and absent of leaks. 1. Connect any BCLD channel requiring an internal BCLD seal integrity check using an included hose. For accurate results, perform seal integrity test prior to powering unit for leak finding or allow 1 hour with unit off prior to any BCLD seal integrity... -
Page 10: Operation For Bcld Integrity Test
OPERATION FOR BCLD INTEGRITY TEST 1. On Computer screen, Click on the “Select Test Component” button 2. Select “ <BCLD Seal Integrity> “ from drop down box. 3. Input vehicle VIN and Component Part Number and click on the “Confirm” button. 4. -
Page 11: Find Leaks Set Up
Fill NANOLEAK Solution no more than (2oz /62ml) ® (1 Bottle) c. Replace Fluid Fill Plug d. Do not overtighten Fill Plug e. Only use Redline NANOLEAK Solution. Use of any ® other solution voids warranty. NANOLEAK SOLUTION REPLACEMENT ™... -
Page 12: Nanoleak Find Equipment Set Up
NANOLEAK FIND EQUIPMENT SET UP NANOLEAK Find Setup - Leak Finding 1. Connect NANOLEAK FIND to an AC outlet ® 2. Power On NANOLEAK FIND with POWER Button. ® Picture of plug for power 3. Press the NANOLEAK SIGNTAURE AIR button to start ®... -
Page 13: Operation Of Nanoleak Find With Bcld
OPERATION OF NANOLEAK FIND WITH BCLD Perform “Find Leaks” test in a still air environment The system or component to be tested must be completely depressurized. 1. Make all connections required outline on the previous page. Units should be prepared per the NANOLEAK FIND ®... -
Page 14: ® Handheld Locator
HANDHELD LOCATOR ® The NanoLeak ® Handheld Leak Locator features a long life sensor technology that is designed to detect minute amounts of Redline NanoLeak Signature Air. ® The NanoLeak Handheld Leak Locator’s unique digital leak size indicator takes the ®... -
Page 15: General Information
® consists of a non-toxic, environmentally friendly (non-polluting) contaminant free mixture. For this reason, the Redline Signature Air can be released in to the environment after the leak detection procedure is completed. The NanoLeak Locator will detect even the most minute amounts of Redline ®... -
Page 16: Getting Started
NANOLEAK HANDHELD LOCATOR ® 6. GETTING STARTED 6-1 Installing Batteries • Loose the screw and remove the battery compartment door located on the bottom of the instrument as show below (Fig.1). • Install 4 “AA” size alkaline batteries. • Reinstall the battery cover by aligning it with the handle. When the batteries are nearing the end of their useful life, the Red LED Low Battery indicator illuminates. - Page 17 NANOLEAK HANDHELD LOCATOR ® 6-2 Automatic Ambient Reset Feature The Redline NanoLeak Locator features an Automatic Ambient Reset function that sets the unit to ignore ® ambient concentrations of Signature Air. • Automatic Ambient Setup - Upon initial power on, the unit automatically sets itself to ignore the level of Signature Air present at the tip.
- Page 18 Locator instrument ON or OFF function. Press it once to turn on the ® Redline NanoLeak Locator, the display will illuminate with flash, for 45 seconds to heat up the sensor. Press and hold this button for 5 second to turn OFF the power.
- Page 19 NANOLEAK HANDHELD LOCATOR ® Fig. 2 Sensor Protector Sensor 9. CLEANING: The Instrument plastic housing can be cleaned with standard household detergent or isopropyl alcohol. Care should be taken to prevent the cleaner from entering the instrument. Gasoline and other solvents may damage the plastic and should be avoided.
-
Page 20: Troubleshooting
SOLUTION Won’t perform FIND • Hose Connections • NANOLEAK SIGNATURE AIR button not pressed ® Won’t Power up • Fuse • Contact Redline Technical Support 800-55-SMOKE or +1 714-451-1411 Email: info@RedlineDetection.com NANOLEAK ® HANDHELD LOCATOR SOLUTION Excessive “False Positives” • Sensor Tip is dirty – clean sensor or replace •... -
Page 21: Warranty
The manufacturer, Redline Detection, LLC. (“Redline”) warrants this product to be free from defects in workmanship and material under normal use and service for a period of 1 year from the date of purchase. Redline’s liability under this warranty is limited to repair or replacement of any parts or product which are determined to be defective at Redline’s sole option. - Page 24 Technical Support +1 714-451-1411 Online: www.RedlineDetection.com Manufactured in USA* By Redline Detection, LLC *w/ globally sourced components...
