Summary of Contents for multicomp pro MP008380

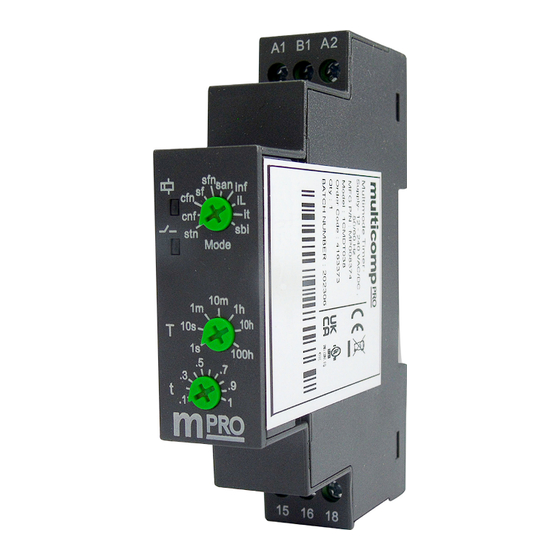

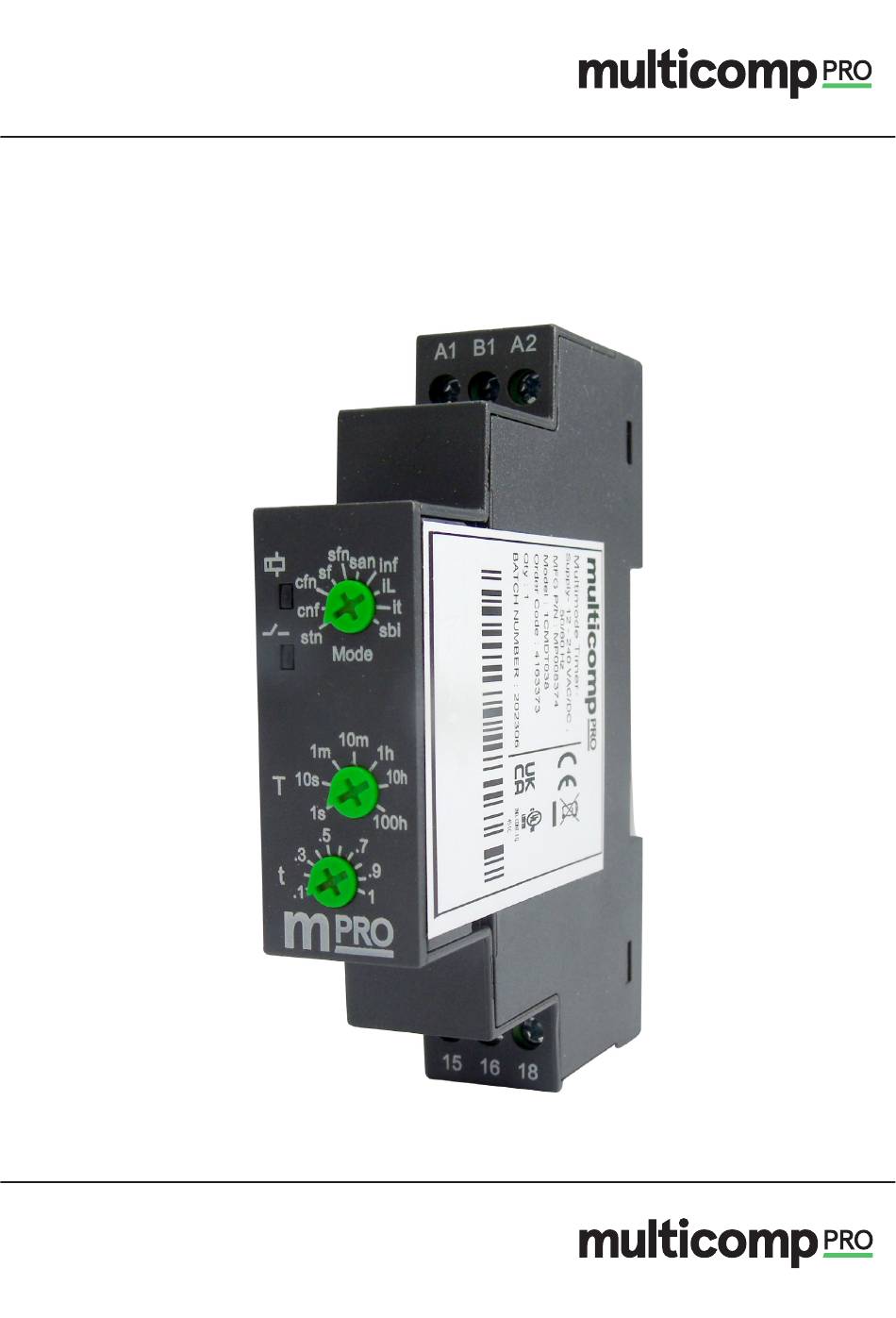

- Page 1 User Manual Analogue Timer Part Number: MP008380 Newark.com/multicomp-pro Farnell.com/multicomp-pro sg.element14.com/b/multicomp-pro Page <1> 25/11/24 V1.0...
-
Page 2: Mode Description
Features 1. Wide Input Supply and Signal Range. 2. Wide Timing Range-300ms to 30hr. 3. Suitable for Din-Rail & Base Mounting. 4. Compact Size & Easy to install. 5. High Precision & Accuracy, 6. Sensor compatibility: PNP, NPN & 2-Wire 24V AC/240V AC proximity Sensors. Caution 1. -
Page 3: Terminal Details
Sensor Connection Diagrams Terminal Details 0.5 N.m (4.4lb.in) to 0.7N.m (6.2lb.in) 2 × 2,5mm² Solid/Standard Wire 24 to 10 Current (A) 4.38 3.75 3.13 1.88 1.25 0.63 NOTE: Use Cu Wire of 75°C Only. Installation: DIN - Rail Mounting: The Timer should be mounted on 35mm symmetrical DIN - Rail. -
Page 4: Overall Dimension
Overall Dimension Base Mounting Din Rail Mounting Dimensions : Millimetres Technical Specifications Function SIGNAL OFF Delay Timer Supply Characteristics Supply Voltage 240V AC/24V AC/DC Supply Variation -15% to +10% Supply Frequency 47Hz to 63Hz Power Consumption 0,75W@24V DC/7VA @40V AC Signal Characteristics Signal Sensing time Guaranteed signal present 50msec... - Page 5 Operating Temperature -15°C to +60°C Relative Humidity 95% (Rh) Housing Flame Retardant UL 94-V0 Dimensions in mm (W×H×L) 17.5mm × 90mm × 58.5mm Weight 85g (Approx.) Mounting DIN Rail (35mm Sym.) Status Indication on front panel Relay ON: Red LED ON, Power ON: Green LED ON Green LED Fast Blinking (50ms ON/OFF) =<1 minute off delay time remaining Green LED Slow Blinking (1sec ON/OFF)
- Page 6 Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. Multicomp Pro is the registered trademark of Premier Farnell Limited 2019.
