Stryker 4405-000-000 Instructions For Use Manual

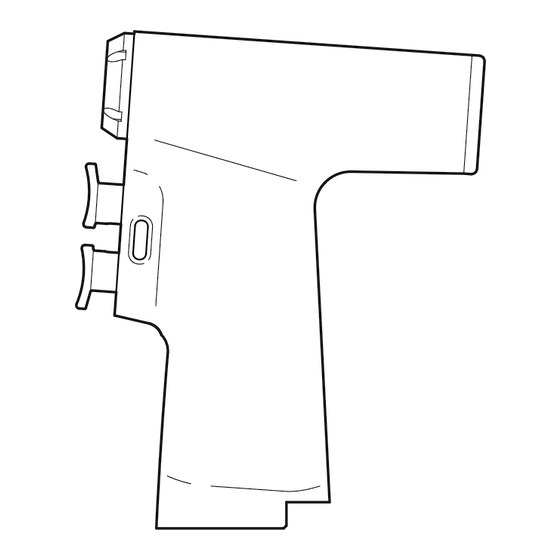

Cordless driver 4 handpiece
Hide thumbs

Advertisement

Table of Contents

Dimensions:
NOTE: This portion of the
6 inch (width) x 6 inch
document should not appear
Booklet
on produced Labels or IFUs.
Stryker Instruments
Print Location:
(269) 323-7700
(800) 253-3210
Print Center
DSGN-fm-50366 rev. None
Effective: July 1, 2008
Color/Material/Finish:
Color Graphics on White Background
20# Bond or Equivalent
Suppliers/Services:
N/A
Label Stock:
N/A
Description/Type:
Instructions For Use
Part Number:
4405-001-700
Page 1 of 1
Rev.
A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4405-000-000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Stryker 4405-000-000

  • Page 1 6 inch (width) x 6 inch Color Graphics on White Background document should not appear Booklet 20# Bond or Equivalent Description/Type: on produced Labels or IFUs. Instructions For Use Stryker Instruments Print Location: Suppliers/Services: Part Number: Rev. (269) 323-7700 (800) 253-3210 Print Center 4405-001-700 DSGN-fm-50366 rev.
  • Page 2 Cordless Driver 4 Handpiece 4405-000-000 Instructions For Use ENGLISH (EN) 2012-12 4405-001-700 Rev-A www.stryker.com...

  • Page 3: Indications For Use

    A NOTE supplements and/or clarifies procedural Contraindications information. None known. For additional information, especially safety information, or in-service training, contact your Stryker sales representative or call Stryker customer service. Outside the US, contact your nearest Stryker subsidiary. www.stryker.com...
  • Page 4 The healthcare professional performing any procedure is responsible for determining the appropriateness of this equipment and the specific technique used for each patient. Stryker, as a manufacturer, does not recommend surgical procedure or technique. Upon initial receipt and before each use, clean and sterilize the equipment as indicated.
  • Page 5 4405-001-700 Rev-A For a complete list of accessories, contact your Accessories Stryker sales representative or call Stryker customer service. Outside the US, contact your nearest WARNINGS: Stryker subsidiary. The following Stryker-approved accessories are sold Use only Stryker-approved system components and separately: accessories, unless otherwise specified.
  • Page 6 NOTE: Depress both triggers simultaneously to operate the handpiece in oscillate mode. Applied Part – The distal end of the handpiece and the attachment (as defined by the standards listed in the Specifications section under Product Safety Certification). www.stryker.com...
  • Page 7 Duty Cycle (See the Specifications 4 min X 5 Safe Mode – Both triggers are section.) locked to prevent inadvertent OSC 15 s / operation of the handpiece. 15 s X 5 Type BF Applied Part Consult instructions for use General warning sign www.stryker.com...
  • Page 8 To Install an Attachment and Accessory WARNINGS: ALWAYS slide the function switch to the safe mode position before installing an attachment or accessory. ALWAYS use Stryker-approved attachments with two J-slots. Older attachments with only one J-slot cannot be securely installed in the handpiece. CORRECT INCORRECT 2.
  • Page 9 www.stryker.com...
  • Page 10 If any power loss is experienced while using the handpiece, ALWAYS replace the battery pack with a fully charged battery pack. Failure to comply may result in a drained or damaged battery pack with a shortened life. www.stryker.com...

  • Page 11: Cleaning And Disinfection

    2. Press the release button and remove the attachment from the handpiece. Sterilization See the care instructions manual supplied with the equipment. Storage and Handling See the care instructions manual supplied with the equipment. Disposal/Recycle See the care instructions manual supplied with the equipment. www.stryker.com...

  • Page 12: Troubleshooting

    4405-001-700 Rev-A Troubleshooting WARNING: DO NOT disassemble or service this equipment, unless otherwise specified. NOTE: For service, contact your Stryker sales representative or call Stryker customer service. Outside the US, contact your nearest Stryker subsidiary. PROBLEM CAUSE ACTION The handpiece The battery pack is discharged.
  • Page 13 See the Specifications section and/or the instructions for use supplied with the attachment. The handpiece is malfunctioning. Return the handpiece to Stryker for repair. The battery pack is malfunctioning. Use a Stryker battery charger to check the integrity of the battery pack. Replace the battery pack if required.
  • Page 14 Install pin collet REF 4100-126-000. collet REF 4100-125- 000. The handpiece is The handpiece is malfunctioning. Return the handpiece to Stryker for repair. noisy and/or vibrates. The handpiece Electrical noise is present. Turn off all electrical equipment not in use in experiences sporadic the operating room.

  • Page 15: Specifications

    4405-001-700 Rev-A Specifications Cordless Driver 4 Handpiece (REF 4405-000-000) Model: 137 mm [5.4 inch] height Dimensions: 34 mm [1.3 inch] width 103 mm [4.0 inch] length 0.58 kg [1.3 lb] Mass: Maximum Speed 1500 rpm (Nominal): Non-continuous Mode of Operation:...
  • Page 16 Corrigendum 2 (2007) European Committee for Electrotechnical Standardization (CENELEC) EN 60601-1:2006, Medical Electrical Equipment — Part 1: General Requirements for Basic Safety and Essential Performance; IEC Corrigendum 1 (2006); IEC Corrigendum 2 (2007); CENELEC Corrigendum (2010); CENELEC Amendment A11 (2011) www.stryker.com...
  • Page 17 The Cordless Driver 4 Handpiece (REF 4405-000-000) is intended for use in the electromagnetic environment specified below. The customer or the user of the Cordless Driver 4 Handpiece (REF 4405-000-000) should assure that it is used in such an environment.
  • Page 18 The Cordless Driver 4 Handpiece (REF 4405-000-000) is intended for use in the electromagnetic environment specified below. The customer or the user of the Cordless Driver 4 Handpiece (REF 4405-000-000) should assure that it is used in such an environment.
  • Page 19 If the measured field strength in the location in which the Cordless Driver 4 Handpiece (REF 4405-000-000) is used exceeds the applicable RF compliance level above, the Cordless Driver 4 Handpiece (REF 4405-000-000) should be observed to verify normal operation.
  • Page 20 Cordless Driver 4 Handpiece (REF 4405-000-000) The Cordless Driver 4 Handpiece (REF 4405-000-000) is intended for use in the electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Cordless Driver 4 Handpiece (REF...
  • Page 21 ES/DE/FR/IT/NL 4405-001-710 JA/ZH/KO 4405-001-720 SV/DA/FI/PT/NO 4405-001-730 PL/EL/TR 4405-001-750 Stryker Instruments 4100 E. Milham Kalamazoo, Michigan (USA) 49001 1-269-323-7700 1-800-253-3210 Stryker France ZAC Satolas Green Pusignan Av. de Satolas Green 69881 MEYZIEU Cedex France 2012-12 4405-001-700 Rev-A www.stryker.com...
