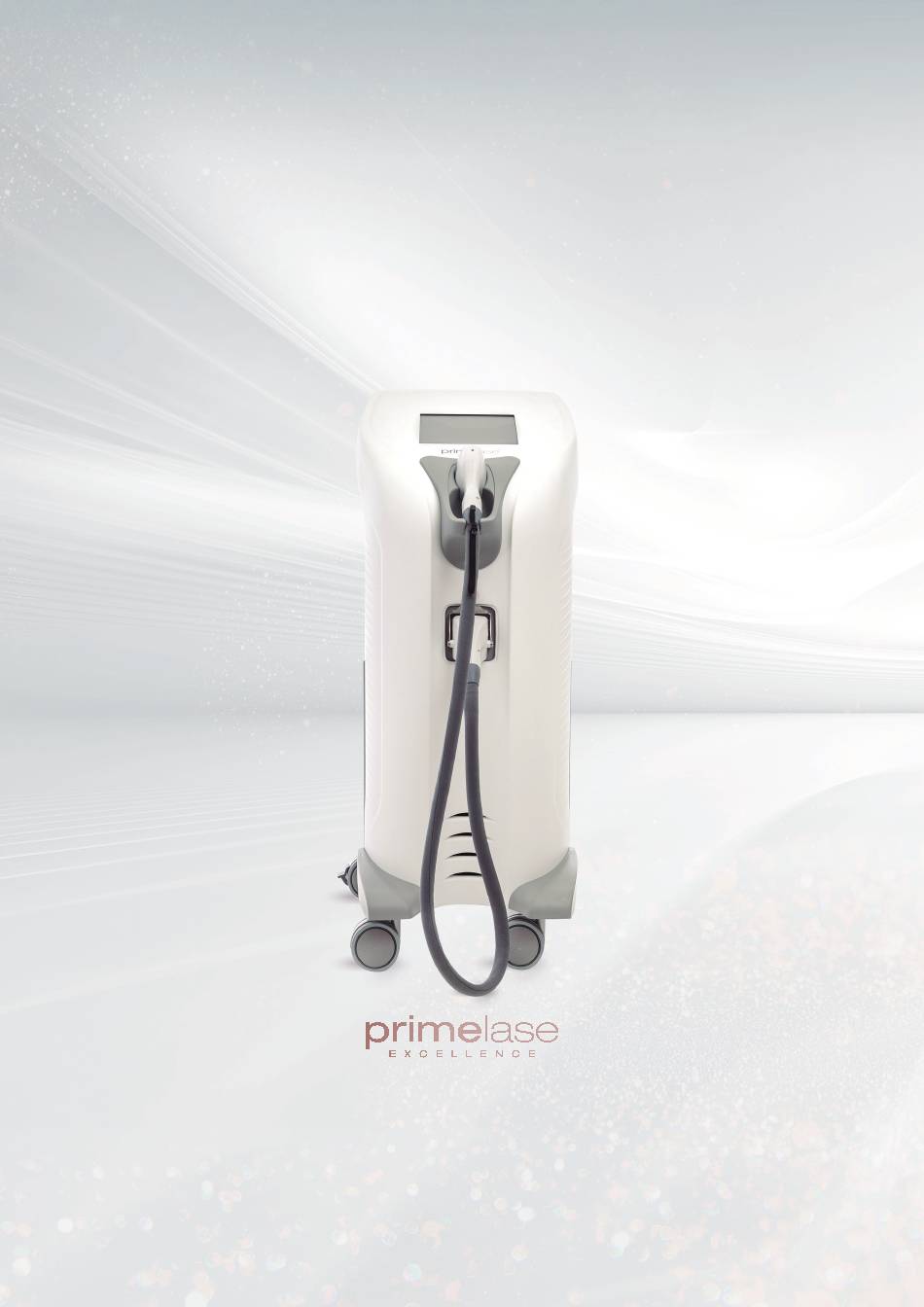

- Page 1 USER MANUAL STATE OF THE ART IN LASER INNOVATION by cocoon medical...
- Page 2 Cocoon Medical is registered brand by the manufacturer 0051 Manufacturer information High Technology Products S.L.U.
- Page 3 User Manual I Primelase INTRODUCTION This manual aims to provide the primelase® ex- • General description: A general description of cellence user with information regarding installa- the various subsystems of the primelase® excel- tion instructions, operation, treatments, controls, lence device. safety precautions and maintenance, to facilitate the proper care and use of the device •...
-
Page 4: Safety And Regulatory
User Manual I Primelase SAFETY AND REGULATORY General safety provisions This warning icon may appear on the screen during the normal functioning of the device. If this occurs, treatment must be halted while the user instructions are consulted to effectively resolve the incident. Some alerts halt the functioning of the device, others provide notification of the need to perform mainte- nance procedures. - Page 5 User Manual I Primelase primelase® excellence requires special precautions supplies eye protection glasses that cover the wave- with regards to EMC and must be installed and op- lengths used by the device. Always ensure that the erated in accordance with the provided information. glasses provide sufficient eye protection for the range Portable and mobile RF communications equipment of wavelengths that will be used.
- Page 6 User Manual I Primelase I 10 23. The manufacturer and distributors will only be re- MDD Regulation sponsible for the safety of the product if repairs, modi- fications and adjustments are carried out by expressly In general terms, the primelase device has been de- authorized qualified personnel and if the appliance is signed and manufactured to include the basic require- used by qualified personnel and in accordance with the...
- Page 7 User Manual I Primelase I 12 • ISO 7000 – 3082 - Information Technical warnings and general precautions Manufacturer’s symbol. Contains the manufacturer’s information. • External device labelling 1 – Located on the main label on the rear of Information the device.
- Page 8 User Manual I Primelase I 13 • Applicator labelling – Information This label is located on the applicator con- nector, in compliance with the require- ments established by harmonised IEC standard 60601-1 for the basic safety of electronic medical equipment. Graphical symbols for medical equip- ment, in compliance with the ISO 15223- 1 harmonised standard.

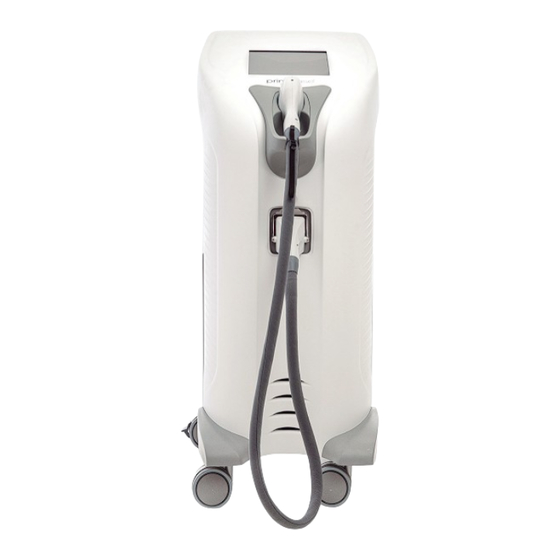

- Page 9 User Manual I Primelase I 18 GENERAL DESCRIPTION OF THE DEVICE AND APPLICATORS Description of the exterior of the device The primelase® excellence device consist of the cen- tral unit and an external applicator. The main compo- nents of the device are described below. TFT - Touch screen Applicator holder Applicator...
- Page 10 User Manual I Primelase I 19 Electronic Circuit ventilation breaker -I/O Network connector and secondary earth connection Radiator Ventilation Wheels Cabin door connector Pedal USB port Secondary indicators connector Cooling liquid Micro SD filing connector slot Cooling system purge...
-
Page 11: Intended Use
User Manual I Primelase I 47 Intended use The primelase® excellence device is intended to be used hair on all skin phototypes, Fitzpatrick I to VI, for the for hair reduction treatments. The permanent reduction treatment of pseudofolliculitis barbae and hirsutism. of hair using primelase®... - Page 12 User Manual I Primelase I 54 Platform primelase® EXCELLENCE Diode laser Type of device Pulsed DIODE Type of LASER Direct via quartz prism LASER emission Technical specifications 10000W Maximum peak electrical power 300 J Maximum energy Static: 1/2/3Hz Static operation mode Dynamic: 5–10Hz Dynamic operation mode 3–400 ms...
- Page 13 User Manual I Primelase I 55 Reference 510148 510178 510179 510193 Wavelenght 810 nm 810 nm 810 nm 810 nm Fluence max Until 70 J/cm2 Until 70 J/cm2 Until 55 J/cm2 Until 27 J/cm2 Pulse 3-400 ms 3-400 ms 3-400 ms 3-400 ms Spot size 10x9...
