TP-Link Omada SM9110-SR4 Installation Manual

Installation Guide
100G QSFP28 Transceiver
Note: The figures thoughout this guide are for demonstration only. They may vary from your actual products..

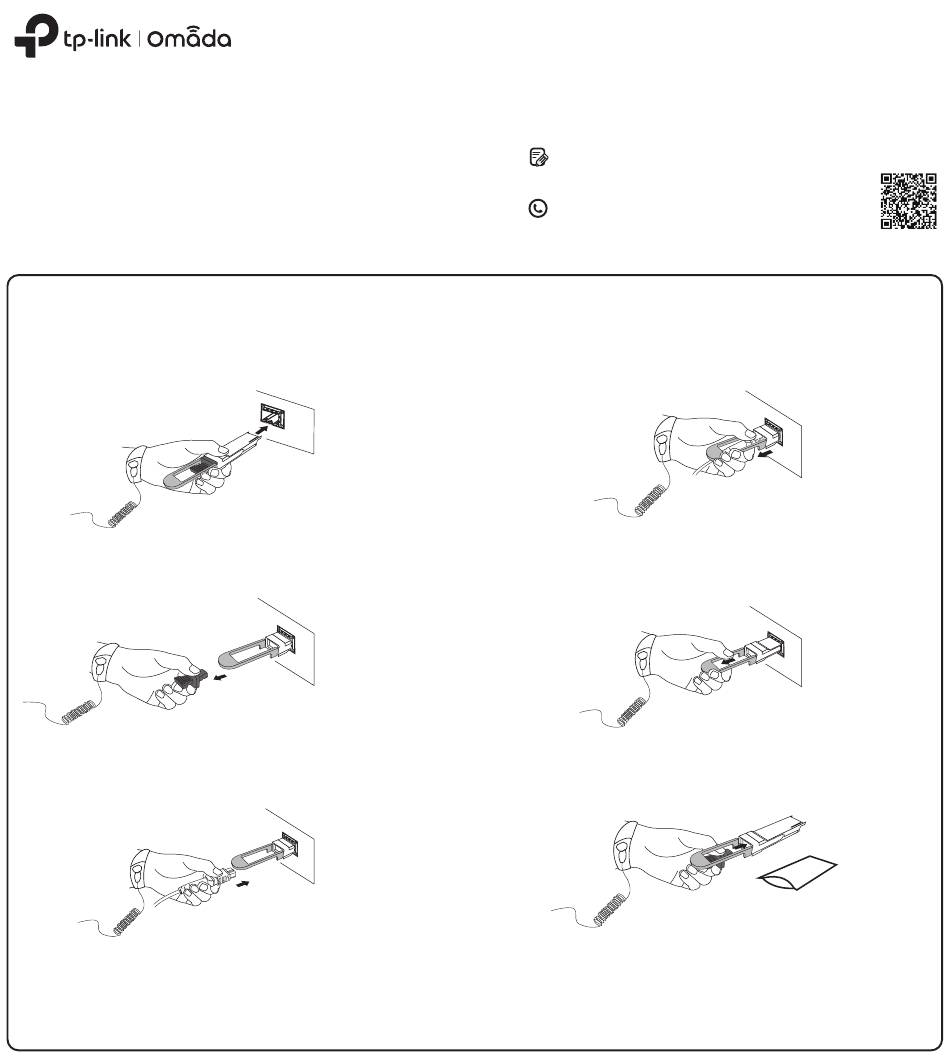

Install the Transceiver
1. Wear an ESD-preventive wrist or ankle strap to prevent ESD damage to
the transceiver.
2. Insert the transceiver into the slot and firmly press it into place.
3. Remove the protective dust plug from the transceiver.
4. Plug fiber-optic cable into the transceiver. Note that the transceiver
works without any additional configuration.
Note:
1. Do not touch the output pins on the transceiver with your hand.
2. Always keep the protective dust plug on the transceiver's optical bores until you are ready to make a connection.
Caution:
DO NOT point or stare directly into the beam or into the optical port of the transceiver when it is operating, as this can injure your eyesight.
To ask questions, find answers, and communicate with TP-Link users
or engineers, please visit https://community.tp-link.com/business
to join TP-Link Community.
For technical support and other information, please visit
https://www.tp-link.com/support/?type=smb, or simply scan
the QR code.
©2024 TP-Link 7106511505 REV1.0.0
Remove the Transceiver
1. Wear an ESD-preventive wrist or ankle strap to prevent ESD damage to
the transceiver.
2. Disconnect the network fiber-optic cable from the transceiver.
3. Pull the safety latch backwards to release the transceiver, and then pull it
out from the slot.
4. Reinstall the protective dust plug in the transceiver's optical bores and
place it on antistatic mat or a static shielding bag.
