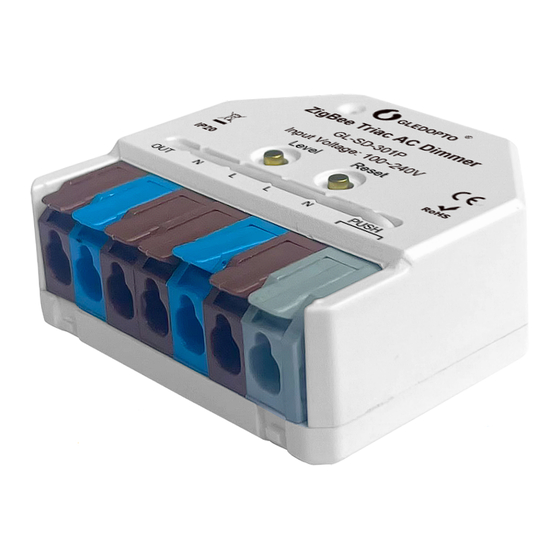

ZigBee Triac AC Dimmer
User Instruction
GL-SD-301P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GL-SD-301P and is the answer not in the manual?

Questions and answers

Summary of Contents for Gledopto GL-SD-301P

  • Page 1 ZigBee Triac AC Dimmer User Instruction GL-SD-301P...
  • Page 2: Product Parameter

    Product Parameter 17mm 38mm 42mm Product Model: GL-SD-301P Input Voltage: AC 100~240V Communication Protocol: ZigBee3.0+2.4G RF Suggested Wire Type: 0.5-1.63mm² (24-14AWG) Stripping Length: 8-9mm Material: Fireproof PC IP Rate: IP20 Operating Temperature: -20~45℃ Size: 42x38x17mm Compatible Load Types...
  • Page 3: Function Of Button

    Push: Short press: On/Off Long press: Adjust brightness (Assumption: Long press to increase brightness, long press again after releasing to decrease brightness) Wiring Method ZigBee Triac AC Dimmer GL-SD-301P lnput Voltage: 100~240V Level Reset IP20 PUSH Connecting with the Gateway Network Connection: 1.
  • Page 4: Reset Method

    Remote Control Pairing/Unpairing Pairing Method: (1)Power off the dimmer, then power it back on after 10 seconds. (2)Within 4 seconds of powering on, press the "On" button of any group on the RF group 1~6 remote control (details in the remote control's user manual).
  • Page 5 2. Power On/Off Reset: As shown in picture 1: 1. Power on the dimmer. 2. Power off within 2 seconds. 3. Wait for more than 5 seconds to ensure complete power-off. 4. Repeat the above steps 5 times. 5. Power on again. If it blinks 3 times, the reset is complete. picture 1 Before turning on the power, please ensure that all connections are correct and secure, and do not operate while the power is on.
