Microchips GR252 Quick Start Manual

Last Updated 2021
Follow the steps below to start using your GR252 microchip reader. If you have any questions, feel free to contact us.
USB C +
Push button to
charging port
activate reader
IP65 when
not connected
Firmware Safe
version mode
Need more help?
Graphical E-ink dispay
2.9" 128x296 pixels
Tactile Battery
feedback level
Time
| Call 03 9706 3165
Quickstart Guide
GR252
Handheld Readers
About GR252

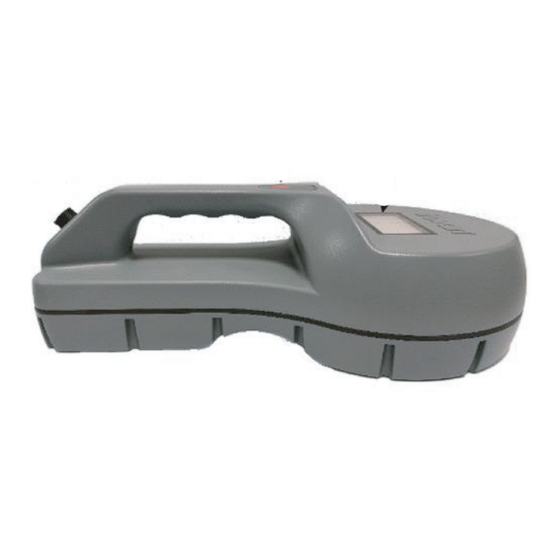

The GR252 is a robust handheld reader with a multi coil
antenna to enable the best reading performance. The reader
has a E ink display that has good readability even if used in
direct sunlight.
The Li-ion battery has a capacity of 2250mA and can be
charged via the external IP65 connector using the accompany-
ing charger. Fully charging the battery takes about 10h, a fully
charged battery gives 4h of continuous reading time.
The housing of the decoder is IP65 protected.
Dimensions: 32cm length X 18cm wide where the antenna is
located.
Weight:1.3kg
Content of package:
GR252 handheld scanner, Li-Ion battery integrated
Battery charger with separate power lead
USB serial cable
Display:
The E ink display is 2.9" (128×296 pixels) and is activated after
pushing the button.
Below a description of the Icons that are show in the top line of
the display.
Scanning a tag:
Press the button briefly to put the reader in standby, it will
optionally show the last code read (if
activated via the PC companion software.
Now press the button and hold to start scanning. The display
will indicate the antenna is active.
If a successful read is done the ID number will be shown on the
display.
In this case, the ID number is stored with date and time.
