Summary of Contents for Brodware C27.52.T22

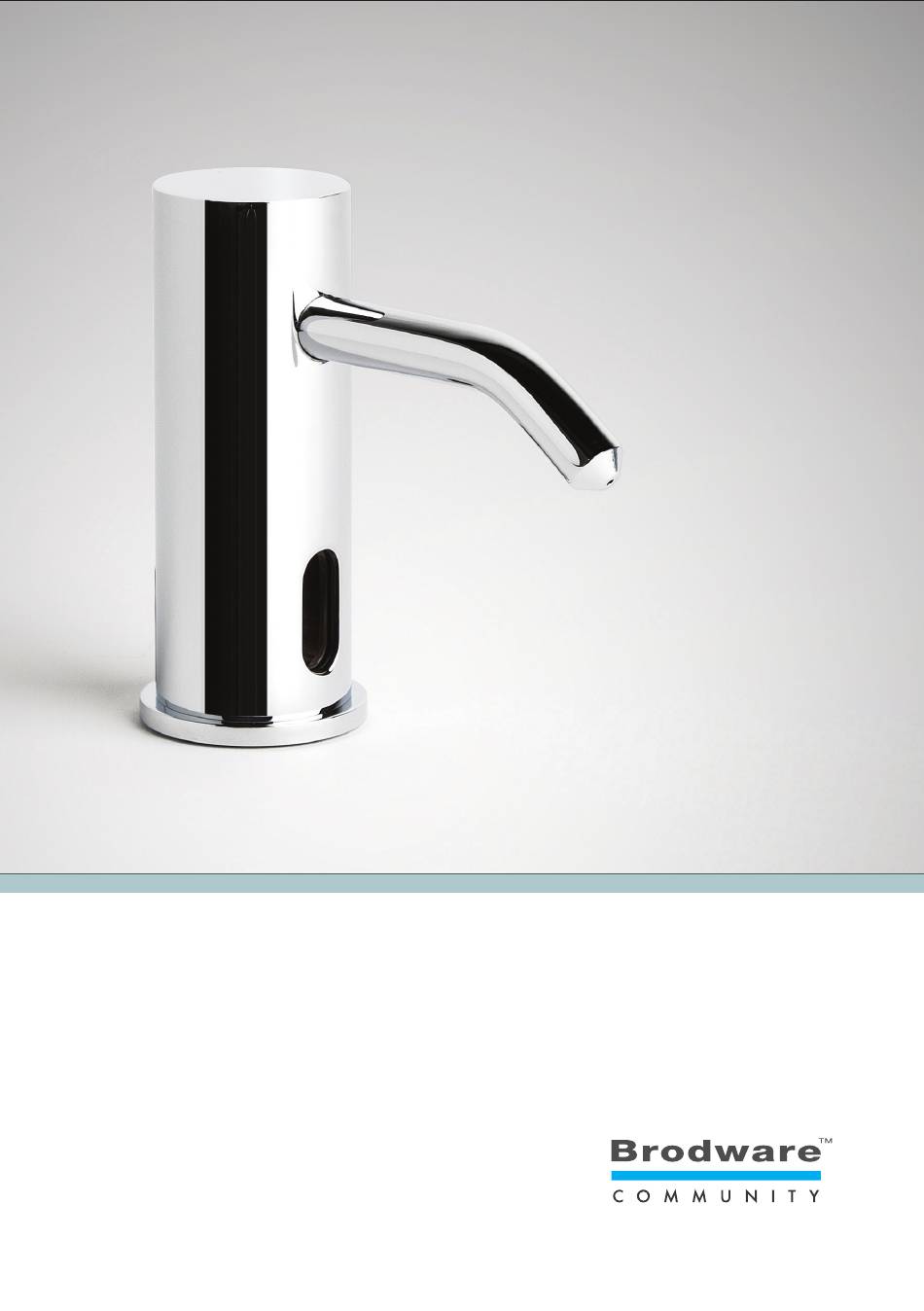

- Page 1 Basin Mounted Electronic Soap Dispenser Model: C27.52.T22 Installation & Maintenance Guide...
- Page 2 Thankyou for your purchase of a Sensor Soap Dispenser from Brodware To ensure correct operation of the tap for years to come, please carefully read and understand the following installation and maintenance instructions before commencing the installation of your sensor tap.
-
Page 3: Table Of Contents
Index Technical Data Pre-Installation Instructions Installation Filling the Soap Tank Settings Adjustment Maintenance Troubleshooting Warranty Maintainence Notes... -
Page 4: Technical Data
Technical Data Basin mounted electronic soap dispenser. Capacity: 1 Litre Power Supply: 240V-9V Transformer Soap viscosity: 100 – 3800 cPs Standard discharge: Adjustable 0.2-2.3cc Technical Drawing Pg 4... -
Page 5: Pre-Installation Information
Pre-Installation Information Check Contents Make sure all parts are accounted for before discarding any packaging. If any parts are missing, do not attempt to install the soap dispenser until you obtain the missing parts. Warning Do not install the system facing a mirror or reflective surface or any other electronic system operated by an infra-red sensor. -
Page 6: Installation
Installation Installation instructions for C27.52.T22.B – C27.52.T22.M Step 1 – Remove mounting hardware Remove the the fixing nut, stainless steel washer and rubber gasket from the base of the soap dispenser body. Step 2 – Installing the soap dispenser 1. Place the soap dispenser body along with the trim ring into the hole in the in the basin or bench top. - Page 7 Installation Continued If you have purchased the Brosmart soap dispenser together with a bottle support kit, please follow parts 3-6, if not please proceed to part 8. Step 2 – Continued 3. Unscrew the two screws at the top of the soap dispenser pump. 4.
- Page 8 Installation Continued Step 2 – Continued 6. Screw the tube from the pump to the soap dispenser. 7. Connect the extension cable. 8. Screw in the nut at the top of the soap dispenser pump assembly to the soap dispenser body nipple. Pg 8...
-
Page 9: Step 3 - Connecting The Power Source
Installation Continued Step 3 - Connecting the power source Important: this product was supplied with a self adjusting sensor. The ideal sensor range for the specific location will be set automatically. When connecting power for the first time make sure that there are no objects within the sensor range. -
Page 10: Filling The Soap Tank
Filling the Soap Tank 1. Unscrew the 5. Press the refill soap bottle button located at from the pump the back of the assembly. pump assembly until soap starts coming out of the soap dispenser spout. This 2. Fill the bottle with operation can also soap liquid. -
Page 11: Settings Adjustment
Settings Adjustment with a Remote Control The remote control can be used to adjust the soap dispensers settings. Hold the remote control directly in front of the sensor at a distance of about 10 - 15cm. Choose the function you want to adjust by pressing on the function button as following: 1. -
Page 12: Maintenance
Maintenance Care and cleaning of chrome and special finishes The Brodware product you have purchased has been designed to provide many years of dependable service. However, the finish, as on all plumbing products, requires care to be taken to retard the wear that will eventually occur. -
Page 13: Troubleshooting
Trouble Shooting PROBLEM INDICATOR CAUSE SOLUTION Soap is not Red light in the sensor The soap bottle is empty or low. Refer to page 4 and refill coming out of flashes (once) and the the soap bottle. the dispenser. pump is operating. The soap bottle has been filled but Press the refill button soap has not reached the spout. -
Page 14: Warranty
This product is covered by a limited warranty of two years from date of purchase. During this period, Brodware undertakes, at its option, to repair or replace any faults caused by defective materials or manufacturer defaults that may arise (see Brodware Warranty). -
Page 15: Maintainence Notes
Maintenance Notes Pg 15... - Page 16 2 St James Place Seven Hills NSW 2147 PO Box 610 Seven Hills NSW 1730 Australia T: +61 2 9421 8200 F: +61 2 9421 8202 E: sales@brodware.com.au www.brodware.com.au...
