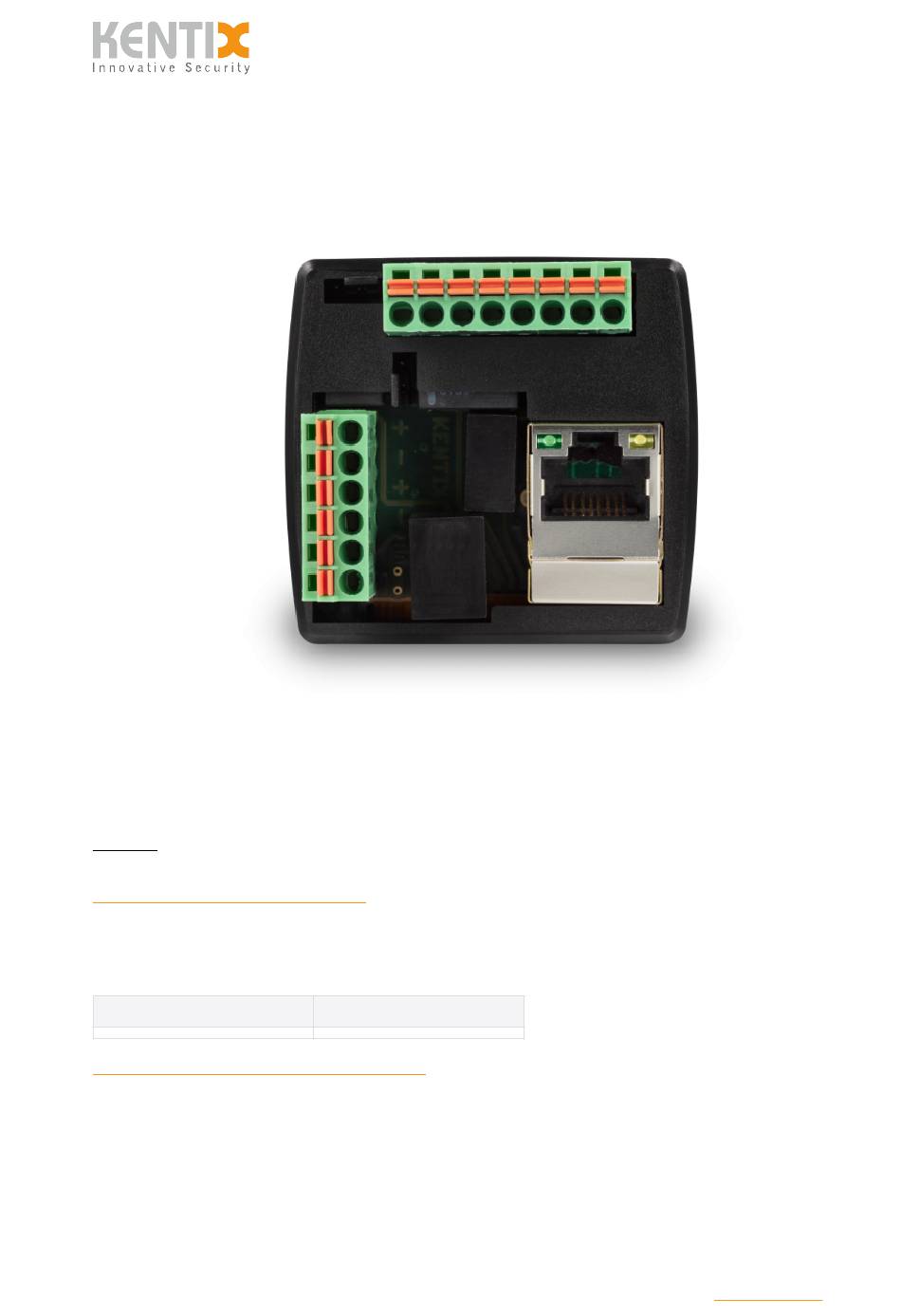

AccessManager (Bus) – MANUAL | 1
ORDER-CODES:
KXP-2-RS
DATASHEET ACCESSMANAGER BUS
KentixONE Operating mode
SiteManager Operation
Stand-alone operation
Further information on the operating mode
Overview

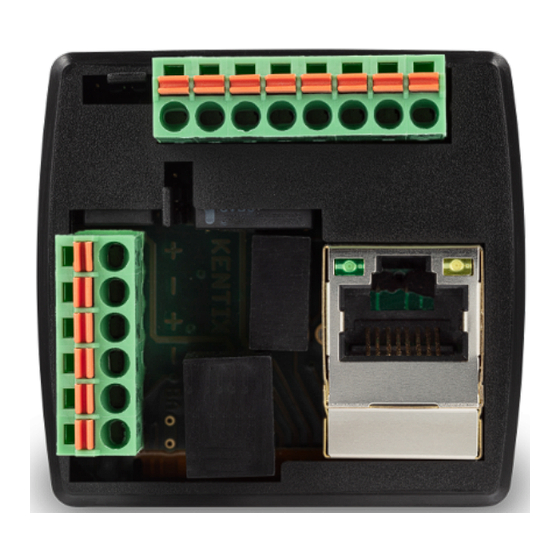

The Kentix AccessManager (Bus) is the management unit for wired Kentix DoorLock components
such as wall readers (DoorLock-WA) or rack locks (DoorLock-RA4). The AccessManager is network-
compatible and is supplied with power via Power over Ethernet (PoE). The AccessManager has an
© Kentix GmbH. This file was automatically generated on 2024-12-06 15:38:52. Please visit
docs.kentix.com
for the
latest documentation.
Advertisement
Summary of Contents for Kentix AccessManager Bus
- Page 1 Further information on the operating mode Overview The Kentix AccessManager (Bus) is the management unit for wired Kentix DoorLock components such as wall readers (DoorLock-WA) or rack locks (DoorLock-RA4). The AccessManager is network- compatible and is supplied with power via Power over Ethernet (PoE). The AccessManager has an ©...
-
Page 2: Safety Instructions
Kentix accepts no liability for damage to the equipment or components resulting from incorrect installation. No liability is accepted for incorrectly programmed units. Kentix shall not be liable in the event of malfunctions, damage to property or other damage. Use of the products, transport and storage Protect the device during transport, storage and operation from Protect moisture, dirt and damage. -
Page 3: Connection And Operating Elements
The power supply of the AccessManager is exclusively via PoE. Terminal block 1 Function connection Digital input DI 1 (For potential-free wiring, e.g. door contact) © Kentix GmbH. This file was automatically generated on 2024-12-06 15:38:52. Please visit docs.kentix.com for the latest documentation. - Page 4 (+) 24VDC (power supply RFID reader) (-) GND (power supply RFID reader) BUS-B (communication line to RFID reader) BUS-A (communication line to RFID reader) Terminal block 2 © Kentix GmbH. This file was automatically generated on 2024-12-06 15:38:52. Please visit docs.kentix.com for the latest documentation.
- Page 5 AccessManager (Bus) – MANUAL | 5 Reset button MicroSD card slot © Kentix GmbH. This file was automatically generated on 2024-12-06 15:38:52. Please visit docs.kentix.com for the latest documentation.
- Page 6 AccessManager (Bus) – MANUAL | 6 Mounting on 35mm DIN rail Wiring diagram SmartRelay with RFID wall reader © Kentix GmbH. This file was automatically generated on 2024-12-06 15:38:52. Please visit docs.kentix.com for the latest documentation.
- Page 7 10W power. If more power is required for control, the locks must be supplied with power via an external power supply unit. The advantage of using the splitter and PoE is the simultaneous © Kentix GmbH. This file was automatically generated on 2024-12-06 15:38:52. Please visit docs.kentix.com for the latest documentation.
- Page 8 AccessManager. This makes the system unstable and the power supply to the electric strikes must be provided by a sufficiently dimensioned external power supply unit. © Kentix GmbH. This file was automatically generated on 2024-12-06 15:38:52. Please visit docs.kentix.com for the...
- Page 9 In this context, inevitability means that the alarm system or an alarm zone can only be armed if, for example, all windows/doors are closed and the alarm system © Kentix GmbH. This file was automatically generated on 2024-12-06 15:38:52. Please visit docs.kentix.com for the latest documentation.
- Page 10 When controlling an external alarm system, the AccessManager can only control one door, as the second relay is required to switch the alarm function. However, two readers (door inside/outside) can still be used. © Kentix GmbH. This file was automatically generated on 2024-12-06 15:38:52. Please visit docs.kentix.com for the...
-
Page 11: Reset To Factory Settings
The device loads the factory settings and performs a restart. After approx. 2 minutes, the device can be reached with the factory settings. All existing settings and data will be irrevocably deleted ! © Kentix GmbH. This file was automatically generated on 2024-12-06 15:38:52. Please visit docs.kentix.com for the... - Page 12 Before you start the configuration, make sure that the software is up to date on all network-enabled Kentix devices. The version status must be the same on all devices. You can download the latest software here: KentixONE © Kentix GmbH. This file was automatically generated on 2024-12-06 15:38:52. Please visit docs.kentix.com for the latest documentation.
