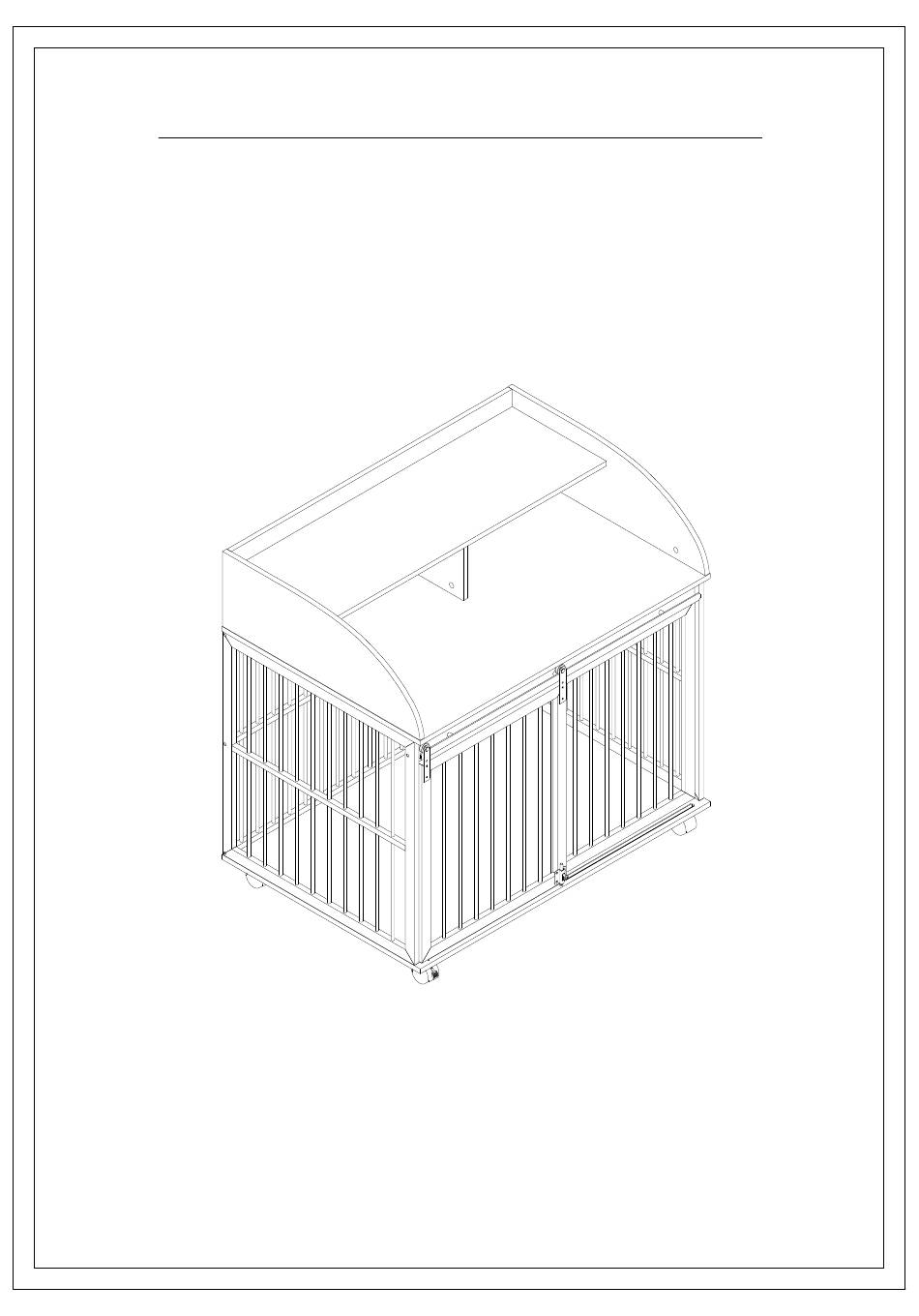

ASSEMBLY INSTRUCTIONS
NOTE: 50% TIGHTEN BEFORE FIXING ALL BOLTS
WF323361AAD

Advertisement

loading
Need help?

Need help?

Do you have a question about the WF323361AAD and is the answer not in the manual?

Questions and answers

Related Manuals for Go WF323361AAD

Summary of Contents for Go WF323361AAD

  • Page 1 ASSEMBLY INSTRUCTIONS NOTE: 50% TIGHTEN BEFORE FIXING ALL BOLTS WF323361AAD...
  • Page 2 Notice: 50% Tighten before fixing all screws, Allen wrench is recommended instead of an electric drill. Place the item on a flat ground to adjust and make sure it remains stable. Tighten up all screws with tools gradually. If the screws are not aligned with holes during assembly, please loosen all the other screws to 50% and continue the assembly process.

  • Page 3: Part List

    PART LIST Top Shelf Panel (1PC) Right Panel (1PC) Left Panel (1PC) Center Panel (1PC) Top Panel (1PC) Right Left Right Bottom Panel (1PC)

  • Page 4: Hardware List

    HARDWARE LIST Big Cam Lock (31PCS) Cam Bolt (29PCS) Extra 2pcs Extra (2pcs) Cam Bolt (2PCS) Extra (2pcs) Bolt Bolt 1/4" x 25mm (28PCS) Bolt 1/4" x 38mm (6PCS) Lock The Door (1PC) Extra (2pcs) Allen Key 4mm (1PC) Bamn door roller (2PCS) Locking Caster (2PCS)
  • Page 5 HARDWARE LIST Swivel Caster (3PCS)
  • Page 6 CARTON CONTENT: WF323361AAD: A Top Shelf Panel (1PC) B Right Panel (1PC) C Left Panel (1PC) E Center Panel (1PC) F Top Panel (1PC) G Right H Left Right...
  • Page 7 CARTON CONTENT: WF323361AAD: N Bottom Panel (1PC)
  • Page 8 STEP 1 15 pcs Cam Bolt STEP 2 TURN OVER 14 pcs Cam Bolt...
  • Page 9 STEP 3 2 pcs Cam Bolt STEP 4 Ø8x30mm Wood Dowel 2 pcs 2 pcs Cam Lock...
  • Page 10 STEP 5 Ø8x30mm Wood Dowel 5 pcs 3 pcs Cam Lock STEP 6 Ø8x30mm Wood Dowel 8 pcs 6 pcs Cam Lock...
  • Page 11 STEP 7 Ø8x30mm Wood Dowel 10 pcs 8 pcs Cam Lock STEP 8 (13) 3 pcs Allen Key 4mm 1 pc Bolt 1/4" x 25mm...
  • Page 12 STEP 9 Ø8x30mm Wood Dowel 4 pcs 2 pcs Cam Lock STEP 10 (13) Allen Key 4mm 4 pcs 1 pc Bolt 1/4" x 25mm...
  • Page 13 STEP 11 (13) (13) (13) 1 pcs 3 pcs Bolt Bolt 1/4" x 38mm 3 pcs Allen Key 4mm 1 pc Bolt 1/4" x 25mm STEP 12 (13) (13) (13) 1 pcs Bolt 3 pcs Bolt 1/4" x 25mm 3 pcs Allen Key 4mm 1 pc Bolt 1/4"...
  • Page 14 STEP 13 (13) 2 pcs Cam Lock 3 pcs Allen Key 4mm 1 pc Bolt 1/4" x 25mm STEP 14 (13) 12 pcs Allen Key 4mm 1 pc Bolt 1/4" x 25mm...
  • Page 15 STEP 15 (16) (11) (15) 20 pcs STEP 16 (14) (10) 4 pcs...
  • Page 16 STEP 17 (12) 2 pcs STEP 18 3 pcs...
  • Page 17 COMPLETE...
