Summary of Contents for ElektroPhysik StratoTest 4500 C

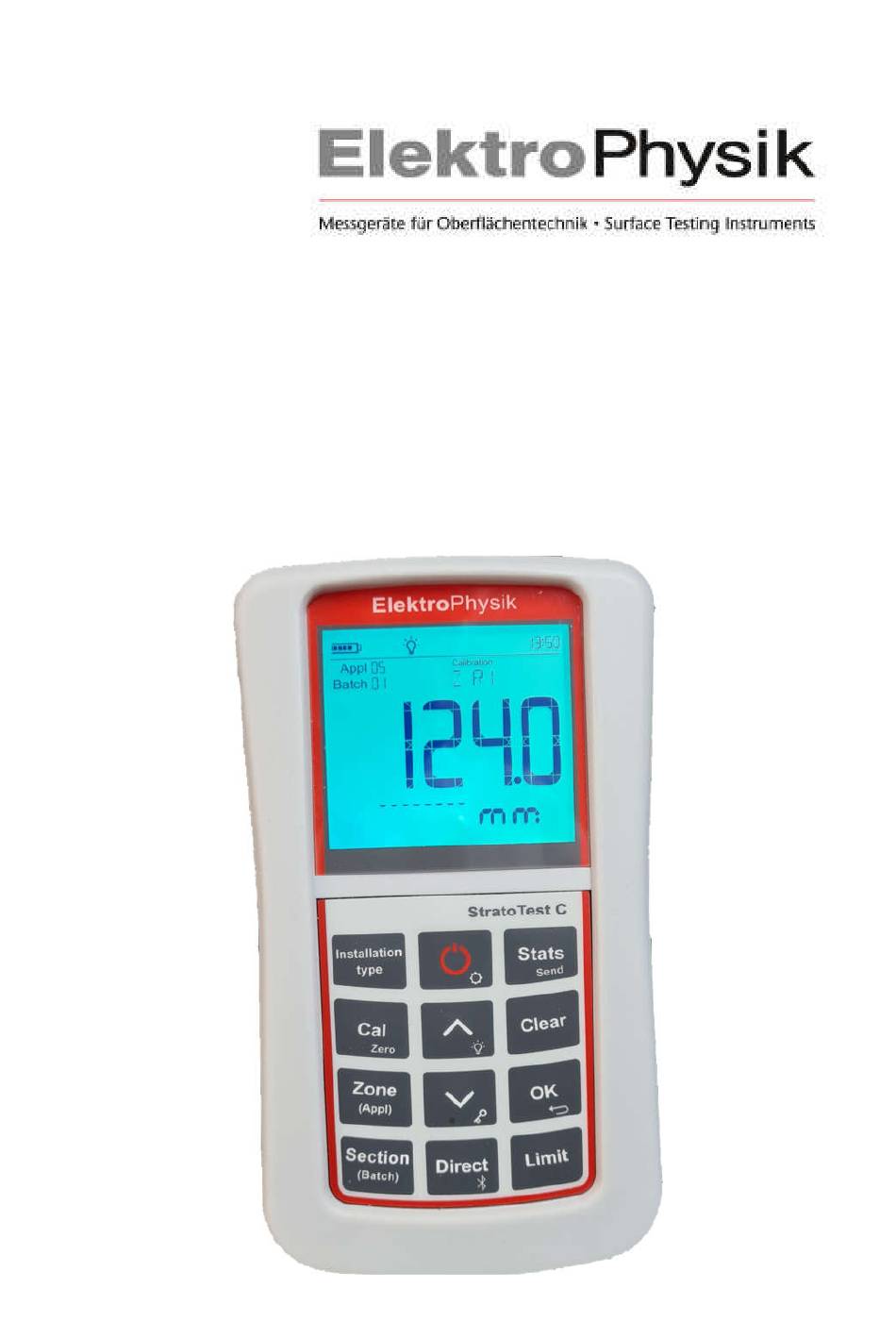

- Page 1 Technical manual and operating instructions Thickness Gauge StratoTest 4500 C...
- Page 2 © ElektroPhysik lektroPhysik Dr: Steingroever & Co. KG GmbH Version 1.1 2023.09.07 Pasteurstr. 15 StratoTest 4500 C software version: from 1.1.8 50735 Cologne Sensor software: from 1.0 Internet: https://www.elektrophysik.com B65-N Mail: info@elektrophysik.com Technical changes reserved. © ElektroPhysik StratoTest 4500 C...
-
Page 3: Table Of Contents
Mechanical preparation....................12 Measuring, Storage and Data Processing in Direct or Zone-Section mode .... 13 General information on the functioning of the StratoTest 4500 C ........13 Operation of the gauge ....................13 Structure of the Zone–Section system ................14 Switching Zone-Section mode on / off ................ - Page 4 13.2.3 Keyboard light ......................36 13.2.4 Sound - acoustic signal ..................36 13.2.5 Time format ......................36 13.2.6 Time and date ......................36 13.2.7 Measuring unit: ‘metrical’ - Inch’ (imperial) ............. 37 © ElektroPhysik StratoTest 4500 C 4 of 52...
- Page 5 13.2.22 „POWER OFF“ Switch off time ................40 13.2.23 SYSINFO ....................... 40 13.2.24 "MEASURING" - Measuring speed ................ 40 13.3 Table of basic settings for StratoTest 4500 C ............41 Care and maintenance ....................42 14.1 Care ..........................42 14.1.1 Handling NiMH batteries ................... 42 14.2 Maintenance........................
- Page 6 Contents Index ..........................52 © ElektroPhysik StratoTest 4500 C 6 of 52...
-
Page 7: Scope Of Delivery
IP 65. StratoTest 4500 C is equipped with a USB interface for wired connection to notebooks and PCs, as well as a Bluetooth interface. The Bluetooth function enables wireless data transfer to mobile devices such as smartphones and laptops. -
Page 8: Getting Started
2. Getting started 2. Getting started 2.1 Switch on the StratoTest 4500 C and take readings Press the red ON-OFF key to switch the gauge on The gauge is now switched to measuring mode (see illustration.) and is ready to measure. -
Page 9: Description Of The Measuring System
Key to calibrate to the brick thickness / double assignment Zero calibration on the uncoated steel shell (Zero). Activation key for Zone-Section (Appl) Mode Key to access a subgroup Section (Batch) within a Zone (Appl) © ElektroPhysik StratoTest 4500 C 9 of 52... -
Page 10: Operating Keys
3. Description of the measuring system 3.1.3 Operating keys StratoTest 4500 C is equipped with a generous keypad. One key pressure is sufficient to access functions like calibration, limit setting, and display of statistics. The ON-OFF-key serves to switch the gauge on or off. Switching the gauge on by simultaneously... -
Page 11: Preparing The Gauge For Operation
Close the battery compartment and fix the lid with the screws. The thickness gauge StratoTest 4500 C is powered by three alkaline-manganese batteries 1.5V, type AA / LR6 (included in standard supply); alternatively, the gauge can be operated on rechargeable NiMH batteries type AA / HR6. -
Page 12: Usb Power Supply
4.2 USB power supply The StratoTest 4500 C gauge can also be powered via the USB interface as an alternative to using batteries or rechargeable batteries. Even with batteries inserted, power is supplied via the USB interface when the gauge is connected via USB. -
Page 13: Measuring, Storage And Data Processing In Direct Or Zone-Section Mode
The metal reflector can be made of steel as well as of nonferrous metal such as stainless steel. The StratoTest 4500 C gauge offers two operating modes: the ‘Direct’-mode and the ‘Zone- Section’-mode. Direct-Mode ‘DIRECT mode’... -
Page 14: Structure Of The Zone-Section System
(see also section 13.2.22 initial settings). 5.3 Structure of the Zone–Section system StratoTest 4500 C generally group reading in series of measurements in one memory batch. StratoTest 4500 C features one DIRECT memory and 99 Zone memories (Zone/ APPL) combined with 99 memories for series of measurements (Section / Batch). -
Page 15: Switching Zone-Section Mode On / Off
Measuring, Storage and Data Processing in Direct or Zone-Section mode With StratoTest 4500 C 99 Zone (Appl) memory columns subdivided in 99 Section (Batch) memory columns each, i.e. 9,801 memories in total, are available. Several million readings can be logged to the memory. -
Page 16: Selection Of An Zone Memory
ARROW key longer while browsing, you can quickly scroll through the occupied groups. When you reach the first section (Batch) number, the display stops. It appears, for example, < Appl 03 : Batch 08 >. Press the Section (Batch) key. © ElektroPhysik StratoTest 4500 C 16 of 52... -
Page 17: Working In Zone Section - Mode
10 10 11 11 11 12 12 12 360° Length of the kiln lining Note: A separate calibration must be performed for each Zone! © ElektroPhysik StratoTest 4500 C 17 of 52... -
Page 18: Calibrate And Measure In Zones With Multiple Sections
2 5 (max.) 3 6 3 6 3 6 360° Length of the kiln lining Note: A separate calibration must be performed for each Zone! © ElektroPhysik StratoTest 4500 C 18 of 52... -
Page 19: Calibrate
The zero calibration is usually not necessary for cement rotary kilns. However, if the zero calibration must be performed, perform it on an uncoated metal surface of at least 1m x 1m with the same radius of curvature as the measured object. © ElektroPhysik StratoTest 4500 C 19 of 52... -
Page 20: Calibration Process
Set the calibration value of the flashes reference drill, e.g. 121,5mm Press the „OK“ key to save the calibration value. Calibration is flashing finished. „Calibration“ stops flashing stopped and „C“ is displayed. © ElektroPhysik StratoTest 4500 C 20 of 52... -
Page 21: Delete Calibration And Activate Factory Default Setting
The factory default setting is not suitable for thickness measurement of contaminated bricks or other layered materials. With the standard calibration, only the air gap to a metal surface of >1m x >1m can be measured. © ElektroPhysik StratoTest 4500 C 21 of 52... -
Page 22: Interrupt A Calibration
Press the Cal- key, calibration is initiated. Press the OK key, the calibration value is accepted. Press and hold the OK / Cancel key Calibration mode is interrupted, the previous calibration remains unchanged. © ElektroPhysik StratoTest 4500 C 22 of 52... -
Page 23: Calibration And Measurement For Special Applications
In order to obtain reproducible measured values, the display minimum must be sought for calibration and measurement in each case. Key sequences Display StratoTest 4500 C has 2 installation types with different calibration characteristics Installation type R1 for bricklaying without bonded steel sheets and installation type R2 for bricklaying with bonded steel sheets. - Page 24 „CAL key“ and subsequently the „CLEAR key“ 2. After switching off and on again, the last calibration is retained. 3. After the ZERO calibration has been performed, a CAL calibration must still be performed. © ElektroPhysik StratoTest 4500 C 24 of 52...
-
Page 25: Measuring
If an unexpectedly low measured value is displayed, the probe may be positioned near or above a keying shim. This measured value is then incorrect. The new measuring point should be repeated at least 0.5m away from the keying shim. © ElektroPhysik StratoTest 4500 C 25 of 52... -
Page 26: Data Management
10.1.1 General StratoTest 4500 C is equipped with unique data processing capabilities. StratoTest 4500 C stores measured values, calibration, statistics and setting parameters as a related data set in measurement series, i.e. in each measurement series, in addition to the measured values, calibration, parameters and statistics related to the measurement series are permanently assigned to this series. -
Page 27: Color Hi-Limit" - Color Setting Of The Display Illumination When The Limit Value Is Exceeded
Two different statistical evaluations are available: Single value statistics and block value statistics (DIN 50982). In the Zone-Section structure (see section 5.2), the StratoTest 4500 C version calculates the respective statistical values from max. 9801 stored measurement series. The number of stored measurement values in a measurement series depends only on the size of the internal memory. -
Page 28: Recording Of A Measurement Series With Statistics Calculation
To continue a measurement series in the Zone Section memory after switching off the device, simply switch the device back on and continue the measurement series. © ElektroPhysik StratoTest 4500 C 28 of 52... -
Page 29: Delete Outlier Or Incorrect Measurement
E22 "FILE ERROR" appears. Delete the Appl batch memory that is not required. 10.9 Display or print statistics of a measurement series The StratoTest 4500 C is equipped with a USB and Bluetooth interface. The stored measurement and statistical values of a measurement series can optionally: ... -
Page 30: Block Value Statistics
10.10.2 Block value statistics In the „Block value statistics“ mode (switchover see 13.2.1), the statistics values can be displayed or printed out exactly as under 10.10.1! © ElektroPhysik StratoTest 4500 C 30 of 52... -
Page 31: Delete Functions
All measured values and settings of the selected measurement series are irretrievably deleted, i.e. there is no possibility to restore deleted data. 11.4 Deleting the limits in a Zone Section group Example Zone Section Group <2:3>. © ElektroPhysik StratoTest 4500 C 31 of 52... -
Page 32: Deleting All Series Of Measurements With Statistical, Limit And Calibration Values Under A Zone No
Press and hold down the CLEAR and On/Off key in succession. The display shows „NO“ and „TOTAL RESET“ flashing red. Select „YES“ with the arrow key and confirm with the OK key. A signal tone confirms the deletion process © ElektroPhysik StratoTest 4500 C 32 of 52... -
Page 33: Data Output And Transfer
MSoft7000 via USB cable or wireless Bluetooth. The Bluetooth interface of the PC (operating system Windows) must be paired with the StratoTest 4500 C to allow data transfer and MSoft 7000 program must be set to interface Bluetooth. For the transfer via the USB interface it is necessary for Windows 7 and 8 to install the driver "Virtual comport driver"... -
Page 34: Read Out Data Via A Pc
(MSOFT 7000). 12.3 Read out data via a PC Connected to a PC, the StratoTest 4500 C measuring device behaves like a USB mass storage device, e.g. a USB memory stick. The recorded measured values are stored as a CSV file (BATCH_01.csv) in StratoTest 4500 C with reference to the corresponding application and... -
Page 35: Further Functions
13. Further functions 13. Further functions 13.1 Initial functions Initial functions and settings Some functions of the StratoTest 4500 C can only be entered / activated during switch on. Table of initial functions Function Key sequence Total-Reset + Clear + ON... -
Page 36: Blocksize
The setting “TIME/DATE” allows to visualize and set the time and date. StratoTest 4500 C feature a quarz-controlled watch for time and date. The current time is displayed in the right part of the status line in the display. This clock also serves to log the dated and time of settings and of the last change in a batch (Batch). -
Page 37: Measuring Unit: 'Metrical' - Inch' (Imperial)
The parameter “TIMESTAMP” activates (ON) or deactivates (OFF) the time and date stamp for recording of a measuring value. If set to ON each measuring value will be logged to the batch along with time and date. For example. 18 Fe 0.7 at 15/05/18 10:36:38 © ElektroPhysik StratoTest 4500 C 37 of 52... -
Page 38: Color Reading: Setting Of Display Colours For Measurements
13.2.17 Pairing of a BLUETOOTH printer To set up a Bluetooth connection between data printer MiniPrint 7000 BT and StratoTest 4500 C, it is necessary to pair the devices once. Select the parameter “BLUETOOTH PRINTER” using the “... -
Page 39: Configuration Of Data Output Interface For Direct Data Output
“COMMA mils“ mils Point “DOT mils“ Datenspeicherung deaktiviert “OFF“. 13.2.20 SENSOR INIT – Adaption to older sensors For adaption of sensors from the StratoTest 4500 C 4100C gauge family refer to section 3.2.1 © ElektroPhysik StratoTest 4500 C 39 of 52... -
Page 40: Battery Type" Setting
(otherwise actual layer thickness variations distributed on the surface are displayed!; For freehand measurements, the "normal" setting is perfectly adequate. © ElektroPhysik StratoTest 4500 C 40 of 52... -
Page 41: Table Of Basic Settings For Stratotest 4500 C
13. Further functions 13.3 Table of basic settings for StratoTest 4500 C StratoTest 4500 C BLOCKSIZE 1 , 2 … 99 BACKLIGHT 20% 40% 60% 80% 100% KEYBOARD LIGHT AUTO OFF ON SOUND HIGH LOW OFF CLOCK 24h 12h TIME/DATE... -
Page 42: Care And Maintenance
(cycles). Remove the NiMH batteries from the StratoTest 4500 C if it is not to be used for a long period of time. Even when the StratoTest 4500 C is switched off, a small current can flow which, after a longer period of time, leads to a deep discharge of the NiMH batteries and damages them. -
Page 43: Technical Data
Technical data 15. Technical data 15.1 Gauge specification StratoTest 4500 C Data storage in StratoTest 4500 C - Total storage capacity of Plus 2.000.000 single readings 9801 - Max. number of measurement series - Number of application memories for measurement... -
Page 44: Sensor Specifications
Ambient temperature: Sensor: 0°...70° C Subject to technical change without notification with calibration based on thickness values verified through drilling or measurement of the residual brick thickness) conforming to DIN 55350 part 13 © ElektroPhysik StratoTest 4500 C 44 of 52... -
Page 45: Standard Supply
Technical data 15.3 Standard supply 15.3.1 Thickness gauge StratoTest 4500 C with interchangeable probe Description Part no. Gauge StratoTest 4500 C with display illumination 80-254-0100 including: Rubber protection case for gauge Probe, Measuring range 30 cm Connection cable for probe and gauge ... -
Page 46: Annexe
E 19: BT-CONNECTION FAILED Bluetooth data transmission error. CALIBRATION FAILED SD Card FAULTY The internal SD memory card is faulty. FILE ERROR The internal memory could not be read or written to. © ElektroPhysik StratoTest 4500 C 46 of 52... -
Page 47: Statistics Terms
σ Coefficient of variation (Var. coeff.) The coefficient of variation is the standard deviation divided by the arithmetic mean; it is given as a percentage. 100 © ElektroPhysik StratoTest 4500 C 47 of 52... -
Page 48: Safety Instructions
The measuring device is not waterproof. Store it in a dry place. Das Bild kann nicht angezeigt werden. Do not use in potentially explosive atmospheres Qualified customer service Only qualified service personnel may repair the meter. In medical facilities, clarify hazards before use © ElektroPhysik StratoTest 4500 C 48 of 52... -
Page 49: Declaration Of Conformity According To The Eu Directive
2014/53/EU (RED) vom 16. April 2014 2011/65/EU (RoHS) vom 8. June 2011 2012/19/EU (WEEE) vom 4. Juli 2012 registration number 66544799 ElektroPhysik GmbH & Co. KG Pasteurstr. 15 50735 Cologne, Germany declare under sole responsibility that the products of the series:... -
Page 50: Service Addresses
Annexe 16.6 Service addresses The thickness gauges of the StratoTest 4500 C model series are manufactured using high-quality components according to state-of-the-art methods. Careful intermediate controls and a quality management system certified according to DIN EN ISO 9001 ensure optimum manufacturing quality of the instrument. -
Page 51: Change History
Change history 17. Change history This chapter describes current changes or additions, if any. Otherwise, this chapter remains empty. © ElektroPhysik StratoTest 4500 C 51 of 52... - Page 52 Display ..........36 Total Reset ........... 47 Illumination ........36 Transfer rate ......... 37 First use ..........35 USB Interface ........33 Identification data ........40 Varianz ..........47 Initial functions ........35 © ElektroPhysik StratoTest 4500 C 52 of 52...
