Summary of Contents for Blizzard BIM25

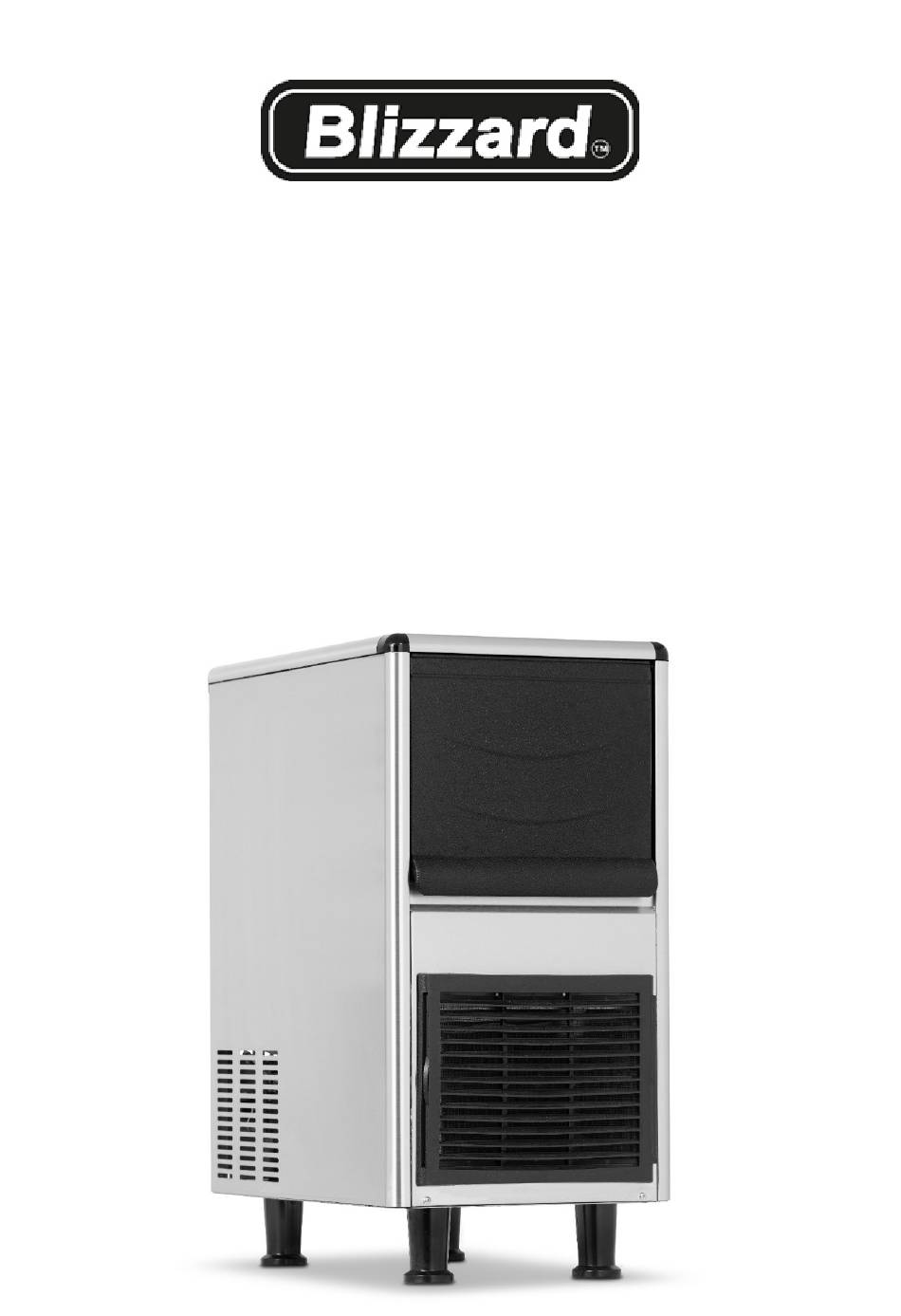

- Page 1 BIM25 Commercial Ice Maker User Manual for Installation and Maintenance...
-
Page 2: Table Of Contents
Self-Contained Ice Maker User Manual for Installation and Maintenance Table of Contents Important Information ........................1 Warning and safety instruction ......................2 General ............................3 Installation ............................3 Location for Installation ......................3 Schematic Diagram of Installation ..................... 4 Installation Steps ........................4 Startup and Operation ....................... -
Page 3: Important Information
Self-Contained Ice Maker User Manual for Installation and Maintenance Important Information Please pay attention to the following warning labels on the ice maker The label indicates a flammable foaming agent “Cyclopentane” used. There is a risk of fire. The label indicates a hazardous voltage. There is a risk of electric shock. -
Page 4: Warning And Safety Instruction
Self-Contained Ice Maker User Manual for Installation and Maintenance Warning and safety instruction substances in this ice machine, or it may This product cannot be used in an result in explosion or fire. outdoor environment. Do not store any sundries or freeze any ... -
Page 5: General
Self-Contained Ice Maker User Manual for Installation and Maintenance DANGER – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED.DO NOT USE ANY ELECTRICAL APPLIANCES IN THE ICE STORAGE BIN OF THE ICE maker with MAKER. flammable refrigerant R290: CAUTION – RISK OF FIRE OR ... -
Page 6: Schematic Diagram Of Installation
Self-Contained Ice Maker User Manual for Installation and Maintenance Schematic Diagram of Installation Drain connection must incorporate an air gap with no contact with the main drain connection to prevent ice contamination in the storage bin. -
Page 7: Installation Steps
Self-Contained Ice Maker User Manual for Installation and Maintenance Installation Steps 1. Check if the ice machine is in good be correctly installed as per the direction condition and the accessories are complete; marker on the filter head cover or the filter check the machine model and the machine body. -
Page 8: Operation Instruction
Self-Contained Ice Maker User Manual for Installation and Maintenance Operation Instruction the defrosting valve is turned on, and Startup: after proper installation, connect after the hot gas enters into the the water source and turn on the power evaporator for about 1-2 minutes, the ice supply, the machine will start working. -
Page 9: Instruction Of Control Panel
Self-Contained Ice Maker User Manual for Installation and Maintenance Instruction of Control Panel 1. LED Display: counterclockwise to make the ice thicker Self-check: Display “ini” code. and turn it up clockwise to make ice Preparing: Counting seconds positively. thinner. ... - Page 10 Self-Contained Ice Maker User Manual for Installation and Maintenance door. 8. If the ice maker is not in use for a long Note: Each time the water floating ball time, it should be energized and run for 2 is adjusted, the ice making time will be to 4 hours every 2 months.
-
Page 11: Maintenance
Self-Contained Ice Maker User Manual for Installation and Maintenance Maintenance further affecting the cooling effect. Note: Maintenance must be done by The condenser filter should be cleaned qualified professional personnel. every 2 weeks. Warning: Before maintenance or manual cleaning, be sure to cut off the water source and power supply. - Page 12 Self-Contained Ice Maker User Manual for Installation and Maintenance Note: Please empty the bin of ice in advance. Note: Please clean and sterilize the bin and complete rinsing. Note: Please clean and sterilize the ice sliding board, water distribution pipe, water supply pipe, then do complete rinsing.
-
Page 13: Service Call
Self-Contained Ice Maker User Manual for Installation and Maintenance Service Call If the ice machine works abnormally, please confirm below before making a service call: 1. Check the water supply whether there is water in the water trough. whether the water pressure for the ice machine is 0.13MPa to 0.55MPa; the water temperature is 5-35 °C. -
Page 14: Warranty
Self-Contained Ice Maker User Manual for Installation and Maintenance Water temperature is too high machine Check the water supply temperature of 5-35 °C Too much noise The ice machine is not placed Level the ice machine in a leveled foundation or the ice maker is not leveled. - Page 15 Self-Contained Ice Maker User Manual for Installation and Maintenance Caution! Consult repair manual/owner’s guide before attempting to install or service this product. All safety precautions must be followed. Dispose of properly in accordance with federal or local regulations. Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling instructions carefully.
- Page 16 Self-Contained Ice Maker User Manual for Installation and Maintenance Compliance Parts have undergone strict product testing in order to comply with regulatory standards and specification set by international, independent, and federal authorities. Products have been approved to carry the following symbol: Note: this Manual is subject to any technical change without further notice.
