Nuvo NV-T2 Specifications

ANTENNA IN AM/FM ANTENNA IN XM
NV-T2FXC SINGNAL
COMBINER
COMBINED
ANTENNA OUT
AUX IN OUT AUX IN OUT
USE ONLY NuVo
TRIGGER TRIGGER
NV-T2PAS
L ON=+12V L ON=+12V
POWERED ANTENNA SYSTEM
AUDIO AUDIO
R OUTPUT R OUTPUT
IN
ANTENNA INPUT TUNER B TUNER A
VARIABLE
VARIABLE VARIABLE VARIABLE
OUTPUT OUTPUT OUTPUT SPEAKER OUTPUT SPEAKER
SPEAKER SPEAKER
40W/6 OHMS X 2
40W/6 OHMS X 2 40W/6 OHMS X 2 40W/6 OHMS X 2
TIP=L TIP=L TIP=L TIP=L LEFT RIGHT
LEFT RIGHT LEFT RIGHT LEFT RIGHT
RING=R RING=R RING=R RING=R
FIXED FIXED FIXED FIXED
OUTPUT OUTPUT OUTPUT OUTPUT
ZONE 1 ZONE 2 ZONE 3 ZONE 4
1 2 3 4 5 6 1 2 3 1 2
CONNECT TO
NV-I8X
L L L
USE NV-SLC1
CABLE
R R R
4 5 6 5 6
1 2 3 4 5 6
SOURCE INPUTS SOURCE LINK SOURCE STATUS ZONE TRIGGER OUTPUTS
Diagram is shown with the NuVo Concerto System and NuVoNet.

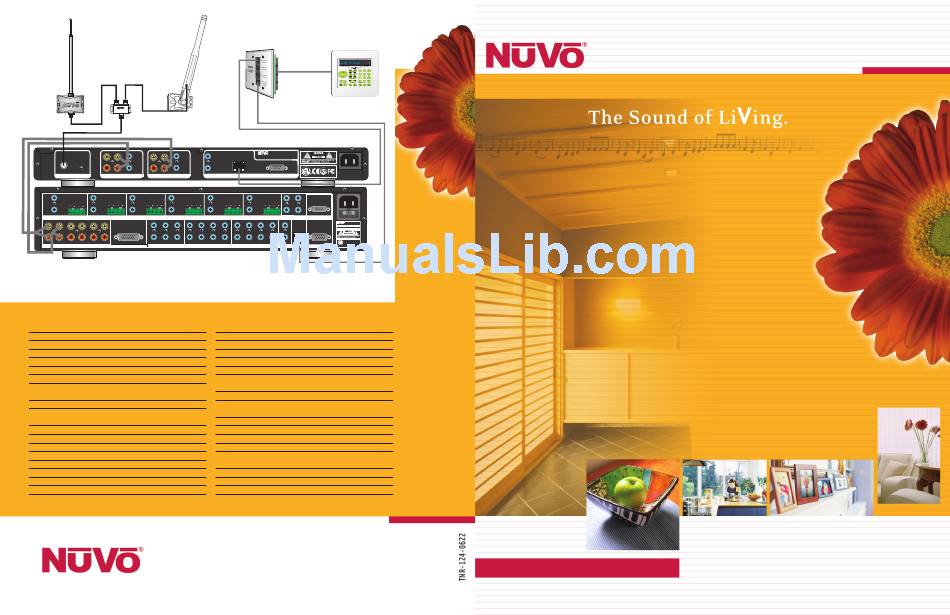

T2 Dual Tuner Wiring Diagram
FM Specifications
Tuning Range 87.5 to 108 MHz
IF Frequency 10.7 MHz
Usable Sensitivity, 30 dB S/N 14 dB µV
Auto Scan Sensitivity Adjustable
Image Rejection 50 dB Min.
Limiting Sensitivity 10 dB µV
XM Specifications
XM Band 2332.5 to 2345 MHz
Physical Specifications
Unit Size Millimeters 44 x 430 x 270
Unit Size Inches 1.75 x 17 x 10.625
Shipping Size Millimeters 110 x 520 x 345
Shipping Size Inches 4.33 x 20.48 x 4.33
Unit Weight Kilograms 3.4
Unit Weight Pounds 7.5
Shipping Weight Kilograms 4.5
Shipping Weight Pounds 10
NuVo reserves the right to change specifications without notice.
SYSTEM ON DO NOT DISTURB
Model NV-T2DF
NuVoNet Dual XM Tuner
IR PASS-THRU NuVo Techonlogies LLC•Cincinnati Ohio USA
www.nuvotechnologies.com
RS 232
IR INPUT
CM
SYSTEM
3033118
VARIABLE VARIABLE VAR.
OUTPUT SPEAKER OUTPUT
SPEAKER OUT
40W/6 OHMS X 2 40W/6 OHMS X 2 RS-232
TIP=L TIP=L
LEFT RIGHT LEFT RIGHT
RING=R RING=R
FIXED FIXED FIX.
OUTPUT OUTPUT OUT
ZONE 5 ZONE 6 ZONE 7 ZONE 8 PROGRAM USE CNLY WITH 250V FUSE
3 4 1 2 3 SYS ON
SUM1
CONNECT TO CONNECT TO MODEL NV-I8M
SIX SOURCE EIGHT ZONE
NV-I8EZP1 NV-I8X AUDIO DISTRIBUTION SYSTEM
120V 60Hz 500W FUSE:T5 A
USE NV-NC1 USE NV-SLC1 NuVo Technologies Cincinnati Ohio USA
CABLE CABLE www.nuvotechnologies.com
7 8 4 5 6 SUM2 EXT. MUTE CONFORMS TO
UL STD.6500
C US CERTIFIED TO
EMITTER OUTPUTS SYSTEM NETWORK DIGITAL LINK CAN/CSA STD.E60065
3033118
AM Specifications
Tuning Range 522 to 1720 kHz
IF Frequency 450 kHz
Usable Sensitivity 25 dB S/N
Auto Scan Sensitivity Adjustable
Image Rejection 50 dB Min.
Audio Specifications
Output level/Impedance Adjustable/560 ohms
General Specifications
Input Voltage 90-264V/ 50/60 Hz
Power Consumption, operating 10W Max.
Power Consumption, standby 3W Max.
Memory Backup Indefinite
Infrared Specifications
Input Voltage 3-15 V
Input Carrier Frequency 38 kHz nominal
Polarity Active High
www.nuvotechnologies.com
2395 Arbor Tech Drive, Hebron, KY 41048
Phone: 859-817-7200 Toll Free: 866-796-4904
Caution: NuVo may cause spontaneous dancing.
T2
Dual Tuner
